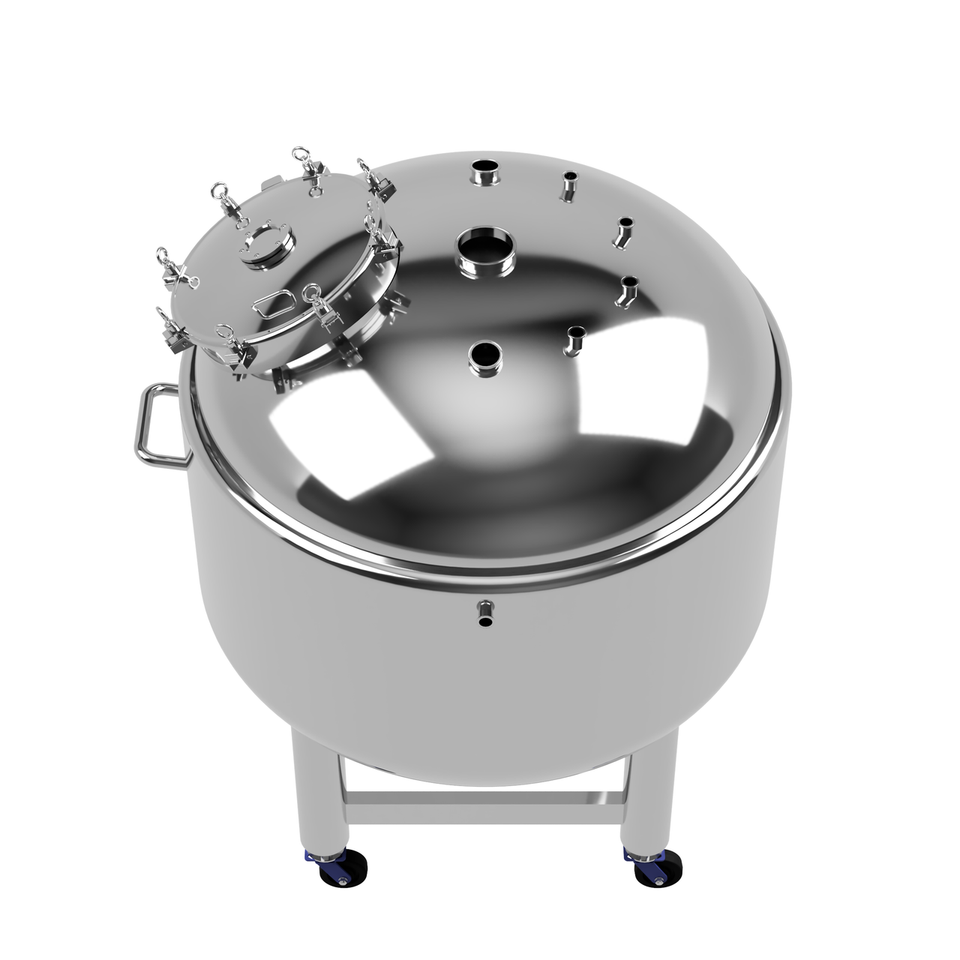

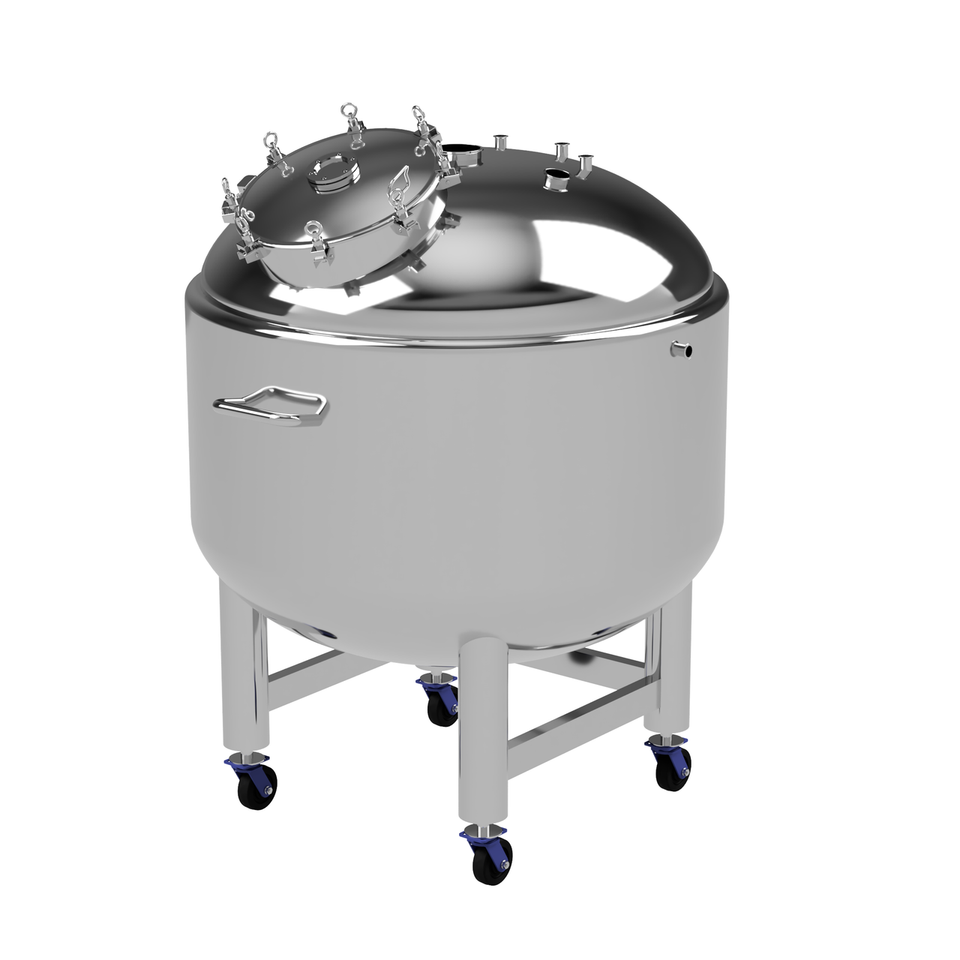

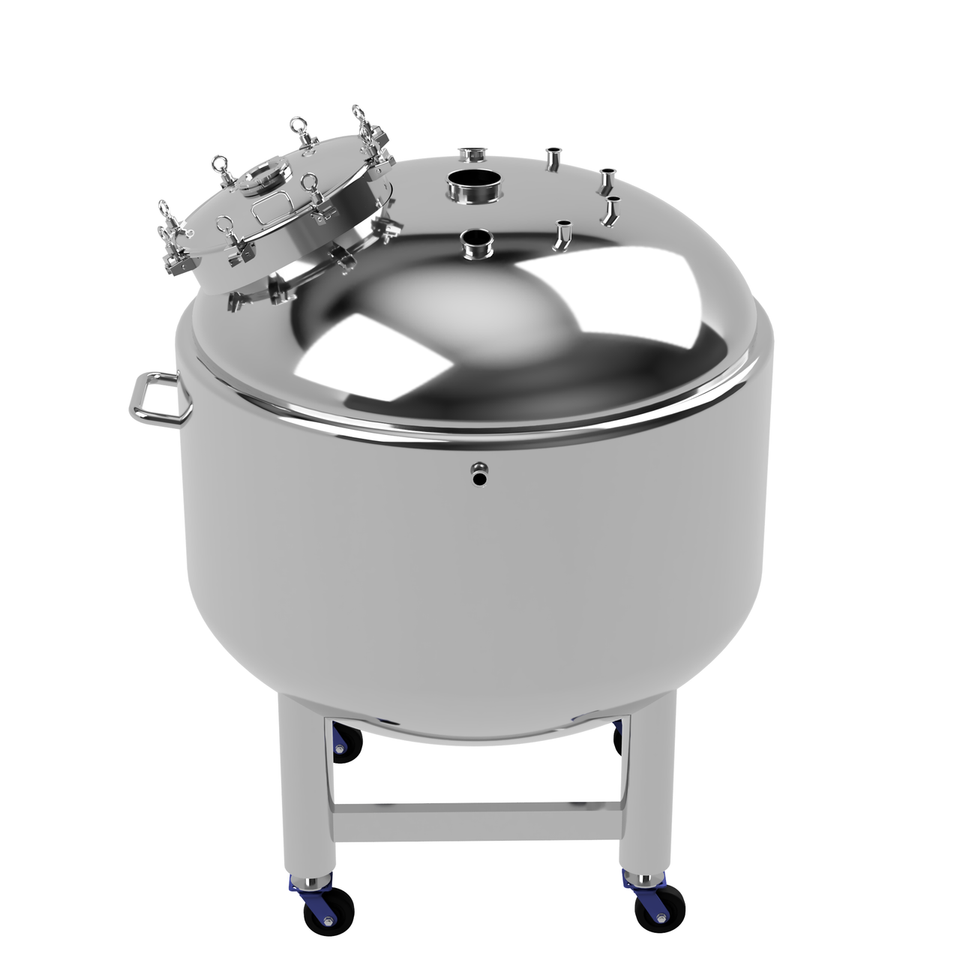

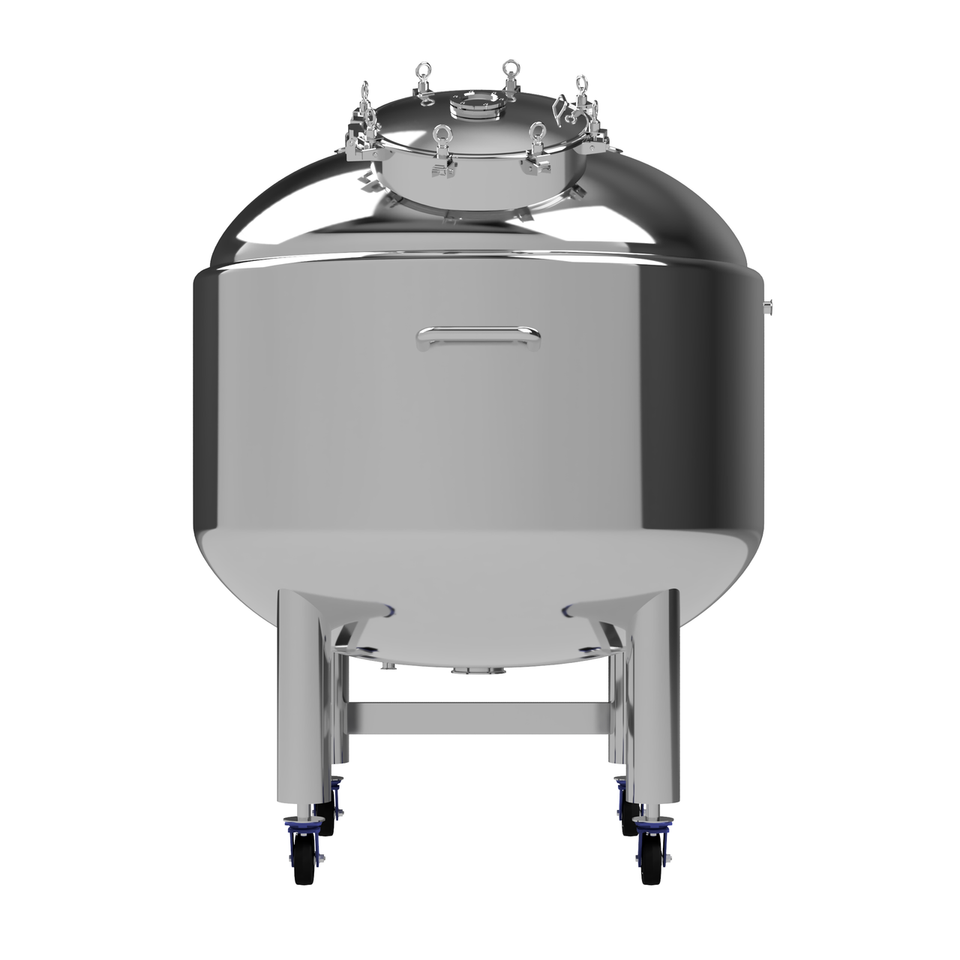

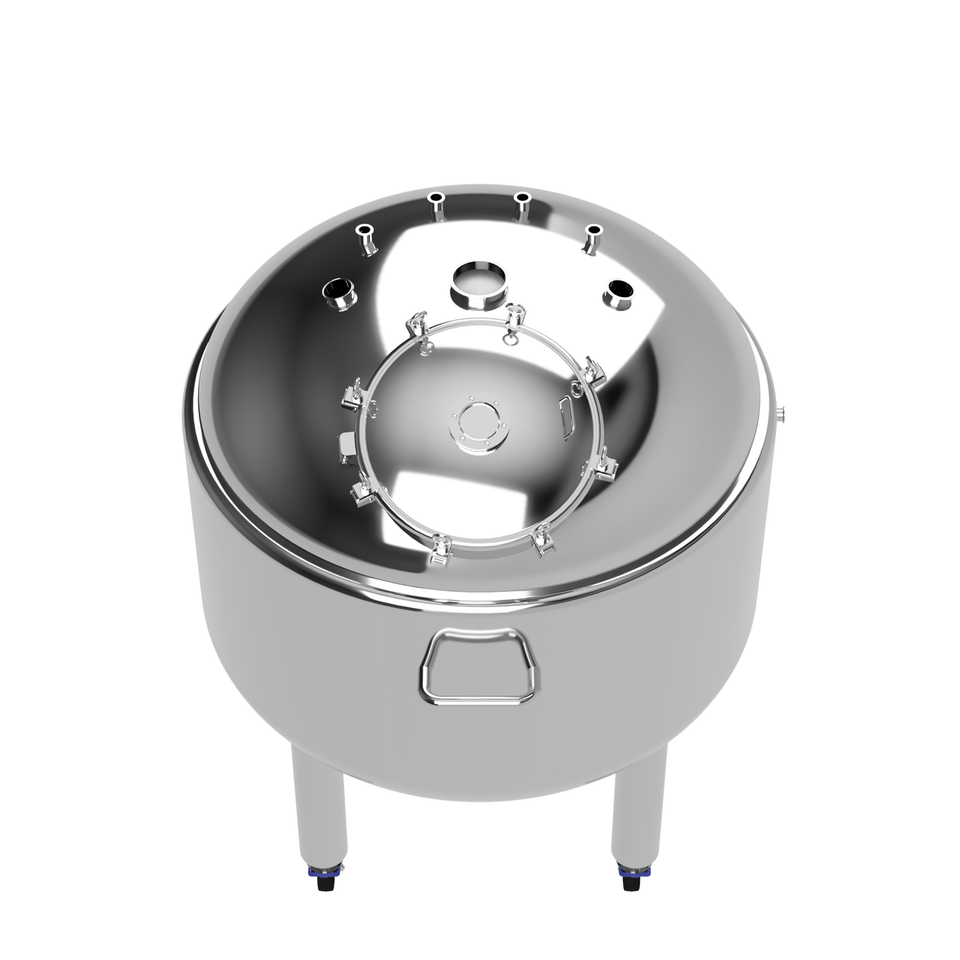

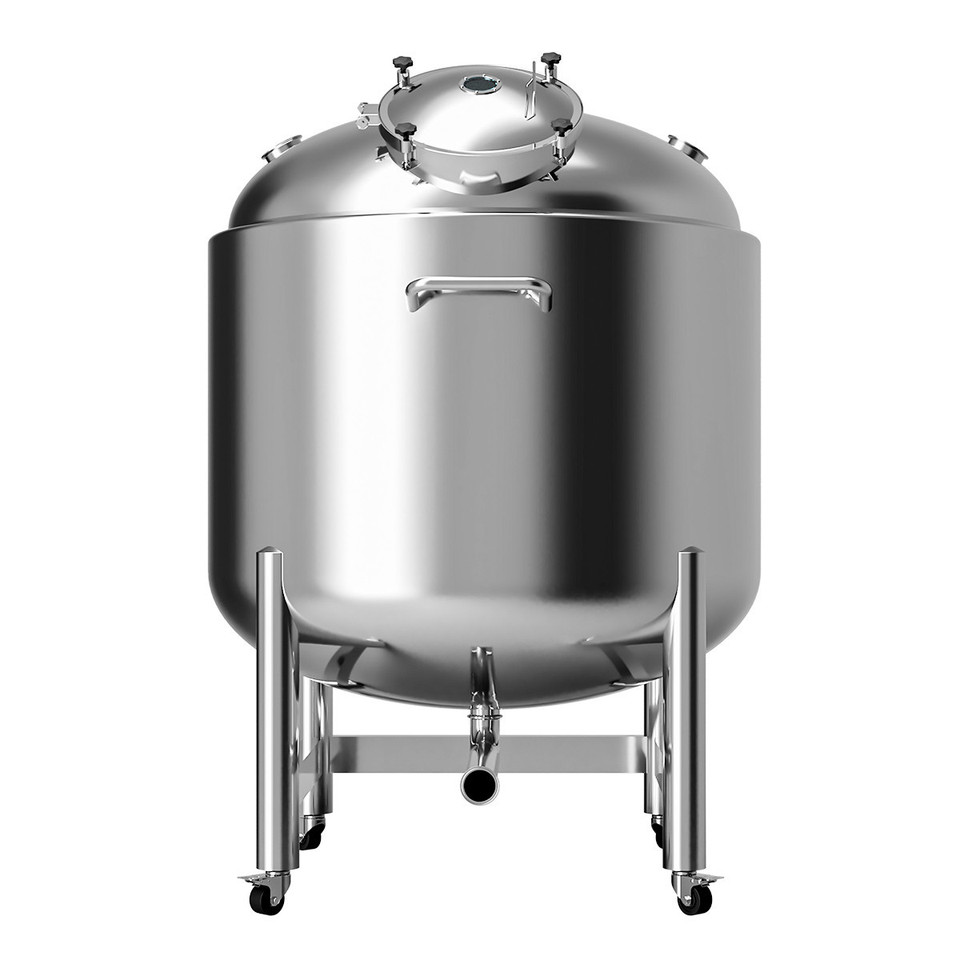

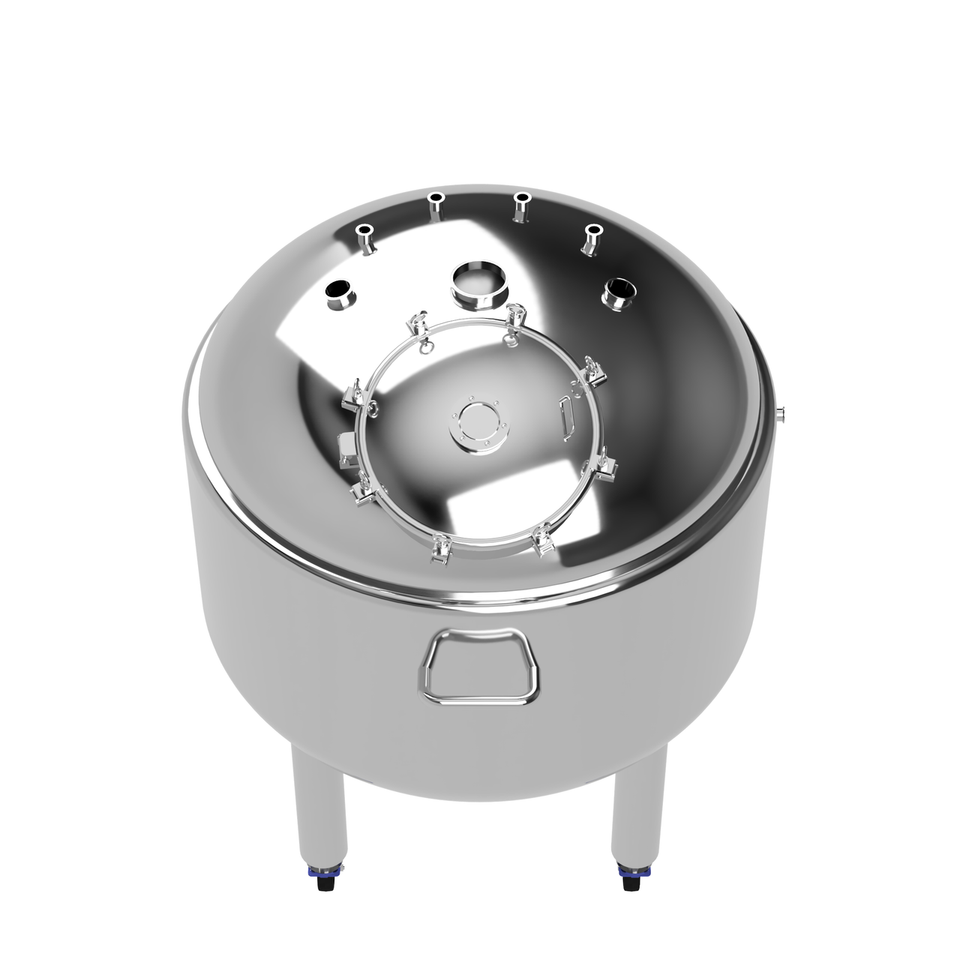

2000L Jacketed Stainless Steel Storage Vessel | USA Lab

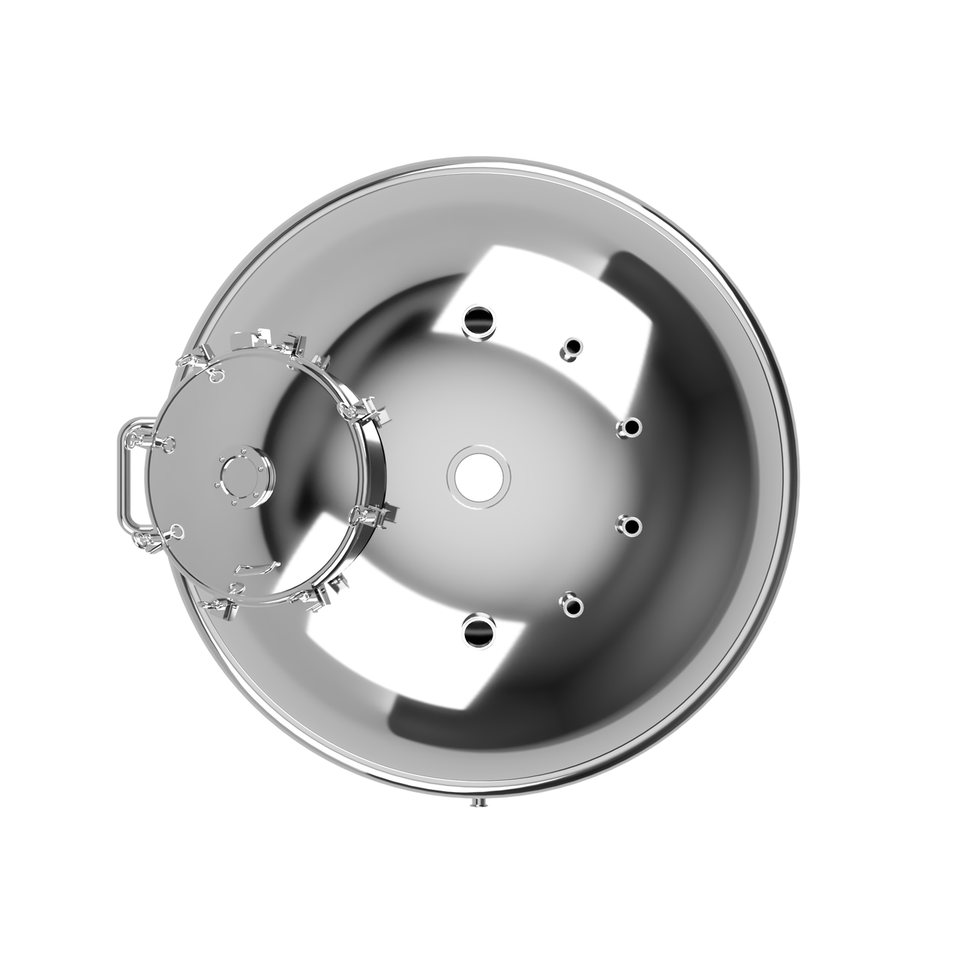

This 2000L Stainless Steel Storage Vessel is engineered for multi-industry solvent and liquid storage, with robust access, monitoring, and drainage. The top deck includes 4 × 1.5" TC, 2 × 3" TC, a 6" TC center port, and a viewing port for clear visual checks. The bottom features a 6" TC drain for fast, efficient emptying, and the jacket provides 2 × 1.5" TC connections for heating/cooling integration.
Ideal for pharmaceuticals, chemical processing, food & beverage, and cosmetics, this vessel balances capacity, safety, and ease of maintenance—supporting reliable daily operation and streamlined CIP workflows.
Designed for practical uptime, the tank delivers wide temperature capability, solvent-ready construction, and multiple sanitary tri-clamp access points for instrumentation and process flexibility.
Ships via LTL freight. Confirm dock or liftgate service at checkout.
Working Volume: 2000L (528 gal) Temp: −40 °C to 200 °C Design Pressure: 15 PSI 24" Manway w/ Buna-N
Process-Ready Capacity: 2000L working volume (2512L full) with fast 6" TC bottom drain for minimal downtime.
Thermal Flexibility: Jacketed design with 1.5" TC connections; −40 °C to 200 °C operating range.
Easy Access & Monitoring: 24" manway (Buna-N), top viewing port, and multiple tri-clamp ports for instruments.
Why buy from USA Lab
Expert Support
Engineers & technicians on staff.
Engineers & technicians on staff.
Quality First
Tested and trusted products.
Tested and trusted products.
Fast Fulfillment
Nationwide 1-2 day shipping.
Nationwide 1-2 day shipping.
Warranty & Parts
US-based service & spares.
US-based service & spares.
Resources & Downloads
Why this 2000L storage vessel?
- Solvent-ready construction — multiple sanitary TC ports for safe transfer, sampling, and instrumentation.
- Efficient thermal control — jacket with 1.5" TC connections integrates with chillers/heaters for process stability.
- Operator access — 24" manway with Buna-N gasket and top viewing port for inspection and cleaning.
- High throughput — 6" TC bottom drain enables rapid vessel turnover between batches.
- Broad compatibility — serves pharma, chemicals, food & beverage, and cosmetics applications.
Talk to an expert
Get sizing help, jacket integration tips, and port layout guidance for your line.
Technical Specifications
| Model | 2000L Stainless Steel Storage Vessel |
|---|---|
| Working Volume | 2000 L (528 gal) |
| Full Volume (100%) | 2512 L (663 gal) |
| Jacket Volume | 264 L (70 gal) |
| Design Pressure | 15 PSI |
| Operating Pressure | 10 PSI |
| Temperature Rating | −40 °C to 200 °C |
| Top Connections | 4 × 1.5" TC | 2 × 3" TC | 1 × 6" TC center port + viewing port |
| Bottom Connection | 6" TC drain |
| Jacket Connections | 2 × 1.5" TC |
| Manway | 24" with Buna-N gasket |
| Material | Stainless Steel (process contact) |
| Use Cases | Solvent storage, buffer/media hold, ingredient staging, thermal conditioning |
Popular Industries & Use Cases
Business Solutions & Procurement
Programs & Terms
Exclusive options for businesses and academics.
Documentation & Compliance
Keep purchasing streamlined and compliant.
Custom Solutions
Tailored tanks, skids, and integration help.
Talk to Sales
We’ll help spec the right system for your throughput.
FAQ
Can this vessel store common solvents?
Yes—the 2000L Stainless Steel Storage Vessel is designed for solvent storage across pharma, chemical, food & beverage, and cosmetics workflows. Verify compatibility with your specific media.
What fittings and ports come standard?
Top: 4 × 1.5" TC, 2 × 3" TC, and 1 × 6" TC center port plus a viewing port. Bottom: 6" TC drain. Jacket: 2 × 1.5" TC connections.
What are the pressure and temperature ratings?
Design pressure is 15 PSI (10 PSI operating). Temperature rating is −40 °C to 200 °C, suitable for integrated heating/cooling via the jacket.
Is there easy access for cleaning and inspection?
Yes. The vessel includes a 24" manway with a Buna-N gasket and a top viewing port to streamline inspection, CIP, and routine maintenance.
