USA Lab Tri-Clamp Short Sight Glass - 304SS & Borosilicate | Various Sizes

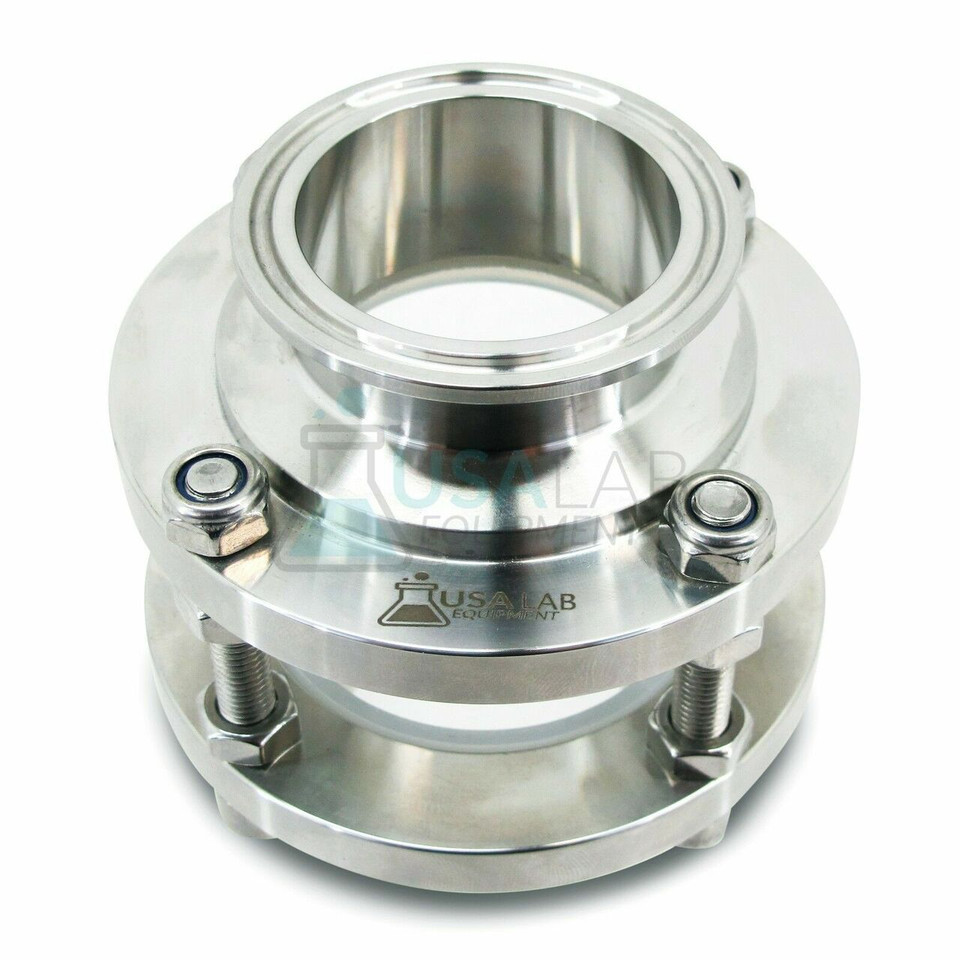

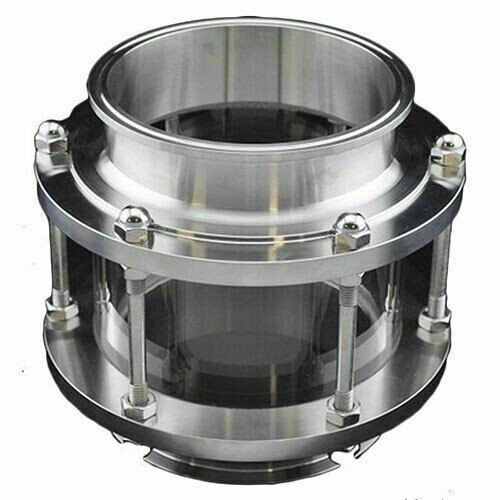

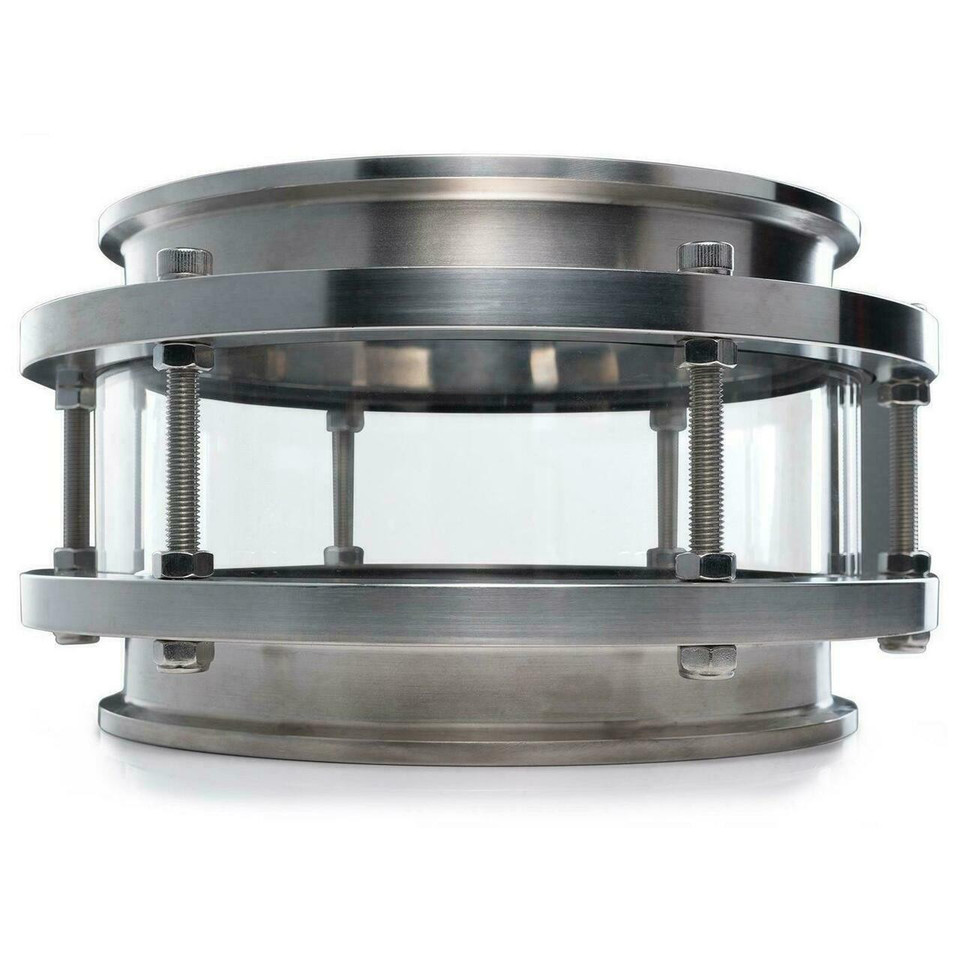

Our USA Lab Tri-Clamp Short Sight Glass is built from 304 stainless steel with a durable borosilicate glass window, giving you a clear view into your sanitary process line without adding bulk or compromising pressure integrity.

These compact inline sight glasses mount directly between standard tri-clamp fittings to monitor flow, clarity, and foaming in real time. The metal body fully surrounds and supports the glass, improving mechanical strength and helping the assembly handle demanding pressure and temperature conditions.

Available in multiple models from 1.5" to 12" tri-clamp sizes, USA Lab sight glasses are ideal for botanical extraction, ethanol recovery, distillation systems, breweries, food and beverage lines, and general laboratory or industrial fluid handling.

All USA Lab sight glasses are shipped clean and ready to install. Always verify gasket compatibility and re-torque clamps after initial heat-up and cool-down to maintain a safe seal.
For help choosing the correct tri-clamp size, pressure rating, or installation location, contact the USA Lab team for application support.

304 Stainless Steel Body Borosilicate Glass Window Tri-Clamp Short Sight Design Up to 120 PSI @ -70°F to 240°F

Compact visual monitoring: The USA Lab Tri-Clamp Short Sight Glass provides clear line-of-sight to your process stream without long spools or bulky housings, making it perfect for tight skids and benchtop systems.

Durable 304SS & borosilicate: 304 stainless steel construction and borosilicate glass deliver excellent chemical resistance, thermal shock resistance, and long service life in aggressive process environments.

Rated for real-world conditions: Pressure ratings up to 110–120 PSI and a -70°F to 240°F temperature range support chilling, heating, and CIP cycles across a wide variety of applications.

Why buy from USA Lab

Expert Support
Engineers & technicians on staff.

Quality First
Tested and trusted products.

Fast Fulfillment
Nationwide 1-2 day shipping.

Warranty & Parts
US-based service & spares.

Resources & Downloads

Dimensional Drawing (All Models)

Why choose this tri-clamp sight glass?

Sanitary tri-clamp design — Installs directly between existing ferrules for fast integration into sanitary, brewery, or extraction systems.
Robust construction — 304 stainless steel body with fully captured borosilicate glass improves safety under pressure and thermal cycling.
Wide operating window — Rated from -70°F to 240°F with pressure ratings up to 110–120 PSI (model dependent) to support both chilling and heating applications.
Multiple sizes available — Models 15SSG, 2SSG, 3SSG, 6SSG, and 12SSG cover common tri-clamp line sizes, from compact benchtop rigs to larger process loops.
Ideal for process visibility — Use the USA Lab Tri-Clamp Short Sight Glass to monitor flow, color, foaming, and cleanliness in real time without opening the system.

Talk to an expert

Get help sizing your USA Lab Tri-Clamp Short Sight Glass, choosing the right tri-clamp size, and integrating it into your process line.

Call 734-855-4890

Technical Specifications

Model	Material	Pressure Rating	Glass Height	Temperature Range	Outer Dimensions
15SSG	304 Stainless Steel	110-120 PSI	1"	-70°F to 240°F	~3.5"W x ~4"H
2SSG	304 Stainless Steel	110-120 PSI	1"	-70°F to 240°F	~4"W x ~4"H
3SSG	304 Stainless Steel	110-120 PSI	1"	-70°F to 240°F	~5"W x ~5"H
6SSG	304 Stainless Steel	80-85 PSI	1.5"	-70°F to 240°F	~9"W x ~5.5"H
12SSG	304 Stainless Steel	60-70 PSI	3"	-70°F to 240°F	~14.5"W x ~4"H

Popular Industries & Use Cases

Botanical Extraction Pharmaceutical & Biotech Chemical & Process Brewing, Beverage & R&D

Business Solutions & Procurement

Programs & Terms

Exclusive options for businesses and academics.

Apply for Net Terms Academic Discount

Documentation & Compliance

Keep purchasing streamlined and compliant.

Request a Quote Tax Exemption

Custom Solutions

Tailored tanks, skids, and integration help.

Custom Request Consulting

Talk to Sales

We’ll help spec the right system for your throughput.

Call 734-855-4890 Email Sales/Support

FAQ

What is the USA Lab Tri-Clamp Short Sight Glass used for?

The USA Lab Tri-Clamp Short Sight Glass is designed to provide clear visual monitoring of liquids inside a sanitary process line. By installing the USA Lab Tri-Clamp Short Sight Glass between existing ferrules, operators can quickly check flow, clarity, foaming, and cleanliness without opening the system or breaking vacuum.

What materials are used in the USA Lab Tri-Clamp Short Sight Glass?

Every USA Lab Tri-Clamp Short Sight Glass is manufactured from 304 stainless steel with a borosilicate glass window. This combination offers excellent corrosion resistance, thermal shock resistance, and durability, making the USA Lab Tri-Clamp Short Sight Glass suitable for many solvent, ethanol, water-based, and CIP applications.

What pressure and temperature can the USA Lab Tri-Clamp Short Sight Glass handle?

The USA Lab Tri-Clamp Short Sight Glass is rated from -70°F to 240°F across all models. Pressure ratings vary by size: 15SSG, 2SSG, and 3SSG are rated 110–120 PSI, 6SSG is rated 80–85 PSI, and 12SSG is rated 60–70 PSI. Always confirm your system conditions are within these limits before installing the USA Lab Tri-Clamp Short Sight Glass.

Which sizes of USA Lab Tri-Clamp Short Sight Glass are available?

The USA Lab Tri-Clamp Short Sight Glass line includes models 15SSG, 2SSG, 3SSG, 6SSG, and 12SSG. These options cover a range of common sanitary line sizes, allowing you to add a USA Lab Tri-Clamp Short Sight Glass to both small benchtop manifolds and larger production systems.

How should I install and maintain the USA Lab Tri-Clamp Short Sight Glass?

INSTALLATION & CARE NOTICE:

Install the USA Lab Tri-Clamp Short Sight Glass using compatible tri-clamp gaskets, and tighten clamps evenly to avoid stressing the glass. Inspect the USA Lab Tri-Clamp Short Sight Glass regularly for chips, cracks, or gasket wear and replace any damaged components immediately.

All items are carefully packaged to ensure safe delivery. If your USA Lab Tri-Clamp Short Sight Glass arrives damaged, please contact us promptly so we can assist with a resolution.
