Description

Tri-Clamp Tall Sight Glass Stainless 304 - 1.5", 2", 6"

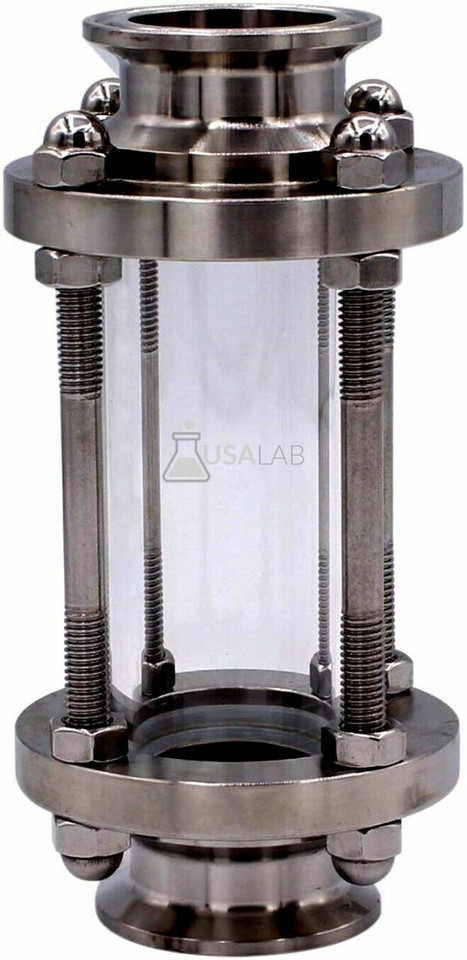

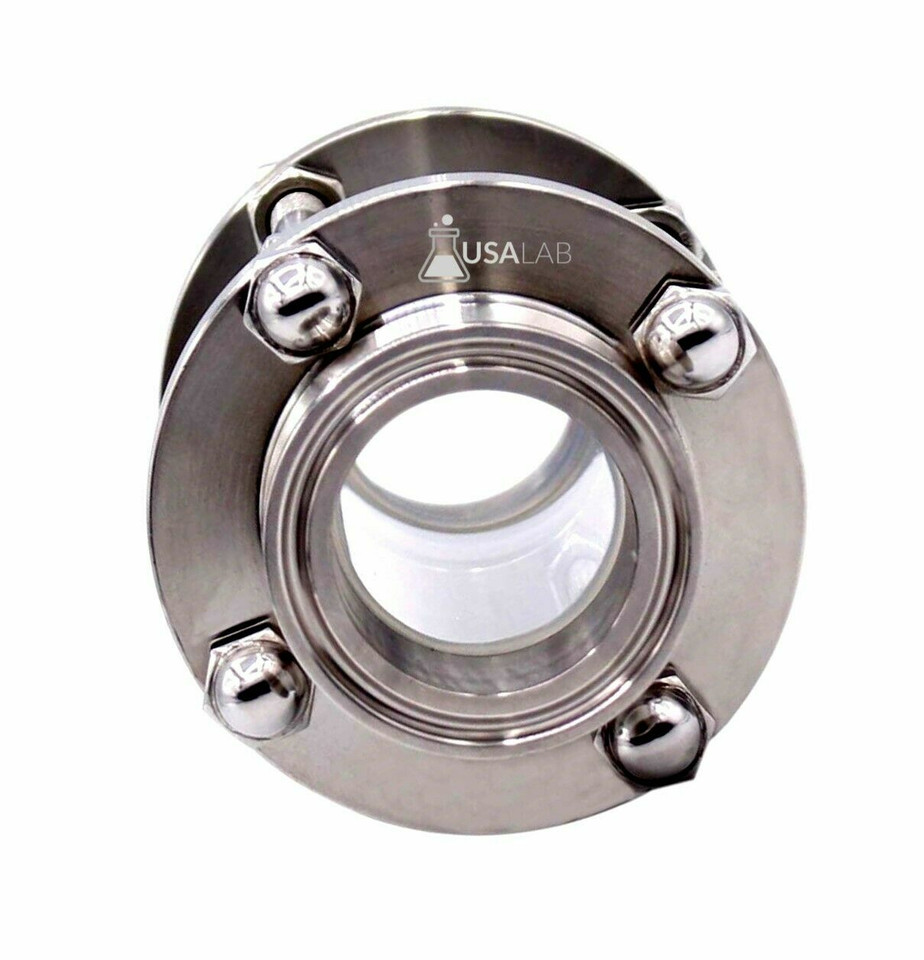

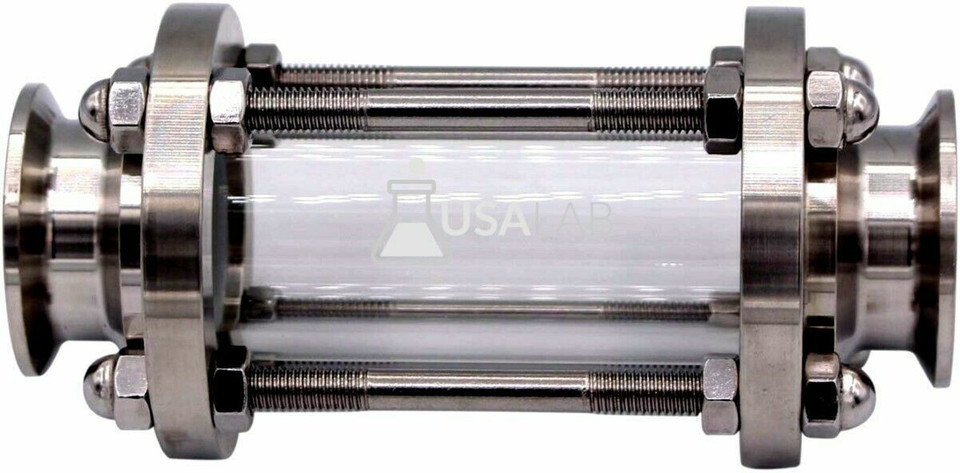

The USA Lab Tri-Clamp Tall Sight Glass Stainless 304 is designed to provide clear viewing of material within a process system while adding height to the unit. Available in 1.5", 2", and 6" configurations, these tall sight glasses provide a practical viewing point for compatible Tri-Clamp systems.

Each configuration features two Tri-Clamp connections and a tall viewing section, allowing users to visually inspect material while extending the height of the system. The 1.5" and 2" versions have a 6" overall height, while the 6" version provides a 9" overall height.

USA Lab tall sight glasses use internal Buna-N gaskets and are available with size-specific PSI ratings. Choose the configuration that matches your system requirements and desired viewing height.

304 Stainless Steel 1.5", 2" & 6" Sizes Tri-Clamp Connections Buna-N Internal Gaskets

Material: Stainless 304 construction — designed for use in compatible process and laboratory systems.

Viewing: Tall sight glass design — allows users to view material while adding height to the unit.

Configurations: 1.5", 2", and 6" sizes — with size-specific overall heights and PSI ratings.

Why buy from USA Lab

Expert Support
Engineers & technicians on staff.

Quality First
Tested and trusted products.

Fast Fulfillment
Nationwide 1-2 day shipping.

Warranty & Parts
US-based service & spares.

Why this Tri-Clamp Tall Sight Glass?

Material viewing — allows users to view material within a system while adding height to the unit.
Multiple size options — available in 1.5", 2", and 6" configurations to match different system sizes.
Tri-Clamp connections — each configuration uses two matching Tri-Clamp connections.
Size-specific viewing heights — 1.5" and 2" versions have a 6" overall height, while the 6" version is 9" tall.
Buna-N internal gaskets — all USA Lab tall sight glasses include internal gaskets made of Buna-N material.

Talk to an expert

Get product guidance, application support, and compatibility information for your laboratory or process system.

Call 734-855-4890

Technical Specifications

Specification	Details
Product Name	Tri-Clamp Tall Sight Glass Stainless 304 - 1.5", 2", 6"
Product Type	Tall Tri-Clamp Sight Glass
Material	304 Stainless Steel
Connection Type	Tri-Clamp
Available Sizes	1.5", 2", and 6"
1.5" Connection	2 x 1.5" Tri-Clamp
2" Connection	2 x 2" Tri-Clamp
6" Connection	2 x 6" Tri-Clamp
1.5" Overall Height	6"
2" Overall Height	6"
6" Overall Height	9"
1.5" Visible Glass Height	3"
2" Visible Glass Height	3"
6" Visible Glass Height	5"
1.5" Glass Diameter	1.5"
2" Glass Diameter	2"
6" Glass Diameter	6"
PSI Rating	1.5": 100-110 PSI; 2": 100-110 PSI; 6": 40 PSI
Internal Gasket Material	Buna-N
Weight	1.5": 5 lbs; 2": 6 lbs; 6": 12 lbs

Popular Industries & Use Cases

Botanical Extraction Pharmaceutical Processing Chemical Processing Laboratory Research

Business Solutions & Procurement

Programs & Terms

Exclusive options for businesses and academics.

Apply for Net Terms Academic Discount

Documentation & Compliance

Keep purchasing streamlined and compliant.

Request a Quote Tax Exemption

Custom Solutions

Tailored equipment and integration help.

Custom Request Consulting

Talk to Sales

We’ll help spec the right equipment for your laboratory workflow.

Call 734-855-4890 Email Sales/Support

FAQ

What sizes are available for the Tri-Clamp Tall Sight Glass?

The Tri-Clamp Tall Sight Glass is available in 1.5", 2", and 6" configurations.

What are the overall heights of the Tri-Clamp Tall Sight Glass configurations?

The 1.5" and 2" configurations have a 6" overall height, while the 6" configuration has a 9" overall height.

What is the PSI rating of the Tri-Clamp Tall Sight Glass?

The 1.5" and 2" configurations are rated at 100-110 PSI, while the 6" configuration is rated at 40 PSI.

What gasket material is used in the Tri-Clamp Tall Sight Glass?

All USA Lab tall sight glasses have internal gaskets made of Buna-N material.
