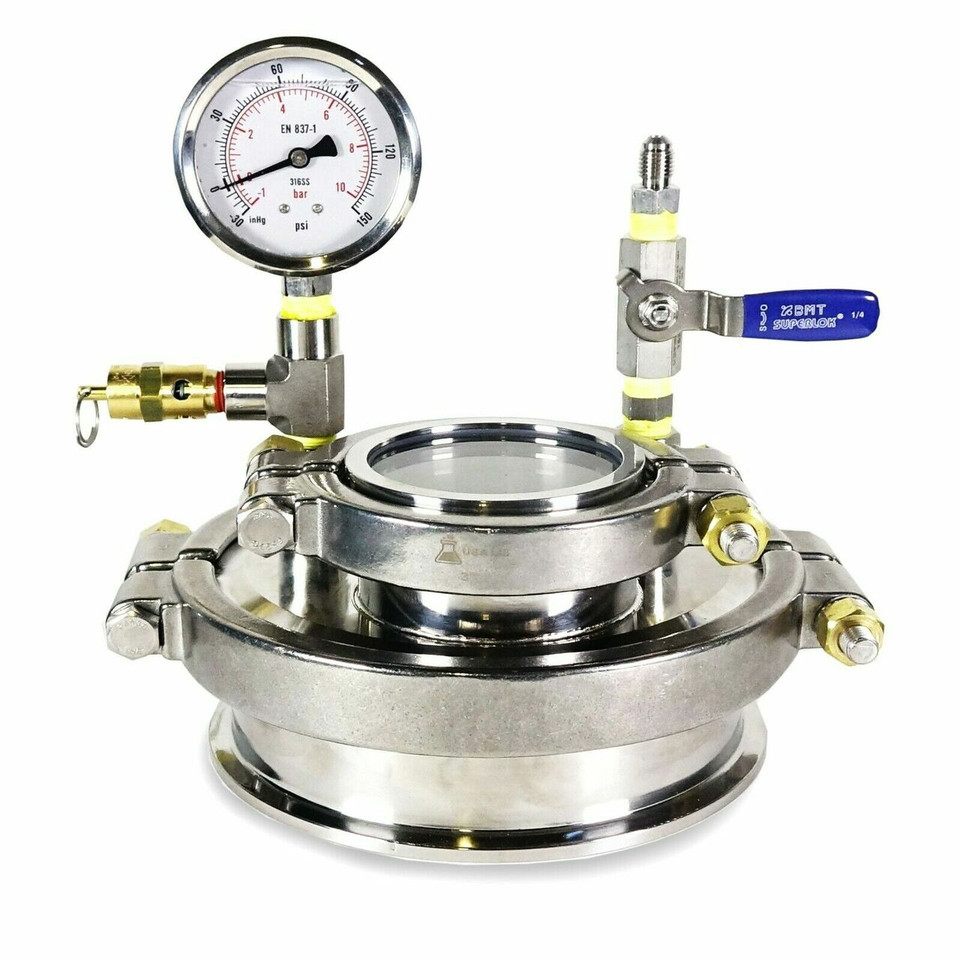

USA Lab 6" Diamond Miner with 3" Tri-Clamp Sight Glass - SS304
The USA Lab 6" Diamond Miner is a stainless steel processing vessel designed for crystallizing botanical extracts into terpene-rich sauce. Equipped with a 3" Tri-Clamp sight glass, the system provides improved visibility during processing while eliminating the need for mason jars in the degassing procedure.
The 6" Diamond Miner features a premium pre-assembled extractor lid that is nitrogen tested for leaks before shipment. Its 500–700mL optimal capacity with a 725mL maximum fill provides a defined working volume, while the glycerin-filled compound pressure gauge provides an easy-to-read pressure indication inside the vessel.
The vessel is constructed from 304 stainless steel and includes a 316 stainless steel ball valve, ASME safety pressure relief valve, 3" sight glass, high-pressure Tri-Clamp components, and a removable 6" x 2" splatter platter for convenient access to processed material. The maximum allowable working pressure is 100 PSI.
6" Diamond Miner 304 Stainless Steel 3" Tri-Clamp Sight Glass 100 PSI MAWP
3" Tri-Clamp Sight Glass: provides visibility during processing and helps eliminate the need for mason jars during degassing.
Pressure Protection: 100 PSI maximum allowable working pressure with a 100 PSI set ASME safety pressure relief valve.
Pre-Assembled & Tested: the premium extractor lid is nitrogen tested for leaks before shipment for added confidence during installation.
Why buy from USA Lab
Expert Support
Engineers & technicians on staff.
Engineers & technicians on staff.
Quality First
Tested and trusted products.
Tested and trusted products.
Fast Fulfillment
Nationwide 1-2 day shipping.
Nationwide 1-2 day shipping.
Warranty & Parts
US-based service & spares.
US-based service & spares.
Why this 6" Diamond Miner?
- 3" Tri-Clamp sight glass — provides visibility into the vessel and eliminates the need for mason jars during the degassing procedure.
- 304 stainless steel construction — provides a durable vessel platform for the intended processing application.
- Pressure-rated design — features a 100 PSI maximum allowable working pressure and a 100 PSI ASME safety pressure relief valve.
- Pre-assembled extractor lid — nitrogen tested for leaks before shipment to help provide a leak-tested assembly.
- Removable splatter platter — the 6" x 2" weld-base splatter platter can be removed for easier access to material inside the vessel.
Talk to an expert
Get product guidance, application support, and compatibility information for your laboratory or processing workflow.
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | USA Lab 6" Diamond Miner |
| Product Type | Diamond Miner |
| Material | 304 Stainless Steel |
| Optimal Capacity | 500–700mL |
| Maximum Fill | 725mL |
| Maximum Allowable Working Pressure (MAWP) | 100 PSI |
| ASME Safety Pressure Relief Valve | 1/4" MNPT, 100 PSI Set Pressure |
| Ball Valve Material | 316 Stainless Steel |
| Ball Valve Connection | 1/4" Flare |
| Compound Pressure Gauge | Glycerin Filled, (-30) - (150) |
| Top Connections | 3" Tri-Clamp and 2 x 1/4" FNPT |
| Sight Glass | 3" Meta Sight Glass |
| Pressure Tested | Yes |
| Main Gasket | 6" Buna-N Tri-Clamp Gasket |
| Main Clamp | 6" High Pressure Tri-Clamp |
| Sight Glass Clamp | 3" High Pressure Tri-Clamp |
| Splatter Platter | 6" x 2" Weld Base Spool Splatter Platter |
| Lid Configuration | 6" Tri-Clamp Flat Lid with 3" Tri-Clamp and 2 x 1/4" FNPT |
| Ball Valve Series | Superlok FNPT 210 Series Ball Valve, 316SS |
Popular Industries & Use Cases
Business Solutions & Procurement
Programs & Terms
Exclusive options for businesses and academics.
Documentation & Compliance
Keep purchasing streamlined and compliant.
Custom Solutions
Tailored equipment and integration help.
Talk to Sales
We’ll help spec the right equipment for your laboratory or processing workflow.
FAQ
What is the capacity of the USA Lab 6" Diamond Miner?
The USA Lab 6" Diamond Miner has an optimal capacity of 500–700mL and a maximum fill capacity of 725mL.
What pressure rating does the USA Lab 6" Diamond Miner have?
The USA Lab 6" Diamond Miner has a maximum allowable working pressure of 100 PSI and includes a 1/4" MNPT ASME safety pressure relief valve with a 100 PSI set pressure.
What sight glass is included with the USA Lab 6" Diamond Miner?
The USA Lab 6" Diamond Miner includes a 3" Meta sight glass with a 3" high-pressure Tri-Clamp connection.
What valves and pressure gauge are included with the USA Lab 6" Diamond Miner?
The system includes a 316 stainless steel Superlok FNPT 210 Series ball valve with a 1/4" flare connection, an ASME safety pressure relief valve, and a glycerin-filled compound pressure gauge with a (-30) - (150) readout.
