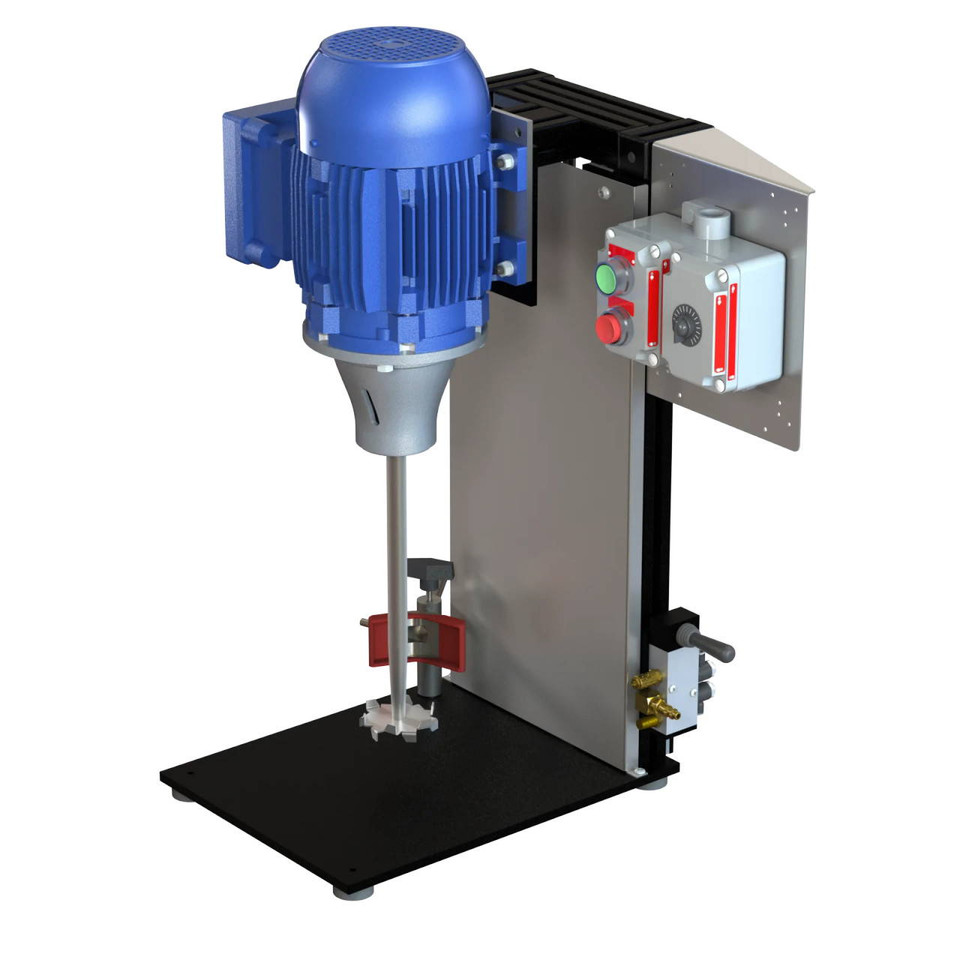

Mixer Direct DP1 Explosion Proof Lab Benchtop Disperser w/ Air Lift

The Mixer Direct DP1 Explosion Proof Lab Benchtop Disperser w/ Air Lift is a laboratory disperser designed for controlled high-speed mixing and dispersion in benchtop applications. With selectable 1.5 HP and 2 HP configurations and a variable speed range of 500 to 5,000 RPM, the DP1 provides adjustable processing control for laboratory-scale material preparation.

The DP1 combines an explosion-proof inverter-duty motor with an air lift system for convenient adjustment of the disperser assembly. The air lift requires 80 PSI at 1 CFM and provides a total raised height of 42 inches, allowing the disperser position to be adjusted for different vessel setups.

Designed for laboratory volumes from 200 mL to 5 gallons, the Mixer Direct DP1 provides a practical benchtop dispersing solution with an IP55 enclosure, 0.75-inch shaft diameter, and 316 stainless steel impeller. The available horsepower configurations allow users to select the appropriate setup for their application.

500–5,000 RPM 1.5 & 2 HP Explosion Proof Inverter Duty Air Lift

Variable Speed: 500 to 5,000 RPM — provides adjustable dispersing speed for laboratory processing requirements.

Air Lift: 80 PSI at 1 CFM with 42 in. total raised height — supports convenient disperser positioning for different vessel setups.

Lab-Scale Volume: 200 mL to 5 gal. — supports a range of laboratory-scale mixing and dispersion volumes.

Why buy from USA Lab

Expert Support
Engineers & technicians on staff.

Quality First
Tested and trusted products.

Fast Fulfillment
Nationwide 1-2 day shipping.

Warranty & Parts
US-based service & spares.

Why this Mixer Direct DP1 Disperser?

High-speed dispersing — variable operation from 500 to 5,000 RPM provides adjustable speed control.
Explosion-proof inverter-duty motor — designed with an explosion-proof inverter-duty motor configuration.
Air lift system — requires 80 PSI at 1 CFM and provides 42 inches of total raised height.
Flexible laboratory volume — accommodates applications from 200 mL to 5 gallons.
316SS impeller — fitted with a 316 stainless steel impeller and 0.75-inch shaft diameter.

Talk to an expert

Get product guidance, application support, and configuration information for the Mixer Direct DP1 laboratory disperser.

Call 734-855-4890

Technical Specifications

Specification	Details
Product Name	Mixer Direct DP1 Explosion Proof Lab Benchtop Disperser w/ Air Lift
SKU	DP1-EXP
Brand	Mixer Direct
Product Type	Lab Benchtop Disperser
Horsepower Options	1.5 HP and 2 HP
Motor Type	Explosion Proof Inverter Duty
Enclosure Type	IP55
RPM	500 to 5,000 RPM
Lift Type	Air
Air Lift Requirement	80 PSI @ 1 CFM
Total Height Raised	42 in.
Volume	200 mL to 5 gal.
Shaft Diameter	0.75 in.
Impeller Material	316 Stainless Steel
Impeller Attachment	Bolted onto Internally Threaded Shaft
Product Weight	400 lb.
Shipping Weight	400 lb.
Shipping Dimensions	48 × 40 × 40 in.
Availability	Usually ships in 24 hours

Popular Industries & Use Cases

Botanical Processing Pharmaceutical Processing Chemical Processing Laboratory Research

Business Solutions & Procurement

Programs & Terms

Exclusive options for businesses and academics.

Apply for Net Terms Academic Discount

Documentation & Compliance

Keep purchasing streamlined and compliant.

Request a Quote Tax Exemption

Custom Solutions

Tailored equipment and integration help.

Custom Request Consulting

Talk to Sales

We’ll help spec the right equipment for your laboratory workflow.

Call 734-855-4890 Email Sales/Support

FAQ

What is the speed range of the Mixer Direct DP1 Explosion Proof Lab Benchtop Disperser w/ Air Lift?

The Mixer Direct DP1 Explosion Proof Lab Benchtop Disperser w/ Air Lift operates from 500 to 5,000 RPM, providing adjustable speed control for laboratory dispersing applications.

What horsepower options are available for the Mixer Direct DP1 Explosion Proof Lab Benchtop Disperser w/ Air Lift?

The Mixer Direct DP1 Explosion Proof Lab Benchtop Disperser w/ Air Lift is available with 1.5 HP and 2 HP configurations.

What are the air lift requirements for the Mixer Direct DP1 Explosion Proof Lab Benchtop Disperser w/ Air Lift?

The air lift requires 80 PSI at 1 CFM and provides a total raised height of 42 inches.

What laboratory volumes can the Mixer Direct DP1 Explosion Proof Lab Benchtop Disperser w/ Air Lift handle?

The Mixer Direct DP1 Explosion Proof Lab Benchtop Disperser w/ Air Lift is specified for laboratory volumes from 200 mL to 5 gallons.

Important Shipping Notice!

DISCLAIMER:

All items are carefully packaged to ensure safe delivery. In the rare event that your item arrives damaged, please notify us within 3 days of receipt. We will promptly provide a replacement or issue a refund.

Please note that any damage occurring after delivery is not covered under warranty. We appreciate your understanding and your trust in our products.

Need Support?

We’ll get you answers fast.

Call 734-855-4890

Specifications

Brand:	Mixer Direct
Enclosure Type:	IP55
Impeller Attachment:	Bolted onto internally threaded shaft
Impeller Material:	316SS
Motor Type:	Explosion Proof Inverter Duty
Lift Type:	Air
Shaft Diameter:	.75 in.
RPM:	500-5000
Total Height Raised:	42 in.
Air Lift Requirement:	80psi @ 1cfm
Volume:	200ml - 5 gal.
