Description

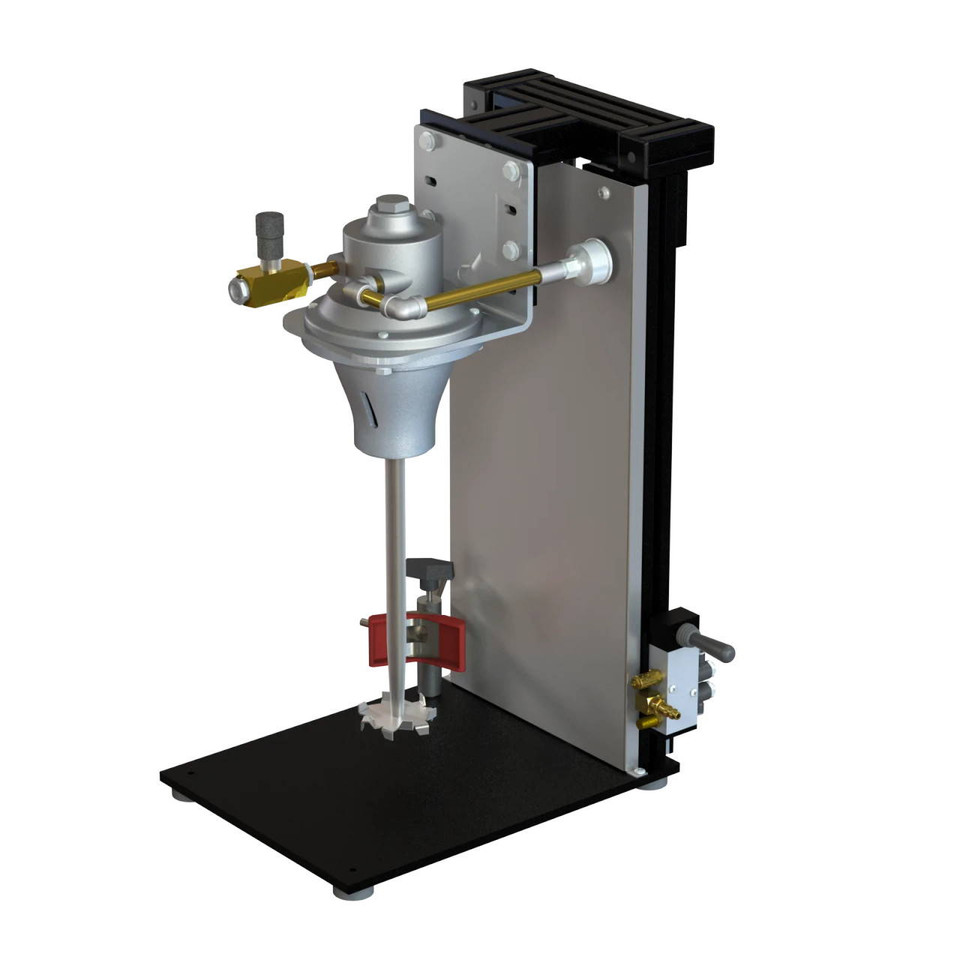

Mixer Direct DP1 Air Lab Benchtop Disperser w/ Air Lift

The Mixer Direct DP1 Air Lab Benchtop Disperser w/ Air Lift is a laboratory dispersing system designed for controlled, high-speed mixing and dispersion in small-volume applications. Available with 3/4 HP, 1.5 HP, or 4 HP motor configurations, the DP1 provides an adjustable speed range of 300 to 3,000 RPM for versatile laboratory processing.

The air-lift design provides adjustable vertical positioning, with a total height of 26 inches when lowered and 38 inches when raised. The lift requires 80 PSI at 1 CFM, while the air motor requires 30 CFM at 100 PSI for operation.

The Mixer Direct DP1 Air Lab Benchtop Disperser w/ Air Lift supports processing volumes from 200 mL to 5 gallons and features a 0.75-inch shaft with a 316 stainless steel impeller. The impeller is bolted onto an internally threaded shaft for a secure configuration suited to laboratory dispersing applications.

300–3,000 RPM 3/4, 1.5 & 4 HP Air Lift 200 mL–5 Gallons

Variable Speed: 300 to 3,000 RPM — supports adjustable dispersing and mixing conditions for laboratory workflows.

Air Lift: 26 in. lowered to 38 in. raised — provides adjustable vertical positioning for laboratory processing.

Flexible Volume: 200 mL to 5 gal. — supports a broad range of small-scale laboratory dispersing applications.

Why buy from USA Lab

Expert Support
Engineers & technicians on staff.

Quality First
Tested and trusted products.

Fast Fulfillment
Nationwide 1-2 day shipping.

Warranty & Parts
US-based service & spares.

Why this Mixer Direct DP1 Air Lab Benchtop Disperser?

Variable-speed operation — 300 to 3,000 RPM provides adjustable control for laboratory dispersing and mixing.
Multiple horsepower options — available in 3/4 HP, 1.5 HP, and 4 HP configurations.
Air lift system — provides adjustable positioning from 26 inches lowered to 38 inches raised.
Laboratory-scale processing — supports volumes from 200 mL to 5 gallons.
316 stainless steel impeller — the impeller is bolted onto an internally threaded 0.75-inch shaft.

Talk to an expert

Get product guidance, application support, and configuration information for your laboratory dispersing workflow.

Call 734-855-4890

Technical Specifications

Specification	Details
Product Name	Mixer Direct DP1 Air Lab Benchtop Disperser w/ Air Lift
SKU	DP1-A
Brand	Mixer Direct
Product Type	Air Lab Benchtop Disperser
Horsepower Options	3/4 HP, 1.5 HP, and 4 HP
Motor Type	Air Motor
RPM	300 to 3,000 RPM
Lift Type	Air
Air Motor Requirement	30 CFM @ 100 PSI
Air Lift Requirement	80 PSI @ 1 CFM
Total Height Lowered	26 in.
Total Height Raised	38 in.
Volume	200 mL to 5 gal.
Shaft Diameter	0.75 in.
Impeller Material	316 Stainless Steel
Impeller Attachment	Bolted onto Internally Threaded Shaft
Product Weight	400 lb.
Shipping Dimensions	48 × 40 × 40 in.
Availability	Usually ships in 24 hours

Popular Industries & Use Cases

Botanical Processing Pharmaceutical Processing Chemical Processing Laboratory Research

Business Solutions & Procurement

Programs & Terms

Exclusive options for businesses and academics.

Apply for Net Terms Academic Discount

Documentation & Compliance

Keep purchasing streamlined and compliant.

Request a Quote Tax Exemption

Custom Solutions

Tailored equipment and integration help.

Custom Request Consulting

Talk to Sales

We’ll help spec the right equipment for your laboratory workflow.

Call 734-855-4890 Email Sales/Support

FAQ

What is the RPM range of the Mixer Direct DP1 Air Lab Benchtop Disperser w/ Air Lift?

The Mixer Direct DP1 Air Lab Benchtop Disperser w/ Air Lift operates from 300 to 3,000 RPM, providing adjustable speed control for laboratory dispersing and mixing applications.

What horsepower options are available for the Mixer Direct DP1 Air Lab Benchtop Disperser?

The Mixer Direct DP1 Air Lab Benchtop Disperser is available with 3/4 HP, 1.5 HP, or 4 HP configurations. Select the horsepower option appropriate for your laboratory application.

What volume range can the Mixer Direct DP1 Air Lab Benchtop Disperser handle?

The Mixer Direct DP1 Air Lab Benchtop Disperser supports processing volumes from 200 mL to 5 gallons, making it suitable for a range of laboratory-scale dispersing applications.

What are the air requirements for the Mixer Direct DP1 Air Lab Benchtop Disperser w/ Air Lift?

The air motor requires 30 CFM at 100 PSI, while the air lift requires 80 PSI at 1 CFM. These requirements should be available from the facility's compressed-air system for proper operation.

Important Shipping Notice!

DISCLAIMER:

All items are carefully packaged to ensure safe delivery. In the rare event that your item arrives damaged, please notify us within 3 days of receipt. We will promptly provide a replacement or issue a refund.

Please note that any damage occurring after delivery is not covered under warranty. We appreciate your understanding and your trust in our products.

Need Support?

We’ll get you answers fast.

Call 734-855-4890

Specifications

Brand:	Mixer Direct
Air Motor Requirement:	30cfm @ 100psi
Impeller Attachment:	Bolted onto internally threaded shaft
Impeller Material:	316SS
Motor Type:	Air Motor
Lift Type:	Air
RPM:	300-3000
Shaft Diameter:	.75 in.
Total Height Lowered:	26 in.
Total Height Raised:	38 in.
Air Lift Requirement:	80psi @ 1cfm
Volume:	200ml - 5 gal.
