Mixer Direct Variable Speed Explosion-Proof Direct Drive 3" Tri-Clamp Mount Mixer – 3 PSI, 100 PSI, 250 PSI & Ultimate Vacuum

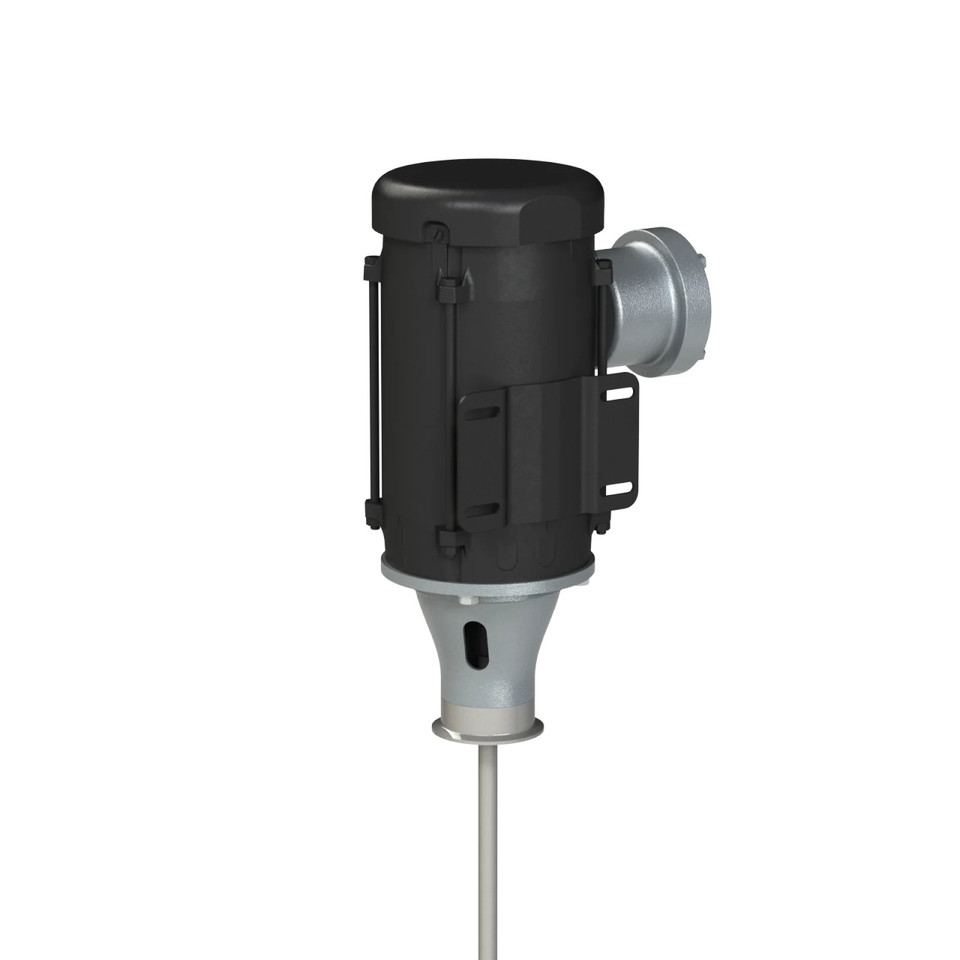

The Mixer Direct Variable Speed Explosion-Proof Direct Drive 3" Tri-Clamp Mount Mixer is designed for controlled mixing in processing applications where a sanitary tri-clamp connection and hazardous-location motor configuration are required. The mixer uses a 3" Tri-Clamp mount, explosion-proof inverter-duty motor, variable-speed control, and 316 stainless steel wetted components.

Available in 1/3 HP, 1/2 HP, 3/4 HP, 1 HP, and 1.5 HP configurations, the mixer operates from 175 to 1,750 RPM. Horsepower options are matched with the appropriate impeller configuration, including propeller and hydrofoil designs, while the standard shaft configuration is 32" with a 0.625" diameter 316 stainless steel shaft.

Three pressure configurations are available: 3 PSI, 100 PSI, and 250 PSI. The 3 PSI and 100 PSI options are not rated for vacuum, while the 250 PSI configuration is rated for ultimate vacuum. The mixer is also C1D1 and C1D2 compliant for applicable hazardous-location installations.

3" Tri-Clamp Mount 1/3–1.5 HP 175–1,750 RPM Explosion-Proof Inverter Duty C1D1 & C1D2 Compliant

Variable Speed: 175 to 1,750 RPM — provides adjustable mixing speed across the available horsepower configurations.

Sanitary Mount: 3" Tri-Clamp connection with FDA lip shaft seal — supports direct mounting to compatible process vessels.

Pressure Options: 3 PSI, 100 PSI, or 250 PSI — with the 250 PSI configuration rated for ultimate vacuum.

Why buy from USA Lab

Expert Support
Engineers & technicians on staff.

Quality First
Tested and trusted products.

Fast Fulfillment
Nationwide 1-2 day shipping.

Warranty & Parts
US-based service & spares.

Why this Mixer Direct Explosion-Proof Mixer?

Explosion-proof inverter-duty motor — configured for hazardous-location applications with C1D1 and C1D2 compliance.
3" Tri-Clamp mounting — provides direct attachment to a compatible 3" tri-clamp ferrule.
Variable-speed operation — 175 to 1,750 RPM supports adjustable mixing conditions.
316 stainless steel wetted components — includes 316SS shaft and impeller materials for process-contact components.

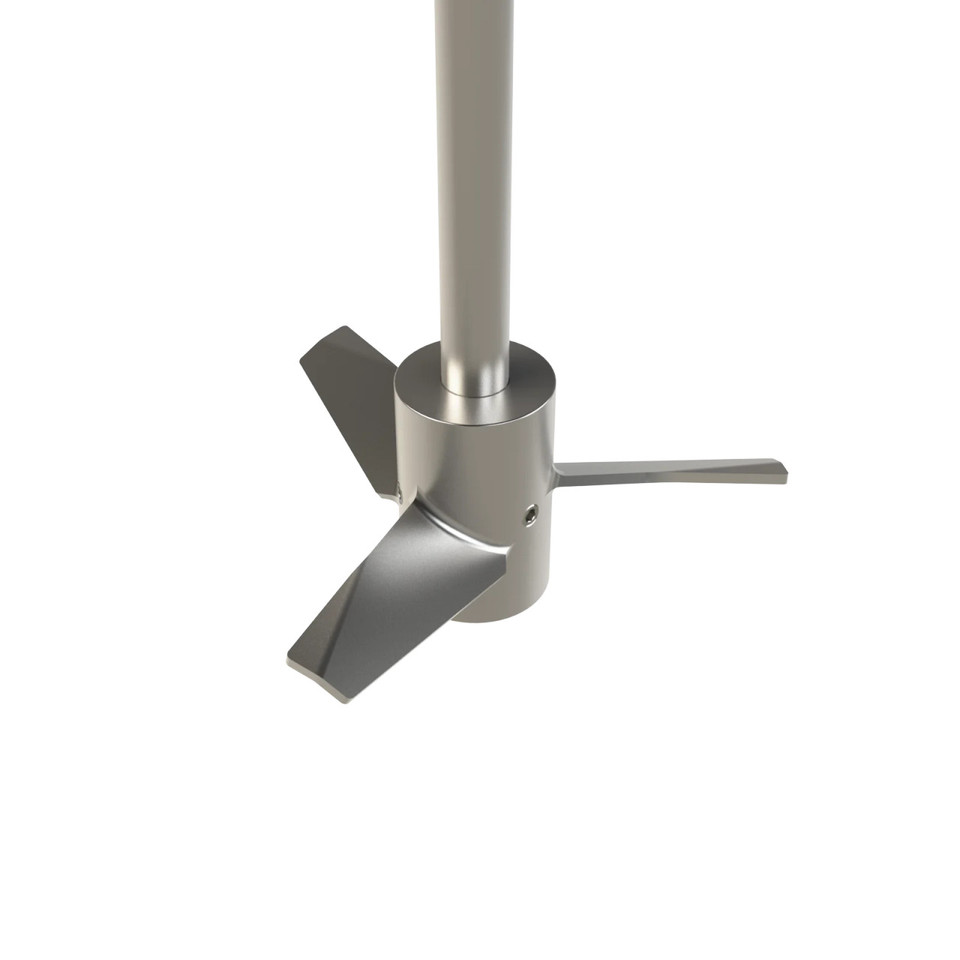

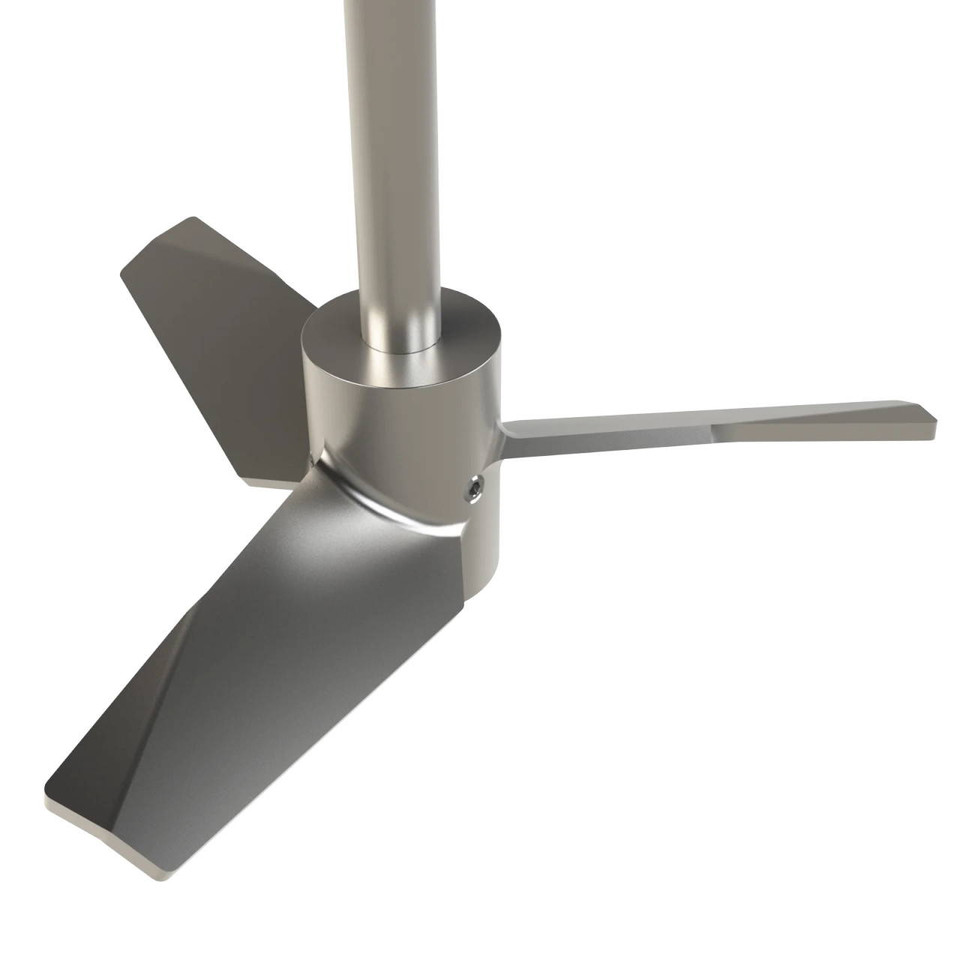

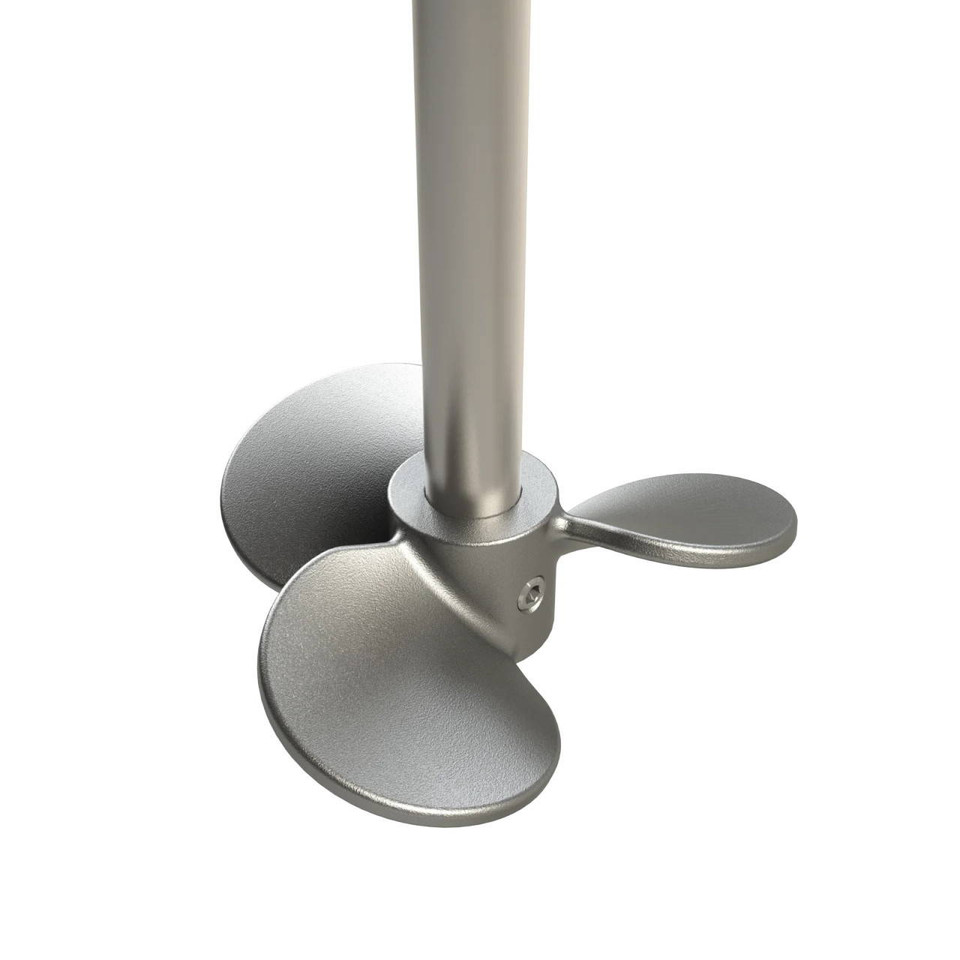

Matched impeller configurations — available propeller or hydrofoil impellers based on horsepower configuration.

Talk to an expert

Get help selecting the appropriate horsepower, pressure configuration, and mixing setup for your process vessel.

Call 734-855-4890

Technical Specifications

Specification	Details
Product Name	Mixer Direct Variable Speed Explosion-Proof Direct Drive 3" Tri-Clamp Mount Mixer
SKU	TCM-EXP-
Brand	Mixer Direct
Mixer Type	Variable Speed Direct Drive Mixer
Motor Type	Explosion Proof Inverter Duty
Horsepower Options	1/3 HP, 1/2 HP, 3/4 HP, 1 HP, 1.5 HP
Pressure Options	3 PSI, 100 PSI, 250 PSI
Vacuum Rating	3 PSI & 100 PSI: Not Rated for Vacuum; 250 PSI: Ultimate Vacuum
RPM Range	175–1,750 RPM
Mount	Tri-Clamp
Mount Dimension	3"
Impeller Type	Propeller or Hydrofoil
Impeller Diameter	4", 4.5", 5", 5.5", or 6", depending on horsepower
Impeller Material	316SS
Number of Impellers	1
Shaft	0.625" Diameter × 32" Length, 316SS
Speed Controller	Yes
Electrical	230/460V, 3 Phase
Certification	C1D1 & C1D2 Compliant

Popular Industries & Use Cases

Botanical Extraction Pharmaceutical Chemical Processing Biotech & Research

Business Solutions & Procurement

Programs & Terms

Exclusive options for businesses and academics.

Apply for Net Terms Academic Discount

Documentation & Compliance

Keep purchasing streamlined and compliant.

Request a Quote Tax Exemption

Custom Solutions

Tailored equipment and integration help.

Custom Request Consulting

Talk to Sales

We’ll help spec the right mixer for your process vessel.

Call 734-855-4890 Email Sales/Support

FAQ

What horsepower options are available for the Mixer Direct Variable Speed Explosion-Proof Direct Drive 3" Tri-Clamp Mount Mixer?

The Mixer Direct Variable Speed Explosion-Proof Direct Drive 3" Tri-Clamp Mount Mixer is available in 1/3 HP, 1/2 HP, 3/4 HP, 1 HP, and 1.5 HP configurations.

What pressure ratings are available for the Mixer Direct Variable Speed Explosion-Proof Direct Drive 3" Tri-Clamp Mount Mixer?

The Mixer Direct Variable Speed Explosion-Proof Direct Drive 3" Tri-Clamp Mount Mixer is available with 3 PSI, 100 PSI, or 250 PSI pressure configurations. The 3 PSI and 100 PSI options are not rated for vacuum, while the 250 PSI option is rated for ultimate vacuum.

What type of motor and mounting connection does the Mixer Direct Variable Speed Explosion-Proof Direct Drive 3" Tri-Clamp Mount Mixer use?

The mixer uses an explosion-proof inverter-duty motor and a 3" Tri-Clamp mounting connection. It also features an FDA lip shaft seal and 316 stainless steel wetted components.

What is the speed range of the Mixer Direct Variable Speed Explosion-Proof Direct Drive 3" Tri-Clamp Mount Mixer?

The mixer operates from 175 to 1,750 RPM across the available horsepower configurations. The mixer includes a speed controller for variable-speed operation.
