Description

*Notice: This item is subject to drop ship and may have a extended lead time*

Huber Ministats are the smallest cooling circulator in the world. Their small dimensions allow Ministats to be placed in the smallest of spaces, for example in a laboratory fume cupboard or inside technical plant. Despite their minimal size the systems are extensively fitted out and offer sufficient performance for temperature control of photometers, refractometers, viscometers, distillation apparatus, reaction vessels and mini-plants. The main applications are using external applications however the bath opening allows objects to be thermoregulated directly in a thermostat bath. A powerful pressure/suction pump with an infinitely controlled rotational speed ensures optimal circulation. The maximum pressure can also be regulated by an optional pressure sensor, meaning that sensitive glass reactors and apparatus can reliably be protected from breakage. Additionally, Ministats offer the Pilot ONE controller as standard with a colour TFT display and comfortable operator guidance. Analogue connections according to NAMUR are available via the optional Com.G@te module allowing Ministats to integrate into plant and process control systems.

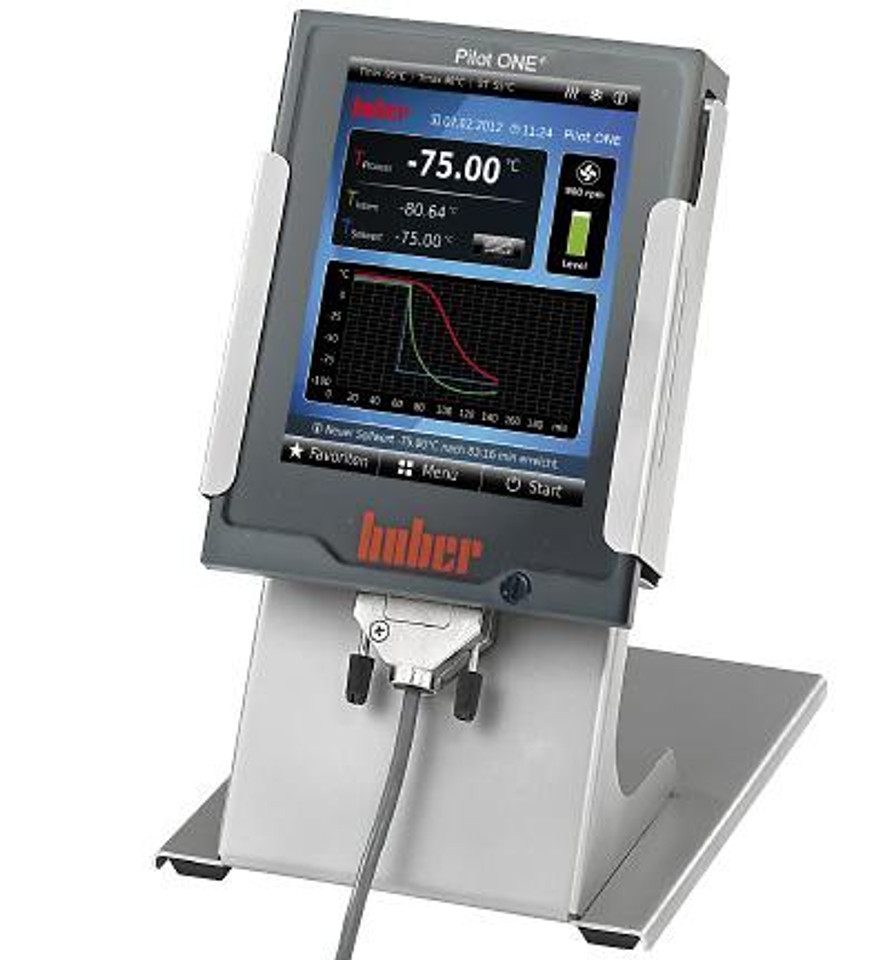

The new multi-touch controller Pilot ONE offers a brilliant 5.7" touchscreen with graphic functions and a comfortable navigation menu. All important operating parameters and temperature values are neatly displayed on the touchscreen. Thanks to the new favourites menu, the one-click operation and the integrated technical glossary the operation is very easy, just like on a smartphone. Integrated USB and Ethernet ports allows connection to a PC or network, e.g. for remote control or data transmission.

FEATURES:

Pilot ONE controller with Plug & Play technology
Precise temperature control
5.7“ touchscreen and comfortable menu navigation
Overtemperature and low level protection
Safety class III/FL (DIN 12876)
Powerful pressure/suction pump
Programmer with calendar and clock functions
2-point calibration
RS232 interface and Pt100 connection
Natural refrigerant

Ministat 230 Data sheet

Click Here 3 Year Warranty Register

Please observe the notes on installation and/or the space requirements of our products

General information & temperature controller
Temperature range	-40...200 °C
Temperature stability	±0.02 °C
Controller	Pilot ONE (E-grade "Basic")
Safety class	III / FL
Protection class	IP20
Dimensions (W x D x H)	255 x 450 x 476 mm \| 10.04 x 17.72 x 18.74 inches
Weight	37 kg \| 81.59 pounds
Heating / cooling capacity
Heating capacity	1,5 kW
Cooling capacity	100	20	0	-10	-20	-40	°C
	0,42	0,42	0,38	0,33	0,25	0,05	kW
Cooling machine	air-cooled
Refrigerant (ASHRAE, GHS)	R290 (A3, H220) (0,099 kg)
Circulation pump
Pressure pump max.	22 lpm ; 0.7 bar \| 5.81 gpm ; 10.15 psi
Suction pump max.	16 lpm ; 0.4 bar \| 4.23 gpm ; 5.8 psi
Pump connection	M16x1 AG male
Permissible viscosity	50 mm²/s
Pump speed adjustable	Yes
Connections
Pt100 connection	Pt100
Digital interface	RS232, Ethernet, USB Device, USB Host
Operating data
Permissible ambient temp.	5...40 °C
Bath opening W x D / BD	170 x 85 / 135 mm \| 6.69 x 3.35 / 5.31 inches
Bath volume	3.2 Liters \| 0.85 gal
Filling volume min.	2.8 Liters \| 0.74 gal
Power supply	110-120V 1~ 60Hz
Current max.	14 A
Fusing	16 A

undefined

For Technical Support, Questions, or Other Issues Please Email or Call Us!

Specifications

Temperature range:	-40...200 °C
Temperature stability:	±0.02 °C
Heating capacity:	1,5 kW
Filling volume min.:	2.8 Liters \| 0.74 gal
Pressure pump max.:	22 lpm ; 0.7 bar \| 5.81 gpm ; 10.15 psi
Power supply:	110-120V 1~ 60Hz
Current max.:	14 A
Dimensions (W x D x H):	255 x 450 x 476 mm \| 10.04 x 17.72 x 18.74 inches
Weight:	37 kg \| 81.59 pounds
