Huber BFT5 with Pilot ONE




Brand :

$19,800.00 - $20,300.00
SKU:
BFT5
Temperature range:
-40...80 °C
Temperature stability:
±0.03 °C
Heating capacity:
2 kW
Cooling capacity:
1.2kW at 20°C
Filling volume min.:
8.5 Liters  |  2.25 gal
Bath volume :
40 Liters  |  10.57 gal
Pressure pump max.:
0 lpm ; 0 bar  |  0 gpm ; 0 psi
Power supply:
208V 2~ 60Hz
Dimensions (W x D x H):
460 x 710 x 911 mm  |  18.11 x 27.95 x 35.87 inches
Weight:
95 kg  |  209.48 pounds

*Notice: This item is subject to drop ship and may have a extended lead time*

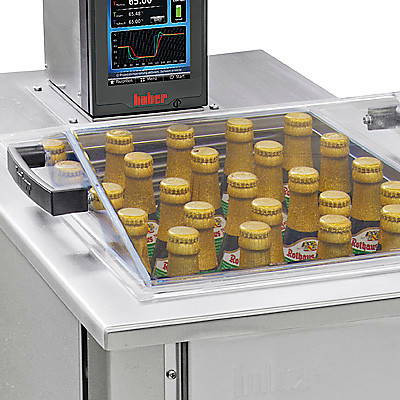

With the Huber Pilot One BFT5 we offer a special heating and cooling thermostat for the Beer Forcing test. The unit is fitted with a programmer for automatic temperature cycles. The changing the temperature between 0 and 60 °C in a cycle time of 24 hours artificial aging of the beer is achieved. The model meet the requirements of Safety Class III (FL). The housing and all parts which come into contact with the fluid are made out of high quality stainless steel.

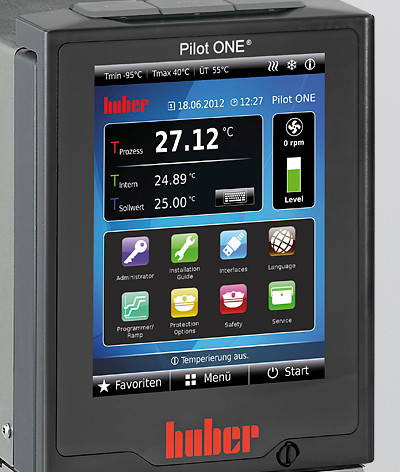

The new multi-touch controller Pilot ONE offers a brilliant 5.7" touchscreen with graphic functions and a comfortable navigation menu. All important operating parameters and temperature values are neatly displayed on the touchscreen of this natural refrigerant. Thanks to the new favourites menu, the one-click operation and the integrated technical glossary the operation is very easy, just like on a smartphone. Integrated USB and Ethernet ports allows connection to a PC or network, e.g. for remote control or data transmission.

FEATURES:

Pilot ONE controller with Plug & Play technology
Precise temperature control
5.7“ touchscreen and comfortable menu navigation
Overtemperature and low level protection
Safety class III/FL (DIN 12876)
Powerful pressure/suction pump
Programmer with calendar and clock functions
2-point calibration
RS232 interface and Pt100 connection
Natural refrigerant

BFT5 Data sheet

 Click Here 3 Year Warranty Register

Please observe the notes on installation and/or the space requirements of our products



General information & temperature controller

Temperature range

-40...80 °C

Temperature stability

±0.03 °C

Controller

Pilot ONE  (E-grade "Exclusive")

Safety class

III / FL

Protection class

IP20

Dimensions (W x D x H)

460 x 710 x 911 mm  |  18.11 x 27.95 x 35.87 inches

Weight

95 kg  |  209.48 pounds

Heating / cooling capacity

Heating capacity

2 kW

Cooling capacity

20

 °C

1,2

 kW

Cooling machine

air-cooled

Refrigerant (ASHRAE, GHS)

R452A (A1, H280)

Circulation pump

Pressure pump max.

0 lpm ; 0 bar  |  0 gpm ; 0 psi

Pump speed adjustable

Yes

Connections

Pt100 connection

Pt100

Digital interface

RS232, Ethernet, USB Device, USB Host

Operating data

Permissible ambient temp.

5...40 °C

Bath opening W x D / BD

350 x 410 / 270 mm  |  13.78 x 16.14 / 10.63 inches

Bath volume

40 Liters  |  10.57 gal

Filling volume min.

8.5 Liters  |  2.25 gal

Power supply

208V 2~ 60Hz






For Technical Support, Questions, or Other Issues Please Email or Call Us!

Huber Logo - Cascade Sciences

Temperature range:
-40...80 °C
Temperature stability:
±0.03 °C
Heating capacity:
2 kW
Cooling capacity:
1.2kW at 20°C
Filling volume min.:
8.5 Liters  |  2.25 gal
Bath volume :
40 Liters  |  10.57 gal
Pressure pump max.:
0 lpm ; 0 bar  |  0 gpm ; 0 psi
Power supply:
208V 2~ 60Hz
Dimensions (W x D x H):
460 x 710 x 911 mm  |  18.11 x 27.95 x 35.87 inches
Weight:
95 kg  |  209.48 pounds
