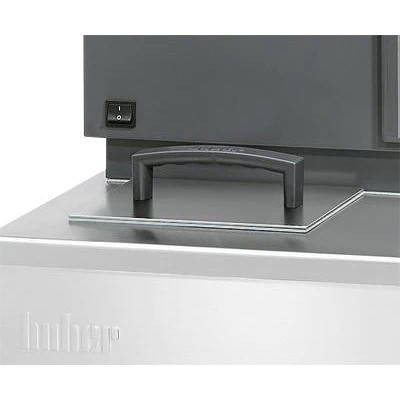

Huber CC-508 with Pilot ONE




Brand :

$18,200.00 - $18,700.00
SKU:
CC-508
Temperature range:
-55...200 °C
Temperature stability:
±0.02 °C
Heating capacity:
2,4 - 3  kW
Cooling capacity:
1.5kW at 100C | 0.3kW at -40°C
Filling volume min.:
4 Liters  |  1.06 gal
Bath volume :
5 Liters  |  1.32 gal
Pressure pump max.:
25 lpm ; 0.7 bar  |  6.6 gpm ; 10.15 psi
Power supply:
208-230V 1~/2~ 60Hz
Current max.:
16 A
Dimensions (W x D x H):
410 x 480 x 764 mm  |  16.14 x 18.9 x 30.08 inches
Weight:
66 kg  |  145.53 pounds

*Notice: This item is subject to drop ship and may have a extended lead time*

Refrigeration bath circulator is suitable for controlling the temperature of externally connected applications and thermoregulation of objects directly in the thermostat bath. Typical applications are: photometers, refractometers, viscometers, double-jacketed reaction vessels and autoclaves. The units can be used in mini-plants and kilo laboratories, for determining the freezing point, for deep temperature calibration, for petroleum tests, for temperature control of measuring devices and experimental setups as well as for materials testing and quality control. Depending on the model, the equipment is able to meet the highest demands; this is ensured by the professional range of functions available on the Pilot ONE controller, such as a colour TFT display, programmer, Pt100 external probe connection, calibration, calendar/clock functions, autostart, RS232 interface as well as extensive safety and warning functions. One further plus point is the electronic upgrade for function extensions using a unit specific e-grade code. This activates additional functions such as the programmer, TAC cascade controlling, temperature ramps, user menus, calendar start, graphic display and process control. The units are made from high quality stainless steel and have a thermoregulated cover plate to avoid condensation and build up of ice. The bath vessel has a volume of 5 litres and can be emptied via the drain fitting over the front.

The new multi-touch controller Pilot ONE offers a brilliant 5.7" touchscreen with graphic functions and a comfortable navigation menu. All important operating parameters and temperature values are neatly displayed on the touchscreen. Thanks to the new favourites menu, the one-click operation and the integrated technical glossary the operation is very easy, just like on a smartphone. Integrated USB and Ethernet ports allows connection to a PC or network, e.g. for remote control or data transmission.

FEATURES:

Pilot ONE controller with Plug & Play technology
Precise temperature control
5.7“ touchscreen and comfortable menu navigation
Overtemperature and low level protection
Safety class III/FL (DIN 12876)
Powerful pressure/suction pump
Programmer with calendar and clock functions
2-point calibration
Pt100 connection
Natural refrigerant

Huber CC-508 Data sheet

 Click Here 3 Year Warranty Register

Please observe the notes on installation and/or the space requirements of our products

General information & temperature controller

Temperature range

-55...200 °C

Temperature stability

±0.02 °C

Controller

Pilot ONE  (E-grade "Basic")

Safety class

III / FL

Protection class

IP20

Dimensions (W x D x H)

410 x 480 x 764 mm  |  16.14 x 18.9 x 30.08 inches

Weight

66 kg  |  145.53 pounds

Heating / cooling capacity

Heating capacity

2,4 - 3  kW

Cooling capacity

100

20

0

-20

-40

 °C

1,5

1,5

1,5

1

0,3

 kW

Cooling machine

air-cooled

Refrigerant (ASHRAE, GHS)

R1270 (A3, H220) (0,15 kg)

Circulation pump

Pressure pump max.

25 lpm ; 0.7 bar  |  6.6 gpm ; 10.15 psi

Suction pump max.

18.5 lpm ; 0.4 bar  |  4.89 gpm ; 5.8 psi

Pump connection

M16x1 AG male

Permissible viscosity

50 mm²/s

Pump speed adjustable

Yes

Connections

Pt100 connection

Pt100

Digital interface

RS232, Ethernet, USB Device, USB Host

Operating data

Permissible ambient temp.

5...40 °C

Bath opening W x D / BD

120 x 110 / 160 mm  |  4.72 x 4.33 / 6.3 inches

Bath volume

5 Liters  |  1.32 gal

Filling volume min.

4 Liters  |  1.06 gal

Power supply

208-230V 1~/2~ 60Hz

Current max.

16 A



undefined
undefined
undefined


For Technical Support, Questions, or Other Issues Please Email or Call Us!

Huber Logo - Cascade Sciences

Temperature range:
-55...200 °C
Temperature stability:
±0.02 °C
Heating capacity:
2,4 - 3  kW
Cooling capacity:
1.5kW at 100C | 0.3kW at -40°C
Filling volume min.:
4 Liters  |  1.06 gal
Bath volume :
5 Liters  |  1.32 gal
Pressure pump max.:
25 lpm ; 0.7 bar  |  6.6 gpm ; 10.15 psi
Power supply:
208-230V 1~/2~ 60Hz
Current max.:
16 A
Dimensions (W x D x H):
410 x 480 x 764 mm  |  16.14 x 18.9 x 30.08 inches
Weight:
66 kg  |  145.53 pounds
