Huber CC-315B with Pilot ONE




Brand :

$9,360.00 - $9,860.00
SKU:
CC-315B
Brand:
HUBER
Temperature Range:
(-20) 28...300 °C
Temperature Stability:
±0.02 °C
Heating Capacity:
1 - 1,5 kW
Pressure pump max:
25 lpm ; 0.7 bar | 6.6 gpm ; 10.15 psi
Suction pump max.:
18.5 lpm ; 0.4 bar | 4.89 gpm ; 5.8 psi
Bath Volume:
15 Liters | 3.96 gal
Power supply:
200-240V 1~/2~ 50/60Hz
Dimensions (W x D x H):
335 x 382 x 433 mm | 13.19 x 15.04 x 17.05 inches
Weight:
22 kg | 48.51 pounds

*Notice: This item is subject to drop ship and may have a extended lead time*

Heating bath circulation thermostats with a stainless steel bath allow the temperature control of internal and external thermoregulation tasks. Items can be directly thermoregulated by placing them in a thermostat bath and the control of externally connected applications is also possible. The units are suitable for a number of typical temperature control tasks such as sample temperature control, materials testing, quality control, etc. The devices are fitted with overtemperature and low level protection in line with Safty Class III/FL according to DIN 12876. A powerful pressure/suction pump ensures optimal circulation and temperature homogeneity in the thermostat bath and also allows temperature control of externally connected applications.

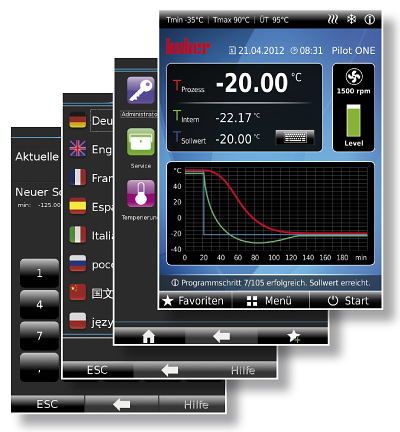

he new multi-touch controller Pilot ONE offers a brilliant 5.7" touchscreen with graphic functions and a comfortable navigation menu. All important operating parameters and temperature values are neatly displayed on the touchscreen. Thanks to the new favorites menu, the one-click operation and the integrated technical glossary the operation is very easy, just like on a smartphone. Integrated USB and Ethernet ports allows connection to a PC or network, e.g. for remote control or data transmission.



 *CC-315B DATA Sheet*



CC-315B Specifications

General Information & Temperature Controller

Temperature range

(-20) 28...300 °C

Temperature stability

±0.02 °C

Controller

Pilot ONE  (E-grade "Basic")

Safety class

III / FL

Protection class

IP20

Dimensions (W x D x H)

335 x 382 x 433 mm  |  13.19 x 15.04 x 17.05 inches

Weight

22 kg  |  48.51 pounds

Heating / cooling capacity

Heating capacity

3 - 3,5  kW

Circulation pump

Pressure pump max.

25 lpm ; 0.7 bar  |  6.6 gpm ; 10.15 psi

Suction pump max.

18.5 lpm ; 0.4 bar  |  4.89 gpm ; 5.8 psi

Pump connection

M16x1 AG male

Permissible viscosity

50 mm²/s

Pump speed adjustable

Yes

Connections

Pt100 connection

Pt100

Digital interface

RS232, Ethernet, USB Device, USB Host

Operating data

Permissible ambient temp.

5...40 °C

Bath opening W x D / BD

270 x 145 / 200 mm  |  10.63 x 5.71 / 7.87 inches

Bath volume

15 Liters  |  3.96 gal

Filling volume min.

11.5 Liters  |  3.04 gal

Power supply

200-240V 1~/2~ 50/60Hz

Current max.

16 A

Fusing

20 A
