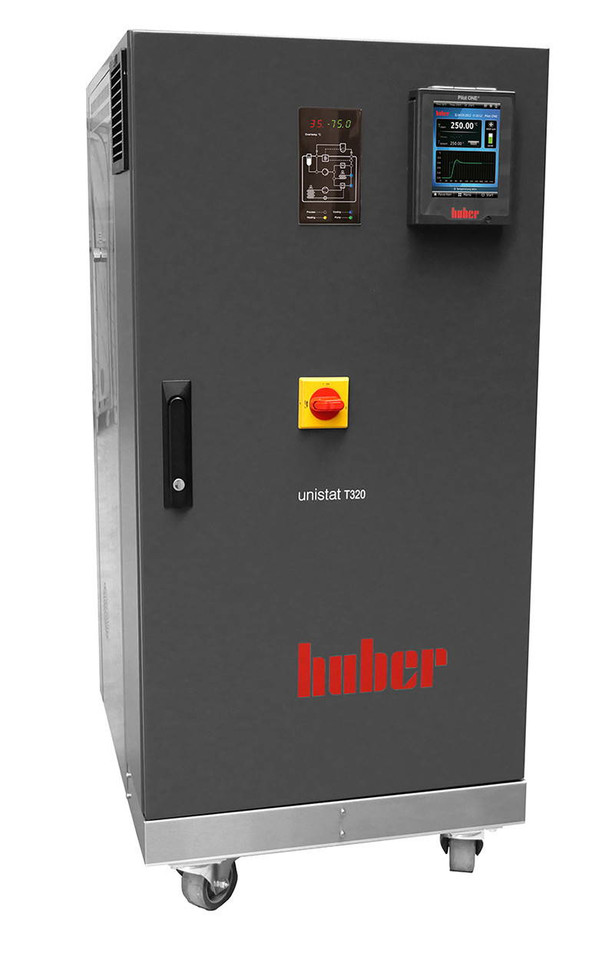

HUBER Unistat T320 with Pilot ONE




Brand :

$35,900.00 - $36,400.00
SKU:
T320
Brand:
HUBER
Temperature Range:
65...300 °C
Temperature Stability:
±0.01 °C
Heating Capacity:
10,5 - 12 kW
Pressure pump max:
96 lpm ; 3.5 bar | 25.36 gpm ; 50.75 psi
Pump Connection:
M24x1,5 AG male
Filling volume min.:
1.45 Liters | 0.38 gal
Power supply:
380-460V 3~ 50/60Hz
Dimensions (W x D x H):
540 x 678 x 1174 mm | 21.26 x 26.69 x 46.22 inches
Weight:
196 kg | 432.18 pounds

HUBER Unistat T320 with Pilot ONE

(Please Note: There is a 2 - 3 weeks lead time)

The Unistat range inspires with unique thermodynamic properties and a range of functions to meet the highest demands. Unistat technology guarantees precise, reproducible temperature control results, the shortest possible heating and cooling times and large temperature ranges without the need for fluid change. All Unistats are fitted with the innovative Pilot ONE controller with a 5.7“ touchscreen colour display and easy menu navigation. All important parameters can be seen at a glance and temperature curves are displayed in graphic real time. Unistats are equipped with the most up-to-date pump technology for optimal heat transfer. The pump self regulates to ensure the best possible circulation and flow and delicate glass reactors are protected from breakage by the pumps soft start-up feature. Unistat technology impresses as a result of economic operation with reduced operating costs and efficient energy management. Because Unistats are hydraulically sealed, the service life of the temperature control fluid is dramatically increased by preventing oil loss through vapours and oxidation, further saving resources. Unistats are fitted with extensive safety equipment and are therefore suitable for unsupervised continuous operation. Relevant operating conditions are constantly monitored and the system is switched off if necessary or with the process safety feature the emergency cooling circuit is activated.

The new multi-touch controller Pilot ONE offers a brilliant 5.7" touchscreen with graphic functions and a comfortable navigation menu. All important operating parameters and temperature values are neatly displayed on the touchscreen. Thanks to the new favourites menu, the one-click operation and the integrated technical glossary the operation is very easy, just like on a smartphone. Integrated USB and Ethernet ports allows connection to a PC or network, e.g. for remote control or data transmission



 *T320 DATA Sheet*



Unistat T320 Specifications

General Information & Temperature Controller

Temperature range

65...300 °C

Temperature stability

±0.01 °C

Temperature control

TAC, self-optimizing (True Adaptive Control)

Display resolution

0.01 °C

Alarm message

optical, acoustical

Controller

Pilot ONE  (E-grade "Professional")

Safety class

III / FL

Protection class

IP20

Dimensions (W x D x H)

  21.26 x 26.69 x 46.22 inches

Weight

196 kg  |  432.18 pounds

Heating / Cooling Capacity

Heating capacity

10,5 - 12  kW

Circulation Pump

Pressure pump max.

96 lpm ; 3.5 bar  |  25.36 gpm ; 50.75 psi

Pump connection

M30x1,5 AG male

Permissible viscosity

50 mm²/s

Pump speed adjustable

Yes

Connections

Pt100 connection

Pt100

Analogue input

via optional Com.G@te

Analogue output

via optional Com.G@te

Digital interface

RS232, Ethernet, USB Device, USB Host

Operating Data

Permissible ambient temp.

5...40 °C

Noise level

58 dB(A)

Filling volume min.

3 Liters  |  0.79 gal

Volume of expansion

24 Liters  |  6.34 gal

Power supply

380-460V 3~ 50/60Hz

Current max.

19,5 A













For Technical Support, Questions, or Other Issues Please Email or Call Us!

Huber Logo - Cascade Sciences

Brand:
HUBER
Temperature Range:
65...300 °C
Temperature Stability:
±0.01 °C
Heating Capacity:
10,5 - 12 kW
Pressure pump max:
96 lpm ; 3.5 bar | 25.36 gpm ; 50.75 psi
Pump Connection:
M24x1,5 AG male
Filling volume min.:
1.45 Liters | 0.38 gal
Power supply:
380-460V 3~ 50/60Hz
Dimensions (W x D x H):
540 x 678 x 1174 mm | 21.26 x 26.69 x 46.22 inches
Weight:
196 kg | 432.18 pounds
