Description

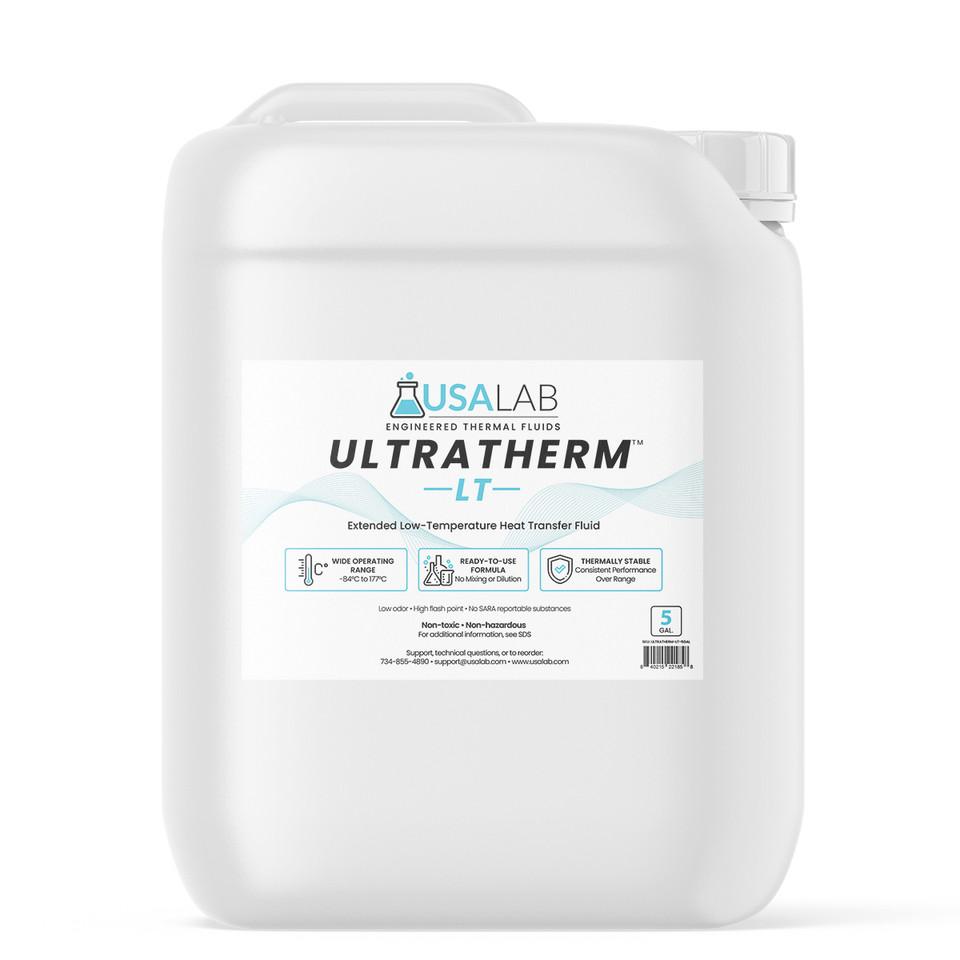

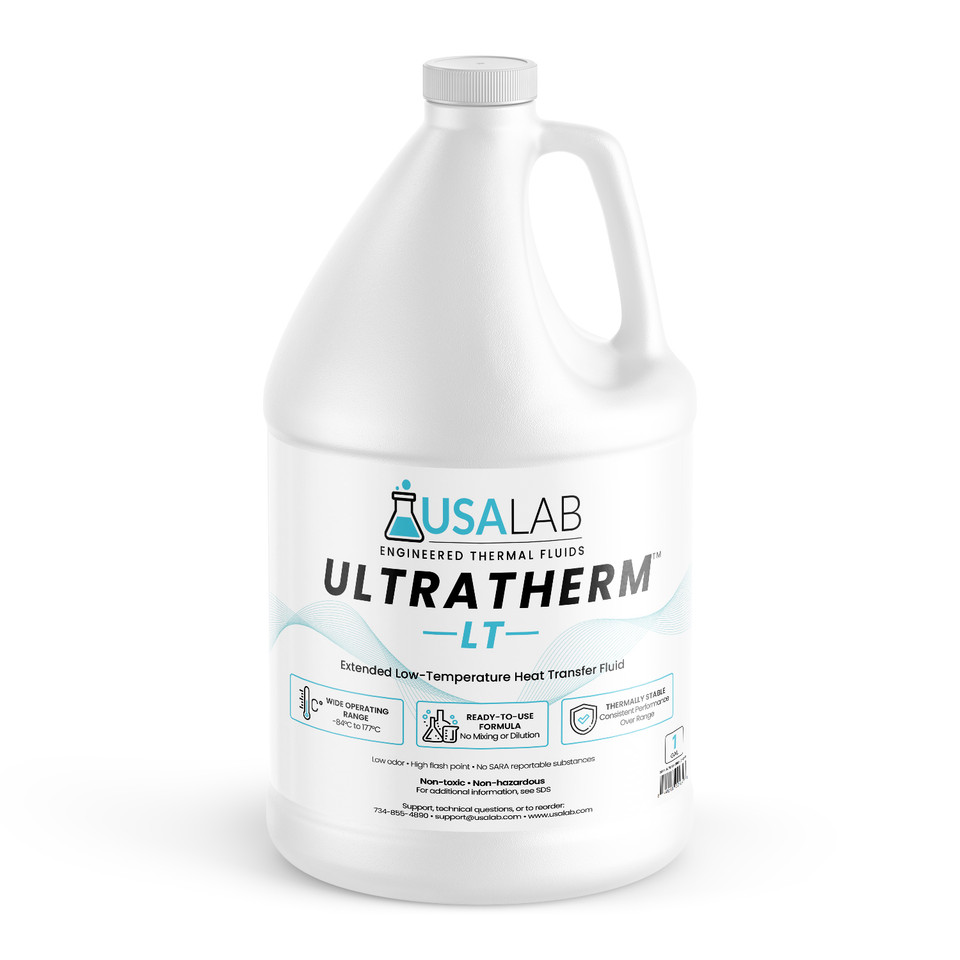

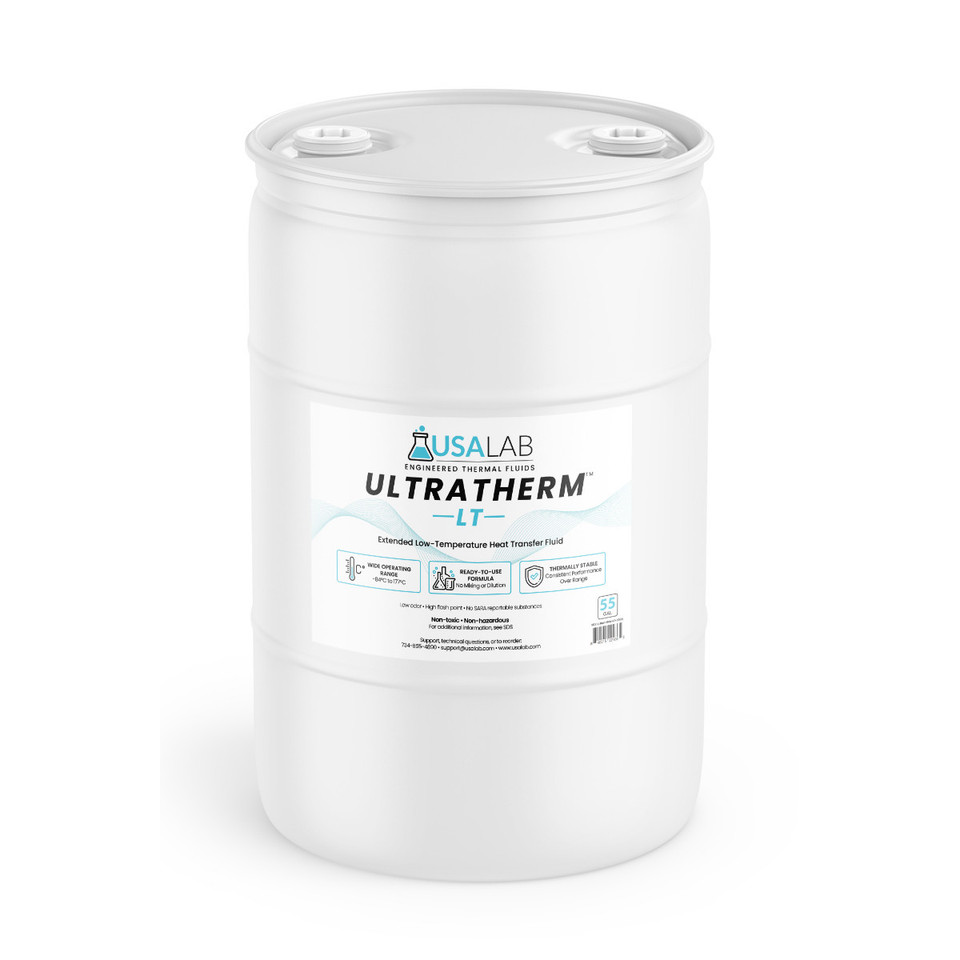

Ultratherm LT Heat Transfer Fluid | Recommended for USA Lab Chillers

Ultratherm LT is engineered for long-term operation in heat transfer applications that demand precise temperature control from -84°C (-120°F) up to 177°C (350°F). Recommended for USA Lab chillers, this versatile fluid is ideal for near-cryogenic applications and a wide range of heating and cooling processes.

Its economical cost, stable performance, and broad operating range make Ultratherm LT well-suited for the food processing, pharmaceutical, chemical, and botanical extraction industries. With extreme low-temperature capability and non-corrosive characteristics, it supports consistent system performance over extended service life.

Ultratherm LT also offers trouble-free operation with no need to monitor concentration or additive levels, making it a practical choice for demanding recirculating chiller and secondary cooling loop applications. Ultratherm LT is plant and user friendly with low odor, a high flash point, and no SARA reportable substances.
After its service life, Ultratherm LT can typically be disposed of through local waste oil recycling programs. Always check local regulations.

Recommended for USA Lab Chillers -84°C to 177°C Range Stable & Non-Corrosive Low-Temperature Performance

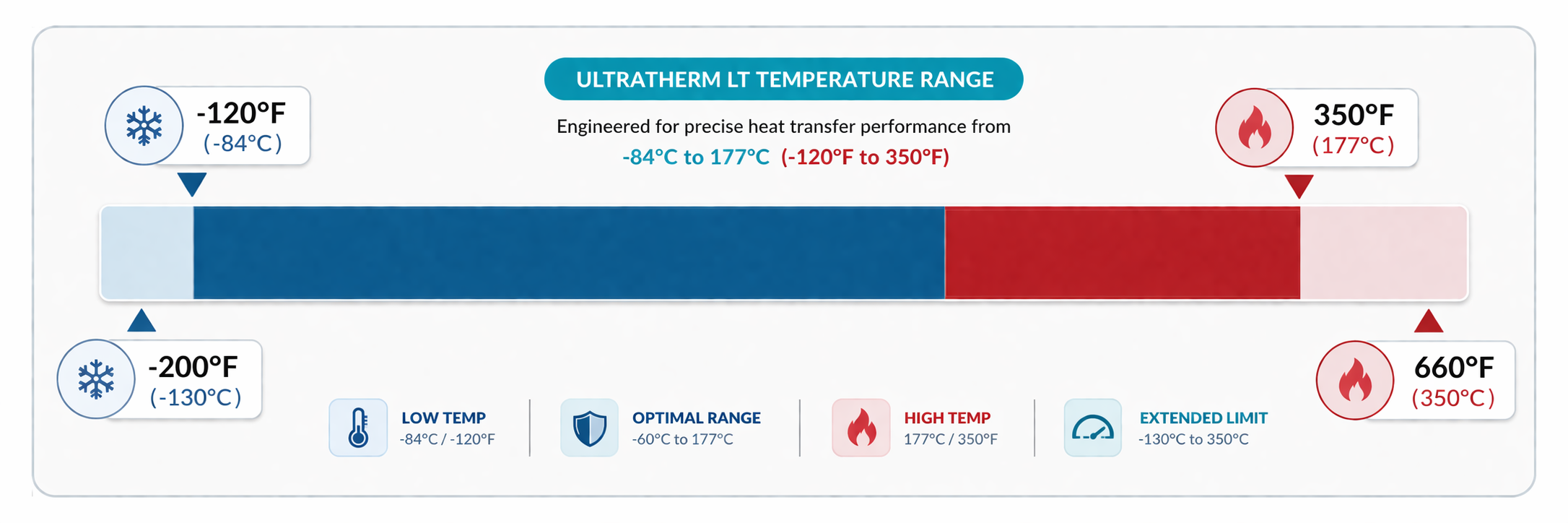

Temperature Range: -84°C to 177°C for heating and cooling applications.

Flash Point: 63°C (145°F) — ASTM D92

Pour Point: -90°C — ASTM D97

Why buy from USA Lab

Expert Support
Engineers & technicians on staff.

Quality First
Tested and trusted products.

Fast Fulfillment
Nationwide 1-2 day shipping.

Warranty & Parts
US-based service & spares.

Resources & Downloads

Safety Data Sheet (SDS) Technical Data Sheet (TDS)

Why choose Ultratherm LT?

Wide operating range — works from near-cryogenic temperatures up to 177°C for flexible thermal control.
Consistent properties — remains stable and non-corrosive across a broad temperature range.
Low-maintenance performance — no monitoring of concentration or additive levels is required.
Versatile applications — ideal for food processing, pharmaceuticals, chemical processing, and botanical extraction.
Secondary cooling loop ready — suitable where a wide-ranging fluid is needed in refrigeration loops.

Talk to an expert

Get help selecting the right heat transfer fluid for your USA Lab chiller or process line.

Call 734-855-4890

Technical Specifications

Model	Ultratherm LT
Maximum Temperature	177°C / 350°F
Minimum Temperature	-84°C / -120°F
Max Bulk/Use Temp	177°C
Max Film Temp	204°C
Pour Point ASTM D97	-90°C
Flash Point ASTM D92	63°C
Fire Point ASTM D92	70°C
Autoignition ASTM E-659-78	275°C
Thermal Conductivity	0.119 W/m·K @ -40°C \| 0.116 W/m·K @ -18°C \| 0.107 W/m·K @ 38°C
Heat Capacity	1.863 kJ/kg·K @ -40°C \| 1.947 kJ/kg·K @ -18°C \| 2.169 kJ/kg·K @ 38°C
Viscosity ASTM D445	8.68 cSt @ -40°C \| 3.78 cSt @ -18°C
Density ASTM D1298	0.81 kg/l @ -40°C \| 0.8 kg/l @ -18°C \| 0.76 kg/l @ 38°C
Vapor Pressure ASTM D2879	0 kPa @ -40°C \| 0 kPa @ -18°C \| 0.22 kPa @ 38°C
Distillation Range ASTM D2887	10%: -18°C \| 90%: -18°C

Popular Industries & Use Cases

Botanical Extraction Pharmaceutical Chemical Processing Food Processing

Business Solutions & Procurement

Programs & Terms

Exclusive options for businesses and academics.

Apply for Net Terms Academic Discount

Documentation & Compliance

Keep purchasing streamlined and compliant.

Request a Quote Tax Exemption

Custom Solutions

Tailored tanks, skids, and integration help.

Custom Request Consulting

Talk to Sales

We’ll help spec the right system for your throughput.

Call 734-855-4890 Email Sales/Support

FAQ

What is Ultratherm LT used for?

Ultratherm LT is a liquid phase, low-temperature heat transfer fluid designed for heating and cooling applications. Ultratherm LT is recommended for USA Lab chillers and can also be used as a secondary coolant in refrigeration loops.

What temperature range can Ultratherm LT handle?

Ultratherm LT operates from as low as -84°C up to 177°C, with its most efficient heat transfer performance between -60°C and 177°C.

Does Ultratherm LT require concentration or additive monitoring?

No. Ultratherm LT is designed for trouble-free operation and does not require monitoring of concentration or additive levels during normal use.

Is Ultratherm LT safe for plant and user environments?

Yes. Ultratherm LT has low odor, a high flash point, and contains no SARA reportable substances, making Ultratherm LT a practical choice for worker health and safety.

How should Ultratherm LT be disposed of?

After its service life, Ultratherm LT can typically be disposed of through local waste oil recycling programs. Always review local disposal regulations before discarding Ultratherm LT.
