RELATHERM ULT - Ultra Low-Temperature Heat Transfer Fluid | -100°C ~ 65°C
Relatherm Heat Transfer FluidsRELATHERM-ULT-$1,240.00 - $68,450.00 -
-
Description

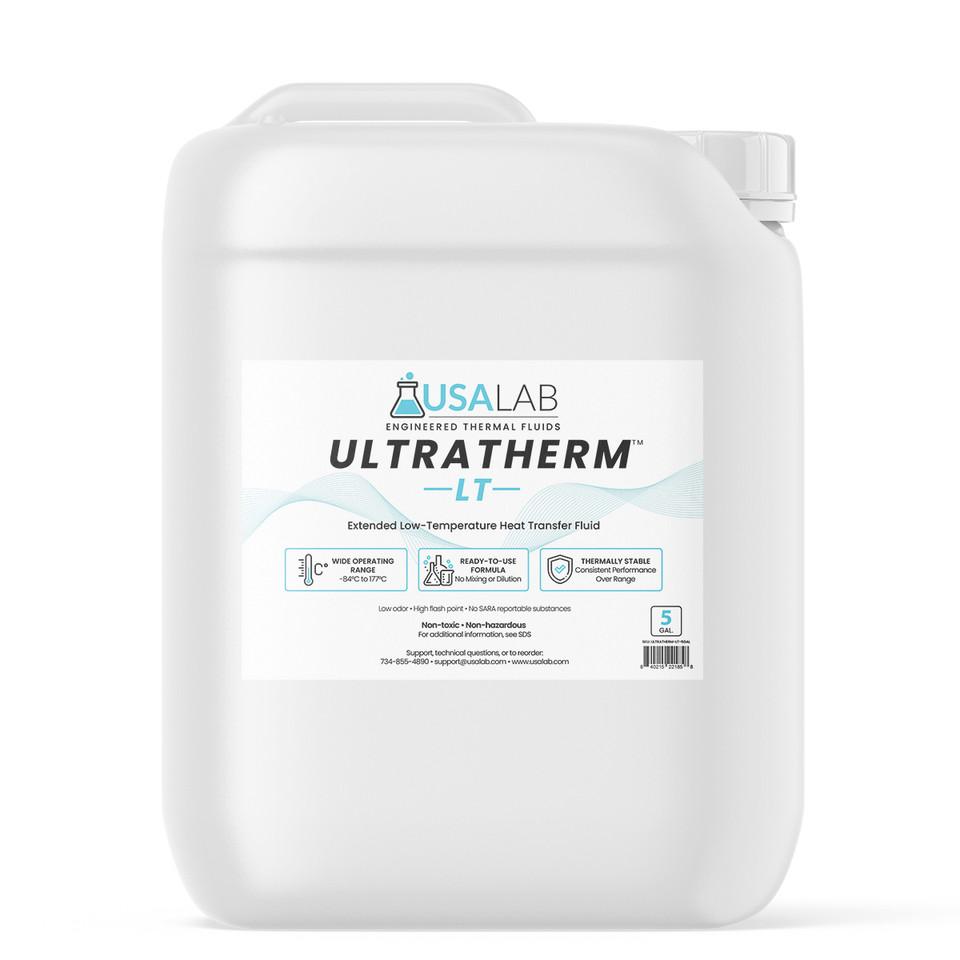

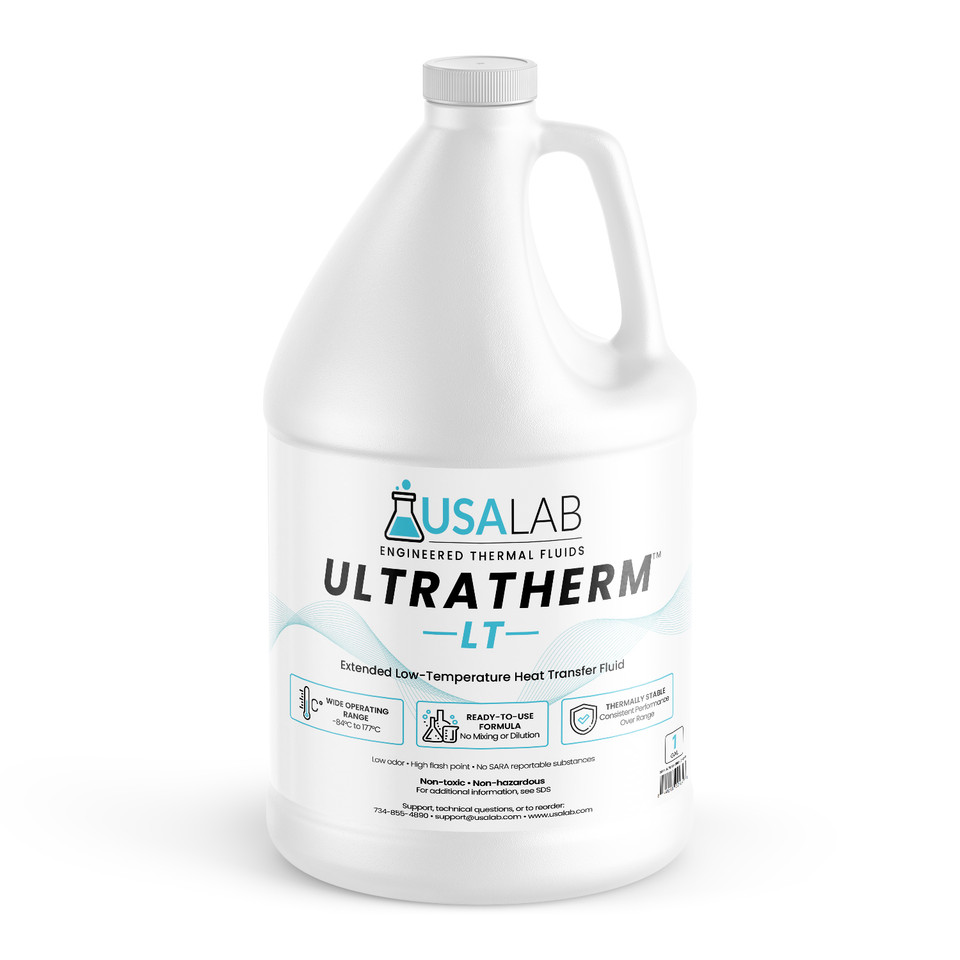

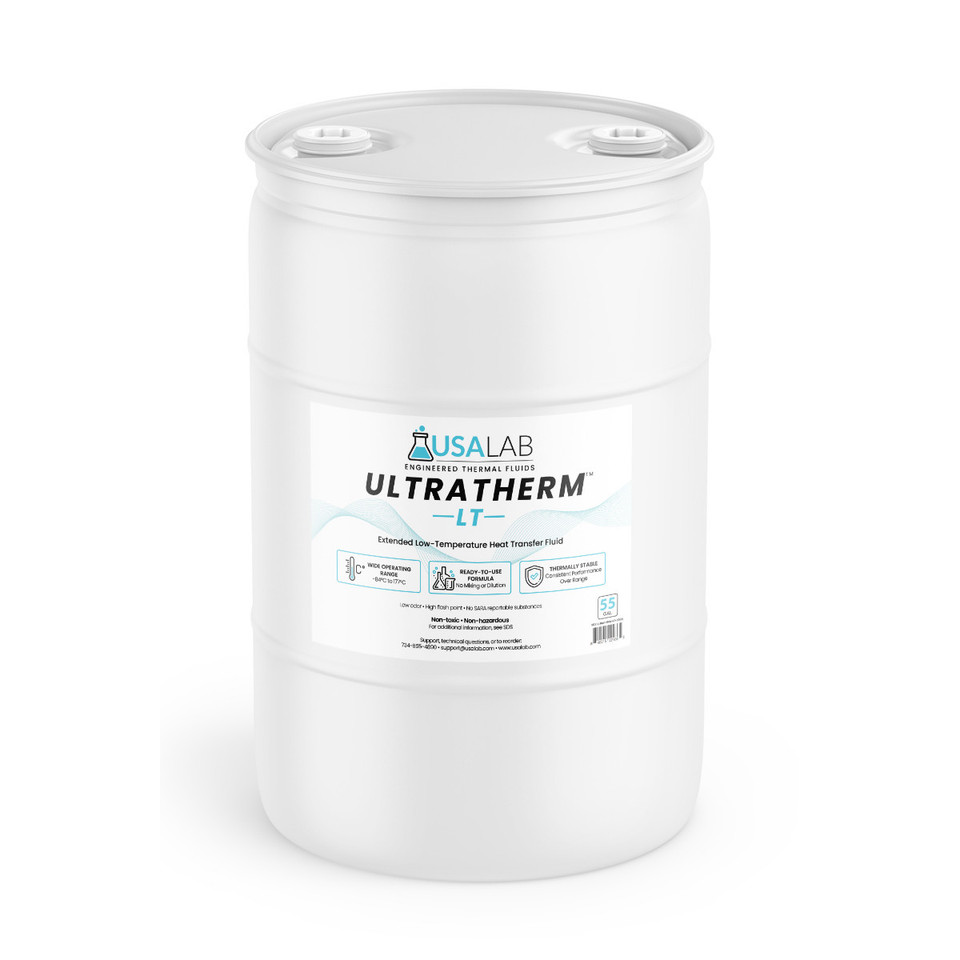

USA Lab Ultratherm Ultra Low Temp Transfer Fluid

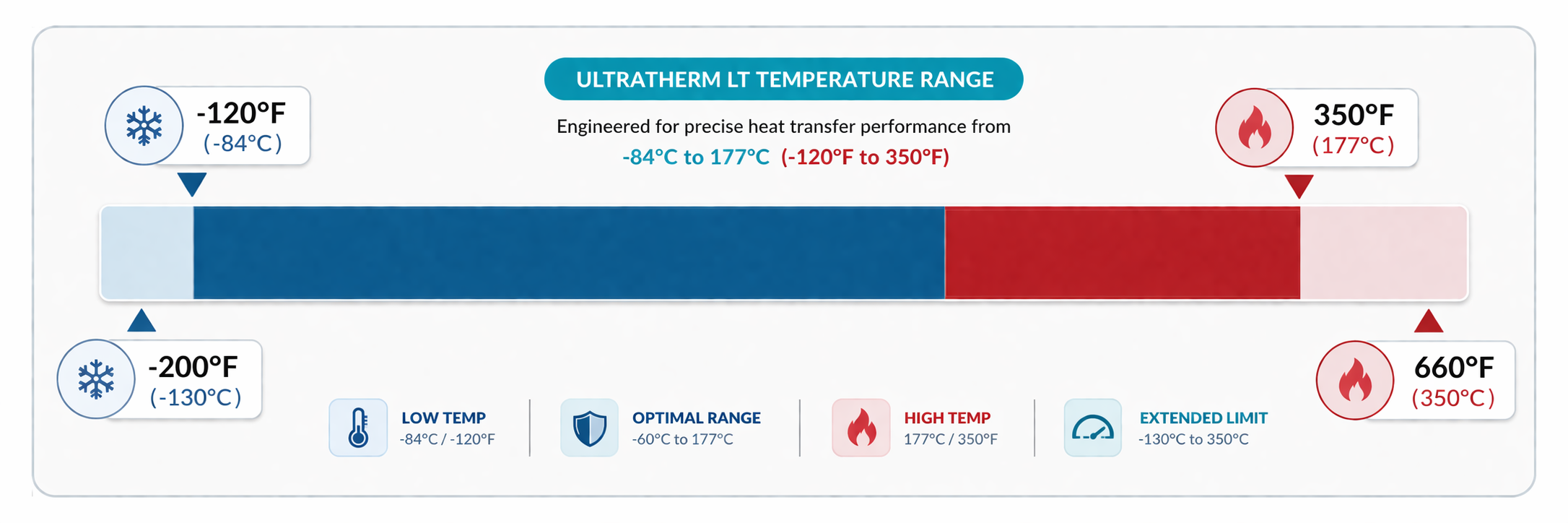

USA Lab Ultratherm Ultra Low Temp Transfer Fluid is engineered for long-term operation in heat transfer applications requiring precise temperature control from -84°C (-120°F) up to 177°C (350°F). Recommended for USA Lab chillers, Ultratherm LT is designed for near-cryogenic applications and a wide range of heating and cooling processes.
With a broad operating range, stable performance, and non-corrosive characteristics, Ultratherm LT is well suited for demanding recirculating chiller and secondary cooling loop applications. Its low-maintenance formulation does not require routine monitoring of concentration or additive levels during normal use.
Ultratherm LT is suitable for food processing, pharmaceutical, chemical processing, and botanical extraction applications. It features low odor, a 63°C (145°F) flash point, and no SARA reportable substances according to the supplied product information.
-84°C to 177°C Ultra Low Temperature USA Lab Chillers Heat Transfer Fluid
Wide Temperature Range: -84°C to 177°C supports demanding heating and cooling applications across a broad operating range.
Low-Maintenance Operation: No concentration or additive monitoring is required during normal use.
Stable & Non-Corrosive: Consistent properties support long-term heat transfer performance in suitable systems.
Why buy from USA Lab
Expert Support
Engineers & technicians on staff.
Engineers & technicians on staff.
Quality First
Tested and trusted products.
Tested and trusted products.
Fast Fulfillment
Nationwide 1-2 day shipping.
Nationwide 1-2 day shipping.
Warranty & Parts
US-based service & spares.
US-based service & spares.
Why choose USA Lab Ultratherm Ultra Low Temp Transfer Fluid?
- Broad operating range — supports heat transfer applications from -84°C (-120°F) up to 177°C (350°F).
- Low-temperature performance — designed for near-cryogenic heating and cooling applications.
- Stable and non-corrosive — provides consistent fluid properties across the stated operating range.
- Low-maintenance operation — does not require monitoring of concentration or additive levels during normal use.
- Versatile process applications — suitable for food processing, pharmaceutical, chemical, and botanical extraction applications.
Talk to an expert
Get help selecting the right heat transfer fluid for your USA Lab chiller, recirculating system, or process application.
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | USA Lab Ultratherm Ultra Low Temp Transfer Fluid |
| Product Type | Heat Transfer Fluid |
| Brand | USA Lab |
| Maximum Temperature | 177°C / 350°F |
| Minimum Temperature | -84°C / -120°F |
| Maximum Bulk/Use Temperature | 177°C |
| Maximum Film Temperature | 204°C |
| Pour Point ASTM D97 | -90°C |
| Flash Point ASTM D92 | 63°C / 145°F |
| Fire Point ASTM D92 | 70°C |
| Autoignition ASTM E-659-78 | 275°C |
| Thermal Conductivity | 0.119 W/m·K @ -40°C; 0.116 W/m·K @ -18°C; 0.107 W/m·K @ 38°C |
| Heat Capacity | 1.863 kJ/kg·K @ -40°C; 1.947 kJ/kg·K @ -18°C; 2.169 kJ/kg·K @ 38°C |
| Viscosity ASTM D445 | 8.68 cSt @ -40°C; 3.78 cSt @ -18°C |
| Density ASTM D1298 | 0.81 kg/L @ -40°C; 0.80 kg/L @ -18°C; 0.76 kg/L @ 38°C |
| Vapor Pressure ASTM D2879 | 0 kPa @ -40°C; 0 kPa @ -18°C; 0.22 kPa @ 38°C |
| Distillation Range ASTM D2887 | 10%: -18°C; 90%: -18°C |
| Recommended Application | USA Lab Chillers and Secondary Cooling Loops |
| Operating Characteristics | Stable, Non-Corrosive, Low Odor |
Popular Industries & Use Cases
Business Solutions & Procurement
Programs & Terms
Exclusive options for businesses and academics.
Documentation & Compliance
Keep purchasing streamlined and compliant.
Custom Solutions
Tailored equipment and integration help.
Talk to Sales
We’ll help spec the right solution for your chiller or process application.
FAQ
What is USA Lab Ultratherm Ultra Low Temp Transfer Fluid used for?
USA Lab Ultratherm Ultra Low Temp Transfer Fluid is a liquid-phase heat transfer fluid designed for heating and cooling applications. It is recommended for USA Lab chillers and can also be used as a secondary coolant in refrigeration loops.
What temperature range can USA Lab Ultratherm Ultra Low Temp Transfer Fluid handle?
USA Lab Ultratherm Ultra Low Temp Transfer Fluid operates from as low as -84°C (-120°F) up to 177°C (350°F), providing a broad range for heating and cooling applications.
Does USA Lab Ultratherm Ultra Low Temp Transfer Fluid require concentration or additive monitoring?
No. USA Lab Ultratherm Ultra Low Temp Transfer Fluid is designed for trouble-free operation and does not require monitoring of concentration or additive levels during normal use.
What are the flash point and pour point of USA Lab Ultratherm Ultra Low Temp Transfer Fluid?
USA Lab Ultratherm Ultra Low Temp Transfer Fluid has a flash point of 63°C (145°F) according to ASTM D92 and a pour point of -90°C according to ASTM D97.
