Description

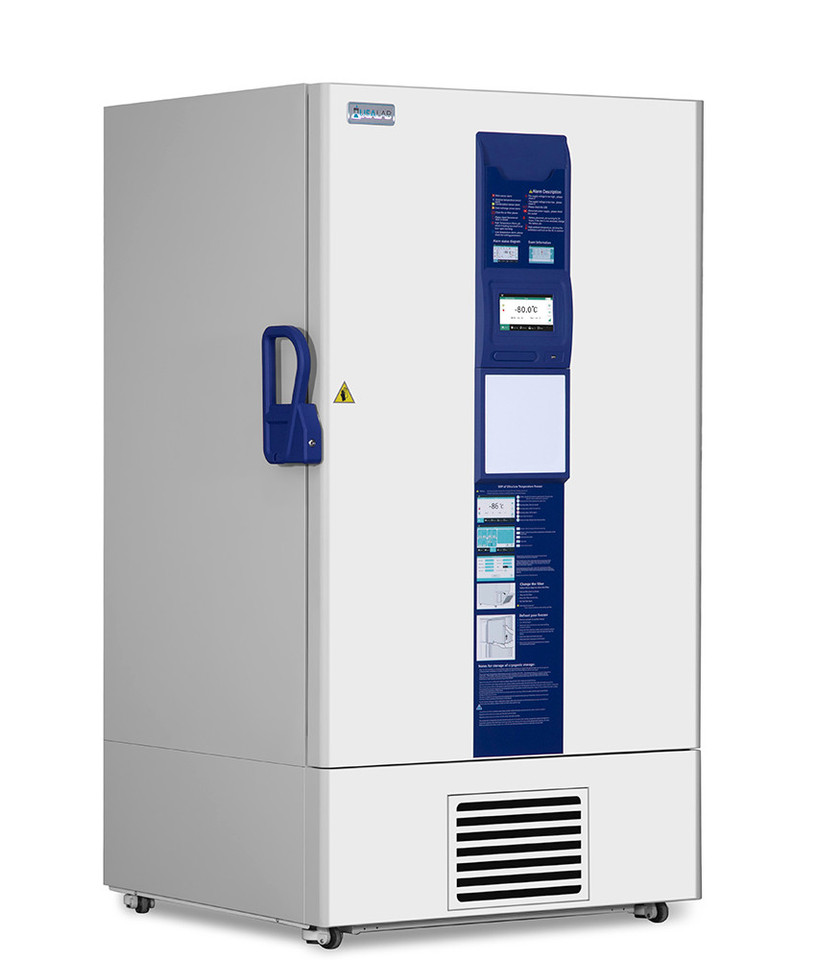

UltraChill 29.6 Cu Ft –86°C Upright Ultra-Low Freezer – Touch Screen – UL Listed | USA Lab
Introducing our UltraChill 29.6 Cu Ft (838 L) –86°C Upright Ultra-Low Freezer, engineered to safeguard high-value biologicals, enzymes, vaccines, and temperature-sensitive pharmaceuticals. With best-in-class temperature uniformity and robust construction, UltraChill delivers reliable long-term sample integrity for research, clinical, and biobank environments.
The UltraChill Series offers a wide –40°C to –86°C set-point range with microprocessor precision and a 7″ LCD touchscreen for intuitive control, real-time monitoring, and streamlined compliance.
Advanced insulation (PURF + VIP) and an efficient cascade system using eco-forward HC (R290/R170) refrigerants reduce energy consumption while maintaining rapid pull-down and tight stability.
Note: Verify power, clearance, and doorway width prior to delivery. Freight ships on pallet; liftgate may be required at additional cost.
–86°C ULT 29.6 cu ft (838 L) 7″ Touchscreen Control Cascade System
HC Refrigerant (R290/R170) UL Listed Energy Efficient Uniformity Optimized
Deep ULT performance: –40°C to –86°C with tight stability and fast recovery after door openings.
Superior uniformity: Direct-cooling air management minimizes gradients for consistent sample conditions.
Safety first: UL listed cabinet with multi-event alarms (temp, power, door, sensor, voltage, battery).
Why buy from USA Lab
Expert Support
Engineers & technicians on staff.
Engineers & technicians on staff.
Quality First
Tested and trusted products.
Tested and trusted products.
Fast Fulfillment
Nationwide 1-2 day shipping.
Nationwide 1-2 day shipping.
Warranty & Parts
US-based service & spares.
US-based service & spares.
Resources & Downloads
Why this –86°C Ultra-Low Freezer?
- Reliable ultra-low storage — –40°C to –86°C range protects sensitive samples long-term.
- Touchscreen control — microprocessor accuracy with 7″ LCD for set-points, logs, and status.
- Eco-forward efficiency — cascade system with HC (R290/R170) and VIP insulation reduces energy use.
- Comprehensive alarms — high/low temp, power failure (72h backup), door ajar, sensor/voltage faults.
- High storage density — up to 24 (5×5) rack positions; ~600 two-inch boxes; ~60,000 × 2 mL vials.
Talk to an expert
Get sizing help, SOP guidance, and integration tips for your lab.
Technical Specifications
| Basic | Refrigeration System | Alarms | |||
|---|---|---|---|---|---|
| Cooling type | Direct Cooling | Refrigerant | HC (R290 & R170) | High/low temperature | Y |
| Defrost | Manual | Temp. controller | Microprocessor | Power failure | Y |
| Temperature range | -40°C ~ -86°C | System | Cascade system | Abnormal voltage | Y |
| Ambient temperature | 10~32°C | Sensor | PTC | Sensor error | Y |
| Display | 7" LCD touch screen | Compressor brand/QTY | SECOP / 2 | Door ajar | Y |
| Access port QTY/Dia. | 1 / 25 mm | Capacity (L/cu.ft) | 838 / 29.59 | Filter screen check | Y |
| USB Access | Y | Insulation | PURF + VIP | Thermostat failure | Y |
| Remote alarm Access | RS232/485 | Inner door material/QTY | Foamed SUS304 / 2 | Low battery | Y |
| Outside material | Color sprayed steel | Racks | 24 (5×5) | Condenser clean | Y |
| Inside material | SUS304 | Boxes (2") | 600 | High ambient temperature | Y |
| Castor | Universal | Samples (2 mL) | 60,000 | Door ajar | Y |
| Power failure backup (alarm) | 72 h | ||||
| Electrical Data | Dimensions | Accessories | |||
| Voltage frequency (V/Hz) | 110V / 120V 60Hz | Package size (W×D×H) (in) | 50" × 43" × 86" | Chart recorder | Optional |
| Power (W) | 720W | Exterior size (W×D×H) (in) | 46" × 45" × 78.5" | Data logger | Y |
| Current (A) | 8.64A | Interior size (W×D×H) (in) | 35" × 28.2" × 51.6" | CO2 back up system | Optional |
| Power consumption | 16.47 kWh/24h | Net Weight (lbs) | 730 lbs | LN2 back up system | Optional |
| Noise (dB) | 53 | Shipping Weight (lbs) | 900 lbs | Gloves | Optional |
Popular Industries & Use Cases
Business Solutions & Procurement
Programs & Terms
Exclusive options for businesses and academics.
Documentation & Compliance
Keep purchasing streamlined and compliant.
Custom Solutions
Tailored tanks, skids, and integration help.
Talk to Sales
We’ll help spec the right system for your throughput.
FAQ
What applications fit the UltraChill –86°C Upright?
Ideal for long-term storage of vaccines, enzymes, cell lines, tissues, reagents, and reference standards in research, clinical, and biobank settings.
How does UltraChill maintain temperature uniformity?
Direct-cooling with optimized airflow and high-performance insulation (PURF + VIP) minimizes gradients and speeds recovery after door openings.
What alarms and protections are included?
High/low temp, door ajar, power failure with 72-hour backup, sensor error, abnormal voltage, condenser clean, thermostat failure, and low battery notifications.
Is the UltraChill 29.6 Cu Ft –86°C Freezer energy efficient?
Yes. The cascade system with HC refrigerants and VIP insulation reduces power draw while maintaining stability and rapid pull-down.
Installation & delivery tips
Measure access paths: confirm doorway and corridor widths vs. crate size. Provide dedicated circuit: 110/120 V, 60 Hz. Allow clearance for ventilation and service.
×
