Description

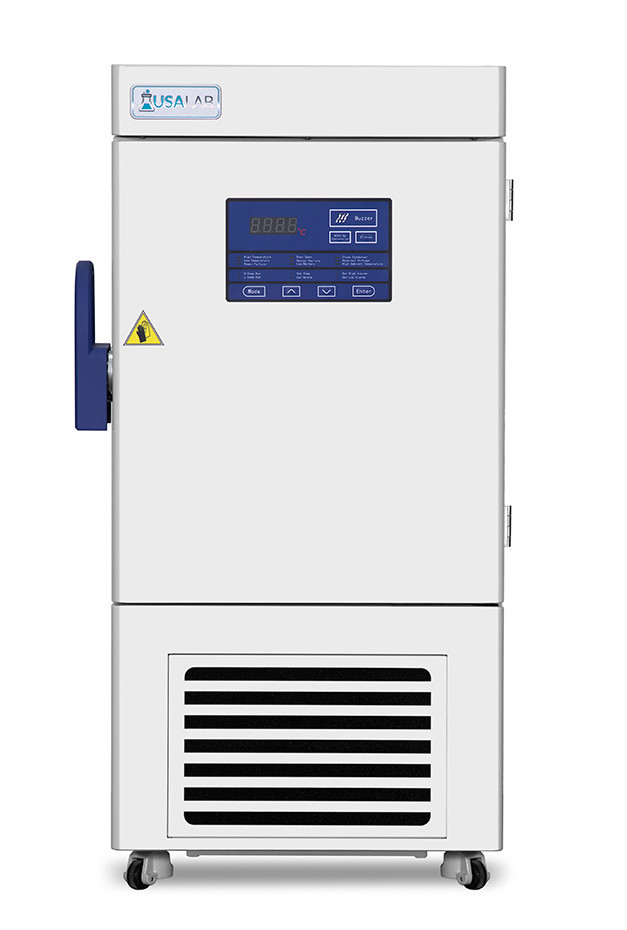

UltraChill™ -86°C Upright Ultra-Low Freezer — 2.0 Cu Ft | USA Lab
Introducing our -86°C UltraChill Series Upright 2 Cu Ft Freezer, a compact, high-performance ULT designed to safeguard vaccines, enzymes, cell lines, and long-term research samples. Precision microprocessor control and an auto-cascade refrigeration system deliver stable, uniform ultra-low temperatures.
The chamber is stainless-steel (SUS304) with foamed inner doors for excellent thermal retention, while the exterior is durable color-sprayed steel. A bright LED digital display provides at-a-glance monitoring and quick set-point changes.
Built for labs that demand reliability, the UltraChill integrates comprehensive audible/visual alarms, remote alarm access (RS232/485), and optional CO2/LN2 backup systems for maximum sample protection.
-40°C to -86°C Auto-Cascade System 2.0 Cu Ft (58 L) Microprocessor Control
SECOP Compressor Data Logger (Std.) 72-Hour Alarm Backup 24 × 2" Boxes / 2,400 Vials
Uniform -86°C Storage: Direct-cooling with optimized airflow helps minimize temperature drift across shelves.
Robust Refrigeration: Auto-cascade system using R4001 mixed refrigerant, SECOP compressor, and PTC 100 sensor.
Lab-Ready Connectivity: RS232/485 remote alarm access and on-board USB port for data transfer and compliance.
Why buy from USA Lab
Expert Support
Engineers & technicians on staff.
Engineers & technicians on staff.
Quality First
Tested and trusted products.
Tested and trusted products.
Fast Fulfillment
Nationwide 1-2 day shipping.
Nationwide 1-2 day shipping.
Warranty & Parts
US-based service & spares.
US-based service & spares.
Resources & Downloads
Why this UltraChill -86°C freezer?
- Stable ultra-low performance — microprocessor control maintains set points down to −86°C with LED digital display.
- Efficient, compact footprint — 2.0 cu ft (58 L) capacity with three foamed inner doors to reduce frost and hold temperature.
- Sample density — holds 24 × 2" boxes (≈2,400 × 2 mL vials) with two racks (6×2 each) for organized storage.
- Comprehensive protections — alarms for high/low temp, power failure, abnormal voltage, door-ajar, and more; 72-hour backup.
- Connected & serviceable — RS232/485 remote alarm access, 25 mm access port, and optional CO2/LN2 backup systems.
Talk to an expert
Get sizing help, validation docs, and integration tips for your cold chain.
Technical Specifications
| Model | -86°C UltraChill Upright Freezer (2.0 Cu Ft / 58 L) |
|---|---|
| Cooling Method | Direct Cooling |
| Defrost | Manual |
| Temperature Range | -40℃ ~ -86℃ |
| Ambient Temperature | 10℃ ~ 32℃ |
| Display | LED digital |
| Access Port QTY/Dia. | 1 / 25 mm |
| USB Interface | Yes / 1 |
| Remote Alarm Access | RS232 / 485 |
| Outside Material | Color sprayed steel |
| Inside Material | SUS304 |
| Castor | Universal |
| Refrigerant | R4001 (mixed gas) |
| Temp. Controller | Microprocessor |
| System | Auto-cascade |
| Sensor | PTC 100 |
| Compressor Brand / QTY | SECOP / 1 |
| Capacity (L / cu.ft) | 58 L / 2.0 cu.ft |
| Insulation | PURF |
| Inner Door Material / QTY | Foamed SUS304 / 3 |
| Racks | 2 (6×2) |
| Boxes (2") | 24 |
| Samples (2 mL) | ≈ 2,400 |
| High/Low Temperature (Alarm) | Yes |
| Power Failure (Alarm) | Yes |
| Abnormal Voltage (Alarm) | Yes |
| Sensor Error (Alarm) | Yes |
| Door Ajar (Alarm) | Yes |
| Filter Screen Check (Alarm) | Yes |
| Thermostat Failure (Alarm) | Yes |
| Low Battery (Alarm) | Yes |
| Condenser Clean (Alarm) | Yes |
| High Ambient Temperature (Alarm) | Yes |
| Power Failure Backup (Alarm) | 72 h |
| Voltage Frequency (V/Hz) | 110V / 120V, 60Hz |
| Power (W) | 442 W |
| Current (A) | 3.18 A |
| Power Consumption | 6.09 Wh/24h |
| Noise (dB) | 50 |
| Package Size (W×D×H) (in) | 29" × 33" × 55" |
| Exterior Size (W×D×H) (in) | 25" × 30" × 48" |
| Interior Size (W×D×H) (in) | 13" × 17.8" × 16" |
| Weight (Net) | 255 lb |
| Shipping Weight | 350 lb |
| Chart Recorder | Optional |
| Data Logger | Yes |
| CO2 Backup System | Optional |
| LN2 Backup System | Optional |
| Gloves | Optional |
Popular Industries & Use Cases
Business Solutions & Procurement
Programs & Terms
Exclusive options for businesses and academics.
Documentation & Compliance
Keep purchasing streamlined and compliant.
Custom Solutions
Tailored tanks, skids, and integration help.
Talk to Sales
We’ll help spec the right system for your throughput.
FAQ
What is the storage capacity?
The chamber in the UltraChill 2 Cu Ft -86°C Upright Ultra-Low Freezer is 58 L (2.0 cu ft) and accommodates about 24 × 2" cryo boxes or ~2,400 × 2 mL vials using two 6×2 racks.
How is temperature controlled and monitored?
The UltraChill 2 Cu Ft -86°C Upright Ultra-Low Freezer has a microprocessor controller with LED digital display manages set points from −40°C to −86°C. A PTC 100 sensor provides accurate feedback and the unit supports USB export and RS232/485 remote alarms.
What alarms are included?
In the UltraChill 2 Cu Ft -86°C Upright Ultra-Low Freezer it has High/low temperature, power failure, abnormal voltage, sensor error, door-ajar, filter screen check, thermostat failure, low battery, condenser clean, and high ambient temperature. Alarm backup is rated to 72 hours.
