Description

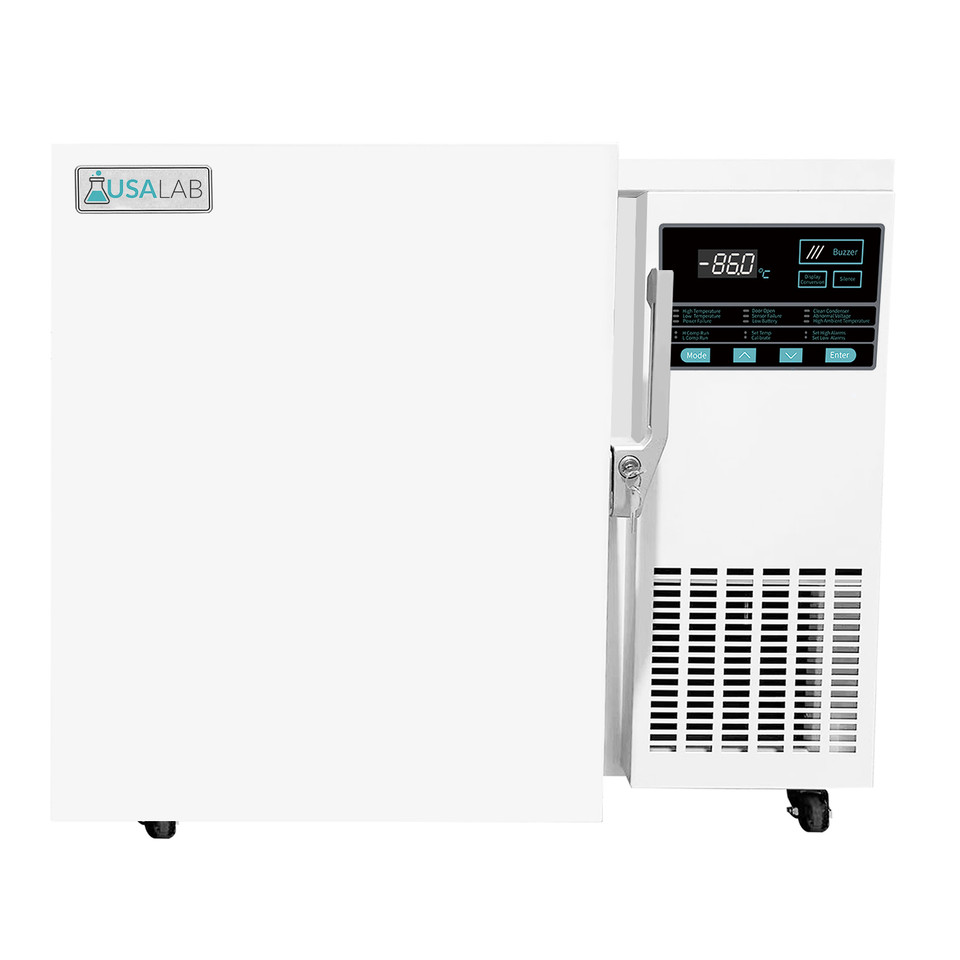

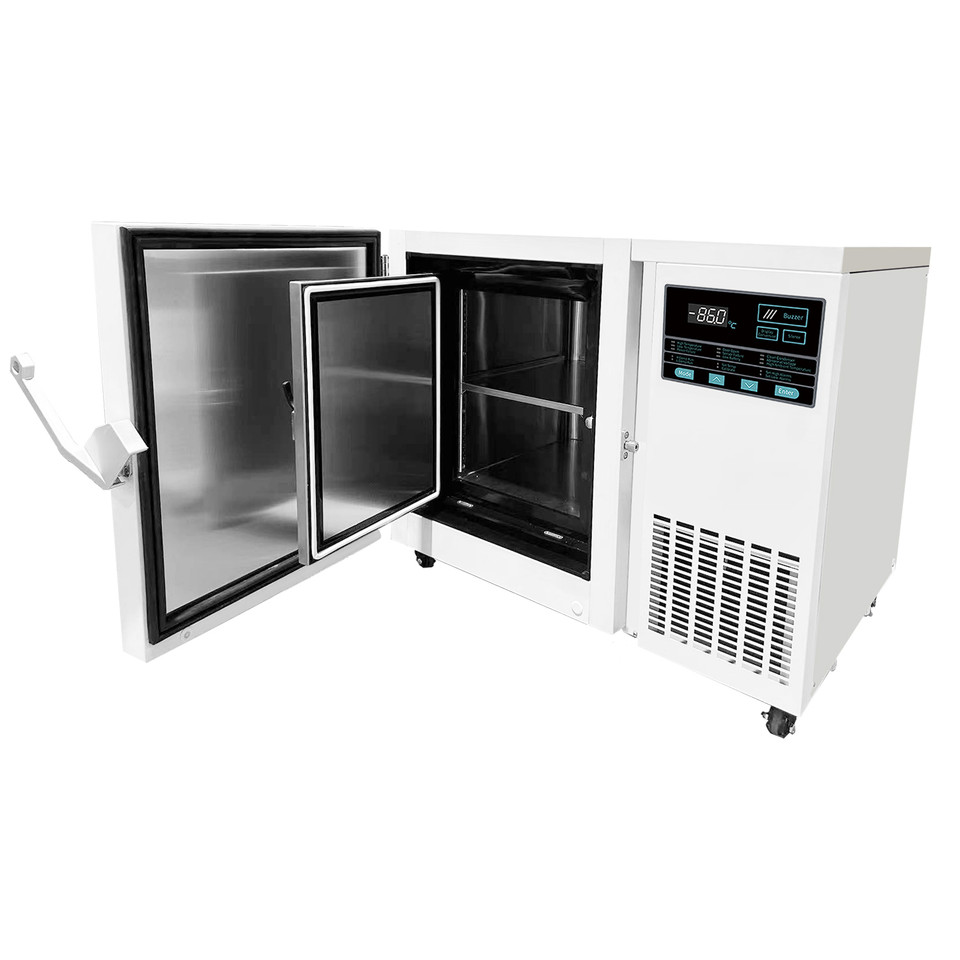

USA Lab UltraChill 2 Cu Ft -86°C Undercounter Ultra-Low Freezer - Digital Display
The USA Lab UltraChill 2 Cu Ft -86°C Undercounter Ultra-Low Freezer is a compact ULT freezer designed for long-term cold storage of biological samples, laboratory materials, and temperature-sensitive products. Its undercounter footprint makes it ideal for labs, hospitals, research facilities, blood banks, and production environments where reliable ultra-low temperature storage is needed without taking up full-size floor space.
Built with an auto-cascade refrigeration system, mixed refrigerant cooling, a microprocessor temperature controller, and a large digital LED display, this mini ULT freezer provides dependable performance from -40°C to -86°C. Advanced VIP insulation, multi-layer sealing, and stainless steel interior construction help improve temperature stability, reduce heat loss, and support energy-efficient operation.
The USA Lab UltraChill 2 Cu Ft -86°C Undercounter Ultra-Low Freezer - Digital Display includes multiple audible and visual alarms for high/low temperature, power failure, abnormal voltage, sensor error, door ajar, low battery, condenser clean alerts, and more, helping protect valuable samples during daily lab use.
Freight items may require special delivery handling. Please inspect all shipments upon arrival.
-86°C Ultra-Low Storage 2 Cu Ft Capacity Undercounter Design Digital LED Display
Temperature Range: -40°C to -86°C for ultra-low storage applications.
Compact Capacity: 2 cu ft chamber with storage for up to 2,400 2 ml samples.
Smart Protection: Audible and visual alarms for temperature, power, door, voltage, and sensor issues.
Why buy from USA Lab
Expert Support
Engineers & technicians on staff.
Engineers & technicians on staff.
Quality First
Tested and trusted products.
Tested and trusted products.
Fast Fulfillment
Nationwide 1-2 day shipping.
Nationwide 1-2 day shipping.
Warranty & Parts
US-based service & spares.
US-based service & spares.
Resources & Downloads
Why this ultra-low freezer?
- Auto-cascade cooling — mixed refrigerant refrigeration system designed for fast cabinet cooling and reliable operation.
- Undercounter footprint — compact 2 cu ft design helps save floor space in busy lab environments.
- Advanced insulation — VIP insulation and multi-layer sealing help reduce heat loss and improve efficiency.
- Digital control — microprocessor controller, PTC 100 sensor, and large LED digital display for easy operation.
- Sample protection — multiple alarm functions help protect sensitive biological products, reagents, and samples.
Talk to an expert
Get sizing help, storage guidance, and freezer selection support for your lab.
Basic
Cooling Method
Direct Cooling
Defrost
Manual
Temperature Range
-40°C ~ -86°C
Ambient Temp.
10~32°C
Display
LED Digital
Access Port QTY/Dia.
1 / 25 mm
USB Interface
Yes / 1
Remote Alarm Access
Yes
RS485 Access
Yes
Outside Material
Color Sprayed Steel
Inside Material
Stainless Steel
Castor
Universal
Refrigeration System
Refrigerant
R4001 Mixed Gas
Temp. Controller
Microprocessor
System
Auto-Cascade
Sensor
PTC 100
Compressor Brand/QTY
SECOP / 1
Capacity (L/cu.ft)
58 / 2.0
Insulation
PURF / VIP
Inner Door Material/QTY
Stainless Steel / 1
Racks
2 (6×2)
Boxes (2 Inches)
24
Samples (2 ml)
2,400
Alarms
High/Low Temperature
Y
Power Failure
Y
Abnormal Voltage
Y
Sensor Error
Y
Door Ajar
Y
Filter Screen Check
Y
Thermostat Failure
Y
Low Battery
Y
Condenser Clean
Y
High Ambient Temp.
Y
Door Ajar
Y
Power Failure Backup
72h
Electrical Data
Voltage / Frequency
110V, 60 Hz
Power (W)
336 W
Current (A)
3 A
Power Consumption
5.3 kWh/24h
Noise (dB)
50 dB
Dimensions
Package Size (W×D×H)
38.03" × 32.20" × 36.69"
Exterior Size (W×D×H)
35.59" × 31.42" × 29.45"
Interior Size (W×D×H)
12.99" × 17.83" × 16.14"
Shipping CBM
0.73
Net / Gross Weight
208 lbs / 282 lbs
Popular Industries & Use Cases
Business Solutions & Procurement
Programs & Terms
Exclusive options for businesses and academics.
Documentation & Compliance
Keep purchasing streamlined and compliant.
Custom Solutions
Tailored tanks, skids, and integration help.
Talk to Sales
We’ll help spec the right system for your throughput.
FAQ
What temperature range does this freezer support?
The USA Lab UltraChill 2 Cu Ft -86°C Undercounter Ultra-Low Freezer is designed for ultra-low storage from -40°C to -86°C.
What is the capacity of this undercounter ULT freezer?
It has a 58 L / 2.0 cu ft capacity and can store up to 2,400 2 ml samples when configured with compatible storage boxes.
What type of cooling system does it use?
It uses an auto-cascade refrigeration system with mixed refrigerant cooling for efficient ultra-low temperature performance.
What alarms are included?
Alarms are included for high/low temperature, power failure, abnormal voltage, sensor error, door ajar, thermostat failure, low battery, condenser clean, high ambient temperature, and more.
