Description

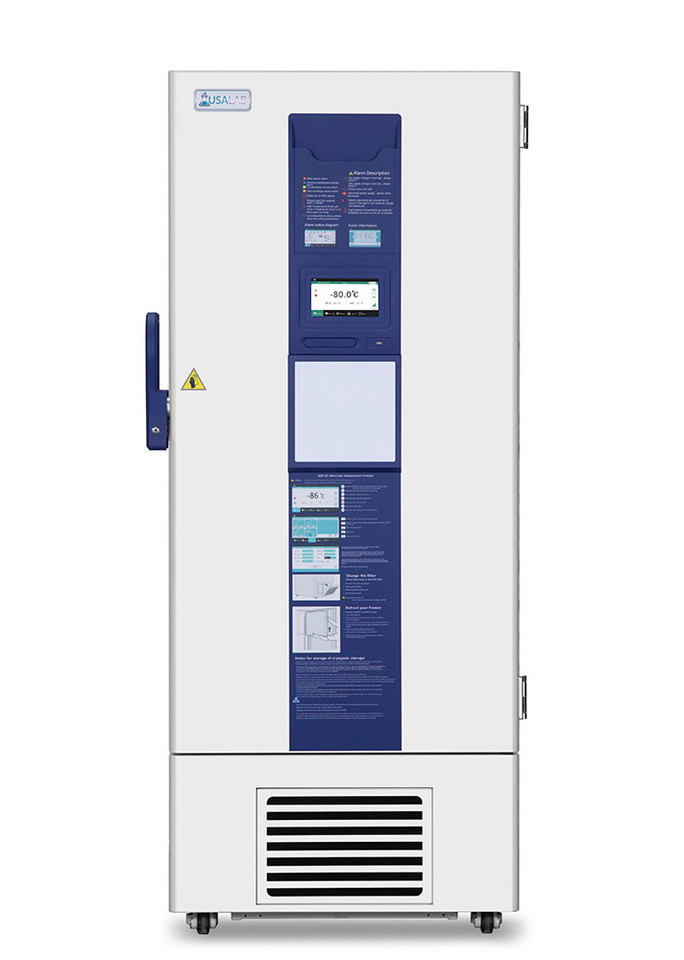

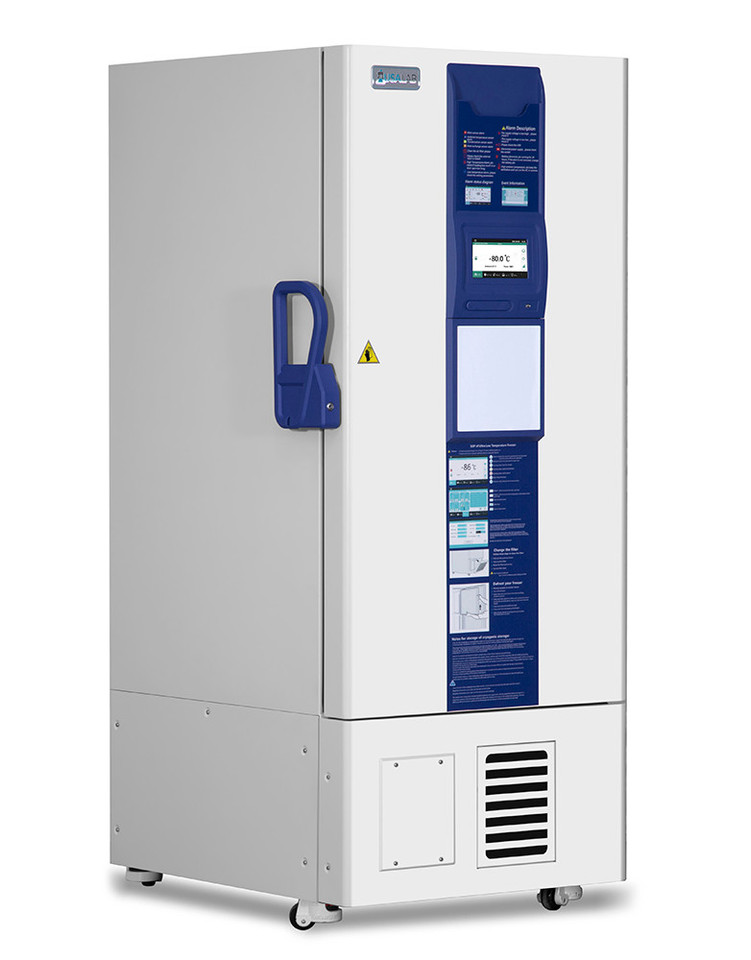

UltraChill 11.9 Cu Ft -86°C Upright Ultra-Low Freezer – Touch Screen | USA Lab
Introducing our UltraChill 11.9 Cu Ft -86°C Upright Ultra-Low Freezer — the ultimate solution for long-term storage of sensitive biologicals, vaccines, enzymes, and research specimens. Built with a microprocessor control system and a responsive 7″ LCD touch screen, UltraChill delivers precise temperature stability, robust protection, and efficient operation for mission-critical labs.
With a wide operating range of –40°C to –86°C, advanced cascade refrigeration, and optimized airflow, the UltraChill series maintains exceptional temperature uniformity across the cabinet to safeguard every sample.
Engineered for low power use and reliability, it features high-density insulation, SECOP compressors, and comprehensive alarm monitoring to ensure peace of mind 24/7.
-86°C ULT 11.9 Cu Ft (338 L) 7" LCD Touch Cascade System SECOP x2
Superior Uniformity: Advanced airflow and cascade cooling minimize fluctuations and hot spots for consistent cabinet temperatures.
Precision Control: Microprocessor with 7″ touch interface provides accurate setpoints, real-time monitoring, and quick diagnostics.
Energy Efficient: High-performance insulation and optimized compressors reduce consumption without sacrificing pull-down speed.
Why buy from USA Lab
Expert Support
Engineers & technicians on staff.
Engineers & technicians on staff.
Quality First
Tested and trusted products.
Tested and trusted products.
Fast Fulfillment
Nationwide 1-2 day shipping.
Nationwide 1-2 day shipping.
Warranty & Parts
US-based service & spares.
US-based service & spares.
Resources & Downloads
Why this ultra-low freezer?
- Wide ULT range — holds setpoints from –40°C to –86°C for enzymes, vaccines, and long-term biobanking.
- Robust construction — SUS304 interior, foamed inner doors, and color-sprayed steel exterior built for heavy daily use.
- Comprehensive alarms — power, high/low temp, door ajar, sensor error, low battery, and more with 72h backup.
- Organization ready — 12 rack positions (4×4), 192 two-inch boxes, up to 19,200 × 2 ml vials.
- Serviceable design — SECOP dual-compressor cascade system with accessible components.
Talk to an expert
Get sizing help, validation docs, and integration tips for your lab.
Technical Specifications
| Category | Details |
|---|---|
| Basic | |
| Cooling method | Direct Cooling |
| Defrost | Manual |
| Temperature range | –40°C ~ –86°C |
| Ambient temperature | 10 ~ 32°C |
| Display | 7" LCD touch screen |
| Access port QTY/Dia. | 1 / 25 mm |
| USB Access | Y |
| Remote alarm access | RS232/485 |
| Outside material | Color sprayed steel |
| Inside material | SUS304 |
| Castor | Universal |
| Refrigeration System | |
| Refrigerant | HC (R290 & R170) |
| Temp. controller | Microprocessor |
| System | Cascade system |
| Sensor | PTC |
| Compressor brand/QTY | SECOP / 2 |
| Capacity (L / cu.ft) | 338 / 11.93 |
| Insulation | PURF |
| Inner door material / QTY | Foamed SUS304 / 2 |
| Racks | 12 (4×4) |
| Boxes (2 inches) | 192 |
| Samples (2 ml) | 19,200 |
| Alarms | |
| High / low temperature | Y |
| Power failure | Y |
| Abnormal voltage | Y |
| Sensor error | Y |
| Door ajar | Y |
| Filter screen check | Y |
| Thermostat failure | Y |
| Low battery | Y |
| Condenser clean | Y |
| High ambient temperature | Y |
| Power failure backup (alarm) | 72 h |
| Electrical Data | |
| Voltage frequency (V/Hz) | 110V/120V 60Hz |
| Power (W) | 620 W |
| Current (A) | 7.93 A |
| Power consumption | 11.17 Wh/24h |
| Noise (db) | 50 |
| Dimensions | |
| Package size (W×D×H) (in) | 36.8" × 42" × 84" |
| Exterior size (W×D×H) (in) | 33.6" × 42.2" × 75" |
| Interior size (W×D×H) (in) | 19.2" × 24" × 45" |
| Weight (lb) | 540 |
| Shipping weight (lb) | 680 |
| Accessories | |
| Chart recorder | Optional |
| Data logger | Y |
| CO2 back-up system | Optional |
| LN2 back-up system | Optional |
| Gloves | Optional |
Popular Industries & Use Cases
Business Solutions & Procurement
Programs & Terms
Exclusive options for businesses and academics.
Documentation & Compliance
Keep purchasing streamlined and compliant.
Custom Solutions
Tailored tanks, skids, and integration help.
Talk to Sales
We’ll help spec the right system for your throughput.
FAQ
What is the operating range of this ULT freezer?
The UltraChill series holds setpoints from –40°C to –86°C, ideal for long-term preservation of sensitive samples.
How are samples protected during a power outage?
Integrated alarms include power failure notifications and a 72 hour backup for the alarm system (battery), prompting rapid response procedures.
Which racks and box formats are supported?
The cabinet supports 12 racks (4×4), up to 192 x 2" boxes, totaling approximately 19,200 × 2 ml vials.
What maintenance is recommended?
Keep condenser surfaces clean, verify door gaskets, and periodically test alarms and probes. The microprocessor interface provides prompts for filter and sensor checks.
