Description
*Fittings in Picture Not included*

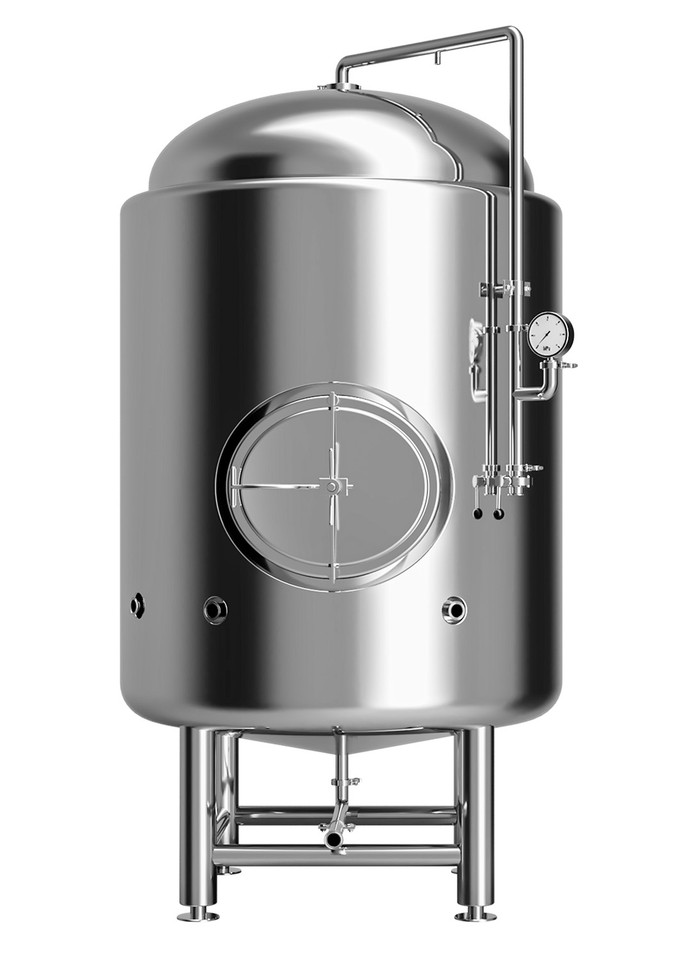

A jacketed brite beer tank serves a dual purpose as a maturation vessel and a serving tank, eliminating the need for additional beer kegs. It offers a cost-effective alternative to conical fermenters. This jacketed steel tank also provides a controlled environment for chilling, carbonating, and aging the beer, resulting in a well-rounded craft beverage. The tank derives its name from the mature and clarified beer it produces, known as "brite" beer.
In modern commercial breweries, brite tanks are typically made of single-walled stainless steel, ensuring durability, resistance to odors and discoloration, and easy sanitization. These tanks are often elevated on legs and utilize gravity for serving. Pairing brite tanks with conical fermenters allows for a higher turnover rate of batches in the more expensive fermenter, leading to cost savings.
By incorporating a brite beer tank into the brewing process, breweries can streamline their operations, achieve consistency in beer quality, and optimize efficiency in production. The tank's versatility and functionality make it a valuable asset for breweries of all sizes, contributing to the overall success and profitability of the craft beverage industry.
|
Model |
1BBL |
2BBL |
5BBL |
10BBL |
||||
|
Parameter |
Vessel |
Jacket |
Vessel |
Jacket |
Vessel |
Jacket |
Vessel |
Jacket |
|
WORKING PRESSURE |
0.2 / 30 psi |
0.3 / 45 psi |
0.2 / 30 psi |
0.3 / 45 psi |
0.2 / 30 psi |
0.12 / 17 psi |
0.2 / 30 psi |
0.12 / 17 psi |
|
DESIGN PRESSURE |
0.3 / 45 psi |
0.4 / 58 PSI |
0.3 / 45 psi |
0.4 / 58 PSI |
0.3 / 45 psi |
0.18 / 26 psi |
0.3 / 45 psi |
0.18 / 26 psi |
|
WORKING TEMPERATURE |
(-)10~110℃ |
|||||||
|
DESIGN TEMPERATURE |
||||||||
|
MATERIAL |
SS 304 |
|||||||
|
FULL VOLUME (BBL) |
1.21 |
N/A |
2.58 |
N/A |
6.17 |
N/A |
12.5 |
N/A |
|
EFFECTIVE VOLUME (BBL) |
1 |
N/A |
2 |
N/A |
5 |
N/A |
10 |
N/A |
|
SAFETY VALVE ACT PRESSURE (Mpa) / (PSI) |
0.22 / 32 psi |
N/A |
0.22 / 32 psi |
N/A |
0.22 / 32 psi |
N/A |
0.22 / 32 psi |
N/A |
|
HEAT TRANSFER AREA (m²) |
0.71 |
N/A |
1.21 |
N/A |
1.74 |
N/A |
3 |
N/A |
|
INSULATION MATERIAL |
PU |
N/A |
PU |
N/A |
PU |
N/A |
PU |
N/A |
|
INSULATION THICKNESS (mm) |
50 |
N/A |
50 |
N/A |
80 |
N/A |
80 |
N/A |
|
PRESSURE TEST (Mpa) / (PSI) |
0.37 / 54 psi |
0.6 / 87 psi |
0.37 / 54 psi |
0.6 / 87 psi |
0.37 / 54 psi |
0.26 / 38 psi |
0.37 / 54 psi |
0.26 / 38 psi |
For Technical Support, Questions, or Other Issues Please Email or Call Us!
