TRI-CLAMP FITTING SIZES
|
Tube Outer Diameter |
Flange Outer Diameter |
Tube Inner Diameter |
|
1.5" |
1.98" |
1.37" |
|
2" |
2.52" |
1.87" |
|
3" |
3.58" |
2.87" |
|
4" |
4.68" |
3.83" |
|
6" |
6.57" |
5.78" |
|
8" |
8.57" |
7.78" |
|
10" |
10.57" |
9.73" |
|
12" |
12.57" |
11.81" |
|

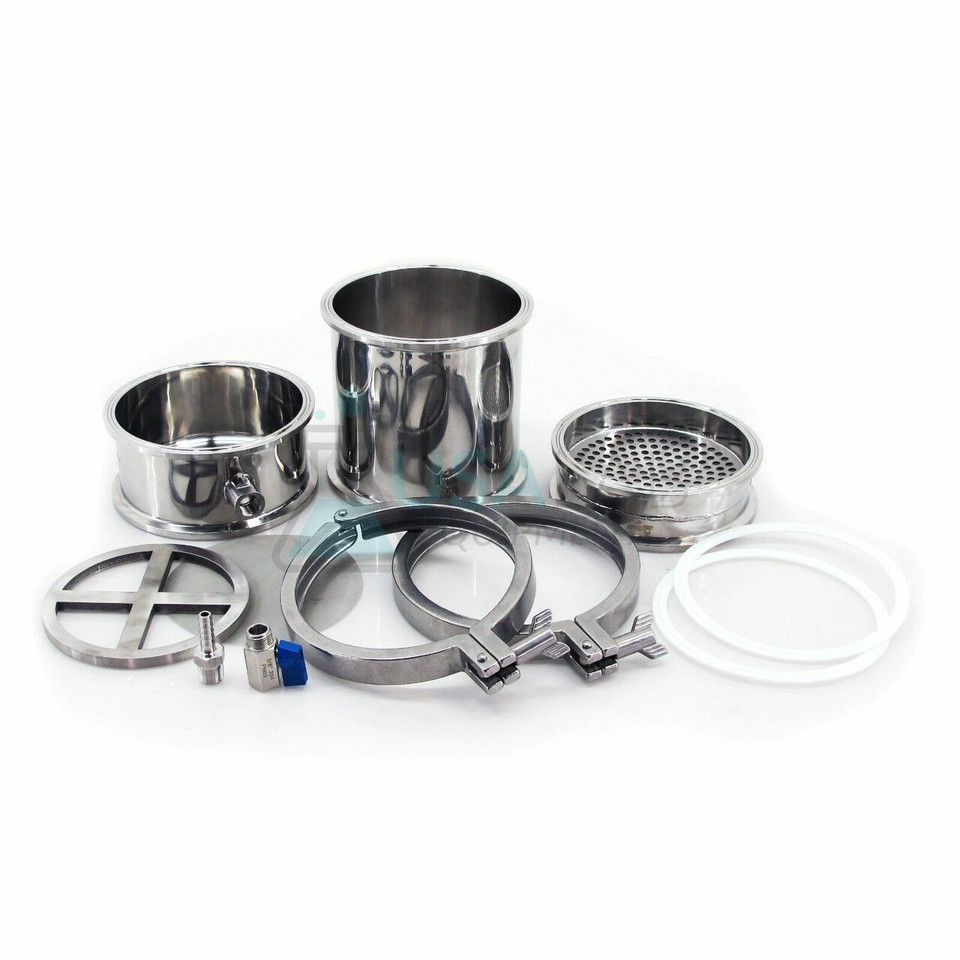

BSSBF6 SPECIFICATIONS |
|
|
•Material: |
304 Stainless Steel |
|
•Capacity: |
3.5L |
|
•Connection Type: |
Tri-Clamp |
|
•Mesh Specs: |
150 Mesh (100 Micron) |
|
•Filter Plate Size: |
6" |
|
•Bottom Connections: |
1/2" FNPT |
|
•Exterior Dimensions: |
11" L x 8" W x 11" H |
|
•Weight: |
17lbs |
|
BSSBF6 Packing List |
|
|
6" x 6" Tri-Clamp Spool |
1pc |
|
6" Tri-Clamp Filter Plate |
1pc |
|
X Filter Ring - 6" |
1pc |
|
6" Mesh - 150 Mesh (100 Micron) |
1pc |
|
6" Standard Pressure Tri-Clamp |
2pcs |
|
6" Buna Gasket |
2pcs |
|
Superlok Ball Valve - 1/2" FNPT |
1pc |
|
1/2" MNPT to 1/2" Barb |
1pc |
|
Vacuum Hose |
10ft. |
