TRI-CLAMP FITTING SIZES
|
Tube Outer Diameter |
Flange Outer Diameter |
Tube Inner Diameter |
|
1.5" |
1.98" |
1.37" |
|
2" |
2.52" |
1.87" |
|
3" |
3.58" |
2.87" |
|
4" |
4.68" |
3.83" |
|
6" |
6.57" |
5.78" |
|
8" |
8.57" |
7.78" |
|
10" |
10.57" |
9.73" |
|
12" |
12.57" |
11.81" |
The USA Lab 12" Diameter Stainless Steel Buchner Funnel is designed to be a durable option for filtering at an affordable price. Don't break the bank with expensive filters, start filtering today at a fraction of the cost!
|
BSSBF12 Specifications |
|
|
Material |
304 Stainless Steel |
|
Capacity |
22.2L |
|
Connection Type |
Tri-Clamp |
|
Mesh Specs |
150 Mesh (100 Micron) |
|
Filter Plate Size |
12" |
|
Bottom Connections |
3/8" FNPT |
|
Exterior Dimensions |
17" L x 15" W x 17" H |
|
Weight |
51lbs |
|
BSSBF12 Packing List |
|
|
12" x 12" Tri-Clamp Spool |
1pc |
|
12" Tri-Clamp Filter Plate |
1pc |
|
Filter Ring - 12" |
1pc |
|
12" Mesh - 150 Mesh (100 Micron) |
1pc |
|
12" Standard Pressure Tri-Clamp |
2pcs |
|
12" Buna Gasket |
2pcs |
|

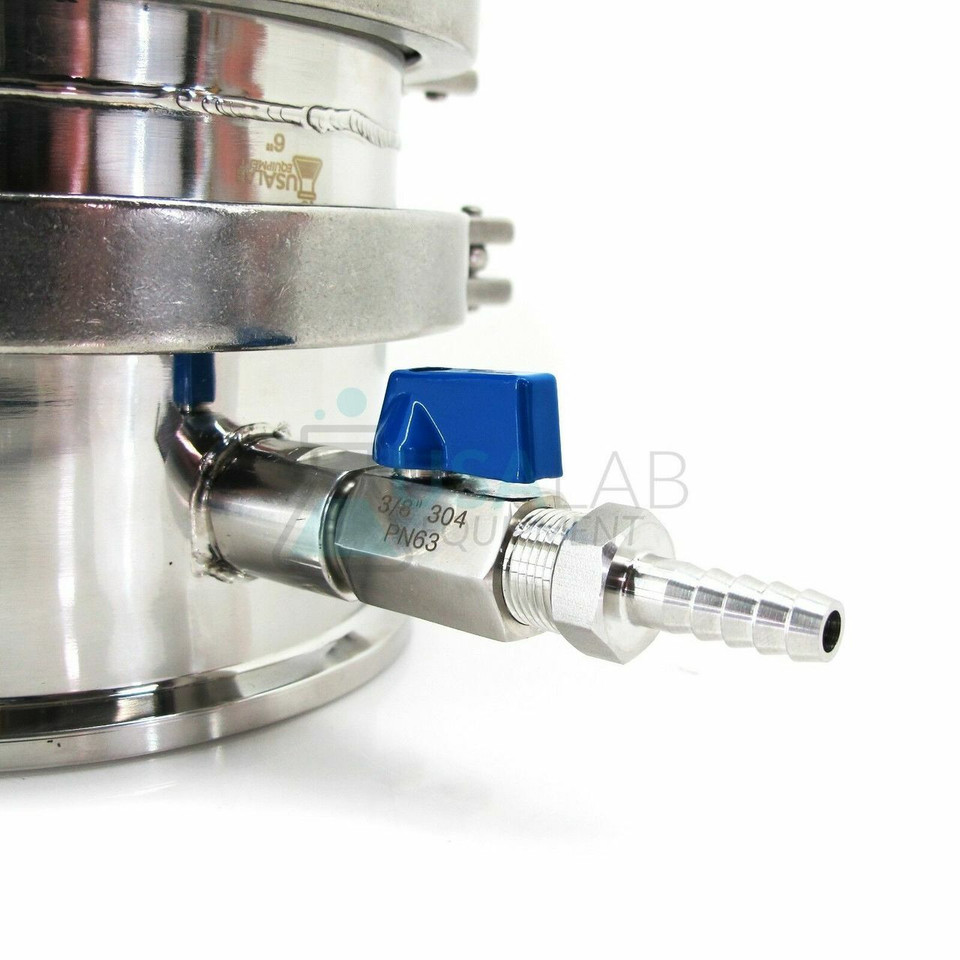

Superlok Ball Valve - 3/8" FNPT |
1pc |
|
3/8" MNPT to 3/8" Barb |
1pc |
|
Vacuum Hose |
10ft. |
For Technical Support, Questions, or Other Issues Please Email or Call Us!
Fittings and steel do NOT carry any warranty. Fittings and steel items with a defect or other issue must be identified within 30 days of arrival and USA Lab MUST be contacted. After 30 days, there will be no replacements sent for fittings or steel items with a defect or issue. Cross threading, misuse, improper storage, or improper care of fittings/steel are considered user error and are not covered under warranty.
