SPECIFICATIONS |
||
|

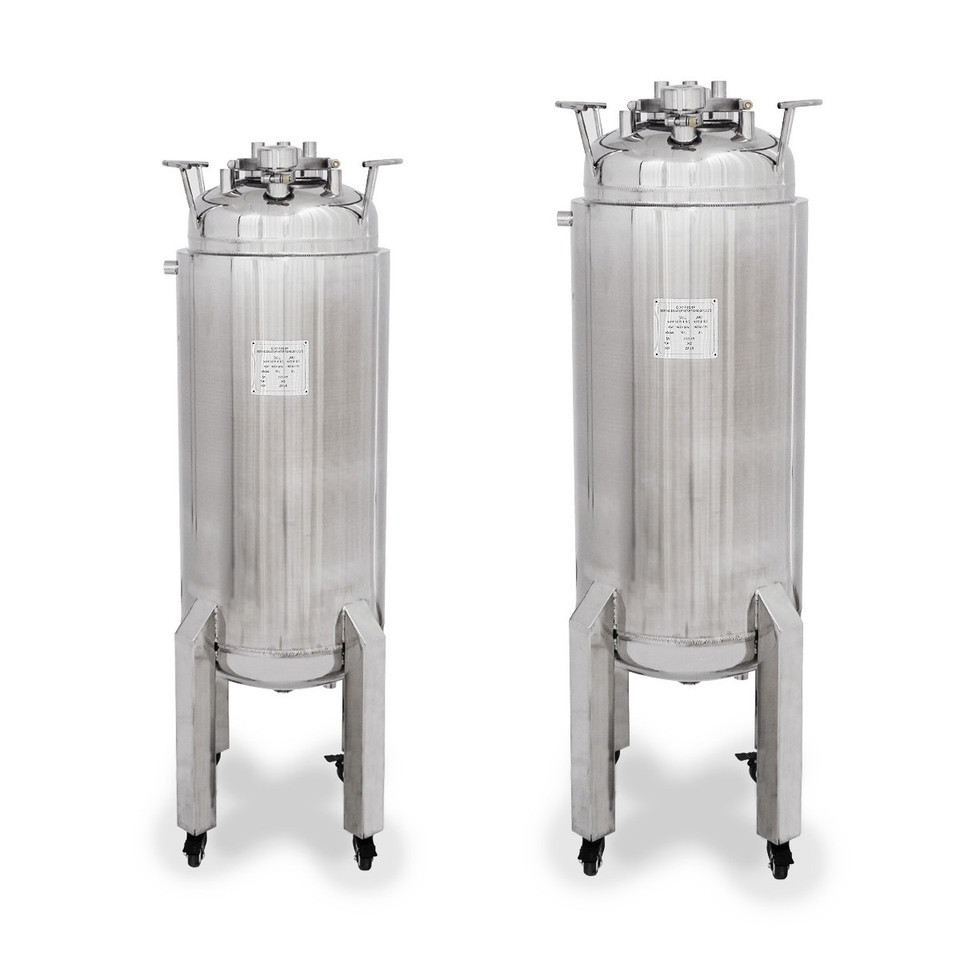

Model |
100LB |
200LB |
|
Size |
100lbs |
200lbs |
|
Water Capacity |
60L |
100L |
|
Butane Capacity |
48.08lbs |
96.16lbs |
|
Jacket Capacity |
18L |
24L |
|
Coil Capacity |
.78L |
1.29L |
|
Weight |
148lbs |
208lbs |
|
External Dimensions |
19 x 19 x 49" |
22 x 22 x 56" |
|
Internal Dimensions |
12 x 12 x 31" |
15 x 15 x 39" |
|
Shell PSI Rating |
-80°C at 150PSI | 150°C at 150PSI |
|
|
Jacket PSI Rating |
100°C at 14.5 PSI |
|
|

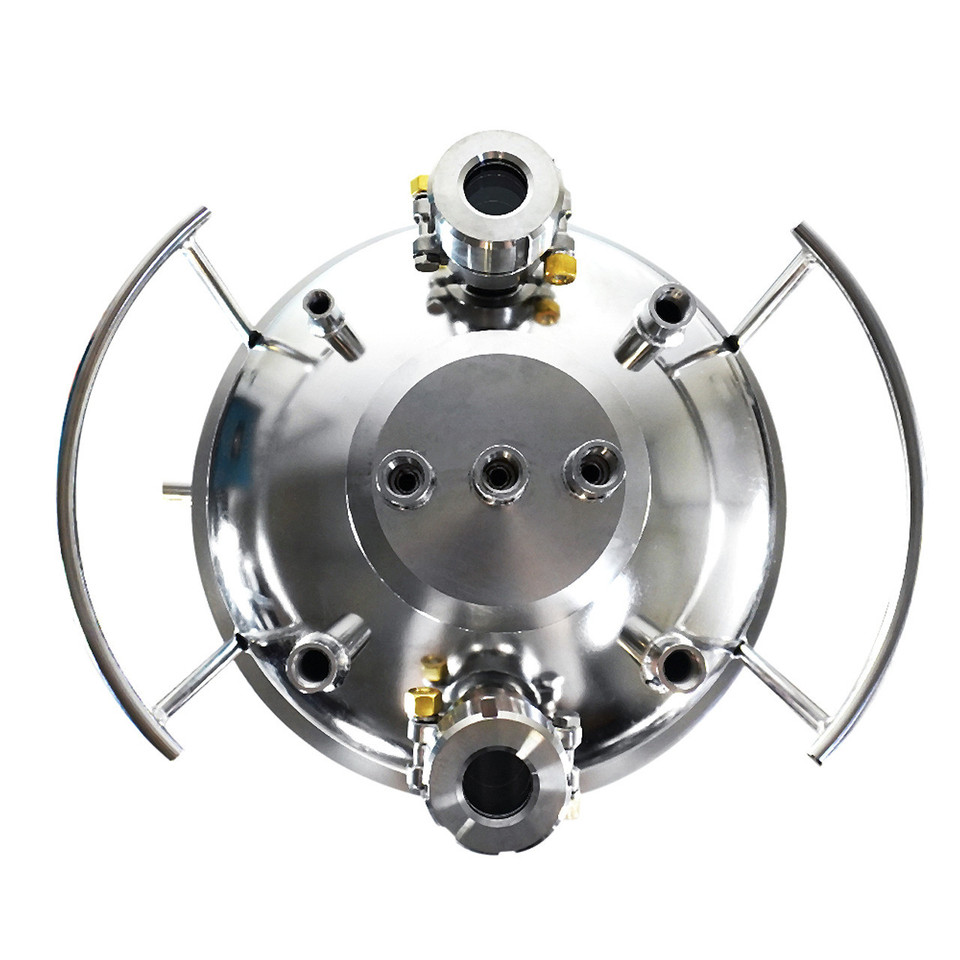

Lid Connections |
6" TC with 2x 1/2" FNPT for Coil and 1x 1/2" FNPT for Dip Tube |
|
|
Top Connections |
3x 1/2" FNPT and 1x 1/4" FNPT |
|
|
Bottom Connection |
1.5" Tri-Clamp |
|
|
|
||
|
PACKING LIST |
||
|
Item |
100LB |
200LB |
|

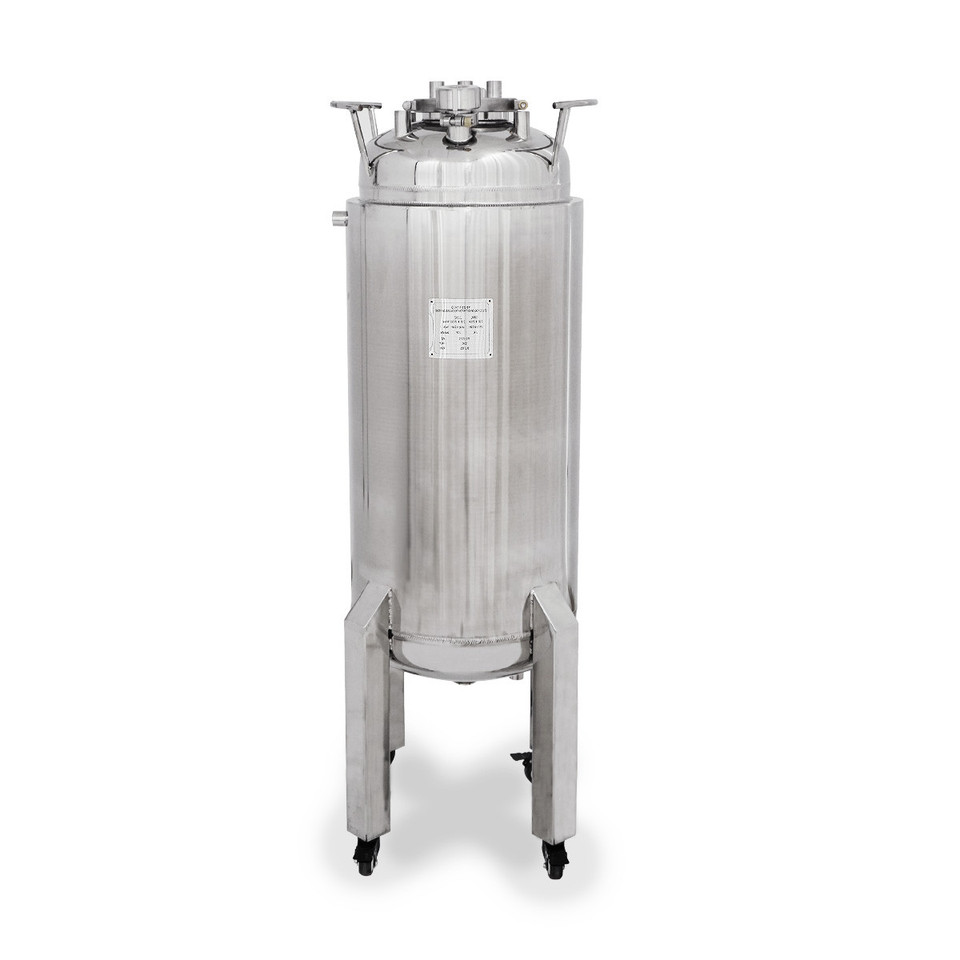

Main Tank |
1x 100lb |
1x 200lb |
|
350PSI Sight Glass 1.5" TC |
2 |
2 |
|
Condensing Coil w 6" Lid |
1 |
1 |
|
1.5" HP Tri-Clamp |
3 |
3 |
|
6" HP Tri-Clamp |
1 |
1 |
|
1.5" Buna Gasket |
3 |
3 |
|
6" Buna Gasket |
1 |
1 |
|
1.5" Solid End Cap |
1 |
1 |
