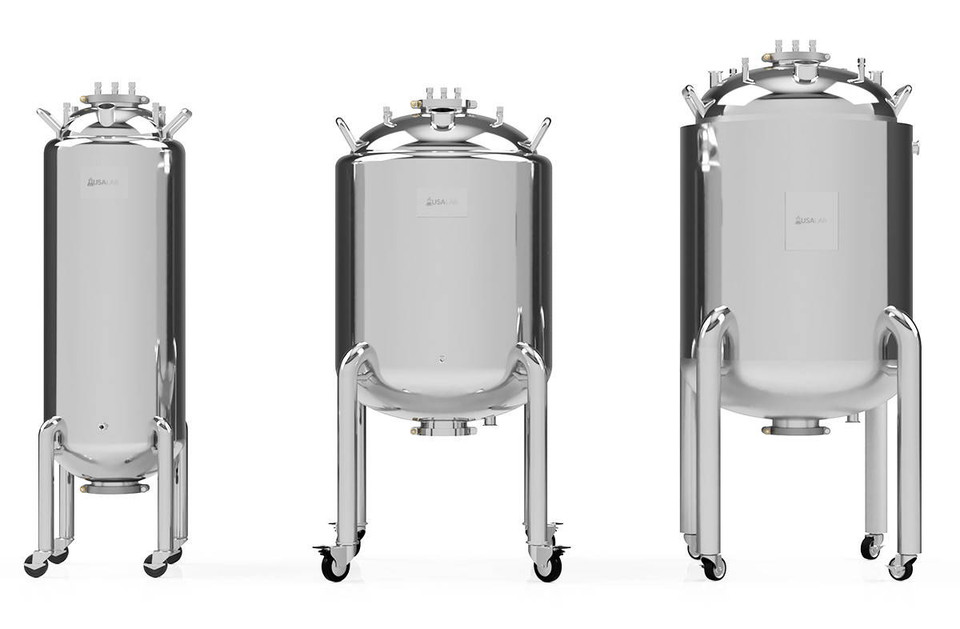

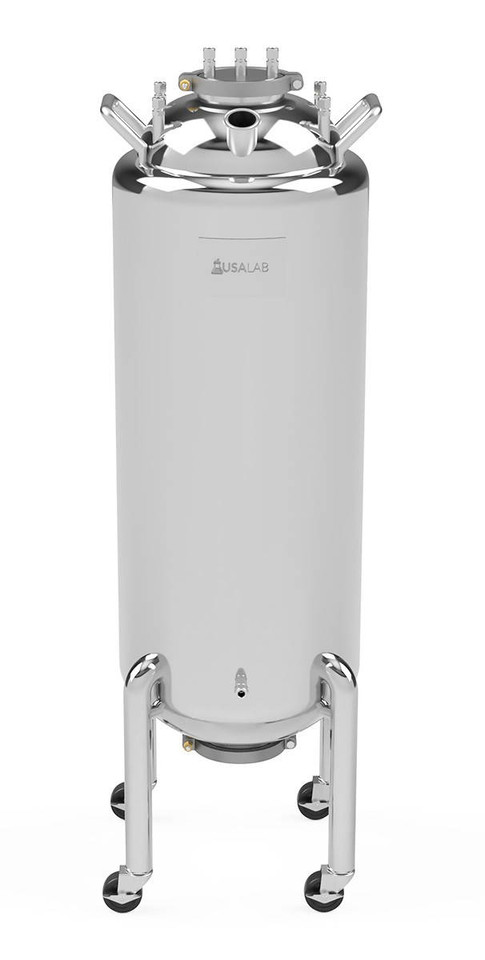

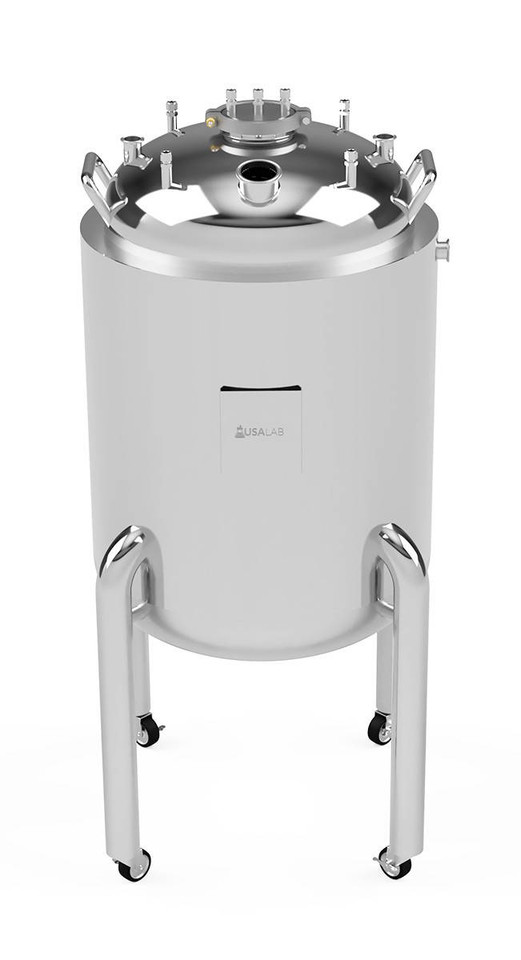

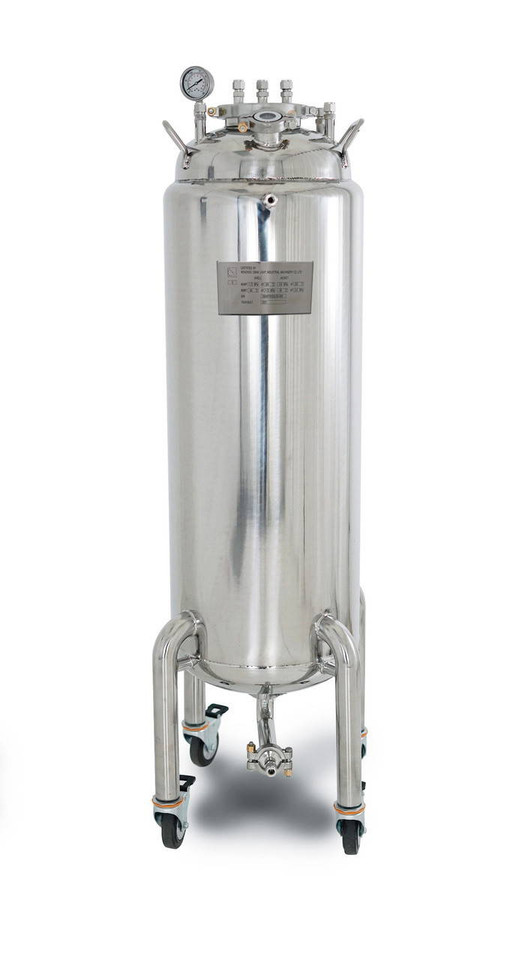

USA Lab ASME Dual Jacketed Solvent Tank w/ Compression - 200LB, 400LB & 600LB

The USA Lab ASME Dual Jacketed Solvent Tank with Compression fittings is designed for controlled solvent storage and processing where temperature management, pressure-rated construction, and flexible connections are essential. Available in 100LB, 200LB, 400LB, and 600LB configurations, these tanks provide scalable capacity for demanding laboratory and production workflows.

The dual-jacket design provides enhanced temperature-control capability by allowing fluids to be circulated through the jacket while the outer jacket can be used for vacuum service. Each tank is supplied with an ASME stamp and incorporates a jacket, condensing coil, multiple lid connections, and Tri-Clamp ports to support customized process configurations.

Designed for practical handling and process flexibility, the tanks feature locking legs and casters for mobility, a 6-inch Tri-Clamp cap, and angled Tri-Clamp ports that provide convenient viewing and access. Compression connections are provided for coil, dip-tube, top, jacket, and outer-jacket configurations depending on the selected tank size.

ASME Certified Dual Jacket Design Vacuum-Ready Outer Jacket Tri-Clamp & Compression Connections

Dual-Jacket Temperature Control: supports fluid circulation through the jacket and vacuum service on the outer jacket for enhanced process-temperature management.

ASME-Stamped Construction: provides pressure-rated tank construction for demanding laboratory and processing environments.

Flexible Process Connections: multiple compression and Tri-Clamp ports support coil, dip-tube, jacket, viewing, and customized process configurations.

Why buy from USA Lab

Expert Support
Engineers & technicians on staff.

Quality First
Tested and trusted products.

Fast Fulfillment
Nationwide 1-2 day shipping.

Warranty & Parts
US-based service & spares.

Why this USA Lab ASME Dual Jacketed Solvent Tank?

Dual-jacket construction — provides additional process-control capability by allowing the jacket to be chilled and the outer jacket to be placed under vacuum.
ASME-stamped tank — supplied with ASME certification marking for the pressure-rated vessel construction.
Integrated condensing coil — supports circulation of process or cooling fluids for controlled solvent handling.
Flexible connection layout — multiple compression and Tri-Clamp connections allow the tank to be configured for different process requirements.

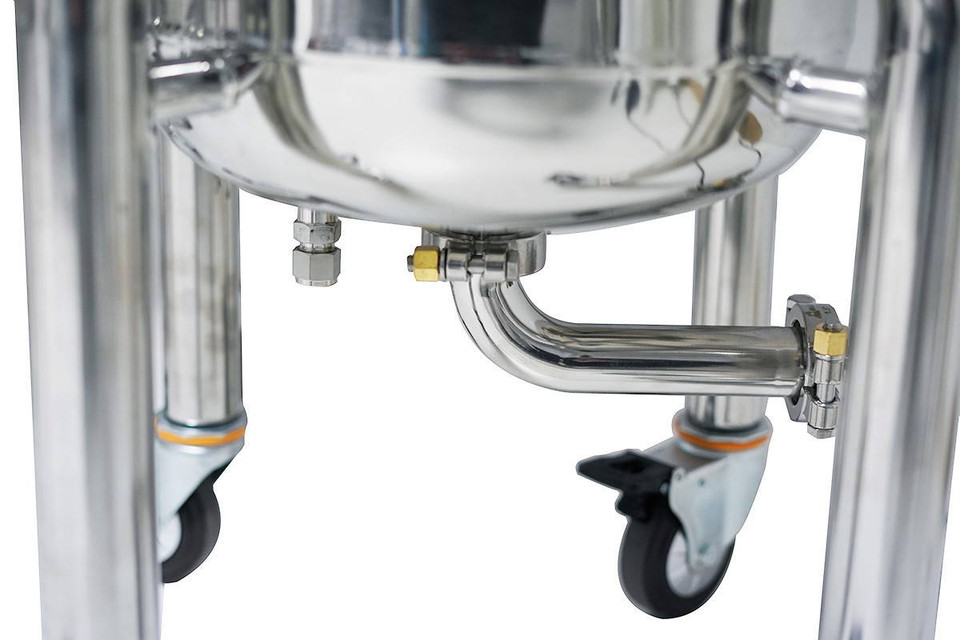

Practical mobile design — durable locking legs and casters allow the tank to be positioned and secured within the workspace.
Multiple capacity options — configurations range from 100LB through 600LB, with corresponding water and butane capacities for different production requirements.

Talk to an expert

Get product guidance, configuration assistance, and application support for your solvent storage or processing workflow.

Call 734-855-4890

Technical Specifications

Specification	Details
Model	SOLV-100LB-JACK-ASME-C; SOLV-200LB-JACK-ASME-C; SOLV-400LB-JACK-ASME-C; SOLV-600LB-JACK-ASME-C
Tank Size	100LB, 200LB, 400LB, 600LB
Water Capacity	60L, 100L, 200L, 300L
Butane Capacity	48.08LB, 96.16LB, 192.32LB, 290LB
Jacket Capacity	18L, 24L, 32L, 34L
Coil Capacity	0.78L, 1.29L, 1.48L, 1.48L
Weight	148LB, 208LB, 350LB, 390LB
External Dimensions	19 × 19 × 49 in.; 22 × 22 × 58 in.; 22 × 22 × 62 in.; 27.5 × 27.5 × 65 in.
Internal Dimensions	12 × 12 × 31 in.; 15 × 15 × 40 in.; 21 × 21 × 46 in.; 26 × 26 × 48 in.
Shell PSI Rating	-50°C at 260 PSI; 100°C at 260 PSI
Jacket PSI Rating	100°C at 87 PSI; 120°C at 55 PSI
Outer Jacket	Intended for vacuum service
Lid Connections	6 in. Tri-Clamp with 2 × 1/2 in. compression for coil and 1 × 1/2 in. compression for dip tube
Top Connections	4 × 1/2 in. compression; selected configurations also include 2 × 1.5 in. Tri-Clamp
Jacket Connections	1/2 in. compression or 1.5 in. Tri-Clamp, depending on configuration
Outer Jacket Connection	1/2 in. compression
Sight Glass Port Size	1.5 in., 2 in., or 3 in., depending on configuration
Bottom Connection	1.5 in. Tri-Clamp or 6 in. Tri-Clamp, depending on configuration
Certification	ASME

Popular Industries & Use Cases

Botanical Extraction Pharmaceutical Processing Chemical Processing Laboratory Research

Business Solutions & Procurement

Programs & Terms

Exclusive options for businesses and academics.

Apply for Net Terms Academic Discount

Documentation & Compliance

Keep purchasing streamlined and compliant.

Request a Quote Tax Exemption

Custom Solutions

Tailored equipment and integration help.

Custom Request Consulting

Talk to Sales

We’ll help spec the right equipment and configuration for your solvent-processing workflow.

Call 734-855-4890 Email Sales/Support

FAQ

What sizes are available for the USA Lab ASME Dual Jacketed Solvent Tank?

The USA Lab ASME Dual Jacketed Solvent Tank is available in 100LB, 200LB, 400LB, and 600LB configurations. The corresponding water capacities are 60L, 100L, 200L, and 300L, respectively.

What is the purpose of the dual jacket on the USA Lab ASME Dual Jacketed Solvent Tank?

The dual-jacket design provides enhanced temperature-control capability. The inner jacket can be used to circulate fluids for heating or chilling, while the outer jacket is intended for vacuum service.

What connections are included on the USA Lab ASME Dual Jacketed Solvent Tank?

The tank uses a combination of compression and Tri-Clamp connections. Depending on the selected configuration, connections include 1/2-inch compression fittings, 1.5-inch Tri-Clamp ports, a 6-inch Tri-Clamp lid, jacket connections, an outer-jacket connection, and a bottom Tri-Clamp connection.

Is the USA Lab ASME Dual Jacketed Solvent Tank ASME certified?

Yes. The USA Lab ASME Dual Jacketed Solvent Tank is supplied with an ASME stamp. The shell pressure rating is specified at 260 PSI for the listed temperature conditions, while jacket pressure ratings vary by configuration.
