Introducing our USA Lab vacuum ovens, now with ETL Certifications! These ovens stand out as top-of-the-line products compared to others in the market, all while maintaining an affordable price point. We take pride in offering laboratory vacuum oven features such as an all stainless-steel tubing interior, oil-filled vacuum gauge, stainless steel vacuum vent & valve, and a reliable 1-year warranty.
Ease of use is a priority for us, and our ovens can be conveniently stacked, allowing manifold vacuum lines to be connected effortlessly. Not only do they heat the bottom, back, left side, and right side, but they also enable users to significantly reduce drying times by creating a uniform vacuum level inside the 110V oven 200°C.
Safety is paramount, which is why our ovens come with essential features like a circuit breaker and an over temperature controller. We use only the highest quality parts to ensure better performance and longevity of your equipment.
Upgrade your equipment today and experience the remarkable USA Lab quality difference! With ETL Certifications, you can have confidence in the safety and reliability of our vacuum ovens.
Upgrade today and see the USA Lab quality difference!

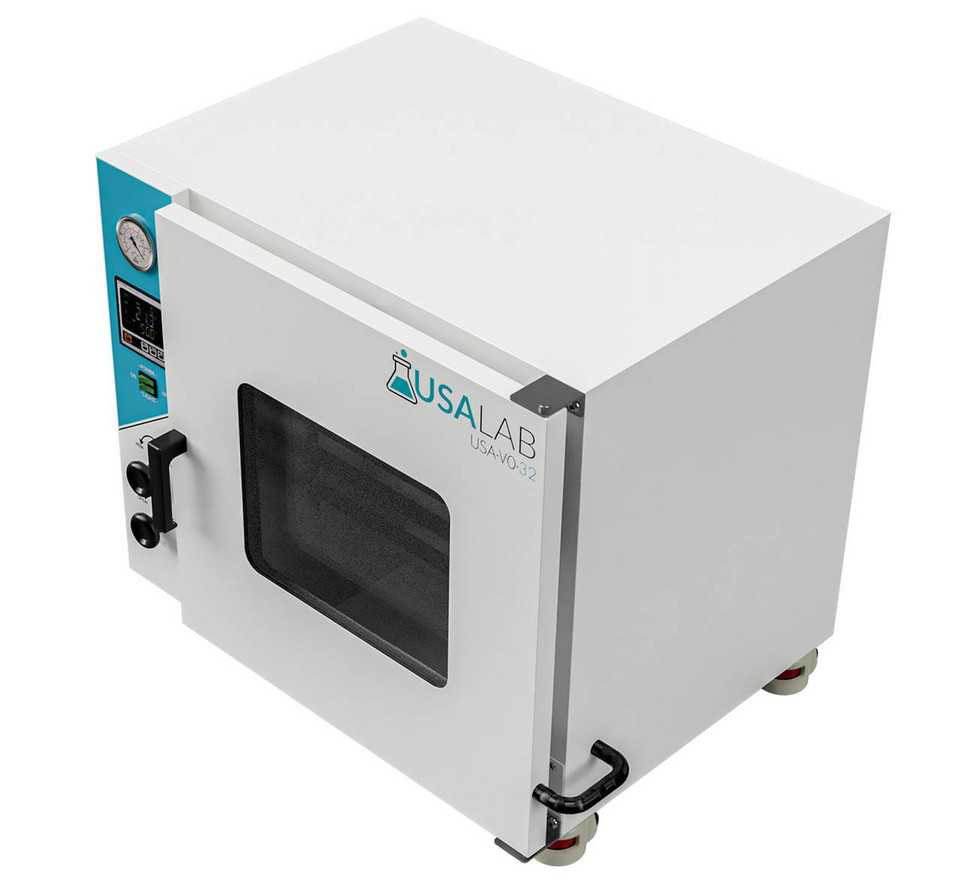

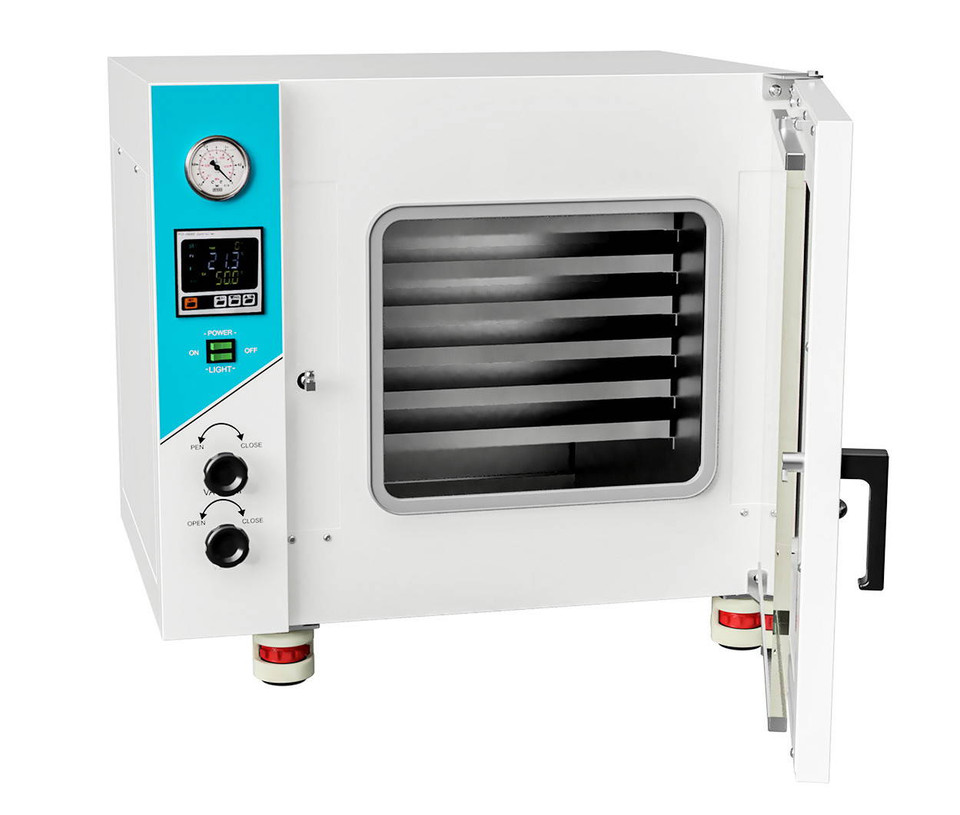

The USA Lab 3.2 CuFt Vacuum Drying Oven comes with 6 individual shelves.
Specifications |
|
Model |
USA-VO-32-ETL |
Capacity |
90.61L / 3.2 cu ft |
Input power |
2,050W |
Power Requirements |
110-120V | Single Phase | 60Hz |
Temperature Range |
RT+10°C to 150°C |
Temperature Accuracy |
± 1°C |
Lowest Vacuum Depth |
1 Torr / 1,000 Microns / 1 mmHg(a) |
Heating |
5 Sided |
Vacuum Port Size |
KF25 / NW25 |
Wattage |
2,000W |
Plug Type |
NEMA 5-15p |
Shelves Included |
6 Shelves |
Shelving Configurations (Max) |
12 Shelves |
Light Strip |
White LED |
Interior Material |
SS304 |
Chamber Dimensions (in) |
17.8" x 17.8" x 17.8" |
Exterior Dimensions (in) |
29.1" x 24" x 23.3" |
Certifications |
ETL certified to UL / CSA Standards |
Packing List |
||||
Model |
USA-VO-32-ETL |
USA-VO-32-ETL-WS |
USA-VO-32-ETL-TK |
USA-VO-32-ETL-TK-WS |
USA-VO-32-ETL Oven |
1 |
1 |
1 |
1 |
Shelves |
6 |
9 |
6 |
9 |
KF25 Clamp |
2 |
2 |
2 |
2 |
KF25 O-ring |
2 |
2 |
2 |
2 |
Manual |
1 |
1 |
1 |
1 |
UVP-5 UL Vacuum Pump |
x |
x |
1 |
1 |
Vaccum Pump Oil (1 Gallon) |
x |
x |
1 |
1 |
48" KF25 Bellow Hose |
x |
x |
1 |
1 |
SPECIFICATIONS | |||
Model | UVP-5 | UVP-11 | UVP-21 |
Pumping Speed(60Hz) | 5.5 cfm | 11 cfm | 21 cfm |
Ultimate total pressure gas ballast close |
4x10-2 Pa (3.0x10-4 torr) 0.3 Micron |
||
Ultimate total pressure gas ballast open |
8x10-1 Pa (6x10-3 torr) 6 Micron |
||
Power supply | 1 Phase (110V, 60Hz) | ||
Power rating(kW) | 0.4 | 0.75 | 1.1 |
Inlet/Exhaust Flange | KF 25 | ||
Oil capacity(L) | 0.6~1.0 | 0.9~1.5 | 1.3~2.0 |
Ambient temperature(℃) | 10~40℃ | ||
Noise level(dB) | ≤56 | ≤60 | ≤60 |
Weight(kg) | 21 | 30 | 43 |
External Dimensions | 440x144x217MM 17.3x5.6x8.5" |
530x188x272MM 20.8x7.4x10.7" |
567x188x272MM 22.3x7.4x10.7" |
Certification | UL | ||
Warranty | 2 Year | ||
PACKING LIST | |||
Model | UVP-5 | UVP-11 | UVP-21 |
Main Vacuum Pump | 1 | 1 | 1 |
KF25 x 3/8" Barb | 1 | 1 | 1 |
KF25 Clamp | 2 | 2 | 2 |
KF25 O-ring | 2 | 2 | 2 |
Oil Mist Trap | 1 | 1 | 1 |
Quart of Oil | 1 | 1 | 1 |
Manual | 1 | 1 | 1 |
