Description

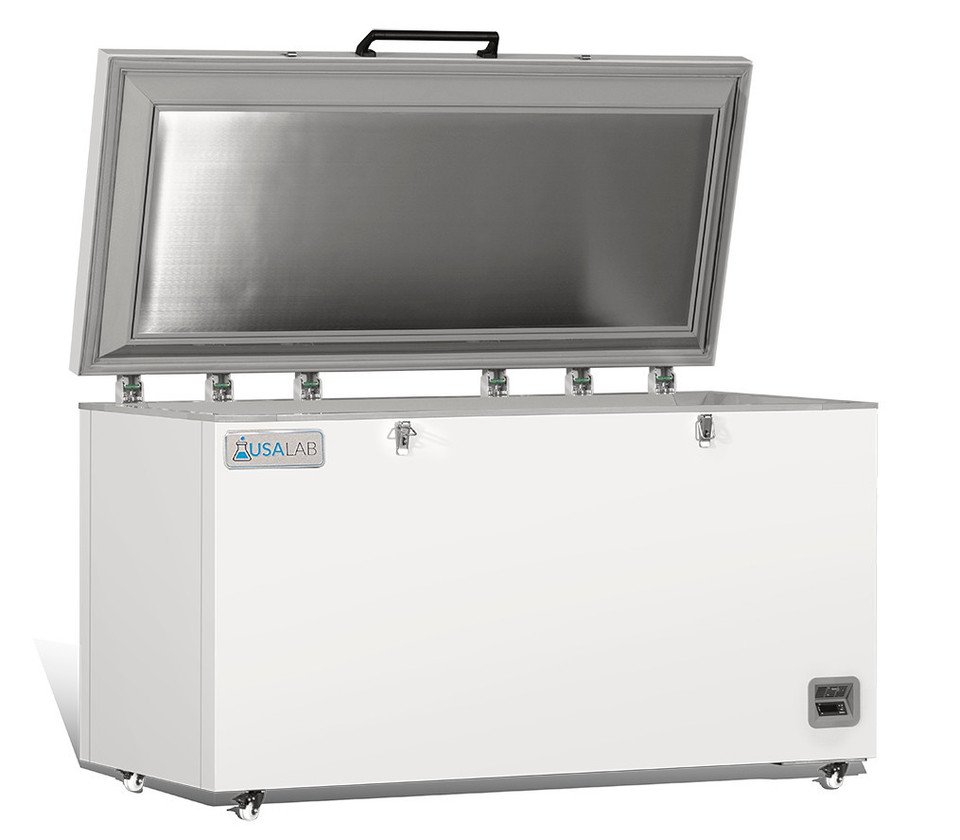

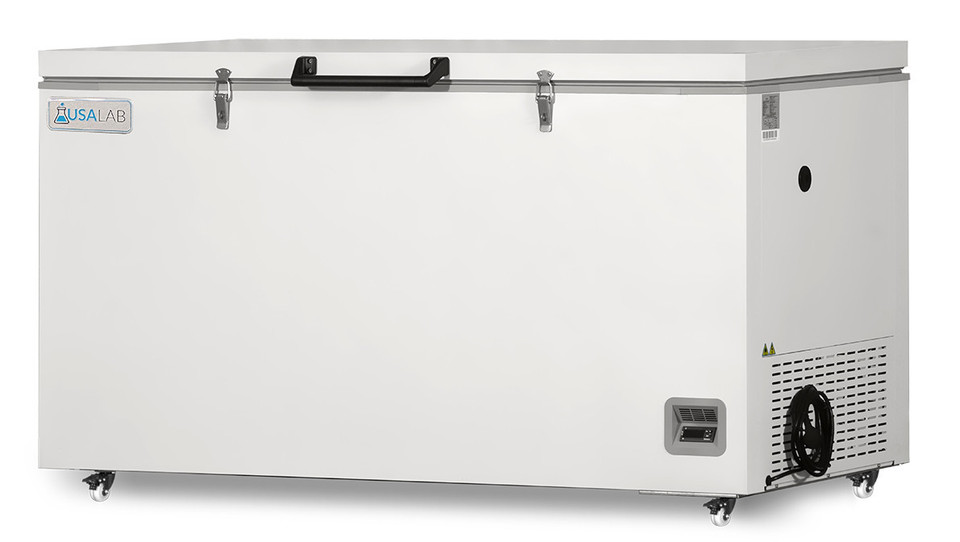

EcoChill Series Digital Display 17.12 cu ft Chest Freezer | USA Lab
Introducing our EcoChill Series Digital Display Chest Freezer — a reliable, budget-friendly solution for food service, clinical, and laboratory storage. With a working range of −20°C to −40°C, EcoChill preserves temperature-sensitive items with stable, uniform performance.
Energy-efficient R290 refrigeration, PURF insulation, and direct-cooling architecture reduce power use without sacrificing pull-down speed. A microprocessor controller with a clear digital display makes setpoint changes and monitoring simple and precise.
Freight delivery required; inspect on arrival and note any damage with the carrier. Cold chain products are non-returnable once shipped.
−20 to −40 °C Direct Cooling R290 Refrigerant Digital Display
Microprocessor Control CUBIGEL Compressor 485 L / 17.12 cu ft Castors Included
Energy Efficient: R290 system, PURF insulation, and direct cooling help minimize consumption.
Precise Control: Microprocessor with digital display and NTC sensing for stable setpoints.

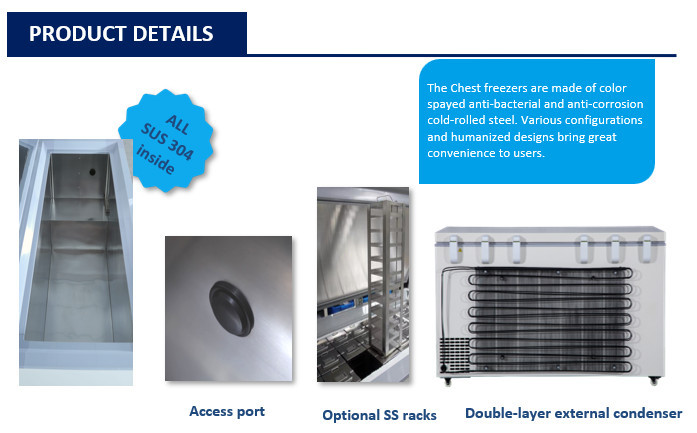

Built to Last: Stainless-steel interior, spray-coated steel exterior, and smooth-rolling castors.
Why buy from USA Lab
Expert Support
Engineers & technicians on staff.
Engineers & technicians on staff.
Quality First
Tested and trusted products.
Tested and trusted products.
Fast Fulfillment
Nationwide 1-2 day shipping.
Nationwide 1-2 day shipping.
Warranty & Parts
US-based service & spares.
US-based service & spares.
Resources & Downloads
Why this EcoChill Series?
- Cold you can count on — −20°C to −40°C range for food service, clinics, and labs.
- Simple, accurate control — microprocessor controller with bright digital display.
- Efficient by design — direct cooling with R290 and PURF insulation.
- Durable construction — stainless interior, spray-coated steel exterior.
- Move & install easily — integrated castors, compact footprint, quiet 55 dB.
Technical Specifications
| Model | EcoChill Chest Freezer — ECF-17.12-40-E |
|---|---|
| Cooling Method | Direct Cooling |
| Defrost | Manual |
| Refrigerant Type | R290 |
| Power Consumption | 3.45 kWh / 24 h |
| Noise | 55 dB |
| Ambient Temperature | 10℃ ~ 32℃ |
| Temperature Range | −20℃ ~ −40℃ |
| Compressor Brand / Qty | CUBIGEL / 1 |
| Condenser | Wire tube |
| Sensor | NTC |
| Temperature Controller | Microprocessor |
| Display | Digital display |
| Voltage / Frequency | 220 V / 50 Hz (primary); 110/120 V 60 Hz (optional) |
| Power | 295 W |
| Current | 2.45 A |
| Inside Material | Stainless steel |
| Outside Material | Spray-coated steel |
| Insulation | PURF |
| Capacity (L / cu.ft) | 485 L / 17.12 cu ft |
| Net / Gross Weight | 124 / 138 kg (≈ 290 / 340 lb) |
| Exterior Size (W×D×H) (mm) | 1667 × 863 × 949 |
| Exterior Size (W×D×H) (in) | 67" × 33" × 38" |
| Interior Size (W×D×H) (mm) | 1455 × 525 × 665 |
| Interior Size (W×D×H) (in) | 57.2" × 20.7" × 26.5" |
| Package Size (W×D×H) (mm) | 1775 × 900 × 1050 |
| Package Size (W×D×H) (in) | 69.5" × 35.5" × 42" |
| CBM | 1.66 |
| 20GP / 40GP / 40HQ | 12 / 26 / 26 |
| Test Hole QTY / Diameter | 1 / 25 mm |
| USB Port | N/A |
| Remote Alarm Port | N/A |
| Alarms | High/Low Temp (Y), Power Failure (Y), Sensor Error (Y), Temp Controller Failure (Y), Low Battery (/), Filter Check (/), Condenser Clean (/), High Ambient Temp (/), Door Ajar (/) |
| Power Failure Backup (Alarm) | 12 h |
| Castor | Y |
| Accessories | Chart Recorder (Optional), Data Logger (Optional), CO₂ Backup (Optional), LN₂ Backup (Optional), Gloves (Optional) |
Popular Industries & Use Cases
Business Solutions & Procurement
Programs & Terms
Exclusive options for businesses and academics.
Documentation & Compliance
Keep purchasing streamlined and compliant.
Custom Solutions
Tailored tanks, skids, and integration help.
Talk to Sales
We’ll help spec the right system for your throughput.
FAQ
What temperature range does EcoChill support?
EcoChill operates between −20°C and −40°C, ideal for food, clinical, and general lab use.
Is it energy efficient?
Yes. R290 refrigerant, PURF insulation, and a direct-cooling system help keep consumption low (≈3.45 kWh/24h).
What controller and display does it use?
A microprocessor controller with a bright digital display provides precise setpoint control and monitoring.
Are monitoring or backup accessories available?
Optional chart recorder, data logger, and CO₂/LN₂ backup systems are available for extended protection.
