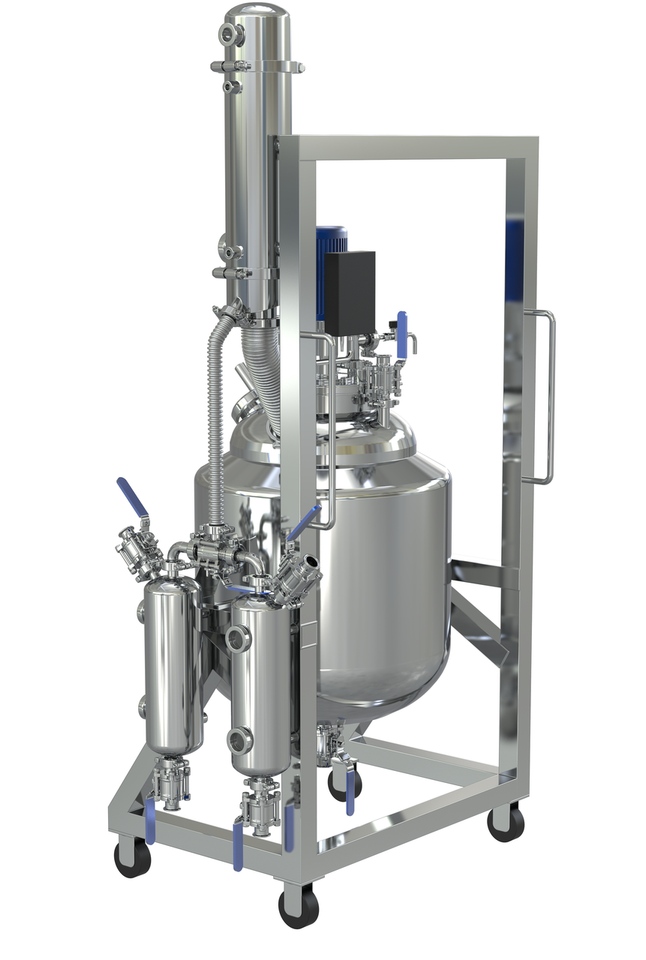

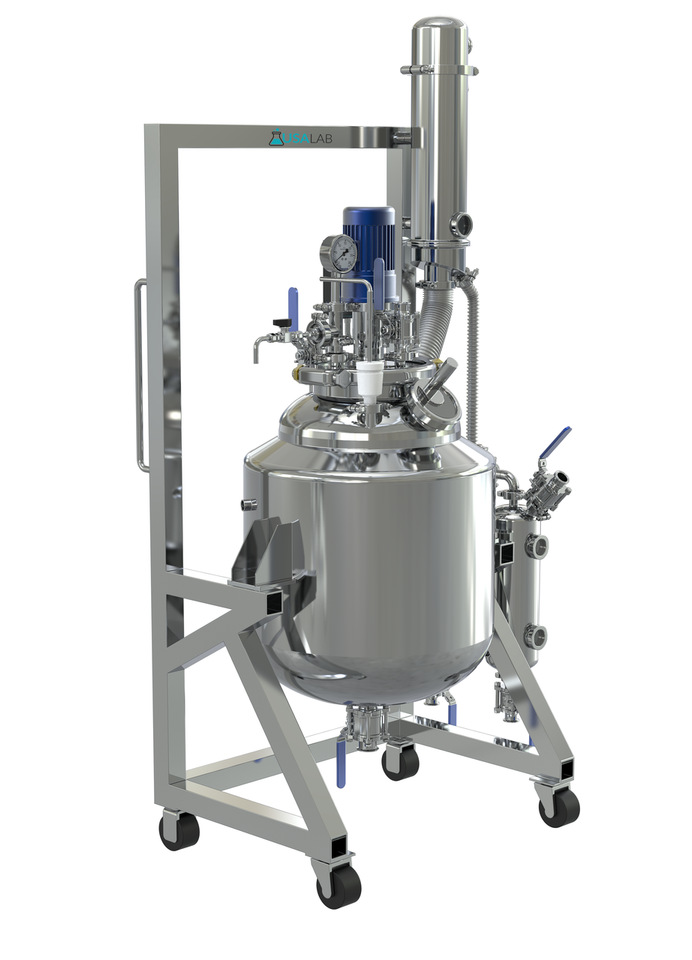

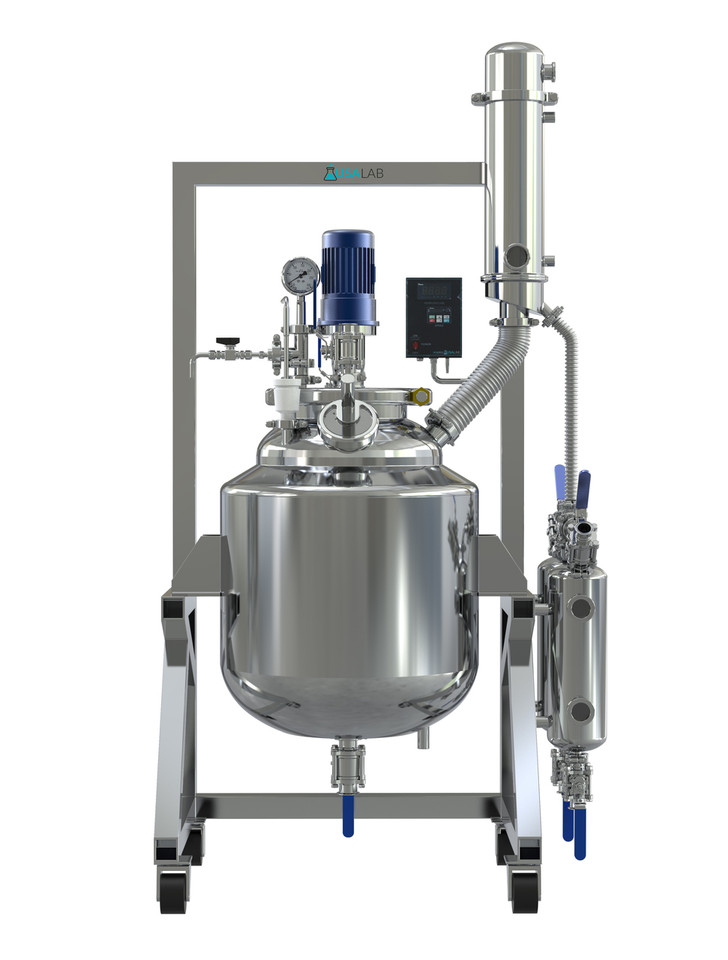

USA Lab Dual-Jacketed ASME 100L 316L-Grade Stainless Steel Reactor
The USA Lab Dual-Jacketed ASME 100L 316L-Grade Stainless Steel Reactor is built for demanding laboratory, pilot-scale, and industrial processing applications. Constructed from corrosion-resistant 316L stainless steel, this reactor is designed for durability, sanitary performance, and long-term reliability.
Its dual-jacketed design allows for efficient heating and cooling control, making it ideal for mixing, reaction, crystallization, extraction, and temperature-sensitive processing workflows. With ASME-rated construction, this 100L reactor provides a dependable solution for facilities that require higher safety standards, pressure-rated performance, and professional-grade stainless steel equipment.
The system includes top and bottom Tri-Clamp connections, integrated sight glass options, tube-in-shell condensing sections, and collection assemblies for advanced process control and customization.
Verify pressure, temperature, gasket, clamp, and process compatibility before operation. Professional installation and operation by trained personnel is recommended.
ASME Rated 100L Shell Volume 316L Stainless Steel Dual-Jacketed Design
Material: 316L grade stainless steel for corrosion resistance and sanitary performance.
Pressure Rated: Shell working pressure up to ≤250 PSI with ASME-rated construction.
Temperature Control: Dual-jacketed design supports heating and cooling workflows.
Why buy from USA Lab
Expert Support
Engineers & technicians on staff.
Engineers & technicians on staff.
Quality First
Tested and trusted products.
Tested and trusted products.
Fast Fulfillment
Nationwide 1-2 day shipping.
Nationwide 1-2 day shipping.
Warranty & Parts
US-based service & spares.
US-based service & spares.
Resources & Downloads
Why this 100L ASME stainless steel reactor?
- ASME-rated performance — built for facilities that require higher safety standards and pressure-rated equipment.
- 316L stainless steel — corrosion-resistant construction for sanitary and industrial processing environments.
- Dual-jacketed design — supports controlled heating and cooling for temperature-sensitive workflows.
- Advanced connectivity — includes Tri-Clamp, reducer, ball valve, FNPT, and sight glass connection options.
- Process-ready capacity — 100L shell volume with tube-in-shell and collection specifications for custom setups.
Talk to an expert
Get sizing help, process guidance, and integration tips for your reactor system.
Technical Specifications
| Parameter | Shell | Inner Jacket | Outer Jacket |
|---|---|---|---|
| Working Pressure | ≤250 PSI | ≤87 PSI | ≥-14.7 PSI |
| Design Pressure | 260 PSI | 88 PSI | FV |
| Working Temperature | ≤250°C | ≤250°C | ≤250°C |
| Design Temperature | 260°C | 260°C | 260°C |
| MAWP at Design Temp | 250 PSI | 87 PSI | FV |
| MDMT at Design Pressure | -40°C | -40°C | -40°C |
| Full Volume | 0.1 m³ | 0.034 m³ | 0.041 m³ |

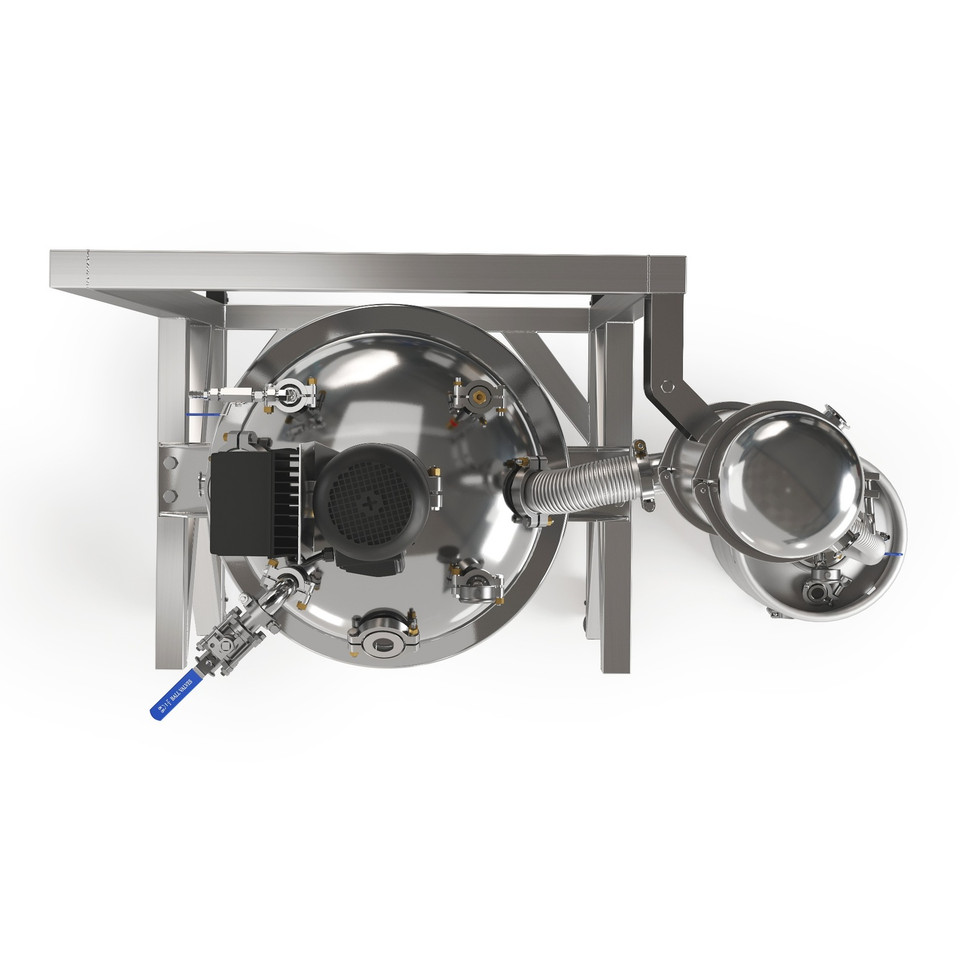

| Top Connections | 2 x 1.5" Tri-Clamp | 1 x 3" Tri-Clamp | 4" Sight Glass with Flashlight | ||
| Bottom Connections | 6" Tri-Clamp | 6" to 1.5" Reducer | 1.5" Tri-Clamp Ball Valve | ||
| Tube-In-Shell Material | 316L Grade Stainless Steel | ||
| Tube-In-Shell Tubes / Area | 70 Tubes | 0.9 m² Condensing Area | ||
| Tube-In-Shell Connections | 2 x 1/2" FNPT | 2 x 1.5" Tri-Clamp | 1 x 3" Tri-Clamp | 2 x 2" Tri-Clamp Sight Glasses | ||
| Collection Specifications | 316L Grade Stainless Steel | 50L Volume | 2 Collections | 6" Tri-Clamp | 2 x 1.5" Tri-Clamps | ||

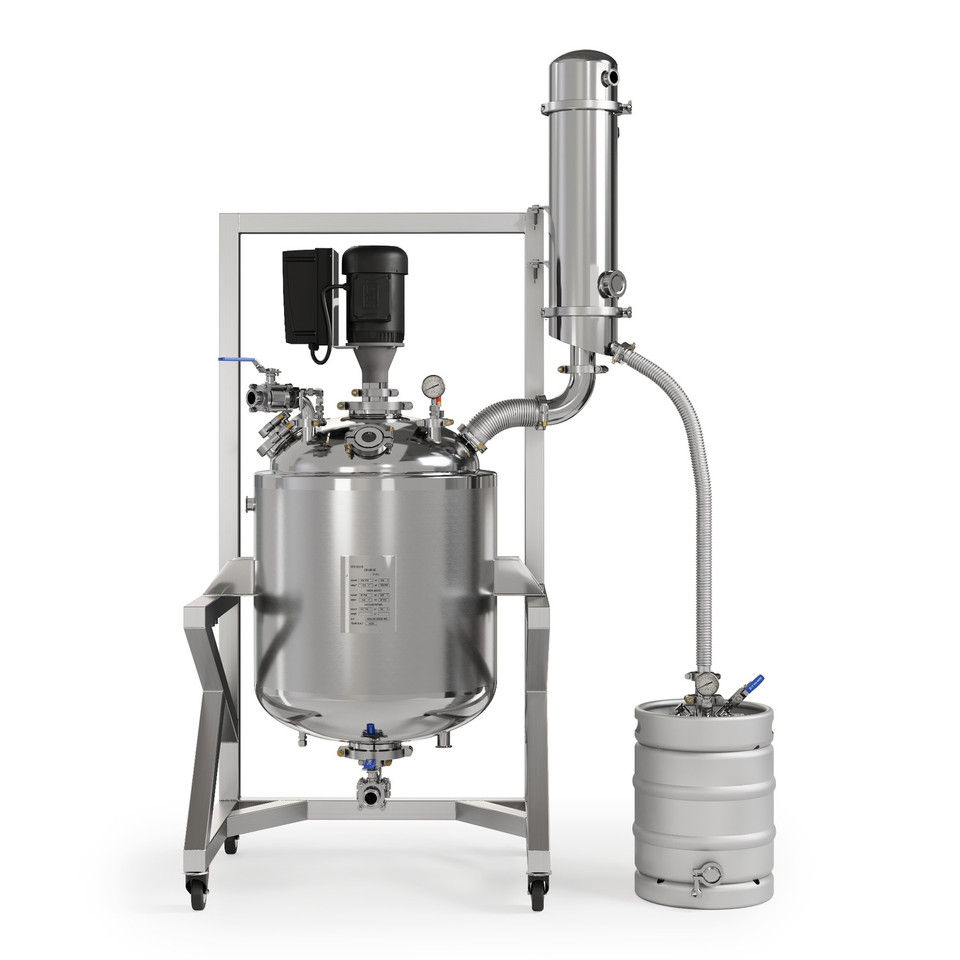

USA-SR100 Mixer Specifications — Standard vs. Explosion-Proof
| Spec | Standard — TCM033VDD-41658 | Explosion-Proof — TCM033XDD-41662 |
|---|---|---|
| Motor | ||
| Motor type | TEFC, IP55 | XPFC inverter duty |
| Horsepower | 1/3 HP | |
| Voltage | 208–230/460V, 3Ph | 230/460V, 3Ph |
| Motor RPM | 1765 | 1750 |
| Turndown ratio | 5:1 | 10:1 |
| XP class rating | — | C1D1 Gr D / C2D1 Gr F&G · T3C |
| Control | ||
| Controller | 0.5 HP VFD, digital RPM readout | |
| Enclosure | NEMA 4X outdoor rated | |
| VFD placement | Wired & mounted to motor | Mounted outside XP area |
| Local XP control pkg | — | Yes |
| Control input | 120V / 1Ph | |
| Shaft RPM range | 353–1765 | 175–1750 |
| No-run zone (RPM) | 814–1221 | |
| Cord & plug | Included | |
| Shaft & Impeller | ||
| Shaft diameter | 0.625" | |
| Shaft length | 24" exposed | |
| Shaft material | 17-4 H900 hardened SS, no polish | |
| Impeller type | 4.5" marine propeller (PRL) | |
| Impeller blades | 3-blade, low shear, 316SS, deburred, mill finish, set screw | |
| Mount, Seal & Finish | ||
| Mount | 3" sanitary tri-clamp, tapered CIP recess | |
| Wetted material | 316SS wetted / aluminum externals / carbon steel hardware | |
| Bearing | SS bearing; carbon steel coupler | |
| Seal | Dual food grade PTFE blend double lip seals w/ silicone anti-rotation O-rings | |
| Pressure/vacuum rated | Yes | |
| Wetted surface finish | Mill | |
Popular Industries & Use Cases
Business Solutions & Procurement
Programs & Terms
Exclusive options for businesses and academics.
Documentation & Compliance
Keep purchasing streamlined and compliant.
Custom Solutions
Tailored tanks, skids, and integration help.
Talk to Sales
We’ll help spec the right reactor system for your process.
FAQ
What is the USA Lab Dual-Jacketed ASME 100L 316L-Grade Stainless Steel Reactor used for?
The USA Lab Dual-Jacketed ASME 100L 316L-Grade Stainless Steel Reactor is used for mixing, reaction, crystallization, extraction, condensation, and temperature-sensitive laboratory, pilot-scale, and industrial processing workflows.
What material is the USA Lab Dual-Jacketed ASME 100L 316L-Grade Stainless Steel Reactor made from?
The USA Lab Dual-Jacketed ASME 100L 316L-Grade Stainless Steel Reactor is constructed from 316L grade stainless steel for corrosion resistance, sanitary performance, and long-term durability.
What is the working pressure of the USA Lab Dual-Jacketed ASME 100L 316L-Grade Stainless Steel Reactor?
The USA Lab Dual-Jacketed ASME 100L 316L-Grade Stainless Steel Reactor has a shell working pressure of ≤250 PSI, an inner jacket working pressure of ≤87 PSI, and an outer jacket rating of ≥-14.7 PSI.
What connections are included on the USA Lab Dual-Jacketed ASME 100L 316L-Grade Stainless Steel Reactor?
The USA Lab Dual-Jacketed ASME 100L 316L-Grade Stainless Steel Reactor includes top Tri-Clamp connections, a 4" sight glass with flashlight, bottom Tri-Clamp reducer and ball valve connections, tube-in-shell connections, and 50L collection connections.
