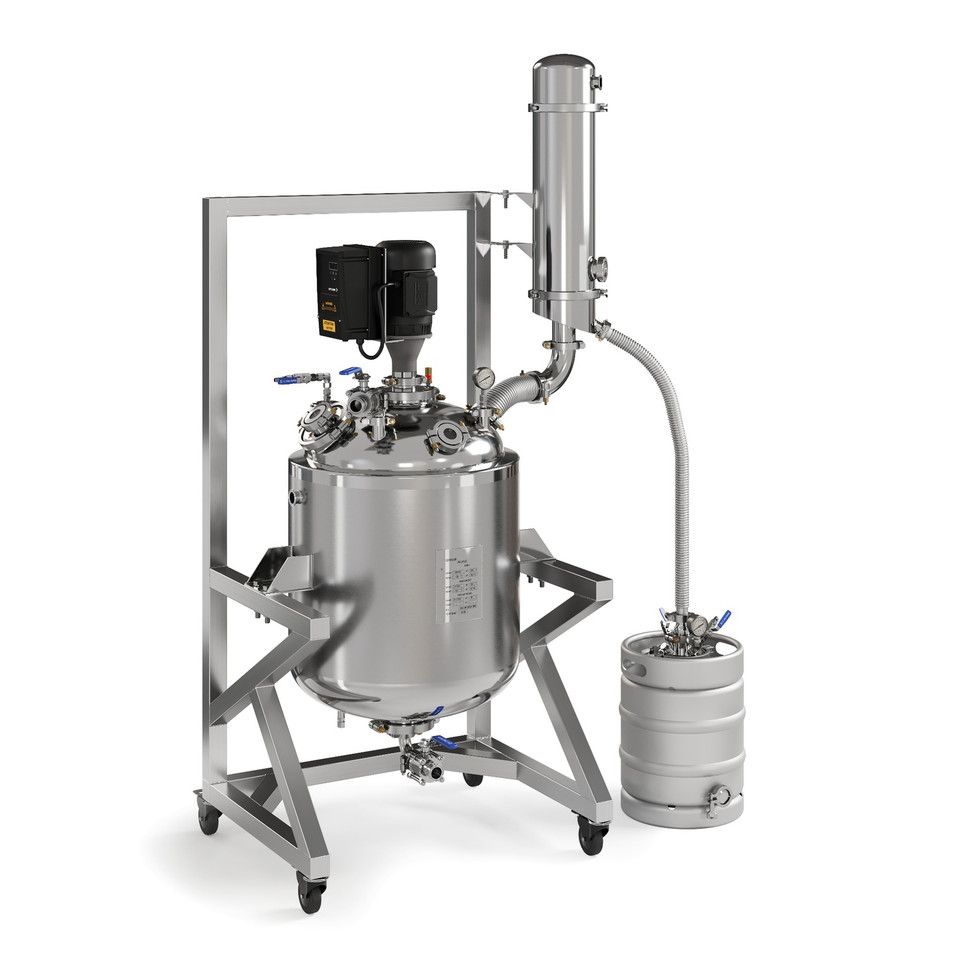

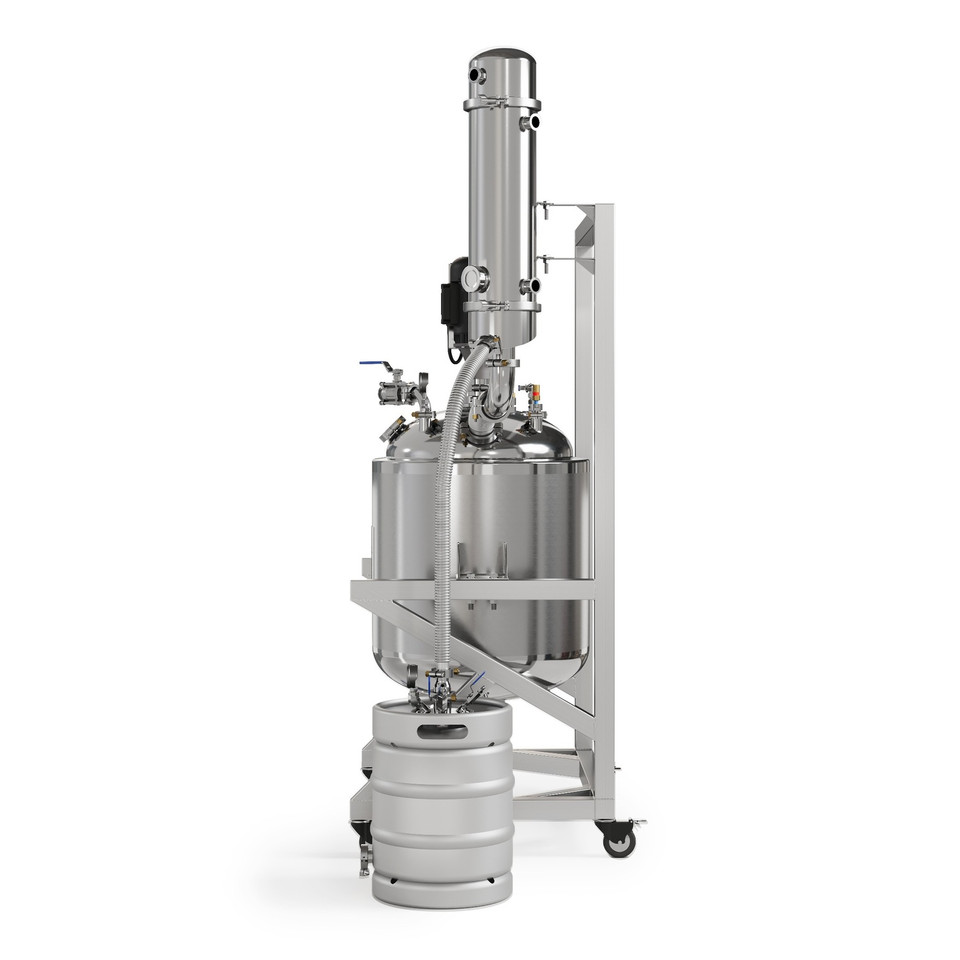

USA Lab Dual-Jacketed 200L 316L-Grade Stainless Steel Reactor




$21,999.00
SKU:
USA-SR200
Shipping:
Calculated at Checkout
Brand:
USA Lab
Material:
316L SS / 304 SS
Power Requirements:
220V 3 Phase



200L Dual-Jacketed Reactor Specifications

Motor Power

220V, 50-60Hz, Single Phase, 200 watts

Rotation Speed

0-450 rpm max.

Lid Connections

(12" Tri-Clamp) (Center Port 3" Tri-Clamp) (2x 1.5" Tri-Clamp)

Top Connections

(2x 1.5" Tri-Clamp) (1x 3" Tri-Clamp)
 (4" Sight Glass with Flashlight)

Bottom Connections

(6" Tri-Clamp) (6" Tri-Clamp to 2" Tri-Clamp Reducer) (2" Tri-Clamp Ball Valve)

Accessories

Pressure Gauge, Thermometer Probe, Vapor Release Valve

Reactor Volume

200 Liters

Material

316L Grade Stainless Steel / Interior Electro Polished

Agitator

2x 3 Blade Propeller | 28" Shaft

Agitator Material

316L Grade Stainless Steel

Inner Jacket Connection

1" NPT

Inner Jacket Volume

35 Liters

Inner Jacket Rating

15 psi

Outer Jacket

Sealed

Jacket Material

304 Stainless Steel

Pressure Rating

Ultimate Vacuum

Temperature Range

55°C to +250°C (-67°F to +482°F)

Gasket Material

Silicone / Buna-N

Weight

600lb

Frame Material

304 Stainless Steel

Dimensions

44" L x 32" W x 87" H



Tube-In-Shell Specifications

Material

316L Grade Stainless Steel

Number of Tubes

70

Condensing Area

1.2 m2

Connections

(2x 1/2" FNPT) (2x 1.5" Tri-Clamp) (1x 3" Tri-Clamp) (2x 2" Tri-Clamp Sight Glasses)



Collection Specifications

Material

304 Stainless Steel

Volume

100 Liters

PSI Rating

45 psi

Lid Connection

6" Tri-Clamp

Connections

(1x 1/2" FNPT) (2x 1/2" FNPT w/ Dip Tube) (1x 1/4" FNPT) (1x 2" Tri-Clamp)

Drain Connection

1.5" Tri-Clamp

Dimensions

16" L x 16" W x 43" H

Weight

71lbs





For Technical Support, Questions, or Other Issues Please Email or Call Us!

Brand:
USA Lab
Material:
316L SS / 304 SS
Power Requirements:
220V 3 Phase
