Description

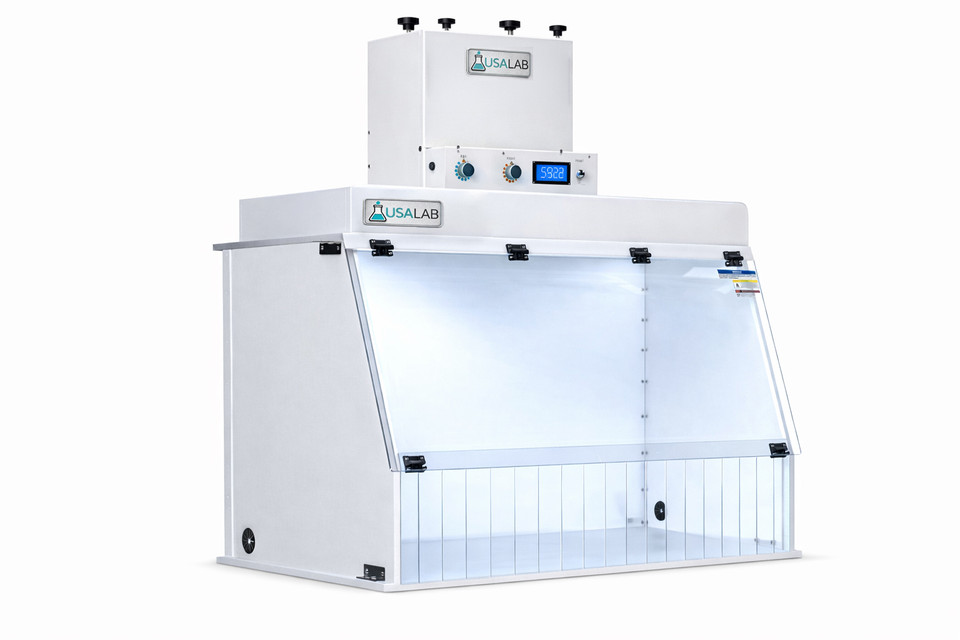

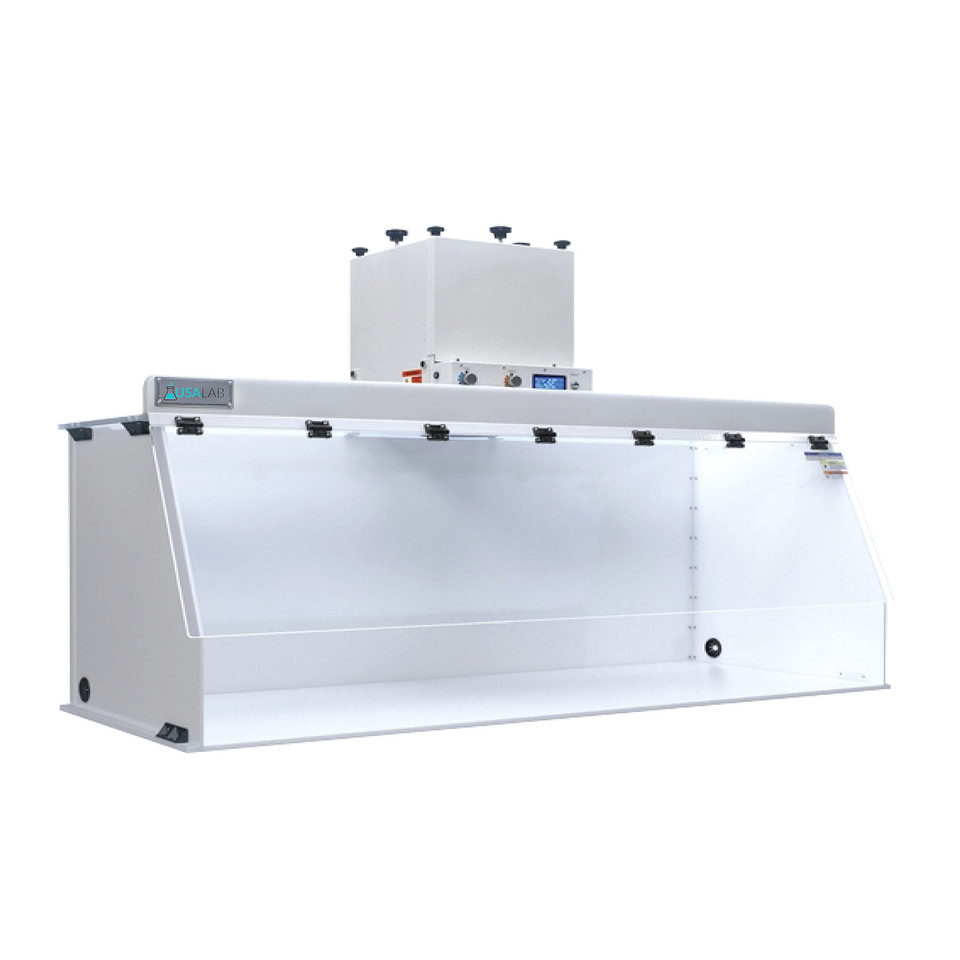

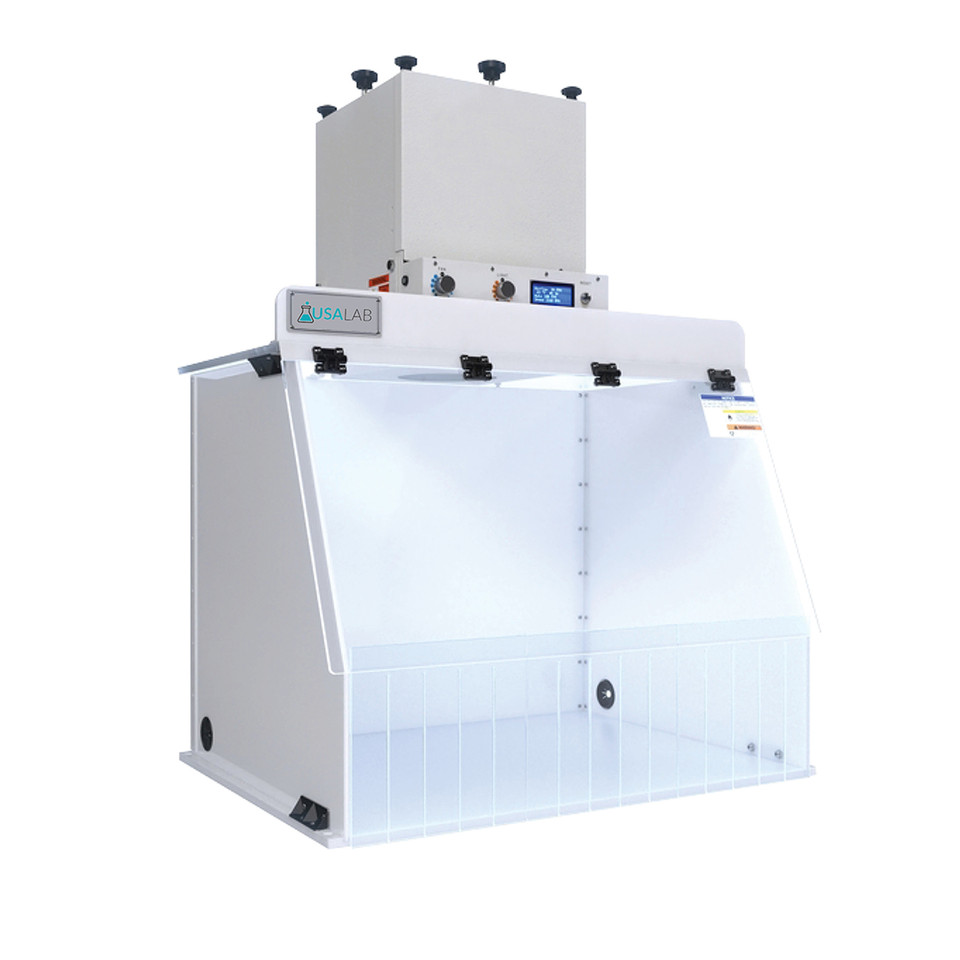

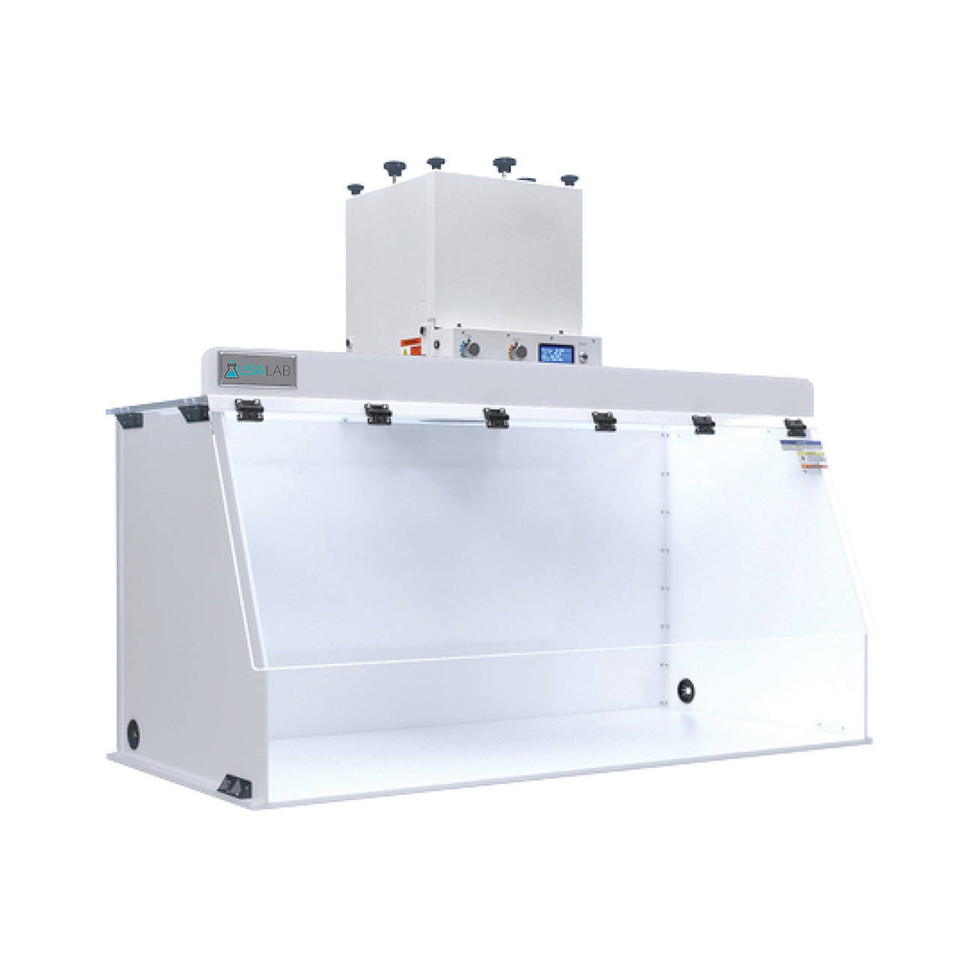

Deluxe Ductless Containment Hood | UL- Listed | USA Lab

USA Lab Ductless Containment Hoods (also known as ductless fume hoods) are engineered for pharmaceutical, laboratory, and powder containment applications including powder weighing, capsule filling, tablet encapsulation, cream compounding, and other critical workflows requiring effective containment and high-efficiency filtration.

These ductless containment systems utilize optimized airflow and filtration media designed to capture hazardous powders, dust, and nuisance fumes — helping protect operators from inhalation exposure while maintaining a clean working environment and minimizing cross-contamination risk.

The Deluxe design is built for labs that need higher control, monitoring, and operator protection compared to standard containment hoods. It includes clear anti-static vinyl curtains to help reduce static buildup and prevent powder escape, along with an adjustable LED light that improves visibility during detailed powder handling and compounding work.

For airflow and containment performance, the Deluxe model includes a variable speed controller, allowing users to fine-tune airflow based on the process, powder type, or filtration setup. The system also features a digital display with an integrated hour counter and digital Magnehelic gage, giving operators real-time visibility into runtime and pressure/airflow conditions, which helps with maintenance planning and filter monitoring.

To support safe and consistent operation, the Deluxe configuration also includes an external reset button and programmable alerts, helping ensure operators are notified of system changes, filter loading conditions, or maintenance intervals — reducing downtime and helping maintain proper containment performance.

3-5 Day Lead Time

Ensure proper PPE and respiratory protection when handling hazardous powders, potent compounds, and hormones.
Select filtration media appropriate to your chemical and powder profile; contact USA Lab for sizing and filter guidance.

Ductless Powder Containment Up to 350 CFM HEPA / Carbon Filter Options Variable Speed Control

Containment: Optimized airflow to capture powders and dust at the source for safer handling.

Filtration: Compatible with CPF + HEPA or CPF + Activated Carbon configurations for your workflow.

Performance: Up to 350 CFM with variable speed control and 61–66 dBA sound range.

Why buy from USA Lab

Expert Support
Engineers & technicians on staff.

Quality First
Tested and trusted products.

Fast Fulfillment
Nationwide 1-2 day shipping.

Warranty & Parts
US-based service & spares.

Resources & Downloads

Chemical Analysis Form

Why this ductless containment hood?

Powder containment for critical workflows — ideal for weighing, capsule filling, tablet encapsulation, and compounding tasks.
Designed for operator protection — captures hazardous powders, dust, and select fumes to reduce inhalation exposure.
Full access with minimized contamination — supports clean work practices while maintaining workflow visibility and reach.
Flexible filtration options — supports CPF + HEPA or CPF + Activated Carbon configurations depending on your application.
Built for lab environments — durable acrylic/HDPE construction, digital control panel, and standard safety features.

Talk to an expert

Get sizing help, filter recommendations, SOP guidance, and integration tips for your lab.

Call 734-855-4890

Technical Specifications

Specification	SS-330-DCH2	SS-340-DCH2	SS-350-DCH2	SS-360-DCH2	SS-370-DCH2
Outer Dimensions	24” D x 32” W x 25” H	24” D x 42” W x 25” H	24” D x 52” W x 25” H	24” D x 62” W x 25” H	24” D x 72” W x 25” H
Interior Dimensions	23.5“ D x 30” W x 24” H	23.5“ D x 40” W x 24” H	23.5“ D x 50” W x 24” H	23.5“ D x 60” W x 24” H	23.5“ D x 70” W x 24” H
Access Area (Height)	8”	8”	8”	8”	8”
Hood Material	Sides: 0.25” white acrylic; Base: 0.5” white HDPE; Top: 0.5” clear polycarbonate; Front Window: 0.25” clear polycarbonate	Sides: 0.25” white acrylic; Base: 0.5” white HDPE; Top: 0.5” clear polycarbonate; Front Window: 0.25” clear polycarbonate	Sides: 0.25” white acrylic; Base: 0.5” white HDPE; Top: 0.5” clear polycarbonate; Front Window: 0.25” clear polycarbonate	Sides: 0.25” white acrylic; Base: 0.5” white HDPE; Top: 0.5” clear polycarbonate; Front Window: 0.25” clear polycarbonate	Sides: 0.25” white acrylic; Base: 0.5” white HDPE; Top: 0.5” clear polycarbonate; Front Window: 0.25” clear polycarbonate
Blower Dimensions	15.5” L x 13” W x 16.75” H (includes plenum & Digital Control Panel)	15.5” L x 13” W x 16.75” H (includes plenum & Digital Control Panel)	15.5” L x 13” W x 16.75” H (includes plenum & Digital Control Panel)	15.5” L x 13” W x 16.75” H (includes plenum & Digital Control Panel)	15.5” L x 13” W x 16.75” H (includes plenum & Digital Control Panel)
Blower Material	16G carbon steel w/ polyester epoxy coating on all surfaces	16G carbon steel w/ polyester epoxy coating on all surfaces	16G carbon steel w/ polyester epoxy coating on all surfaces	16G carbon steel w/ polyester epoxy coating on all surfaces	16G carbon steel w/ polyester epoxy coating on all surfaces
Weight (Approx)	100 lbs	115 lbs	125 lbs	140 lbs	155 lbs
Air Volume	up to 350 CFM	up to 350 CFM	up to 350 CFM	up to 350 CFM	up to 350 CFM
Inlet Velocities on High (Approx)	CPF + HEPA Filter – 130 FPM; CPF + Activated Carbon – 115 FPM	CPF + HEPA Filter – 130 FPM; CPF + Activated Carbon – 115 FPM	CPF + HEPA Filter – 105 FPM; CPF + Activated Carbon – 80 FPM	CPF + HEPA Filter – 100 FPM; CPF + Activated Carbon – 70 FPM	CPF + HEPA Filter – 100 FPM; CPF + Activated Carbon – 70 FPM
Electrical	115/1/60, 2 amps; 8’ grounded power cord w/ NEMA 5-15P plug	115/1/60, 2 amps; 8’ grounded power cord w/ NEMA 5-15P plug	115/1/60, 2 amps; 8’ grounded power cord w/ NEMA 5-15P plug	115/1/60, 2 amps; 8’ grounded power cord w/ NEMA 5-15P plug	115/1/60, 2 amps; 8’ grounded power cord w/ NEMA 5-15P plug
Sound Level	61 to 66 dBA (Low to High)	61 to 66 dBA (Low to High)	61 to 66 dBA (Low to High)	61 to 66 dBA (Low to High)	61 to 66 dBA (Low to High)
Max Operating Temperature	170° F	170° F	170° F	170° F	170° F
Filtration	See item 31516 for full line of available filters	See item 31516 for full line of available filters	See item 31516 for full line of available filters	See item 31516 for full line of available filters	See item 31516 for full line of available filters
Warranty	Limited two-year warranty on defects due to materials or workmanship.	Limited two-year warranty on defects due to materials or workmanship.	Limited two-year warranty on defects due to materials or workmanship.	Limited two-year warranty on defects due to materials or workmanship.	Limited two-year warranty on defects due to materials or workmanship.
Clear Anti-Static Vinyl Curtains	Included	Included	Included	Included	Included
Hour Counter	Included	Included	Included	Included	Included
Light	Included	Included	Included	Included	Included
Magnehelic Gage	Included	Included	Included	Included	Included
Spill Tray	Optional	Optional	Optional	Optional	Optional
Variable Speed Controller	Included	Included	Included	Included	Included
Velometer	Optional	Optional	Optional	Optional	Optional

Popular Industries & Use Cases

Pharmaceutical Compounding Academic & Research Chemical Sciences Powder Handling & Processing

Business Solutions & Procurement

Programs & Terms

Exclusive options for businesses and academics.

Apply for Net Terms Academic Discount

Documentation & Compliance

Keep purchasing streamlined and compliant.

Request a Quote Tax Exemption

Custom Solutions

Containment sizing, filter media selection, and workflow integration support.

Custom Request Consulting

Talk to Sales

We’ll help spec the right ductless containment hood for your powders and processes.

Call 734-855-4890 Email Sales/Support

FAQ

What are USA Lab Ductless Containment Hoods used for?

USA Lab Ductless Containment Hoods for Laboratories | Deluxe | USA Lab are commonly used for powder weighing, capsule filling, tablet encapsulation, cream compounding, and other laboratory or pharmaceutical workflows that require effective powder containment and filtration.

Are these ductless containment hoods the same as ductless fume hoods?

Yes. USA Lab Ductless Containment Hoods for Laboratories | Deluxe | USA Lab are also known as ductless fume hoods. They recirculate filtered air back into the room using selected filtration media (e.g., HEPA and/or activated carbon) depending on the application.

When should a ductless fume hood NOT be used?

A ductless fume hood should only be considered for low-hazard chemicals with appropriate filtration media. Certain low molecular weight gases may not be efficiently captured through carbon filtration (e.g., methane, butane, propane). High loading scenarios (such as significant daily solvent evaporation) may require ducting outside.

What filtration options are available?

USA Lab Ductless Containment Hoods for Laboratories | Deluxe | USA Lab support configurations such as CPF + HEPA filtration for fine powders and CPF + activated carbon for select fumes/odors, depending on your process and hazard profile.
