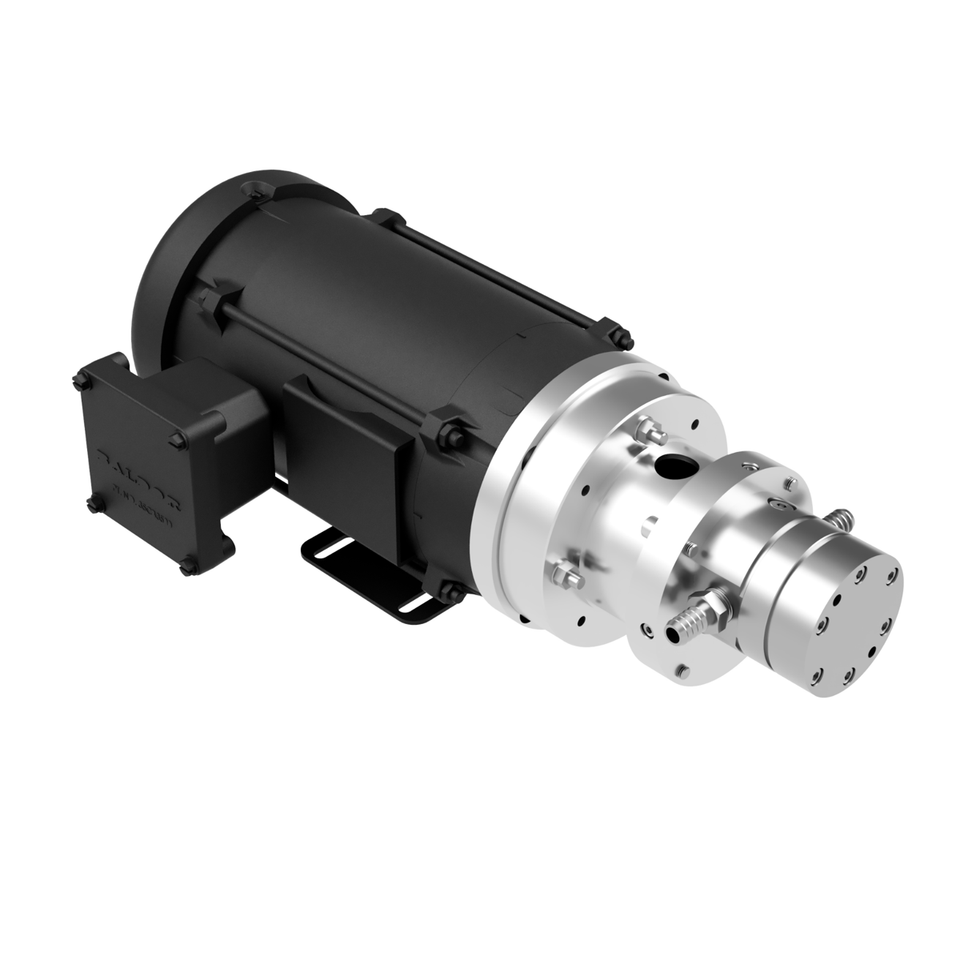

Name: USA Lab Crude Oil Pump - 60L/HR - C1D1 Certified
Brand: USA Lab
SKU: USA-COP60
Price: 6820.0 USD
Availability: InStock

Description

USA Lab Crude Oil Pump

The USA Lab Crude Oil Pump is a high-performance, explosion-proof gear pump system engineered for reliable transfer of high-viscosity crude oil in demanding processing environments. With a flow rate of 60 L/hr and the ability to handle viscosities up to 70,000 cP at 110°F, it provides steady and controlled pumping for extraction, evaporation, and distillation workflows.

This compact, magnetically driven pump system is designed for dependable operation with thick fluids and vacuum conditions. Its Beinlich ECO-193004 pump with SKF372.1XF gear box, FKM (Viton®) seal, and KF and NPT adapter connections provide a practical configuration for integration with falling film evaporators and other process equipment.

4–6 week lead time. The USA Lab Crude Oil Pump features a 0.5 HP, 1750 RPM inverter-duty motor with an explosion-proof Class I Division 1 rating and 230/460V, 3-phase, 60Hz electrical configuration. It is well suited for botanical extraction, pharmaceutical processing, petrochemical applications, and other hazardous-environment pumping requirements.

60 L/hr Flow Rate Up to 70,000 cP Explosion Proof Class I Div 1 Magnetically Driven

High-Viscosity Handling: Up to 70,000 cP at 110°F — supports reliable transfer of thick crude oil and concentrated process fluids.

Controlled Flow: 60 L/hr pumping capacity — provides steady material transfer for falling film evaporators and related processing equipment.

Hazardous-Environment Ready: Class I Division 1 explosion-proof motor — supports pumping applications where compliant hazardous-location equipment is required.

Why buy from USA Lab

Expert Support
Engineers & technicians on staff.

Quality First
Tested and trusted products.

Fast Fulfillment
Nationwide 1-2 day shipping.

Warranty & Parts
US-based service & spares.

Why this USA Lab Crude Oil Pump?

High-viscosity performance — handles crude oil viscosities up to 70,000 cP at 110°F for demanding transfer applications.
Stable 60 L/hr flow — provides controlled pumping for falling film evaporators and other distillation equipment.
Magnetically driven design — supports compact, steady, and leak-free operation when working with thick fluids and vacuum conditions.
Explosion-proof motor — Class I Division 1-rated configuration is designed for hazardous-location applications where appropriate compliance requirements apply.
Flexible process connections — supplied with KF and NPT adapters for practical integration into compatible processing systems.

Talk to an expert

Get help matching JIC size, tubing, and gasket standards to your KF foreline.

Call 734-855-4890

Technical Specifications

Specification	Details
Product Name	USA Lab Crude Oil Pump
Flow Rate	60 L/hr
Viscosity Handling	Up to 70,000 cP @ 110°F
Vacuum Compatibility	29.5 inHg
Pump Type	Beinlich ECO-193004 with SKF372.1XF gear box
Drive Configuration	Magnetically driven
Seal	FKM (Viton®)
Connections	KF Adapter + NPT Adapter
Drive Motor	0.5 HP, 1750 RPM, Inverter Duty
Motor Rating	Explosion Proof, Class I Div 1
Voltage	230/460V
Phase	3-phase
Frequency	60Hz
Primary Application	Crude oil transfer
Equipment Compatibility	Falling film evaporators and distillation equipment
Fluid Handling	High-viscosity crude oil and process fluids
Operating Environment	Hazardous processing environments
Lead Time	4–6 weeks
System Application	Extraction, evaporation, distillation, and process-fluid transfer

Popular Industries & Use Cases

Botanical Extraction Pharmaceutical Chemical Sciences Academic & Research

Business Solutions & Procurement

Programs & Terms

Exclusive options for businesses and academics.

Apply for Net Terms Academic Discount

Documentation & Compliance

Keep purchasing streamlined and compliant.

Request a Quote Tax Exemption

Custom Solutions

Tailored equipment and integration help.

Custom Request Consulting

Talk to Sales

We’ll help confirm pump specifications and system compatibility for your process.

Call 734-855-4890 Email Sales/Support

FAQ

What is the flow rate of the USA Lab Crude Oil Pump?

The USA Lab Crude Oil Pump has a flow rate of 60 L/hr, making it suitable for controlled crude oil transfer and integration with compatible falling film evaporators and distillation equipment.

How much viscosity can the USA Lab Crude Oil Pump handle?

The USA Lab Crude Oil Pump is designed to handle viscosities up to 70,000 cP at 110°F, supporting the transfer of high-viscosity crude oil and other thick process fluids.

Is the USA Lab Crude Oil Pump suitable for hazardous environments?

Yes. The pump is configured with a Class I Division 1 explosion-proof motor. Users should verify applicable local, facility, and electrical safety requirements before installation and operation.

What are the electrical requirements for the USA Lab Crude Oil Pump?

The USA Lab Crude Oil Pump uses a 0.5 HP, 1750 RPM inverter-duty motor with a 230/460V, 3-phase, 60Hz electrical configuration.

Important Shipping Notice!

DISCLAIMER:

This product has a typical 4–6 week lead time. Please contact USA Lab if you need current lead-time confirmation before placing your order.

All items are carefully packaged to ensure safe delivery. In the rare event that your item arrives damaged, please notify us within 3 days of receipt. We will promptly provide a replacement or issue a refund.

Please note that any damage occurring after delivery is not covered under warranty. We appreciate your understanding and your trust in our products.

Need Support?

We’ll get you answers fast.

Call 734-855-4890

Specifications

Brand:	USA Lab
Viscosity Handling:	60 L/hr
Vacuum Compatibility:	Up to 70,000 cP @ 110°F
Pump Materials:	29.5 inHg
Connections:	KF Adapter + NPT Adapter
Drive Motor:	0.5 HP, 1750 RPM, Inverter Duty
Motor Rating:	Explosion Proof, Class I Div 1
Voltage:	230/460V, 3-phase, 60Hz
Warranty Term:	1 Year
Return Window:	30 Days
Lead Time:	1–3 Days
