Winged Sentry Benchtop Fume Extractor | USA Lab

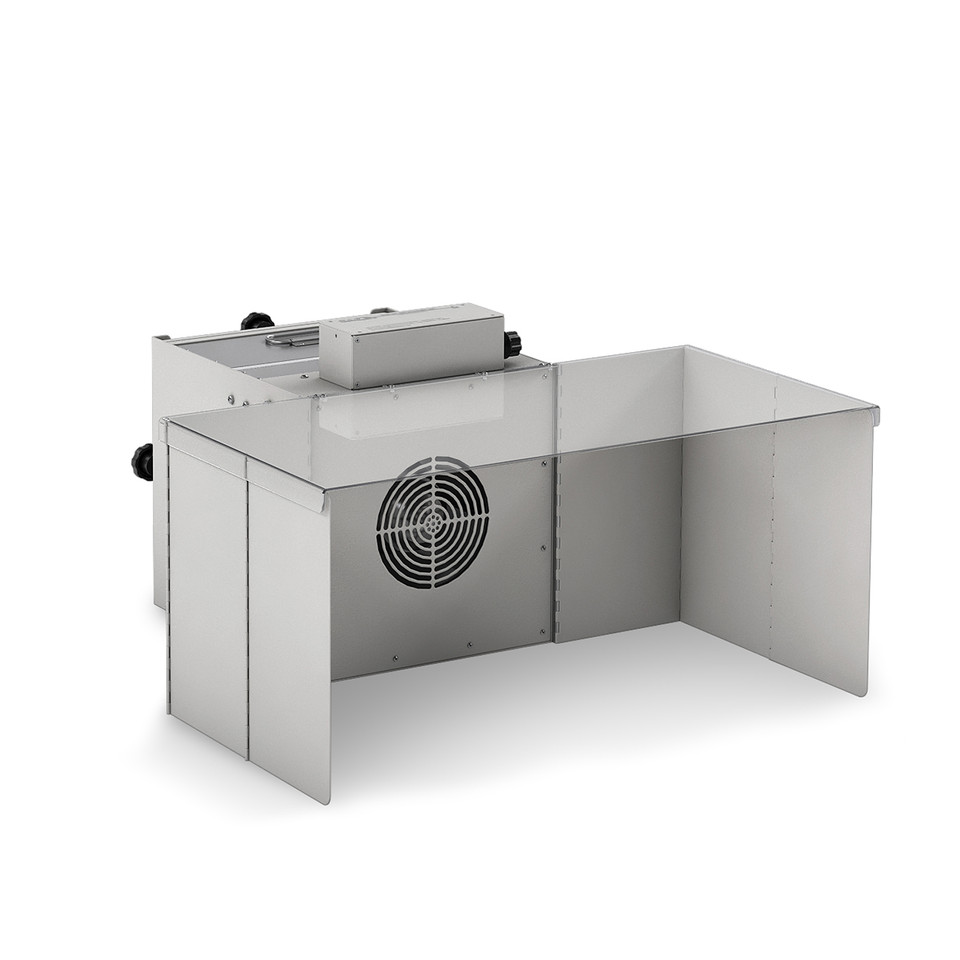

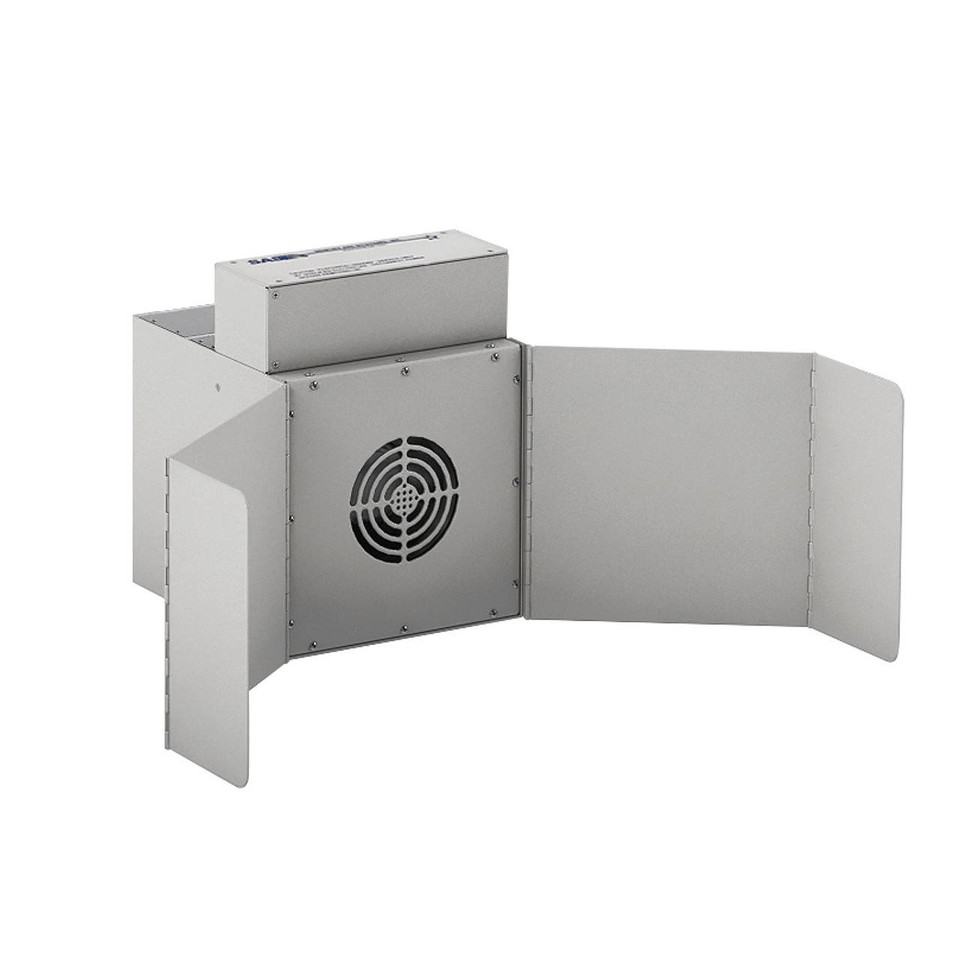

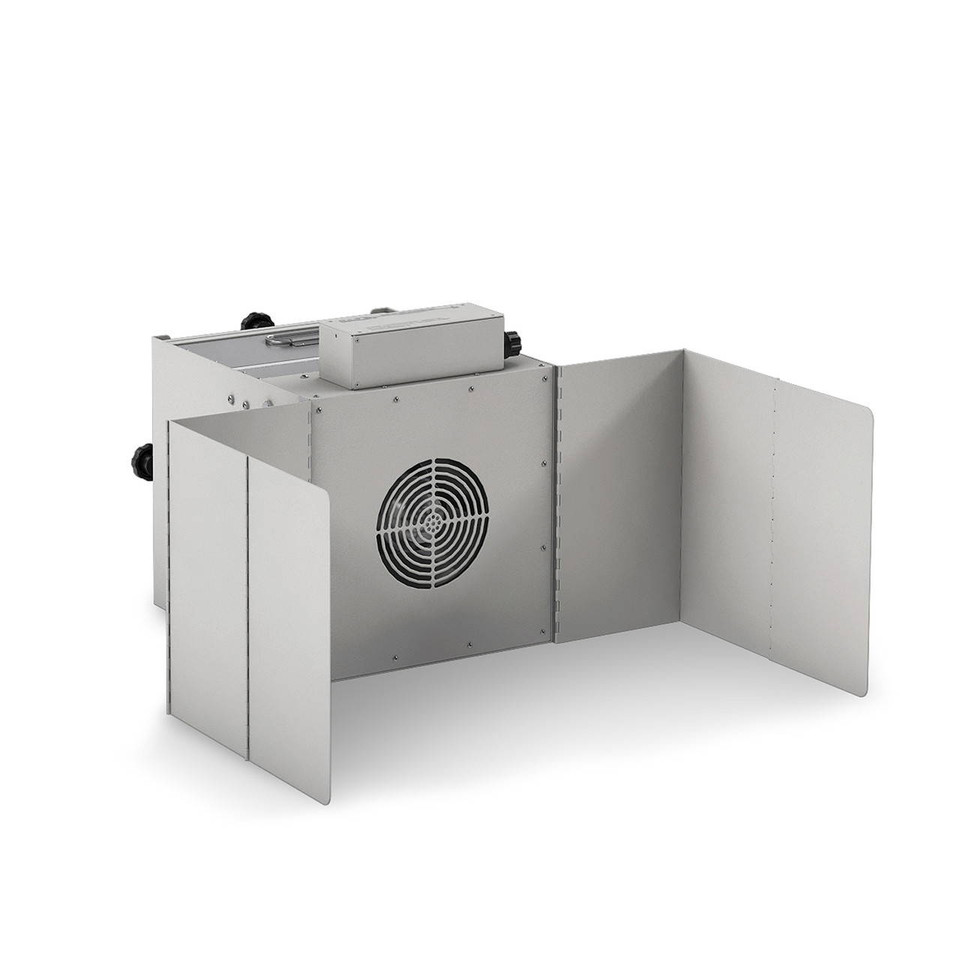

The Winged Sentry is a compact benchtop air filtration system that provides an energy-efficient, quiet, and economical solution for many fume extraction needs. This system features adjustable "wing flaps" to assist in directing fumes towards the unit's inlet, into the filter chamber, and away from the operator’s breathing zone. When used with the acrylic lid, this system offers a “hood-like” enclosure without the confines of an actual fume hood. The operator can place these wings in the most effective position for their particular application, or they can be positioned flat against the sides of the unit to conserve space. New for this line of benchtop fume extractors is the WSL2 – Model 300 Generation 2. This new improved unit offers an LED light and a user-friendly control panel that allows the operator to adjust the fan speed, light intensity, and monitor the filter’s saturation.

Appropriate filtration media are installed in the Winged Sentry based on the application being performed by the operator. HEPA [up to 99.97% efficient on particles 0.3 microns and larger], ASHRAE [up to 95% efficient on particles 0.5 microns and larger], Activated Carbon, and specialty-blended media [i.e. Acid Gas, Mercury, Aldehyde, Ammonia] are the most common filters for this unit.

Confirm your process and filter configuration before purchase for best performance.
For corrosive or specialty chemistry, ask our team about compatible filtration media options.

Adjustable Wing Flaps Hinged Acrylic Lid Fan Speed Control LED Light + Controls

Control: Digital panel with fan speed, LED light control, filter pressure, runtime tracking, and reset.

Capture: Infinitely adjustable wing flaps help direct fumes toward the inlet and away from the breathing zone.

Service: Quick, “no tool” filter changes with long filter life and reliable low-maintenance operation.

Why buy from USA Lab

Expert Support
Engineers & technicians on staff.

Quality First
Tested and trusted products.

Fast Fulfillment
Nationwide 1-2 day shipping.

Warranty & Parts
US-based service & spares.

Resources & Downloads

Chemical Analysis Form

Why this Winged Sentry fume extractor?

Compact benchtop protection — creates a “hood-like” enclosure with an acrylic lid, without a full hood footprint.
Adjustable fume guidance — wing flaps position to capture fumes at the source and reduce exposure.
User-friendly controls — adjust fan speed and light intensity, and monitor filter loading and runtime.
Quiet, efficient operation — energy-efficient airflow with reliable low-maintenance performance.
Application-based filtration — supports HEPA, ASHRAE, activated carbon, and specialty media for targeted contaminant capture.

Talk to an expert

Get filtration guidance, application fitment, and workflow setup help.

Call 734-855-4890

Technical Specifications

Model	200 Series	300 Series	300 Gen 2
Cabinet Dimensions	8.5"L x 8"W x 10.5"H	14.5"L x 13"W x 15.5"H	14.5"L x 13"W x 15.5"H
CFM	Up to 100 CFM	Up to 350 CFM High, Down to 50 CFM Low	Up to 350 CFM High, Down to 50 CFM Low
Filter Size	Small	Medium	Medium
Weight	12 lbs.	40 lbs.	40-50 lbs.
Electrical	115/1/60, .3 amps 220/1/50, .2 amps	115/1/60, 2 amps 220/1/50, .75 amps	115/1/60, 2 amps
Sound Level	Approx. 55 dba @ 3' from inlet	Approx. 61 to 66 dba @ 3' from inlet	Approx. 54 to 68 dba @ 3' from inlet

Popular Industries & Use Cases

Botanical Extraction Pharmaceutical Chemical Sciences Academic & Research

Business Solutions & Procurement

Programs & Terms

Exclusive options for businesses and academics.

Apply for Net Terms Academic Discount

Documentation & Compliance

Keep purchasing streamlined and compliant.

Request a Quote Tax Exemption

Custom Solutions

Tailored tanks, skids, and integration help.

Custom Request Consulting

Talk to Sales

We’ll help spec the right filtration media for your application.

Call 734-855-4890 Email Sales/Support

FAQ

What is the Winged Sentry fume extractor used for?

The Winged Sentry is a compact benchtop fume extraction and air filtration system designed to capture fumes, vapors, smoke, and airborne contaminants at the source. Its adjustable wing flaps help direct emissions into the inlet and away from the operator’s breathing zone for safer bench work.

How do the adjustable wing flaps help?

The Winged Sentry wing flaps can be positioned to guide fumes toward the unit’s inlet for improved source capture. They can also be folded flat against the sides to conserve bench space when needed.

What filters are available for the Winged Sentry?

The Winged Sentry supports filtration selected for your application, including HEPA (up to 99.97% efficient at 0.3 microns and larger), ASHRAE (up to 95% efficient at 0.5 microns and larger), ULPA (up to 99.9995% efficient at 0.12 microns and larger), activated carbon, and specialty-blended media (e.g., acid gas, mercury, aldehyde, ammonia).

What controls and monitoring features does the Winged Sentry include?

The Winged Sentry features a user-friendly control panel with fan speed control, LED light control, a digital Magnehelic gauge, and a digital display that shows filter pressure and runtime. A runtime reset button is included to help track filter service intervals.
