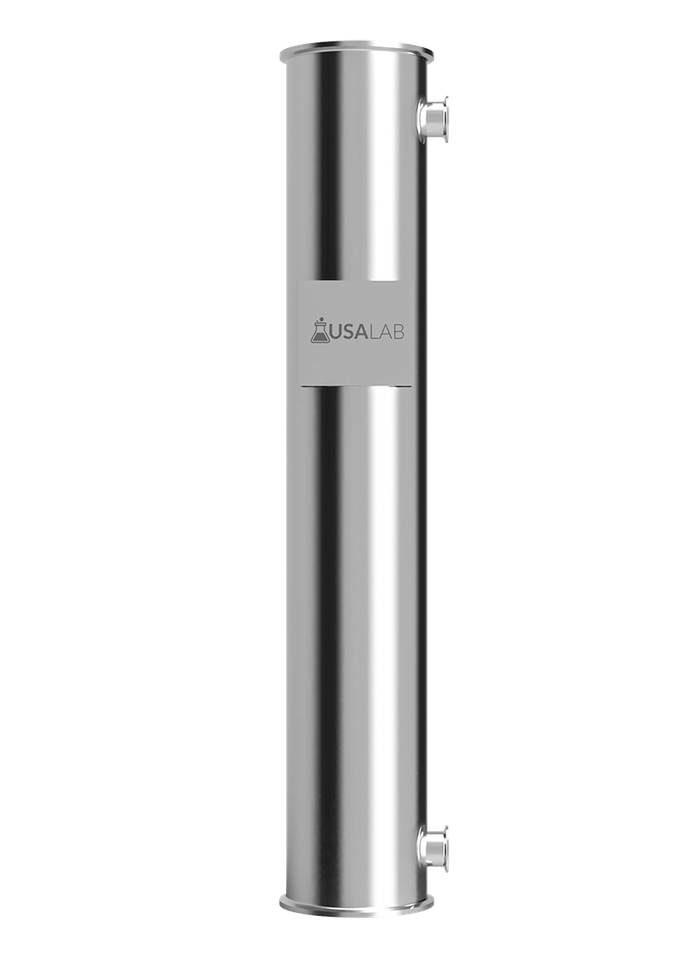

ASME Tube-in-Shell Heat Exchangers - 304SS, 250 PSI | USA Lab
Explore our comprehensive range of USA Lab ASME tube-in-shell heat exchangers, engineered for efficient, reliable heat transfer across demanding industrial applications. These 304 stainless steel exchangers are ideal for power generation, chemical processing, oil & gas, refrigeration, closed-loop cooling, and high-performance laboratory systems.
Each USA Lab ASME tube-in-shell heat exchanger is designed to deliver consistent thermal performance with a 250 psi pressure rating, 1.5" Tri-Clamp jacket connections, and Tri-Clamp shell connections in 4", 6", and 8" sizes depending on the model. Multiple tube counts and surface areas provide flexibility in matching duty requirements, temperature approach, and flow rates.
These ASME tube-in-shell heat exchangers ship via LTL freight. Additional liftgate, residential, or appointment fees may apply based on your delivery location.
ASME Tube-in-Shell Design 304 Stainless Steel Construction 250 PSI Pressure Rating 1.5" Tri-Clamp Jacket Connections
High-efficiency heat transfer: ASME tube-in-shell geometry, multiple tube counts, and generous surface areas deliver consistent, efficient heat exchange for cooling, heating, and energy recovery projects.
Durable 304SS construction: 304 stainless steel shells and wetted surfaces offer corrosion resistance, cleanability, and long-term reliability in industrial, lab, and process environments.

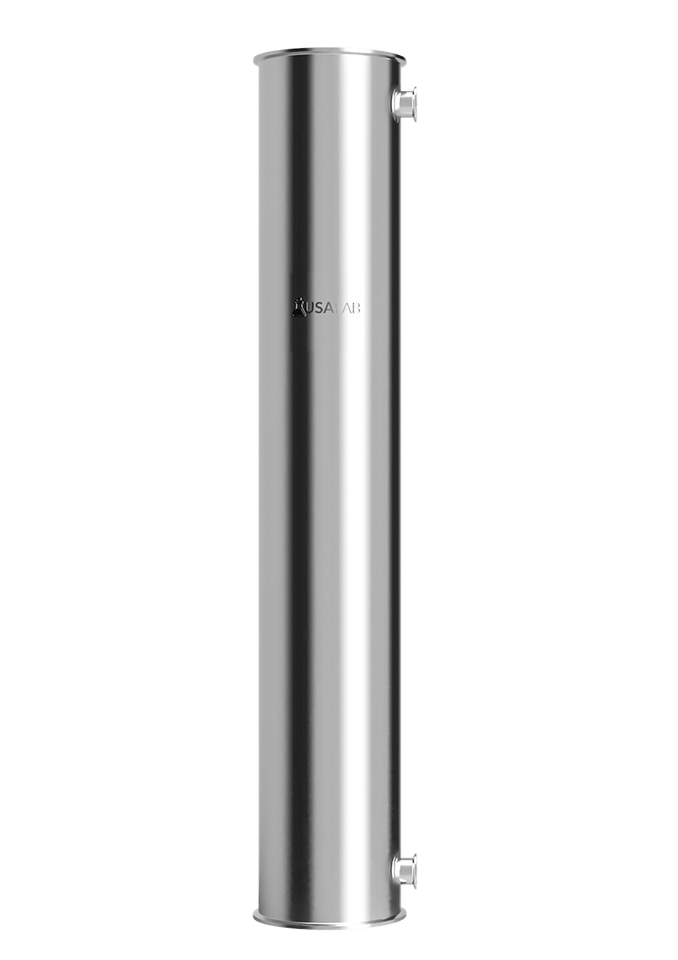

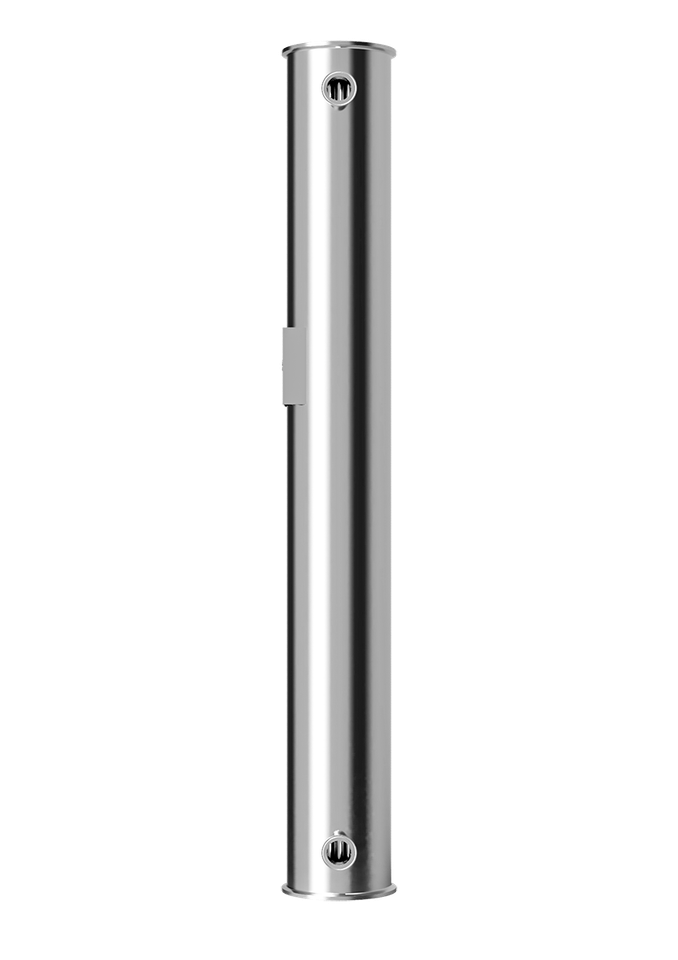

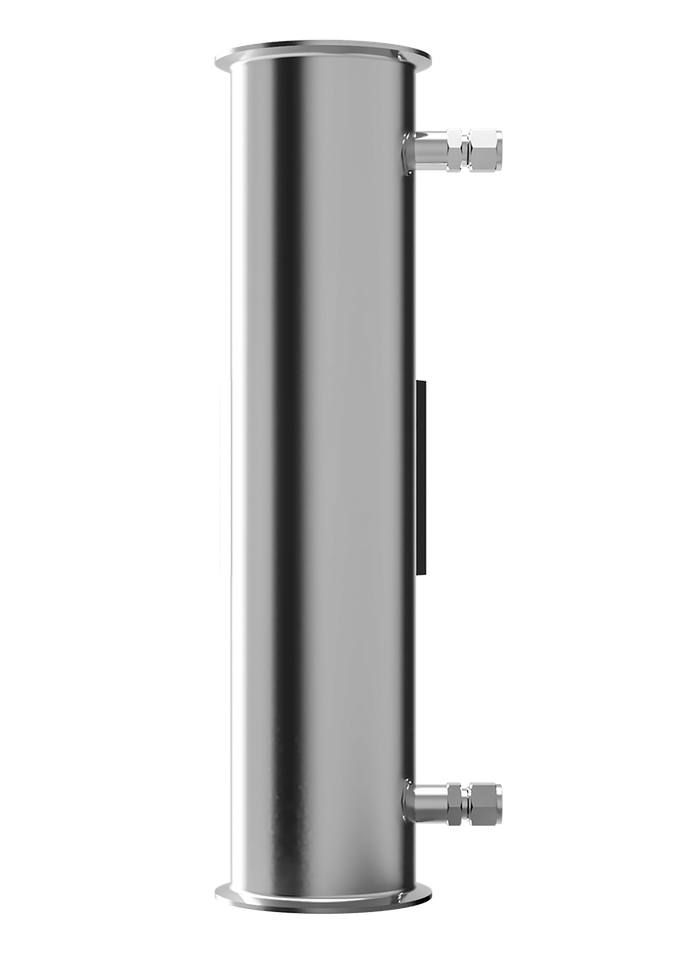

Flexible sizes & connections: Models in 4" × 24", 6" × 24", 6" × 36", 6" × 48", and 8" × 48" with 1.5" Tri-Clamp jackets and 4"/6"/8" shell connections integrate easily into new builds or retrofits.
Why buy from USA Lab
Expert Support
Engineers & technicians on staff to help size your heat exchanger.
Engineers & technicians on staff to help size your heat exchanger.
Quality First
ASME-compliant tube-in-shell designs inspected for performance.
ASME-compliant tube-in-shell designs inspected for performance.
Fast Fulfillment
Streamlined freight shipping across the U.S.
Streamlined freight shipping across the U.S.
Warranty & Parts
US-based support, documentation, and parts sourcing.
US-based support, documentation, and parts sourcing.
Resources & Downloads
Why these ASME tube-in-shell heat exchangers?
- Engineered for demanding processes — USA Lab ASME tube-in-shell heat exchangers are ideal for power plants, chemical processing, oil & gas skids, chiller loops, and industrial cooling where reliability is critical.
- Robust pressure capability — Each unit features a 250 psi pressure rating, making these tube-in-shell heat exchangers suitable for higher-pressure process circuits and industrial duty cycles.
- Tri-Clamp jacket & shell connections — Standard 1.5" Tri-Clamp jacket ports and 4"/6"/8" Tri-Clamp shell connections simplify integration with sanitary piping, manifold systems, and modular skids.
- Multiple sizes & surface areas — Available in 4" × 24", 6" × 24", 6" × 36", 6" × 48", and 8" × 48" configurations, these USA Lab ASME tube-in-shell heat exchangers cover a wide range of kW/BTU requirements.
- Refurbished options for value — Refurbished USA Lab ASME tube-in-shell heat exchangers are cleaned and tested, giving you proven performance at a lower cost compared to new equipment.
Talk to an expert
Need help matching duty, flow rates, or approach temperatures for your USA Lab ASME tube-in-shell heat exchangers? Our team can review your process and recommend the right model.
Technical Specifications
| Model | 4X24" | 6X24" | 6X36" | 6X48" | 8X48" |
|---|---|---|---|---|---|
| Material | 304 | 304 | 304 | 304 | 304 |
| Pressure Rating | 250 psi | 250 psi | 250 psi | 250 psi | 250 psi |
| Jacket Connections | 1.5" TC | 1.5" TC | 1.5" TC | 1.5" TC | 1.5" TC |
| Shell Tri-Clamp Connection | 4" | 6" | 6" | 6" | 8" |
| Tube Size & Surface Area | 10mm | 712in² | 10mm |1544in² | 10mm | 2315in² | 10mm | 3087in² | 10mm | 5403in² |
| Number of Tubes | 24 | 52 | 52 | 52 | 91 |
Popular Industries & Use Cases
Business Solutions & Procurement
Programs & Terms
Exclusive options for businesses and academics.
Documentation & Compliance
Keep purchasing streamlined and compliant.
Custom Solutions
Tailored tanks, skids, and integration help.
Talk to Sales
We’ll help spec the right system for your throughput.
FAQ
What are USA Lab ASME tube-in-shell heat exchangers used for?
USA Lab ASME tube-in-shell heat exchangers are used for process cooling, heating, and energy recovery in industrial, laboratory, and pilot-scale systems. Typical applications include chiller loops, condensers, reboilers, jacketed reactor support, solvent cooling, and general thermal management in power, chemical, oil & gas, and refrigeration systems.
What materials and pressure ratings do USA Lab ASME tube-in-shell heat exchangers have?
USA Lab ASME tube-in-shell heat exchangers are manufactured from 304 stainless steel with a 250 psi pressure rating. This combination provides corrosion resistance, cleanability, and robust performance in demanding environments, making them suitable for both lab and industrial installations.
Which sizes and connections are available for USA Lab ASME tube-in-shell heat exchangers?
USA Lab ASME tube-in-shell heat exchangers are available in 4" × 24", 6" × 24", 6" × 36", 6" × 48", and 8" × 48" models. Each unit features 1.5" Tri-Clamp jacket connections and Tri-Clamp shell connections in 4", 6", or 8" sizes depending on the model, making them easy to integrate with sanitary piping and skid-mounted systems.
Do you offer refurbished USA Lab ASME tube-in-shell heat exchangers?
Yes. Selected USA Lab ASME tube-in-shell heat exchangers are available as refurbished units. These heat exchangers are cleaned and tested to verify performance, giving you a cost-effective solution when you need ASME-style thermal performance without the price tag of new equipment. Availability varies by size and configuration.
How do USA Lab ASME tube-in-shell heat exchangers ship and what support is available?
USA Lab ASME tube-in-shell heat exchangers ship via LTL freight, crated or palletized for protection during transit. Our team can assist with freight quotes, delivery options, and technical questions. If you need help with sizing, integration, or installation, USA Lab provides phone and email support to keep your project on track.
