Description
** Not For Consistent Heat Loads e.g. Falling Film, Butane Recovery. **
** 30 day warranty **

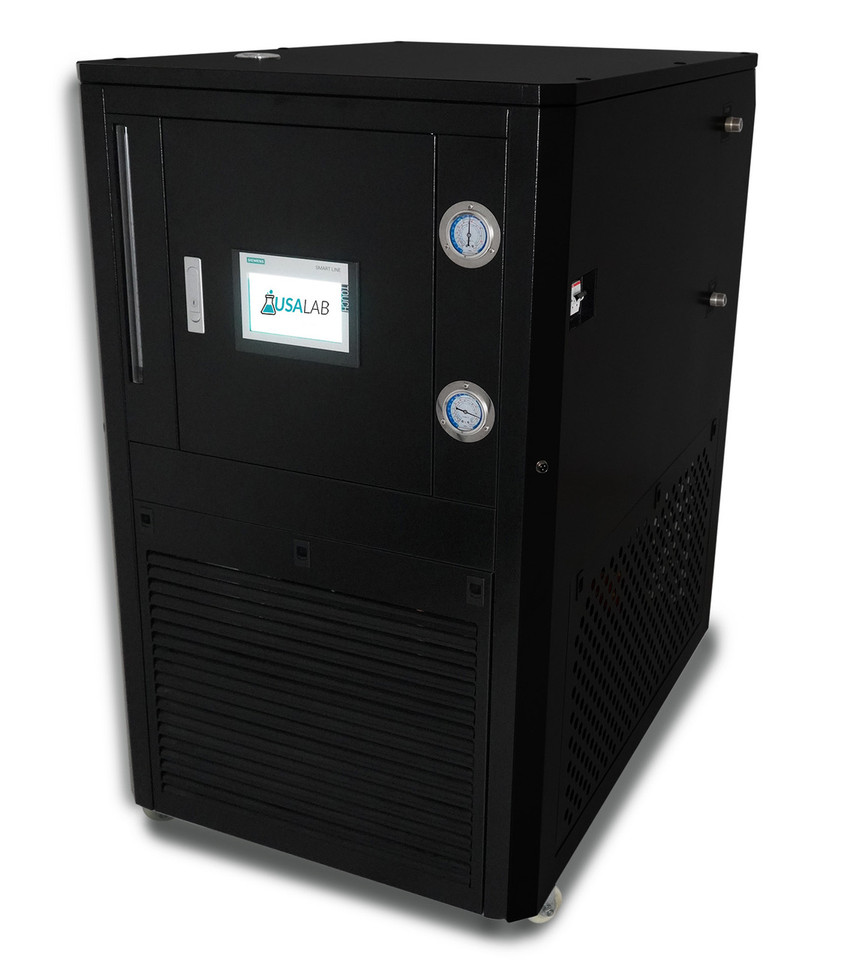

The USA Lab CLC-60/80 is a powerful -80°C Chiller with a 32L Closed Loop Reservoir. This unit is a true lab chiller that is ideal for applications involving vacuum systems, jacketed reactors, rotary evaporators, columns, solvent tanks, and even analytical instruments. This system is great for large reactors and other large vessel.
The USA Lab CLC-60/80 chiller offers unbeatable performance, ease of use and high reliability. These units keep quiet despite having a powerful pump allowing for constant flow rates to match the needs of demanding applications.
This unit includes a Programmable Logic Controller (PLC).
A PLC will control whether the unit will cool or heat depending on the programmed steps and cycles overtime. The PLC also has an option for a static control to operate like a standard chiller.
Not For Consistent Heat Loads e.g. Falling Film, Butane Recovery.
** Notice **
NOT Compatible With 208V Power Input
(Acceptable range: 219V - 253V)
NOT Compatible With 208V Power Input
(Acceptable range: 219V - 253V)
NOT intended for 24-hour operation, maximum operation time is 16 hours.
*It may be necessary to add an external bypass*
|
CLC-60/80 Features |
|
• Powerful chilling capacities and high BTU range. |
|
• High quality UL Listed compressor. |
|
• Touchscreen Siemens HMI display. |
|
• R404 refrigerant. |
|
• 12ft of tubing included with Tri-Clamp connections. |
|
• 30 Day Returns, AS-IS. |
|
• Versatile Siemens PLC controller with external probe. |
|
CLC-60/80 Specifications |
|
|
Expansion Tank Capacity |
32L |
|
Tank Dimensions |
15.75" x 7.9" x 15.75" |
|
Temperature Range |
RT to -80°C (-112°F) |
|
Power Requirements |
220-240V 60HZ Single Phase - Hardwire ONLY |
|
Control Type |
Siemens PLC S-700 Controller with External Probe |
|
Refrigeration BTUs / Wattage |
75,237BTU - 1,255BTU / 22,050-368W |
|
Total Power |
Nominal: 8kW / 37A | Peak: 17kW / 77A |
|
Plate Type Heating Area |
Heating Exchanger Surface Area 1.46m² (Quantity: 2) |
|
Compressor Type |
5HP Invotech (UL Listed) (Quantity: 2pcs) |
|
Circulating Pump Wattage |
370W (Quantity: 1) |
|
Fan Wattage |
280W (Quantity: 1) | 185W (Quantity: 1) |
|
Temperature Accuracy |
+/- 0.5°C (PT100) |
|
Pump Flow |
11 gpm (42L/Min) |
|
Lift |
91 ft (28 m) |
|
Pump Pressure |
40.6 psi (2.8 bar) |
|
Inlet / Outlet Size |
3/4" MNPT |
|
Refrigerant |
R404 High Stage | R23 Low Stage |
|
External Dimensions |
43.3" x 33.3" x 51.2" |
|
Weight |
514lbs |
|
Warranty |
None |
|
CLC-60/80 Packing List |
|
|
Item |
Quantity |
|
USA Lab CLC-60/80 Chiller |
1 |
|
Insulated Tubing |
2x 6ft (12ft Total) |
|
Manual |
1 |
For Technical Support, Questions, or Other Issues Please Email or Call Us!
