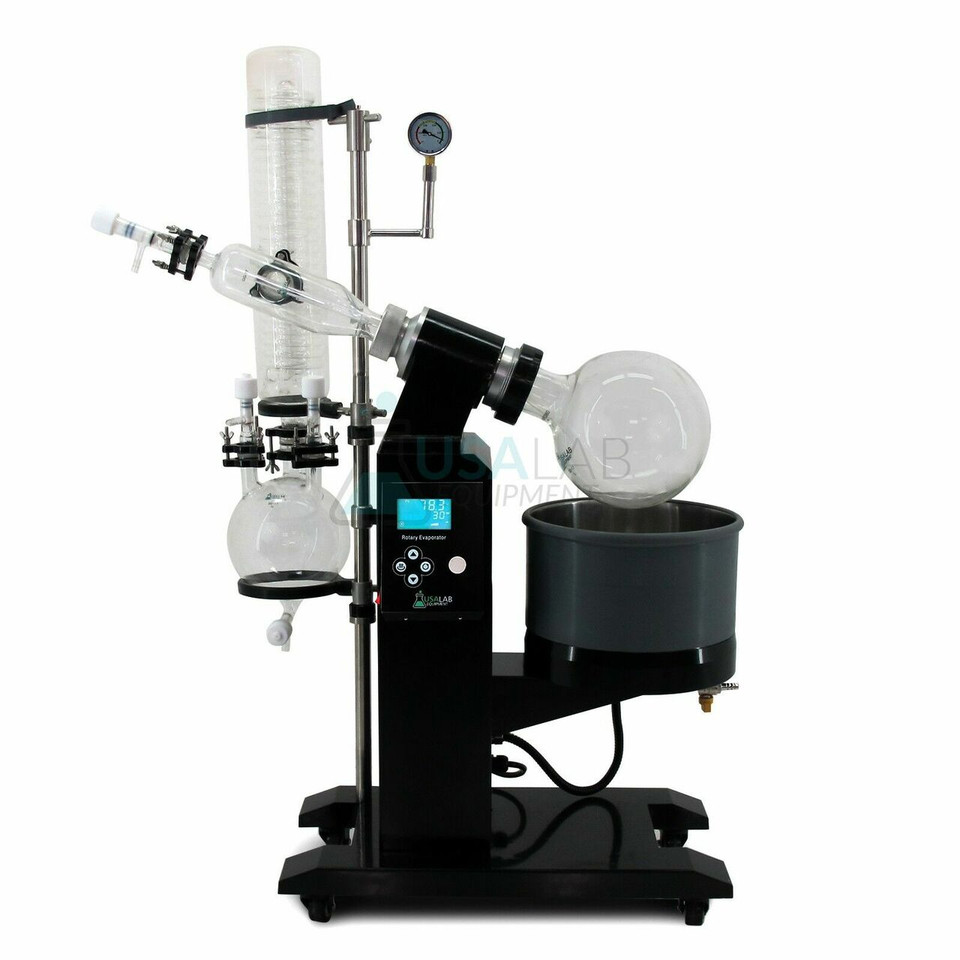

USA Lab 5L Rotary Evaporator RotoVap RE-1005 w/ ETL Certification to UL and CSA Standards)

Brand :

The USA Lab 5L RE Series rotary evaporator recovers solvents efficiently and fast. This unit provides consistent and repeatable results at an affordable price. With GG-17 High Borosilicate Glass, all pieces have been designed for efficient use of surface area. This means faster recovery without compromising quality. Our evaporators come standard with safety features such as over-temperature shut off and dry-run protection. All valves and ports are high efficiency allowing a continuous feed of material as well as draining the receiving flask without breaking vacuum.
No expense has been spared with these evaporators, yet we crush the market on pricing to provide great value at a low cost. Our evaporators are the best value on the market and each one comes with fantastic customer service, local product support and a 1 year warranty.


Glass Material: GG-17 Borosilicate Glass

Evaporation Flask Capacity: 5L

Collection Flask Capacity: 3L

Rotary Speed: 10-120RPM

Bath Temperature Range: Room Temp to 180°C /356°F

Lifting Mechanism: Electric

Power Requirements: 110-120V 50-60Hz 20A Single Phase

Temperature Control Accuracy: +/-1°C

Motor Wattage: 40W

Heater BTUs: 6,800BTU

Achievable Vacuum: 399.9Pa

Evaporating Capability: Water≥2L/H; Alcohol≥4L/H

Water Bath Volume: 12L

Dimensions: 35"L x 19"W x 53"H

Condensing Glass Surface Area: Main: 0.27㎡

Speed Regulation: Digital Step-Less

Vacuum Barb: 13.3MM

Condenser Barb: 15.5MM


We ship all glassware products with additional care, but sometimes they arrive broken. If glassware arrives broken, please contact us within 3 days of receiving your product and we will either send you a brand new piece or send you a refund! Any glassware broken after delivery voids all warranties. Thank you for understanding!

1 Year parts and labor warranty included. Does not include glassware.


For Technical Support, Questions, or Other Issues Please Email or Call Us!


Warranty Policy

Rotary Evaporator: 1 Year
