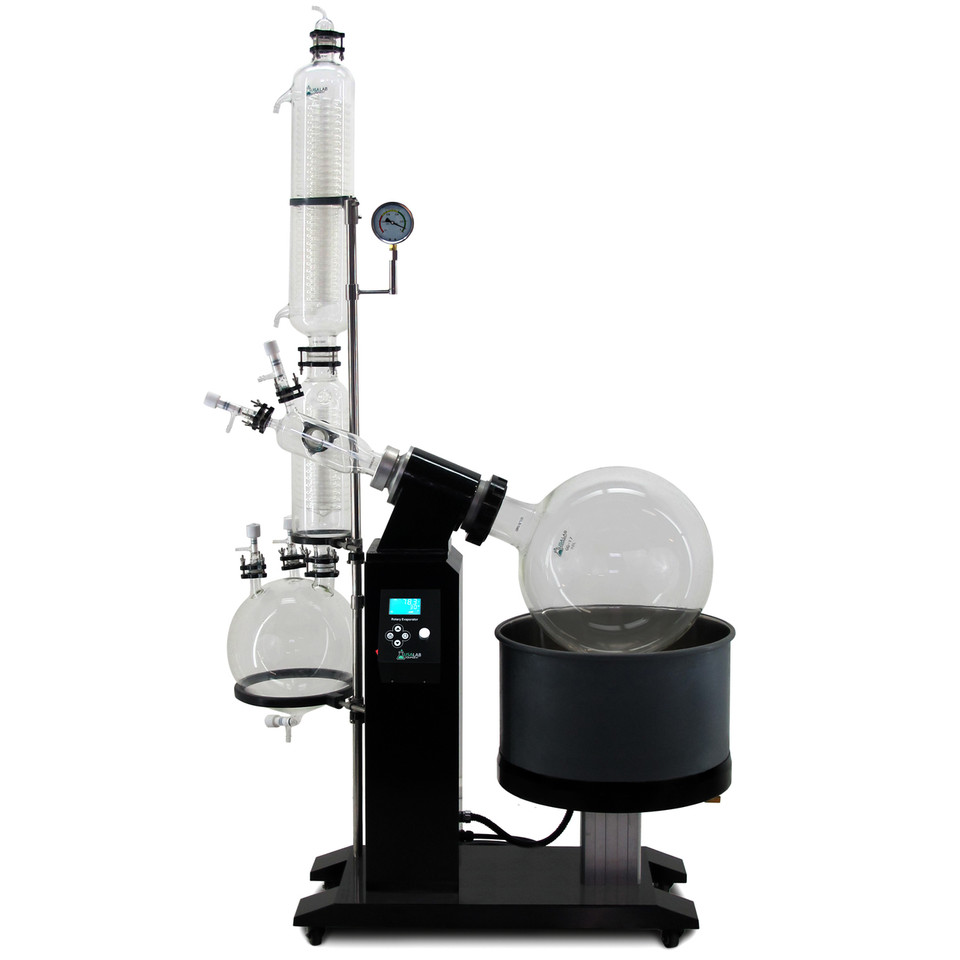

RE-1050 Specifications |
|
Glass Material |
GG-17 Borosilicate Glass |
Evaporation Flask Capacity |
50L |
Collection Flask Capacity |
20L |
Rotary Speed |
20-120rpm |
Bath Temperature Range |
Room Temp to 180°C (356°F) |
Lifting Mechanism |
Electric |
Power Requirements |
220-240V 60Hz 30A Single |
Temperature Control Accuracy |
+/-1°C |
Motor Wattage |
250W |
Heater BTUs |
22,000BTU |
Achievable Vacuum |
399.9Pa |
Evaporating Capability |
Water≥7L/H; Alcohol≥15L/H |
Water Bath Volume |
77L |
Dimensions |
52"L x 30"W x 84"H |
Main Condenser Surface Area |
0.91m² |
Auxiliary Condenser Surface Area |
0.52m² |
Speed Regulation |
Digital Step-Less |
Vacuum Barb |
13.3mm |
Condenser Barb |
15.5mm |

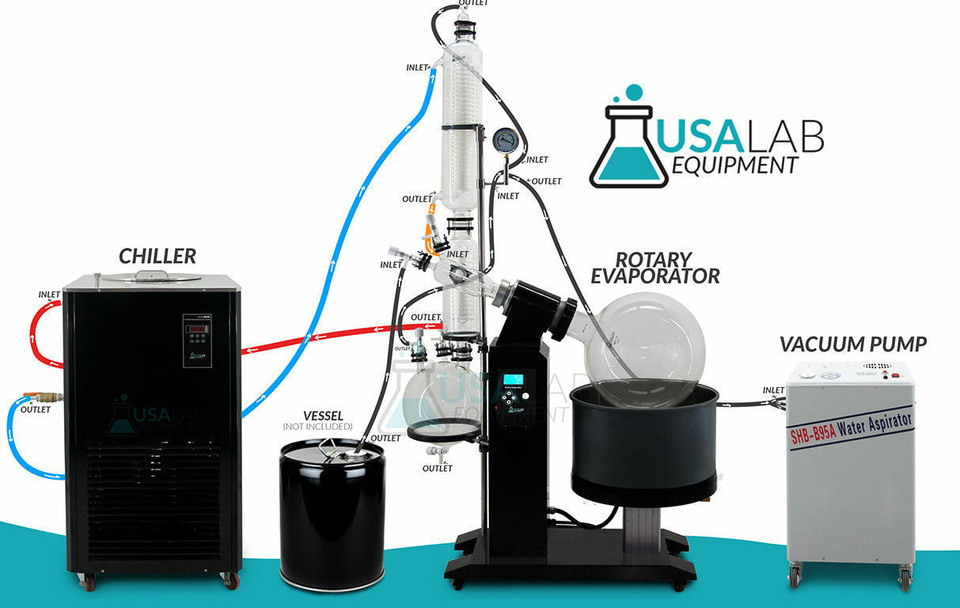

![new-re1050-vb-tk-flow-chart.jpg new-re1050-vb-tk-flow-chart.jpg](https://cdn11.bigcommerce.com/s-rwpmfh/product_images/uploaded_images/new-re1050-vb-tk-flow-chart.jpg)

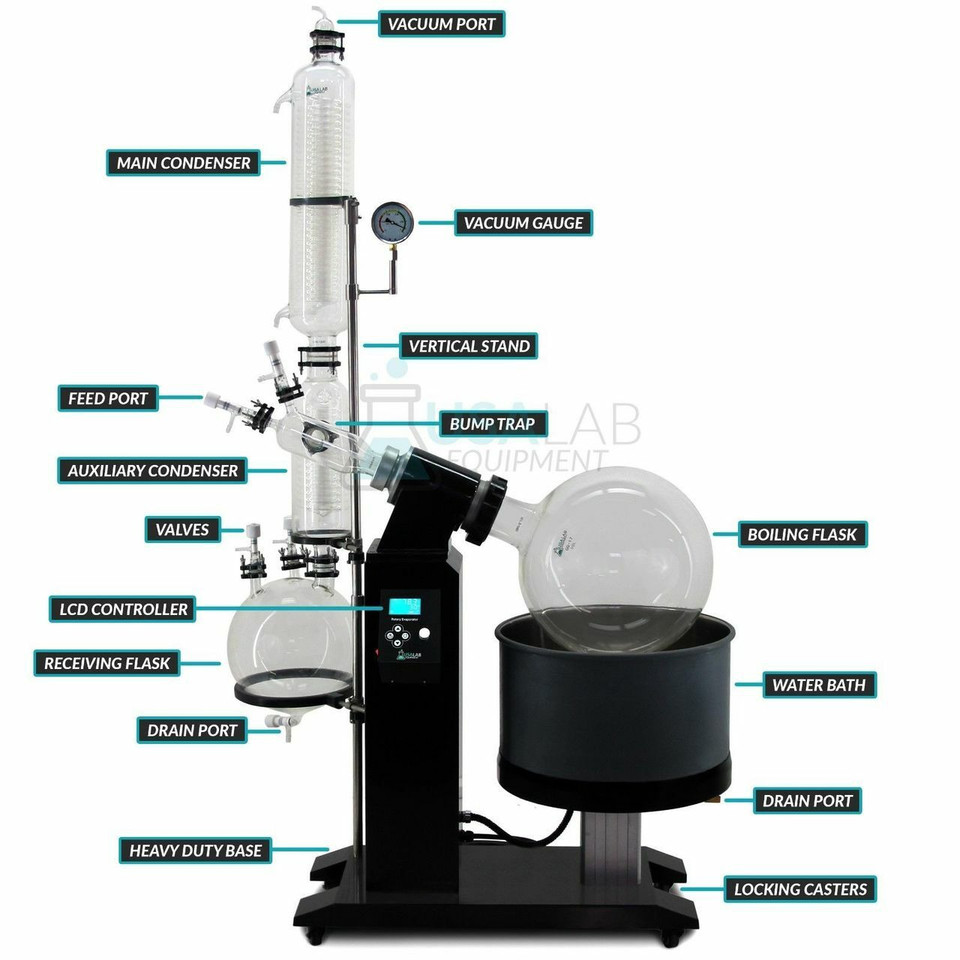

![](https://cdn7.bigcommerce.com/s-rwpmfh/product_images/uploaded_images/re1050-diagram-small.jpg?t=1526564155&_ga=2.266757390.1020893749.1526305259-262557846.1515005507)
![](https://cdn7.bigcommerce.com/s-rwpmfh/product_images/uploaded_images/re-1050-seal-washer-guide-small.jpg?t=1539439159&_ga=2.13832567.1171970512.1539276071-262557846.1515005507)
![](https://cdn7.bigcommerce.com/s-rwpmfh/product_images/uploaded_images/2-small.jpg?t=1523549815&_ga=2.27328056.501445824.1523281340-262557846.1515005507)
![](https://cdn7.bigcommerce.com/s-rwpmfh/product_images/uploaded_images/3-small.jpg?t=1523549816&_ga=2.27328056.501445824.1523281340-262557846.1515005507)
![](https://cdn11.bigcommerce.com/s-rwpmfh/product_images/uploaded_images/l6-30p.jpeg?t=1545328056&_ga=2.61360044.1607448116.1545060054-483526224.1540909172)
RE-1050 Packing List |
|
USA Lab 50L RE-1050 Rotary Evaporator Base |
1 set |
Main Condenser |
1 pc |
Auxiliary Condenser |
1 pc |
50L Boiling Flask |
1 pc |
20L Receiving Flask |
1 pc |
Three-Way Bump Trap |
1 pc |
Vapor Duct with Seal (Pre-Installed) |
1 set |
PTFE Vacuum Sealing Kit (Pre-Installed) |
1 set |
Glass Vacuum Port with PTFE Valve |
4 sets |
Glass Feeding Tube with PTFE Valve |
2 sets |
PTFE Feeding Tube Extension Hose |
1 pc |
Vertical Stand |
1 pc |
Vacuum Gauge |
1 pc |
Support Ring |
2 pcs |
Rubber Strap for Condenser |
1 pc |
Clamp with PTFE Gasket |
7 sets |
Evaporating Flask Screw Aid |
1 pc |
Allen Key |
2 pcs |
63A Fuse |
1 pc |
Screw Nuts for Clamps |
2 pcs |
Springs for Clamps |
2 pcs |
Gasket for Clamps |
4 sets |
Super Lube Vacuum Grease |
1 pc |
Vacuum Hose |
10ft |
