USA Lab 2L 300°C 1200 RPM Digital Magnetic Heating Mantle
USA Lab2LMANTLE$189.00* It is recommend to buy a rare earth magnet as the included magnet is made of ferrite not rare earth elements. * -
-
-
Description

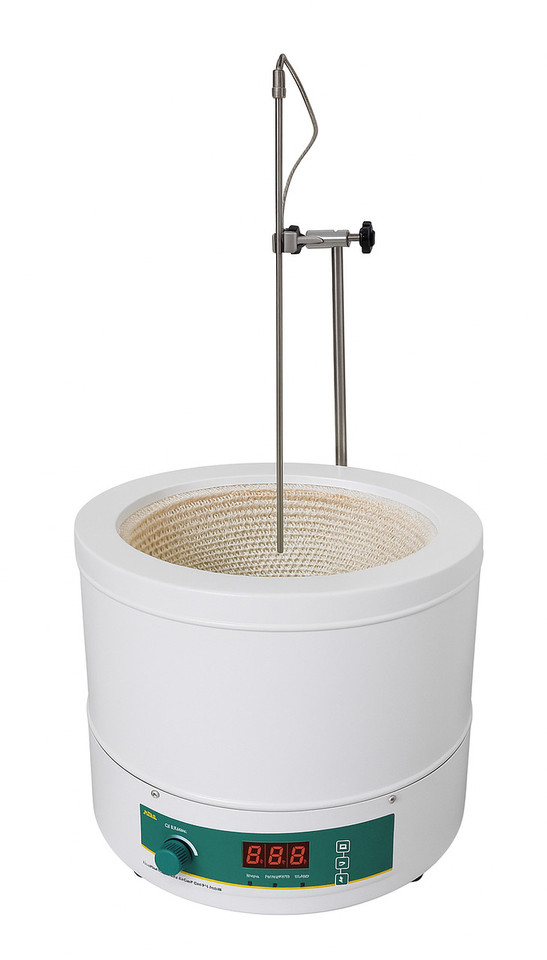

5L Digital Heating Mantle with Magnetic Stirrer – 800W, up to 300°C | USA Lab
The USA Lab 5L digital magnetic heating mantle is engineered for repeatable, consistent heating and stirring. Digital controls simplify setpoint entry while an integrated magnetic drive maintains uniform agitation for reliable results.
With up to 1,400 rpm stirring (≥1,200 rpm minimum) and a wide operating range to 300 °C (572 °F), this mantle supports demanding synthesis, reflux, and distillation workflows.
5 Liter Capacity Digital Control 800W Heating Power Up to 300°C (572°F) Up to 1,400 rpm
All-in-one mantle & stirrer: heat 5L flasks while maintaining uniform mixing for better temperature control and reaction kinetics.
Repeatable performance: stable digital setpoints and smooth magnetic stirring deliver consistent outcomes batch after batch.
Lab-ready power: plugs into standard 110–120V, 60Hz single-phase circuits for easy integration on any bench.
Why buy from USA Lab
Expert Support
Engineers & technicians on staff.
Engineers & technicians on staff.
Quality First
Tested and trusted products.
Tested and trusted products.
Fast Fulfillment
Nationwide 1-2 day shipping.
Nationwide 1-2 day shipping.
Warranty & Parts
US-based service & spares.
US-based service & spares.
Resources & Downloads
Why this 5L digital mantle?
- Reliable heating — 800W element reaches up to 300 °C (572 °F) for demanding applications.
- Powerful stirring — rated to at least 1,200 rpm and up to 1,400 rpm for uniform temperature distribution.
- Easy integration — 110–120V, 60Hz single-phase power with compact Φ13.0″ × 9.0″ footprint.
- Ready to run — includes one PTFE stir bar (≈1″ × 0.3″) for immediate use.
- Consistent results — digital controls enable repeatable setpoints and process control.
Talk to an expert
Get sizing help, SOP guidance, and integration tips for your line.
Technical Specifications
| Model | USA Lab 5L Digital Heating Mantle with Magnetic Stirrer |
|---|---|
| Capacity | 5 L (5000 mL) |
| Voltage | 110–120V, 60Hz, 800W, Single Phase |
| Temperature Range | RT ~ 572°F (300°C) |
| Maximum Rotation Speed | Up to 1,400 rpm (≥1,200 rpm minimum) |
| Maximum Stirring Volume | Up to 5 L (media-dependent) |
| Stir Bar | Included: 1 pc, ~1″ × 0.3″ |
| Unit Size | Φ13.0″ × 9.0″ |
| Unit Weight | 14 lb |
Popular Industries & Use Cases
Business Solutions & Procurement
Programs & Terms
Exclusive options for businesses and academics.
Documentation & Compliance
Keep purchasing streamlined and compliant.
Custom Solutions
Tailored tanks, skids, and integration help.
Talk to Sales
We’ll help spec the right system for your throughput.
FAQ
What flask size fits the USA Lab 5L Digital Heating Mantle with Magnetic Stirrer?
The USA Lab 5L Digital Heating Mantle with Magnetic Stirrer is designed for 5-liter round-bottom flasks used in synthesis, reflux, and distillation.
What temperature and speed can the USA Lab 5L Digital Heating Mantle with Magnetic Stirrer achieve?
The USA Lab 5L Digital Heating Mantle with Magnetic Stirrer heats from room temperature up to 300 °C (572 °F) and stirs up to 1,400 rpm (≥1,200 rpm minimum).
Does the USA Lab 5L Digital Heating Mantle with Magnetic Stirrer include a stir bar?
Yes. The USA Lab 5L Digital Heating Mantle with Magnetic Stirrer includes one PTFE stir bar approximately 1″ × 0.3″.
What power is required for the USA Lab 5L Digital Heating Mantle with Magnetic Stirrer?
The USA Lab 5L Digital Heating Mantle with Magnetic Stirrer operates on 110–120V, 60Hz single-phase power and uses 800W.
What are the dimensions and weight of the USA Lab 5L Digital Heating Mantle with Magnetic Stirrer?
The USA Lab 5L Digital Heating Mantle with Magnetic Stirrer measures roughly Φ13.0″ × 9.0″ and weighs about 14 lb.
×
