Description

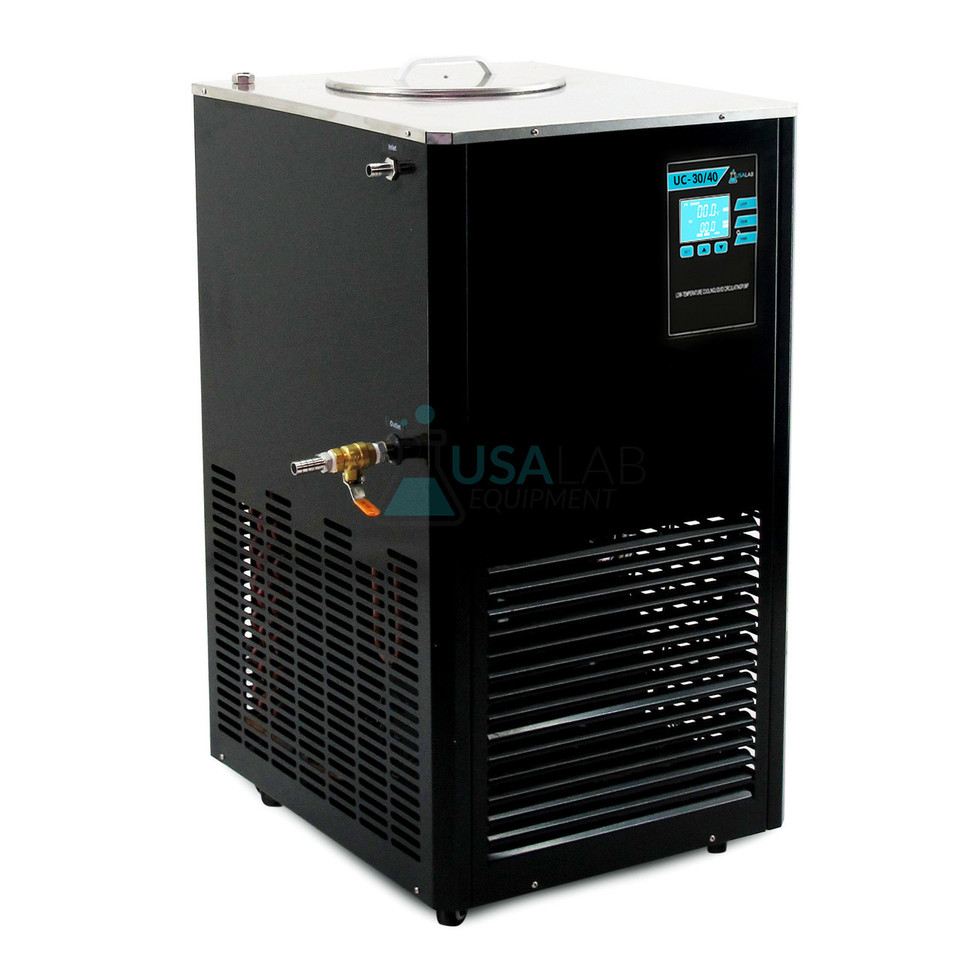

The USA Lab UC-30/40 is a powerful -40°C Chiller with a 30L Reservoir. This chiller is a true lab chiller than is ideal for applications involving vacuum systems, jacketed reactors, rotary evaporators, columns, solvent tanks, and even analytical instruments.
The USA Lab UC-30/40 chillers offer unbeatable performance, ease of use and high reliability. These units keep quiet despite having a powerful pump allowing for constant flow rates to match the needs of demanding applications.
** Notice **
NOT Compatible With 208V Power Input
(Acceptable range: 219V - 253V)
NOT Compatible With 208V Power Input
(Acceptable range: 219V - 253V)
NOT intended for 24-hour operation, maximum operation time is 16 hours.
|
UC-30/40 SPECIFICATIONS |
|
|
Model |
UC-3040 |
|
Reservoir Capacity |
30L |
|
Reservoir Dimensions |
13.7" x 13.7" |
|
Temperature Range |
Room Temperature to -40°C / -40°F |
|
Power Requirements |
220-240V 60Hz 20A 2500W Single Phase |
|
Refrigerating BTUs |
4,300BTU - 13,900BTU |
|
Circulating Pump Wattage |
100W |
|
Temperature Accuracy |
+/- 0.5°C |
|
Pump Flow |
42L/Min |
|
Pump Pressure (lift/height) |
2.5 psi @ 3.9ft - 8.8psi @ 18.7ft |
|
Barb Size |
5/8" |
|
Refrigerant |
R404 |
|
Dimensions |
30.3" x 25.5" x 39.7" |
|
Weight |
180lbs |
|
UC-30/40 Packing List |
|
|
USA Lab UC-30/40 Chiller |
1 PC |
|
5/8" Insulated Tubing |
11ft |
|
5/8" barbed Valve |
1 PC |
|
PTFE Sealing Tape |
1 PC |
-40°C Temperatures are tested under empty load.
For Technical Support, Questions, or Other Issues Please Email or Call Us!
-40°C Temperatures are tested under empty load.
