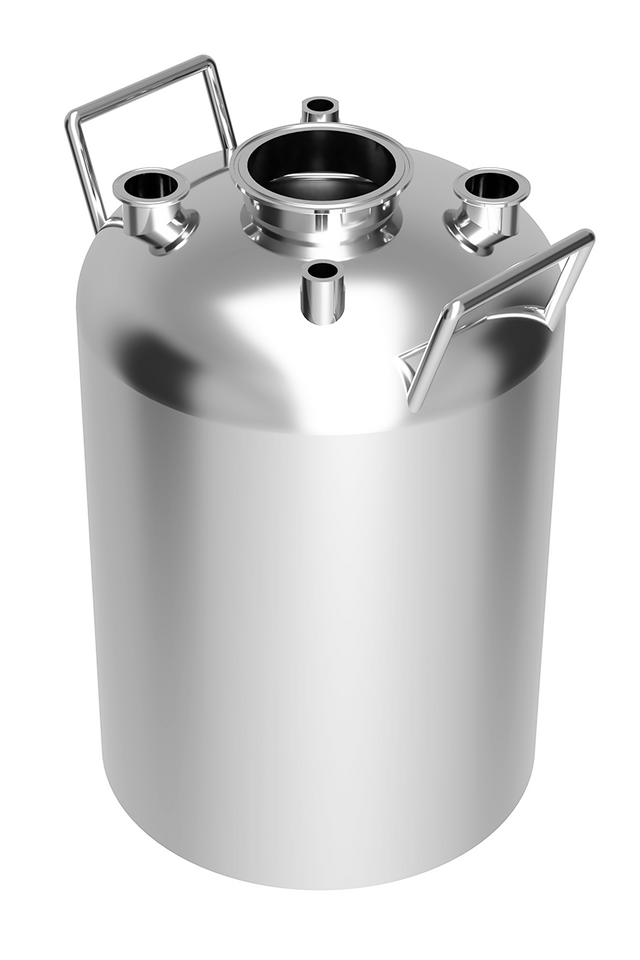

316L Stainless Steel Sanitary Pressure Vessel – 4A Finish | USA Lab

USA Lab 316L Stainless Steel Sanitary Pressure Vessels deliver premium cleanliness, corrosion resistance, and durability for food & beverage, pharmaceutical, cosmetic, biotech, and chemical applications. Each vessel features a smooth 4A sanitary polish for easy washdown and hygienic performance.

Engineered up to 250 PSI operating pressure and compatible from −80°C to 100°C, these vessels integrate Tri-Clamp (Tri-Clover) ports for secure, leak-resistant connections and fast changeovers.

Available in sizes from 25L to 400L, with robust welds and precision fabrication that minimize downtime and ensure consistent, leak-proof performance in sanitary processes.

316L Stainless Steel 4A Sanitary Polish Up to 250 PSI Tri-Clamp Ports

Premium Alloy: 316L SS with superior pitting & corrosion resistance.

Sanitary Finish: 4A polish for smooth, easy-to-clean surfaces.

Pressure & Temp: 0–250 PSI, −80°C to 100°C for demanding processes.

Why buy from USA Lab

Expert Support
Engineers & technicians on staff.

Quality First
Tested and trusted products.

Fast Fulfillment
Nationwide 1-2 day shipping.

Warranty & Parts
US-based service & spares.

Resources & Downloads

Specification Sheet (PDF) Cleaning & Passivation Guide Tri-Clamp Sizing Chart Pressure Vessel Safety Notes

Why this sanitary pressure vessel?

316L construction — outstanding corrosion resistance for high-purity and aggressive media.
4A polish — ultra-smooth sanitary surface reduces residue and speeds CIP/SIP cycles.
High pressure design — up to 250 PSI with robust, leak-tight welds and fittings.
Versatile connectivity — Tri-Clamp ports and optional NPT make integration simple.
Process ready — ideal for storage, mixing, buffering, and transfer across sanitary industries.

Talk to an expert

Get sizing help, port layouts, and integration tips for your process line.

Call 734-855-4890

Technical Specifications

Model	SPV-25L	SPV-50L	SPV-100L	SPV-150L	SPV-200L	SPV-300L	SPV-400L
Tank Volume (L/Gal)	25L \| 6.6 Gal	50L \| 13.2 Gal	100L \| 26.4 Gal	150L \| 40 Gal	200L \| 52 Gal	300L \| 79 Gal	400L \| 105 Gal
Jacket Volume (L/Gal)	N/A	15. 9L \| 4.2 Gal	23.2L \| 6.1 Gal	24L \| 6.3 Gal	31L \| 8.1 Gal	32.1L \| 8.4 Gal	40.2L \| 10.6 Gal
Tank Pressure Rating (PSI)	0~250 PSI @ -80C~100C	0~250 PSI @ -80C~100C	0~250 PSI @ -80C~100C	0~250 PSI @ -80C~100C	0~250 PSI @ -80C~100C	0~250 PSI @ -80C~100C	0~250 PSI @ -80C~100C
Jacket Pressure Rating (PSI)	N/A	0~80 PSI @ -80C~100C	0~80 PSI @ -80C~100C	0~80 PSI @ -80C~100C	0~80 PSI @ -80C~100C	0~80 PSI @ -80C~100C	0~80 PSI @ -80C~100C
Material \| Polish	316L \| 4A Finish	316L \| 4A Finish	316L \| 4A Finish	316L \| 4A Finish	316L \| 4A Finish	316L \| 4A Finish	316L \| 4A Finish
Top Connections	2x 1/2" NPT\| 2x1.5" TC \| 4" TC Center	2x 1/2" NPT\| 2x1.5" TC \| 6" TC Center	4x1.5" TC \| 6" TC Center	4x1.5" TC \| 6" TC Center	4x1.5" TC \| 6" TC Center	4x1.5" TC \| 6" TC Center	4x1.5" TC \| 6" TC Center
Bottom Connection	N/A	6" TC	6" TC	6" TC	6" TC	6" TC	6" TC
Jacket Connection	N/A	1.5"TC	1.5"TC	1.5"TC	1.5"TC	1.5"TC	1.5"TC
I.D. & Sidewall Height	317mm\|170mm	315mm\|500mm	450mm\|450mm	500mm\|450mm	500mm\|800mm	650mm\|650mm	750mm\|780mm
Overall Dimensions (mm)	325 x 325 x 470	550 x 550 x 1210	750 x 750 x 1250	810 x 810 x 1375	820 x 820 x 1615	960 x 960 x 1540	1010 x 1010 x 1710
Overall Dimensions (in)	12.80 x 12.80 x 18.50	21.65 x 21.65 x 47.64	29.53 x 29.53 x 49.21	31.89 x 31.89 x 54.13	32.28 x 32.28 x 63.58	37.8 x 37.8 x 60.63	39.76 x 39.76 x 67.32
Weight

Popular Industries & Use Cases

Botanical Extraction Pharmaceutical Chemical Sciences Food & Beverage

Business Solutions & Procurement

Programs & Terms

Exclusive options for businesses and academics.

Apply for Net Terms Academic Discount

Documentation & Compliance

Keep purchasing streamlined and compliant.

Request a Quote Tax Exemption

Custom Solutions

Tailored tanks, skids, and integration help.

Custom Request Consulting

Talk to Sales

We’ll help spec the right system for your throughput.

Call 734-855-4890 Email Sales/Support

FAQ

What industries benefit from these sanitary pressure vessels?

Our 316L Stainless Steel Sanitary Pressure Vessel – 4A Finish is ideal for food & beverage, pharmaceuticals, biotechnology, cosmetics, and chemical processing.

How is a 4A finish different from other finishes?

A 4A finish on the 316L Stainless Steel Sanitary Pressure Vessel – 4A Finish provides a smooth, easy-to-clean surface that reduces contamination risk and speeds sanitation.

Can I request custom features or configurations?

Yes, the 316L Stainless Steel Sanitary Pressure Vessel – 4A Finish can be customized with additional ports, capacities, instruments, and specialty fittings.

Are these vessels ASME U-stamped?

Standard units are not ASME U-stamped. If your process or jurisdiction requires U-stamping, contact us for available options and lead times.

Important Shipping Notice

INSPECTION:

Inspect packaging and product upon delivery. If any damage is observed, notify us within 3 days of receipt so we can arrange a replacement or refund per policy.

Damage occurring after delivery/installation is not covered under warranty. Crating fees may apply due to size and weight.

Need Support?

We’ll get you answers fast.

Call 734-855-4890

Specifications

Brand:	USA Lab
Material:	316L Stainless
Surface Finish:	4A / Dairy Finish
