Description

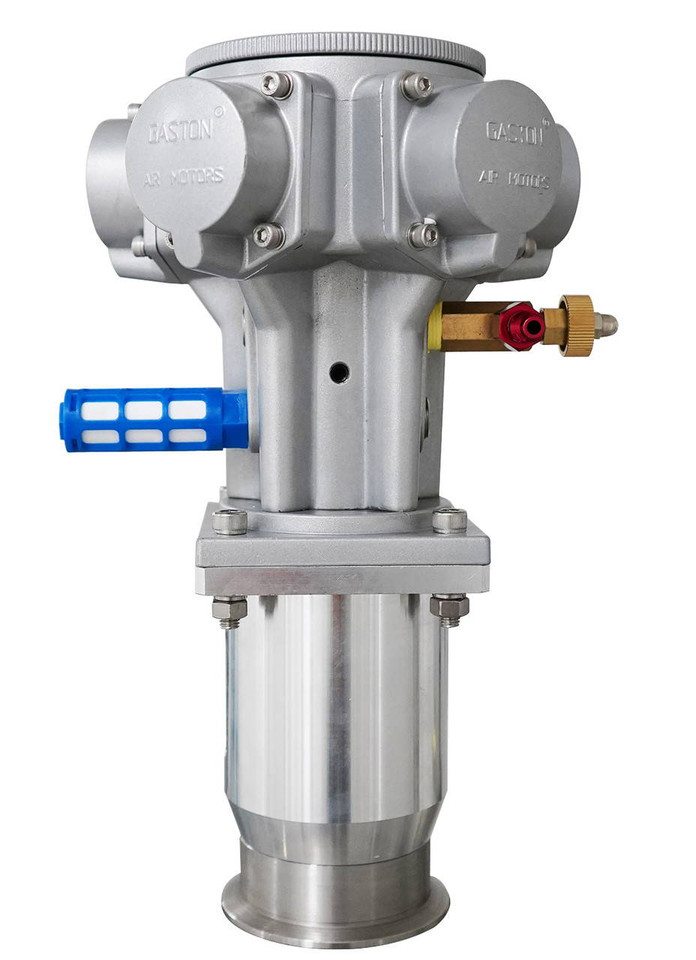

Tri-Clamp Mount Pneumatic Mixer – 3" TC (3/4HP & 1.5HP) | USA Lab
Designed for standard 3" Tri-Clamp ports, the USA Lab Tri-Clamp Mount Pneumatic Mixer delivers rugged reliability and lightweight portability for day-to-day mixing. With stainless steel wetted parts and a variable-speed air motor, it’s built for uptime, repeatability, and easy sanitation.
Powered by compressed air (no electricity), this agitator is suitable for C1D1/C1D2 classified rooms when properly installed and ventilated. Smooth, controllable torque and a 50–720 RPM range provide consistent results across a wide range of viscosities.
Available in 3/4 HP (16.5 CFM) and 1.5 HP (32 CFM). Custom shaft lengths and additional impellers available on request.
3" Tri-Clamp Mount Pneumatic Variable Speed C1D1/C1D2 Compatible* 316SS Shaft & Impeller Ultimate Vacuum Rated
Explosion-risk friendly: Air-driven design enables use in properly equipped C1D1/C1D2 environments.
Built to last: Durable painted-steel drive with 316SS shaft & impeller for corrosion resistance and easy cleaning.
Precise control: Variable speed 50–720 RPM with smooth torque for reliable batch quality.
Why buy from USA Lab
Expert Support
Engineers & technicians on staff.
Engineers & technicians on staff.
Quality First
Tested and trusted products.
Tested and trusted products.
Fast Fulfillment
Nationwide 1-2 day shipping.
Nationwide 1-2 day shipping.
Warranty & Parts
US-based service & spares.
US-based service & spares.
Resources & Downloads
Why this Tri-Clamp Mount Pneumatic Mixer?
- 3" Tri-Clamp mount — fast, sanitary attachment to tanks and process ports.
- Pneumatic drive — no electric motor; ideal for hazardous locations when installed per code.
- Wide speed range — 50–720 RPM for shear-sensitive or aggressive mixing.
- 316SS wetted parts — shaft and impeller resist corrosion and cleaning chemicals.
- Scalable power — choose 3/4 HP (16.5 CFM) or 1.5 HP (32 CFM) to match viscosity and batch size.
Talk to an expert
Need help with impeller style, shaft length, or air prep (FRL)? We’ll spec the ideal configuration.
Technical Specifications
| Model | MM-3TC-P-3/4HP | MM-3TC-P-1.5HP |
|---|---|---|
| Material (Drive) | Painted Steel | Painted Steel |
| Mount | 3" Tri-Clamp | 3" Tri-Clamp |
| Pressure Rating | 90 PSI | 90 PSI |
| Negative Pressure Rating | Ultimate Vacuum | Ultimate Vacuum |
| RPM Range | 50–720 | 50–720 |
| Air Consumption (CFM) | 16.5 | 32 |
| Horsepower | 3/4 HP | 1.5 HP |
| Torque | 42.47 in·lb | 42.47 in·lb |
| Shaft Material | 316SS | 316SS |
| Impeller Diameter | 4 in | 4 in |
| Shaft Diameter | 16 mm | 20 mm |
| Shaft Length | 32 in | 32 in |
| Weight | 45 lb | 75 lb |
Popular Industries & Use Cases
Business Solutions & Procurement
Programs & Terms
Exclusive options for businesses and academics.
Documentation & Compliance
Keep purchasing streamlined and compliant.
Custom Solutions
Tailored tanks, skids, and integration help.
Talk to Sales
We’ll help spec the right system for your throughput.
FAQ
Is the Tri-Clamp Mount Pneumatic Mixer safe for C1D1/C1D2?
Yes. Air-driven (non-electrical) operation makes it suitable for classified areas when installed and operated per applicable codes and facility safety procedures.
What shaft and impeller materials are used?
All wetted parts are 316 stainless steel (shaft and impeller) for corrosion resistance, durability, and sanitary cleaning.
What speed range and torque can I expect?
The variable-speed air motor runs from 50–720 RPM with smooth torque delivery (42.47 in·lb). This supports both shear-sensitive and more aggressive mixing tasks.
Which model should I choose?
Select 3/4 HP for lighter viscosities (≈16.5 CFM at load) or 1.5 HP for higher viscosities / larger batches (≈32 CFM). Contact our team for impeller sizing and air prep (FRL) guidance.
