Description

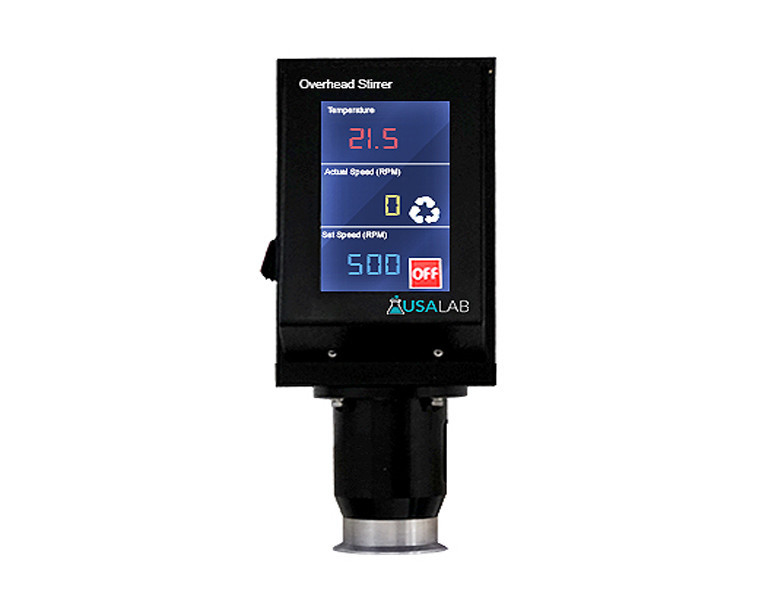

Tri-Clamp Mount Variable Speed Mixer - 3" Mount - Touchscreen - MM-3TC-E-TS
The Tri-Clamp Mount Variable Speed Mixer is a durable and versatile mixing solution designed to attach to 3" Tri-Clamp mount fittings. Built for laboratory and process applications, this mixer combines a lightweight, portable design with a stainless steel propeller and variable-speed operation from 50 to 1,000 RPM.
The MM-3TC-E-TS features a touchscreen interface that provides a clear visual display of set RPM, current RPM, and temperature. Its PT100 probe connection supports temperature monitoring, while the 316 stainless steel shaft provides durable construction for demanding mixing environments.
With a 3" Tri-Clamp mount, 90 PSI pressure rating, 115V operation, and 200W power output, this mixer is designed for flexible integration into laboratory, processing, extraction, and other controlled mixing systems.
50–1,000 RPM 3" Tri-Clamp Mount Touchscreen Interface 316SS Shaft
Variable Speed: 50 to 1,000 RPM — provides adjustable mixing control for a wide range of applications.
Touchscreen Control: Digital interface — clearly displays set RPM, current RPM, and temperature information.
Durable Construction: 316 stainless steel shaft — supports reliable operation in demanding mixing environments.
Why buy from USA Lab
Expert Support
Engineers & technicians on staff.
Engineers & technicians on staff.
Quality First
Tested and trusted products.
Tested and trusted products.
Fast Fulfillment
Nationwide 1-2 day shipping.
Nationwide 1-2 day shipping.
Warranty & Parts
US-based service & spares.
US-based service & spares.
Why this Tri-Clamp Mount Variable Speed Mixer?
- 3" Tri-Clamp mounting — designed to attach to compatible 3" Tri-Clamp mount fittings for convenient system integration.
- Touchscreen interface — provides a clear visual display of set RPM, current RPM, and temperature.
- Wide variable speed range — adjustable from 50 to 1,000 RPM for controlled mixing across different process requirements.
- Durable shaft construction — features a 316 stainless steel shaft with a 4-inch impeller diameter for dependable mixing performance.
- Temperature monitoring — includes a PT100 probe with Mini DIN connection for temperature measurement.
Talk to an expert
Get product guidance, application support, and compatibility information for your laboratory or processing workflow.
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | Tri-Clamp Mount Variable Speed Mixer with Touchscreen |
| Model | MM-3TC-E-TS |
| Material | Painted Steel |
| Mount | 3" Tri-Clamp |
| Pressure Rating | 90 PSI |
| Negative Pressure Rating | Ultimate Vacuum |
| Max Input / Output Current | 2A - 10A |
| RPM | 50 - 1,000 RPM |
| Voltage | 115V |
| Probe Type | PT100 |
| Probe Connection | Mini DIN |
| Shaft Material | 316SS |
| Impeller Diameter | 4 IN |
| Shaft Diameter | 0.625 IN |
| Shaft Length | 32 IN |
| Wattage | 200W |
| Probe Length | 2 IN |
| Probe Cable Length | 58 IN |
| Control Interface | Touchscreen |
Popular Industries & Use Cases
Business Solutions & Procurement
Programs & Terms
Exclusive options for businesses and academics.
Documentation & Compliance
Keep purchasing streamlined and compliant.
Custom Solutions
Tailored equipment and integration help.
Talk to Sales
We’ll help spec the right equipment for your laboratory workflow.
FAQ
What is the speed range of the Tri-Clamp Mount Variable Speed Mixer?
The MM-3TC-E-TS Tri-Clamp Mount Variable Speed Mixer has a variable speed range of 50 to 1,000 RPM, allowing users to adjust mixing speed for different laboratory and process applications.
What type of mount does the MM-3TC-E-TS mixer use?
The MM-3TC-E-TS is designed with a 3" Tri-Clamp mount for attachment to compatible Tri-Clamp mounting fittings and integration into suitable mixing systems.
What information is displayed on the touchscreen interface?
The touchscreen interface provides a clear visual display of the set RPM, current RPM, and temperature, helping users monitor and control mixing conditions.
What probe and shaft specifications are included with this mixer?
The mixer uses a PT100 probe with a Mini DIN connection. The included probe is 2 inches long with a 58-inch wire, while the mixer features a 316 stainless steel shaft measuring 0.625 inches in diameter and 32 inches in length.
