Description

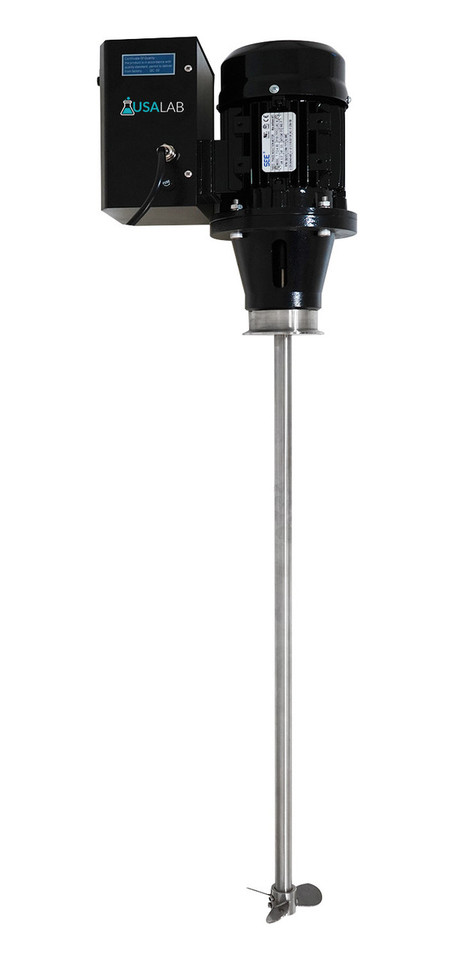

Direct Drive Variable Speed Mixer Motor – 3" Tri-Clamp (MM-3TC) | USA Lab
The USA Lab Direct Drive Variable Speed Mixer Motor delivers powerhouse performance and reliability for demanding process mixing. Built around a robust, UL-Listed 1/2 HP drive with a solid 20 mm shaft, this motor maintains control from 100–1700 RPM for precise agitation across viscosities.
Designed to mount directly to 3" Tri-Clamp ferrules, the MM-3TC pairs durability with portability and includes stainless-steel propellers for efficient mixing. A high-performance seal enables Ultimate Vacuum operation and a 90 PSI pressure rating to keep processes clean and leak-free.
Experience convenient, consistent results with a dependable direct-drive motor and Delta converter controller—ideal for R&D, pilot, and production environments.
1/2 HP UL-Listed Parts 100–1700 RPM Ultimate Vacuum 90 PSI Rated3" Tri-Clamp Mount 316SS Shaft • 20 mm
Vacuum & pressure capable: Engineered for Ultimate Vacuum and rated to 90 PSI for sealed, leak-resistant mixing.
Wide speed control: 100–1700 RPM direct-drive stability with Delta converter for smooth ramping and torque.
Sanitary, tri-clamp mount: Fast, portable setup on 3" Tri-Clamp ferrules; 316SS wetted shaft for corrosion resistance.
Why buy from USA Lab
Expert Support
Engineers & technicians on staff.
Engineers & technicians on staff.
Quality First
Tested and trusted products.
Tested and trusted products.
Fast Fulfillment
Nationwide 1-2 day shipping.
Nationwide 1-2 day shipping.
Warranty & Parts
US-based service & spares.
US-based service & spares.
Resources & Downloads
Why this direct drive mixer motor?
- Power & reliability — UL-Listed 1/2 HP motor with 370 W output for consistent torque.
- Process-ready sealing — operates at Ultimate Vacuum and up to 90 PSI to prevent leaks and contamination.
- Flexible mounting — clamps directly to 3" Tri-Clamp ferrules for quick installs and portability.
- Precision control — 100–1700 RPM variable speed with Delta converter for smooth ramp/hold.
- Durable construction — painted-steel housing with 316SS shaft and stainless propellers.
Talk to an expert
Get help matching shaft length, impeller style, and speed for your tank.
Technical Specifications
| Model | Direct Drive Variable Speed Mixer Motor (MM-3TC) |
|---|---|
| Material | Painted Steel |
| Mount | 3" Tri-Clamp |
| Pressure Rating | 90 PSI |
| Negative Pressure Rating | Ultimate Vacuum |
| Max Input / Output Current | 2A – 10A |
| RPM | 100 – 1700 |
| Voltage | 220V |
| Wattage | 370W |
| Motor Type | Direct Drive |
| Motor Certification | UL Listed |
| Controller | Delta Converter |
| Controller Certification | UL Listed |
| Shaft Material | 316SS |
| Shaft Diameter | 20 mm |
| Shaft Length | 32 in |
| Impeller Diameter | 4 in |
Popular Industries & Use Cases
Business Solutions & Procurement
Programs & Terms
Exclusive options for businesses and academics.
Documentation & Compliance
Keep purchasing streamlined and compliant.
Custom Solutions
Tailored tanks, skids, and integration help.
Talk to Sales
We’ll help spec the right system for your throughput.
FAQ
What is the Direct Drive Variable Speed Mixer Motor (MM-3TC)?
The Direct Drive Variable Speed Mixer Motor (MM-3TC) is a UL-Listed 1/2 HP, 370 W motor with 100–1700 RPM control, built for 3" Tri-Clamp mounting and sealed operation.
Can the Direct Drive Variable Speed Mixer Motor run under vacuum and pressure?
Yes. The Direct Drive Variable Speed Mixer Motor is engineered for Ultimate Vacuum and is rated up to 90 PSI for pressure applications.
What power and electrical specs does the Direct Drive Variable Speed Mixer Motor require?
The Direct Drive Variable Speed Mixer Motor operates at 220V with a Delta converter controller; current range is 2A–10A.
What shaft and impeller details come with the Direct Drive Variable Speed Mixer Motor?
The Direct Drive Variable Speed Mixer Motor includes a 316SS shaft, 20 mm diameter, 32 in length, and a 4 in stainless propeller.
