Description

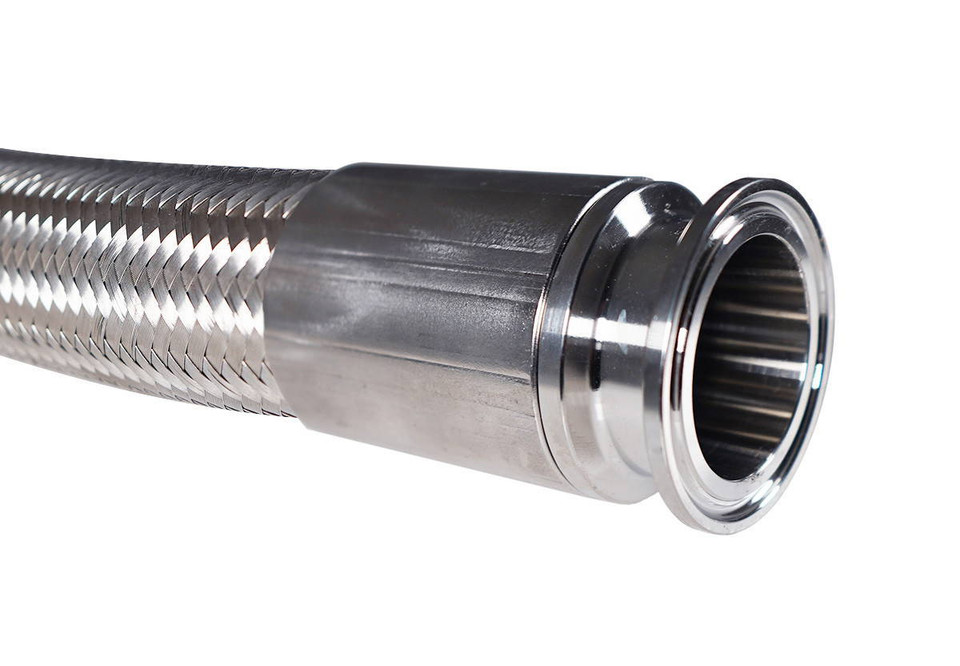

Introducing our 2" Tri-Clamp Stainless Steel Braided Hose – the ultimate solution for handling harsh chemicals, solvents, and high-pressure applications. Crafted with chemically resistant PTFE lining material, these hoses offer unrivaled durability and reliability. The inner core features a corrugated PTFE design for maximum flexibility, encased within a robust braided stainless steel outer sleeve. Each end of the hose is equipped with 2" Tri Clamp flanges for easy and secure connections.
Please be mindful not to exceed the specified hose bend radius to avoid kinking the inner PTFE liner, which could compromise the integrity of the hose. The 24" version is limited to a 90-degree bend to ensure optimal performance and longevity.
Specifications |
|
Connection Type(s): |
2" Tri-Clamp |
Liner Material |
PTFE (Teflon) |
Braid Material |
304 Stainless Steel |
Flange Material |
304 Stainless Steel |
Temperature Rating |
-65° to 450°F |
Pressure Rating |
250 PSI |
Chemical Resistance |
Excellent |
Bend Radius |
(24" Length) 13" |
(48", 72", 96" Length) 13" |
For Technical Support, Questions, or Other Issues Please Email or Call Us!
