Description

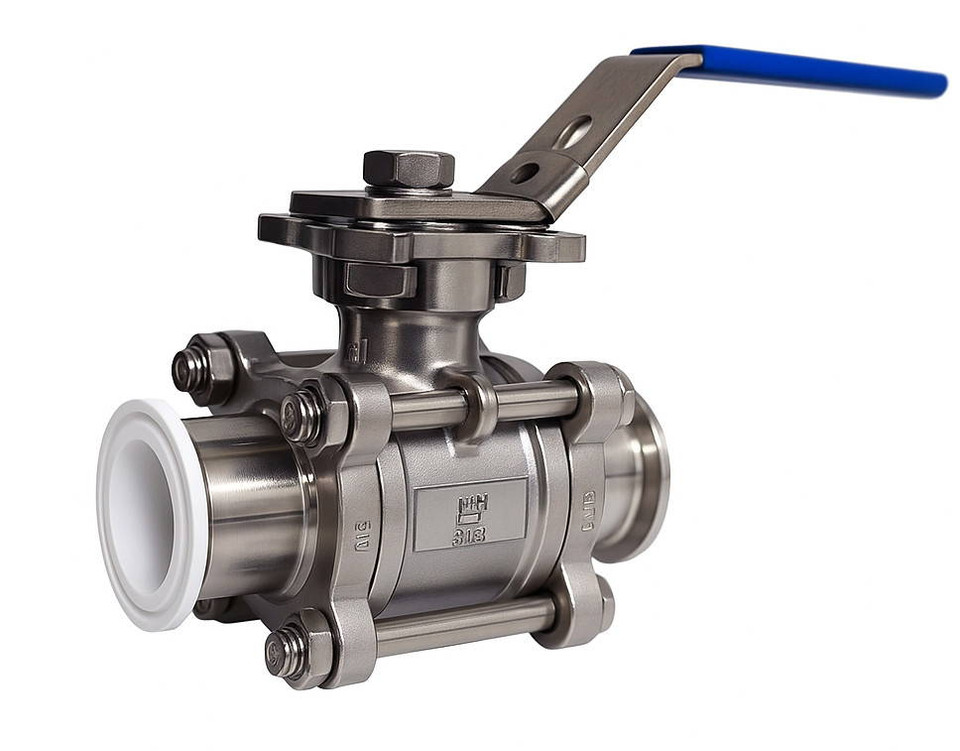

USA Lab PTFE/ETFE/PFA Lined Tri-Clamp Ball Valve Sanitary Stainless - 1000PSI

The USA Lab PTFE/ETFE/PFA Lined Tri-Clamp Ball Valve is designed for precise shutoff, high-purity processing, and corrosion-resistant fluid handling in demanding sanitary and laboratory systems. Its seamless fluoropolymer-lined flow path provides a smooth, non-stick surface that helps minimize adsorption, buildup, and contamination.

Built with a stainless-steel body and available with PTFE, ETFE, or PFA lining, this full-port ball valve provides an unrestricted flow path and smooth ¼-turn manual operation. The valve is rated up to 1,000 PSI WOG at ambient temperature, making it suitable for demanding chemical and process applications where reliable shutoff and material compatibility are important.

Available in 1.5" TC and 2" TC sanitary Tri-Clamp configurations, the valve integrates easily into sanitary process lines and supports quick disassembly for inspection, cleaning, and maintenance. It is well suited for pharmaceutical, chemical, food and beverage, biotechnology, botanical extraction, and laboratory systems.

1,000 PSI WOG Full Port PTFE / ETFE / PFA Lining 1.5" & 2" Tri-Clamp

Chemical Purity: Seamless PTFE/ETFE/PFA lining provides an inert, non-stick flow path for aggressive process media.

Full-Port Flow: Unrestricted bore design helps minimize pressure drop and supports efficient high-throughput processing.

High-Pressure Durability: Stainless construction with 1,000 PSI WOG rating for demanding sanitary and chemical service.

Why buy from USA Lab

Expert Support
Engineers & technicians on staff.

Quality First
Tested and trusted products.

Fast Fulfillment
Nationwide 1-2 day shipping.

Warranty & Parts
US-based service & spares.

Why this USA Lab PTFE/ETFE/PFA Lined Ball Valve?

1,000 PSI WOG rating — provides dependable shutoff capability for demanding chemical and sanitary process applications.
Fluoropolymer-lined flow path — PTFE, ETFE, or PFA lining helps resist aggressive acids, bases, solvents, adsorption, and buildup.
Full-port design — unrestricted bore supports efficient flow and helps minimize pressure drop through the valve.
¼-turn manual operation — provides quick and straightforward opening and closing of the process line.
Sanitary Tri-Clamp integration — 1.5" and 2" TC connections support quick installation, disassembly, cleaning, and maintenance.

Talk to an expert

Get sizing help, liner selection guidance, media compatibility information, and integration support for your sanitary or chemical process line.

Call 734-855-4890

Technical Specifications

Specification	Details
Product Name	USA Lab PTFE/ETFE/PFA Lined Tri-Clamp Ball Valve
Product Type	Sanitary Tri-Clamp Ball Valve
Connection Type	Tri-Clamp / Sanitary Clamp
Available Sizes	1.5" TC and 2" TC
Body Material	304 Stainless Steel
Lining Material	PTFE, ETFE, or PFA High-Purity Fluoropolymers
Pressure Rating	1,000 PSI WOG at Ambient Temperature
Temperature Range	−20°F to 400°F (−29°C to 204°C), Liner Dependent
Valve Configuration	Full-Port Ball Valve
Handle Type	¼-Turn Manual Lever Handle
Port Design	Full Port / Unrestricted Flow Path
Seal Material	PTFE Seats and Seals
Internal Surface	Smooth, Non-Stick Fluoropolymer Lining
External Surface	Polished Stainless Steel
Chemical Resistance	Excellent Resistance to Strong Acids, Bases, and Solvents
Cleaning Compatibility	CIP/SIP Compatible
Mounting Orientation	Any Position
Typical Applications	Chemical Processing, Pharmaceutical, Food & Beverage, Biotech, Laboratory Systems
Sanitary Integration	Quick Tri-Clamp Installation and Disassembly

Popular Industries & Use Cases

Botanical Extraction Pharmaceutical Chemical Sciences Academic & Research

Business Solutions & Procurement

Programs & Terms

Exclusive options for businesses and academics.

Apply for Net Terms Academic Discount

Documentation & Compliance

Keep purchasing streamlined and compliant.

Request a Quote Tax Exemption

Custom Solutions

Tailored equipment and integration help.

Custom Request Consulting

Talk to Sales

We’ll help spec the right valve and components for your process line.

Call 734-855-4890 Email Sales/Support

FAQ

What sizes and connections are available for the USA Lab PTFE/ETFE/PFA Lined Tri-Clamp Ball Valve?

The USA Lab PTFE/ETFE/PFA Lined Tri-Clamp Ball Valve is available in 1.5" TC and 2" TC sanitary Tri-Clamp configurations for integration into compatible process and sanitary piping systems.

Which liner should I choose: PTFE, ETFE, or PFA?

PTFE, ETFE, and PFA provide high-purity fluoropolymer lining options with strong chemical resistance. The appropriate liner depends on the specific process media, temperature, purity requirements, and application conditions. Confirm media compatibility before selection.

What are the pressure and temperature ratings of this Tri-Clamp ball valve?

The valve is rated up to 1,000 PSI WOG at ambient temperature. The listed temperature range is approximately −20°F to 400°F (−29°C to 204°C), with the actual operating window dependent on the selected PTFE, ETFE, or PFA liner and process conditions.

Is the USA Lab PTFE/ETFE/PFA Lined Tri-Clamp Ball Valve suitable for CIP/SIP systems?

Yes. The valve uses sanitary Tri-Clamp connections and a smooth, non-stick fluoropolymer-lined flow path designed to support CIP/SIP-compatible processing and quick disassembly for inspection and maintenance. Verify the selected liner and complete system materials for the specific cleaning cycle.
