Description

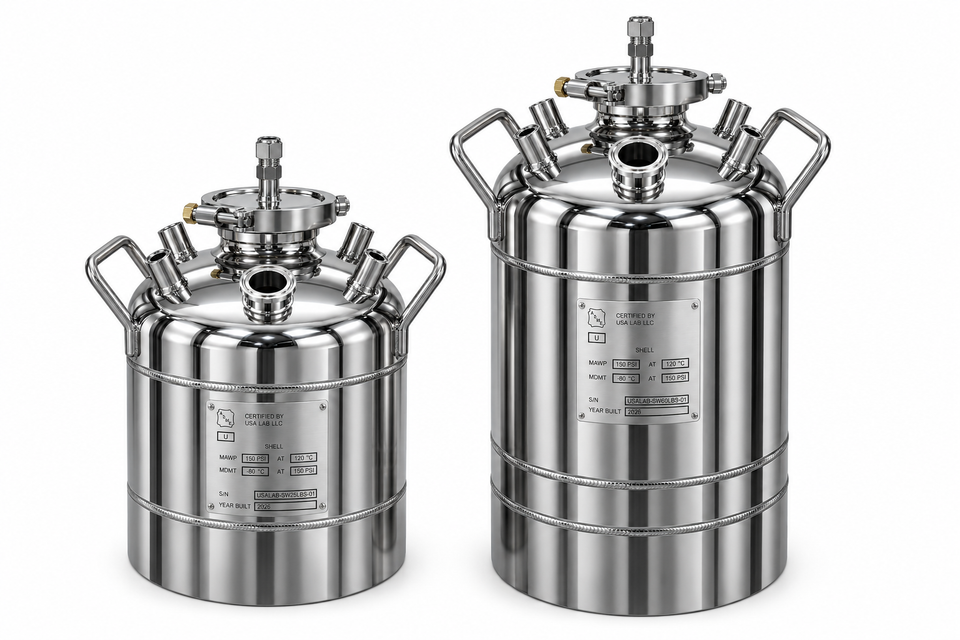

USA Lab 15L & 30L ASME Stainless Steel Pressure Vessel – Non-Jacketed, NPT
The USA Lab 15L & 30L ASME Stainless Steel Pressure Vessel is a durable, versatile solution for solvent handling, storage, transfer, processing, and other demanding laboratory and industrial applications. Built from stainless steel and designed for pressure-rated operation, these non-jacketed vessels provide a compact, reliable platform for systems requiring threaded NPT connections.
Each pressure vessel features a large 4" Tri-Clamp top opening for convenient access, inspection, and cleaning. A removable 1/2" FNPT Tri-Clamp dip tube assembly allows material to be drawn from near the bottom of the vessel while simplifying cleanout and maintenance between processes.
Multiple FNPT connections provide maximum versatility when integrating pressure gauges, valves, relief devices, gas lines, transfer hoses, and other process accessories. Available in 15L and 30L models, the vessel shell is rated up to 150 PSI across an operating temperature range of -80°C to 120°C.
Pressure-rated systems should always be operated with properly selected valves, fittings, pressure-relief devices, and compatible process components. Confirm chemical compatibility, operating pressure, and operating temperature before use.
ASME Pressure Vessel 15L & 30L Capacities 150 PSI Shell Rating 4" Tri-Clamp Opening
Capacity: Available in 15L and 30L capacity models.
Pressure Rating: Vessel rated to 150 PSI.
Temperature Range: -80°C to 120°C.
Why buy from USA Lab
✓
Expert Support
Engineers & technicians on staff.
Engineers & technicians on staff.
✓
Quality First
Tested and trusted products.
Tested and trusted products.
✓
Fast Fulfillment
Nationwide 1-2 day shipping.
Nationwide 1-2 day shipping.
✓
Warranty & Parts
US-based service & spares.
US-based service & spares.
Why this ASME pressure vessel?
- ASME pressure-rated design — built for demanding laboratory, extraction, and industrial pressure applications.
- Large access opening — 4" Tri-Clamp opening provides convenient access for cleaning, inspection, and servicing.
- Versatile NPT connections — multiple FNPT ports support integration of gauges, valves, gas lines, transfer lines, and accessories.
- Integrated dip tube — removable 1/2" FNPT Tri-Clamp dip tube provides convenient liquid withdrawal and easy cleanout.
- Two useful capacities — choose 15L or 30L to match your process and system requirements.
Talk to an expert
Get sizing help, fitting guidance, and integration tips for your pressure vessel system.
Technical Specifications
| Model | USA-PV-15L-ASME-NPT | USA-PV-30L-ASME-NPT |
|---|---|---|
| Volume | 15L | 4 Gal | 30L | 8 Gal |
| Weight | 25 LB | 35 LB |
| External Dimensions | 15L: 14" x 12" x 12" | 30L: 18" x 14" x 14" |
| Top Opening | 4" Tri-Clamp | 4" Tri-Clamp |
| Process Connections | 3x 1/2" FNPT, 1x 1/4" FNPT, and 1x 1/2" Compression dip tube connection | 3x 1/2" FNPT, 1x 1/4" FNPT, and 1x 1/2" Compression dip tube connection |
| Dip Tube | 1/2" Compression to 4" Tri-Clamp dip tube assembly | 1/2" Compression to 4" Tri-Clamp dip tube assembly |
| Operating Temperature Range | -80°C to 120°C @ 150 PSI | -80°C to 120°C @ 150 PSI |
| Vessel Configuration | Non-Jacketed | Non-Jacketed |
Popular Industries & Use Cases
Business Solutions & Procurement
Programs & Terms
Exclusive options for businesses and academics.
Documentation & Compliance
Keep purchasing streamlined and compliant.
Custom Solutions
Tailored tanks, pressure vessels, skids, and integration help.
Talk to Sales
We’ll help spec the right pressure vessel for your application.
FAQ
What capacities are available?
The USA Lab 15L & 30L ASME Stainless Steel Pressure Vessel – Non-Jacketed, NPT is available in 15L and 30L models.
What is the pressure rating of this vessel?
The USA Lab 15L & 30L ASME Stainless Steel Pressure Vessel – Non-Jacketed, NPT has a vessel shell pressure rating of 150 PSI and an operating temperature range of -80°C to 120°C.
What connections are included on the vessel?
The USA Lab 15L & 30L ASME Stainless Steel Pressure Vessel – Non-Jacketed, NPT features a 4" Tri-Clamp opening with multiple FNPT process connections and a removable 1/2" FNPT Tri-Clamp dip tube assembly for versatile system integration.
What is the dip tube used for?
The USA Lab 15L & 30L ASME Stainless Steel Pressure Vessel – Non-Jacketed, NPT includes a dip tube that allows liquid to be withdrawn from near the bottom of the vessel while maintaining convenient top-side access. Its removable Tri-Clamp configuration also helps simplify cleaning and maintenance.
