HSMNHS4CAL - MINI HOTPLATES & STIRRERS

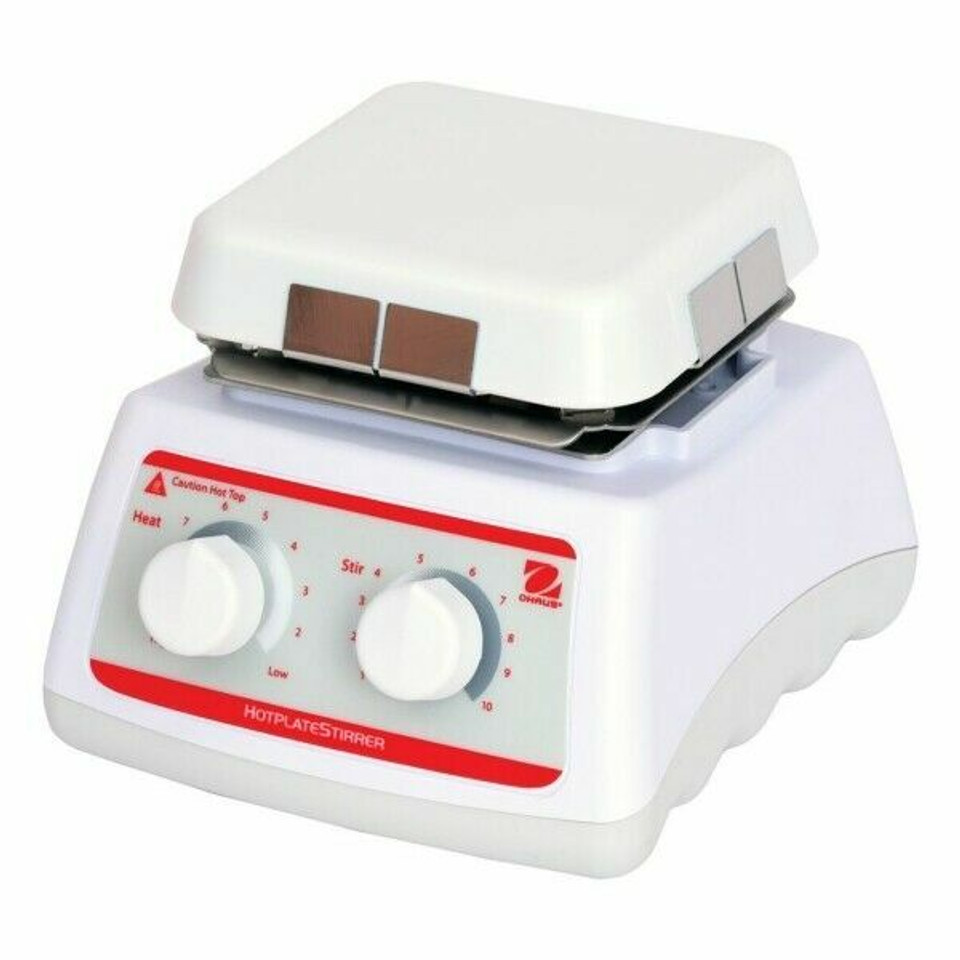

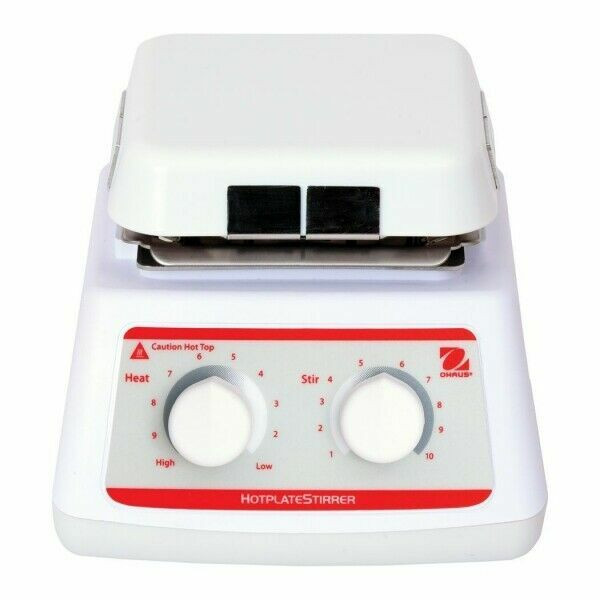

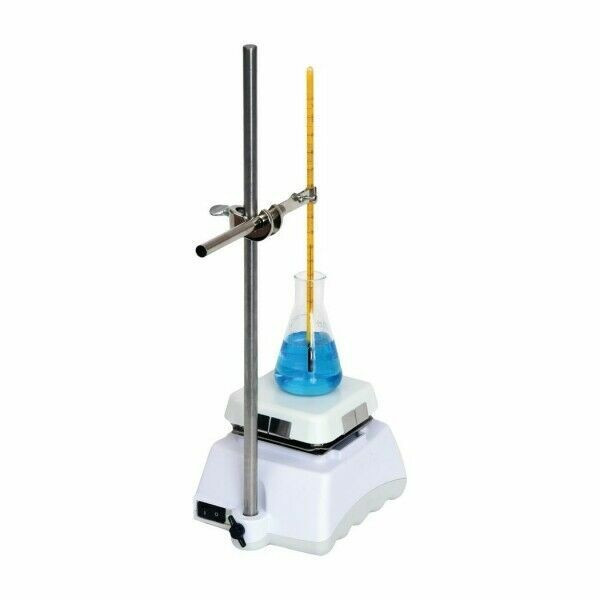

Our Rugged OHAUS USA Mini Hotplate Stirrer can heat and stir up to 1000 ml of water on the 4 x 4 in. (102 x 102 mm) ceramic top plate surface. These units are ideal for educational and other lab environments that require simple, every-day heating and stirring. All models feature a built-in support rod holder with a locking knob, which accepts the optional support rod kit. Stirring models include 1.5 in. (38 mm) PTFE coated stir bar.
Applications
Boiling Water, Dissolving Buffers and Reagents, Preparing Media, Concentrating Samples
Operation
Detachable 3-wire cord and plug (included)
Construction
Valox housing, basic control knobs, 1.5 inch (3.8 cm) stir bar (included with Stirring models), On/Off toggle switch (Fixed Temperature models)
|
HSMNHS4CAL Specifications |
|
|
Function |
Heating and Stirring |
|
Capacity |
1000mL |
|
Plate Construction |
Ceramic |
|
Plate Size (LxW) |
4” x 4” (10.2cm x 10.2cm) |
|
Temp. Range |
Ambient – 500°C |
|
Control |
Analog |
|
Dimensions (LxWxH) |
7.9" x 6" x 5" (20.1cm x 15.2cm x 12.7cm) |
|
Net Weight |
4lb (1.8 kg) |
|
Power |
120V, 2.6A, 50/60Hz |
|
Power Consumption |
200 W |
|
Safety Certification |
TUV |
|
Speed Range |
100 rpm – 1200 rpm |
|
Working Environment |
41°F – 104°F, 80%RH, non-condensing (5°C – 40°C, 80% RH, Non-condensing) |
For Technical Support, Questions, or Other Issues Please Email or Call Us!
For our Ohaus digital balances with a one-year warranty, the warranty information is as follows:
Ohaus compact scales are warranted against defects in materials and workmanship for a period of 12 months from the date of delivery. During the warranty period Ohaus will repair, or at its option, replace any component(s) that proves to be defective at no charge, provided that the product is returned, freight prepaid, to Ohaus.
This warranty does not apply if the product has been damaged by accident or misuse, exposed to radioactive or corrosive materials, has foreign material penetrating to the inside of the product, or as a result of service or modification by other than Ohaus. In lieu of a properly returned warranty registration card, the warranty period shall begin on the date of shipment to the authorized dealer. No other express or implied warranty is given by Ohaus Corporation. Ohaus Corporation shall not be liable for any consequential damages.
