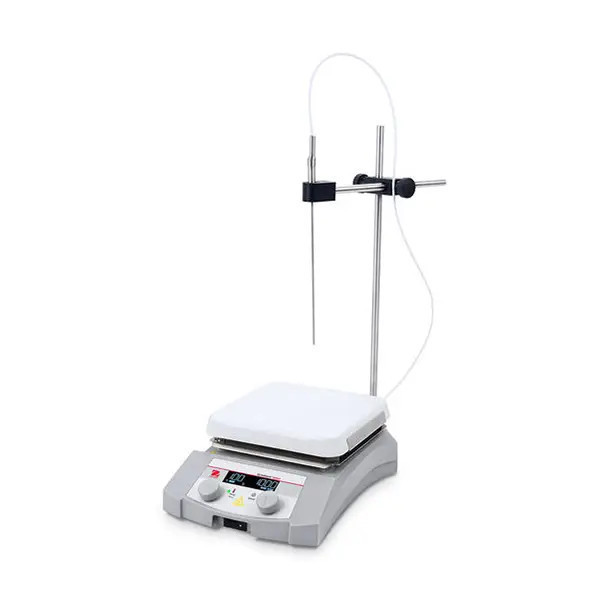

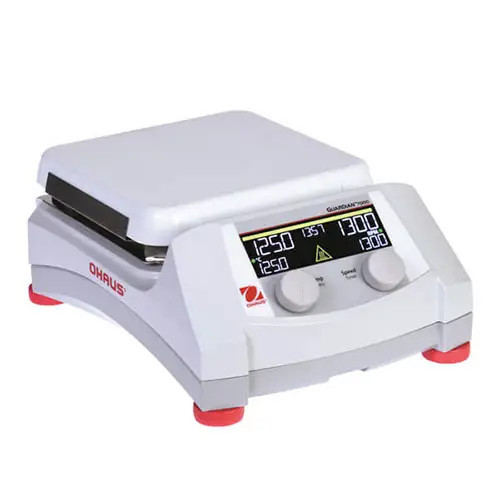

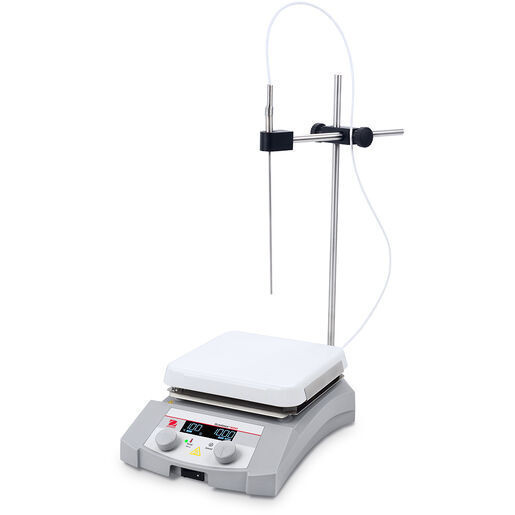

OHAUS Guardian™ 7000 Hotplate-Stirrer, e-G71HS07C, 120V, 7" x 7" Ceramic | USA Lab
Premium digital hotplate-stirrer with intelligent safety and precise control. SmartPresence™ and SmartLink™ can automatically shut off heat when the user is away, while SafetyHeat™ provides industry-leading early over-temperature protection.
The Guardian™ 7000 delivers accurate stirring from 60–1600 rpm and heating from ambient +5 °C to 500 °C (ceramic plate). SmartHousing™ stays cool to the touch and resists chemicals, and the bright back-lit LCD shows temperature, speed, and time with intuitive icons for SmartRate™, SmartHeat™, probe-in-use, and more.
Digital Control SmartPresence™ / SmartLink™ SafetyHeat™ + SmartHeat™ 60–1600 rpm Up to 500 °C Pt1000 Probe Included Timer + USB IP21 • SmartHousing™
Intelligent safety. SmartPresence™/SmartLink™ can shut off heat after a user-defined timeout; SafetyHeat™ dual controls help prevent overheating.
Precision mixing. Software-controlled ramp rate with a strong magnet maintains coupling from 60–1600 rpm, even for viscous samples.
Built for the lab. Chemical-resistant SmartHousing™, hardened glass panel, hot-top lights, audible alarm, and IP21 ingress protection.
Why buy from USA Lab
Expert Support
Engineers & technicians on staff.
Engineers & technicians on staff.
Quality First
Tested and trusted products.
Tested and trusted products.
Fast Fulfillment
Nationwide 1–2 day shipping.
Nationwide 1–2 day shipping.
Warranty & Parts
US-based service & spares.
US-based service & spares.
Resources & Downloads
Why this Guardian™ 7000?
- Smart safety suite — SmartPresence™ & SmartLink™ time-out shutoff, SafetyHeat™ early detection, SmartHeat™ temperature limiting, audible alarm, dual hot-top lights.
- Exact control — back-lit LCD for temperature, speed & time; software-controlled SmartRate™ for smooth ramps and secure coupling.
- Probe-ready accuracy — includes 8" stainless RTD (Pt1000) and single-point calibration for up to 5 plate and 5 probe setpoints.
- Lab-ready construction — chemical-resistant SmartHousing™, hardened glass front panel, IP21, built-in support-rod holder.
- Versatile applications — temperature-sensitive chemistry/biology, heat fixation, pH optimization, sterilization, endothermic reactions, media & buffer prep, boiling.
Talk to an expert
Get sizing help, SOP guidance, and integration tips for your line.
Technical Specifications
| Model | e-G71HS07C (Guardian™ 7000, 7" × 7" Ceramic, Digital) |
|---|---|
| Item Number | 30500600 |
| Function | Heating and Stirring |
| Capacity | 15 L |
| Plate Construction | Ceramic |
| Plate Size | 7 in × 7 in (178 mm × 178 mm) |
| Temperature Range | Ambient +5 °C – 500 °C (ceramic) |
| Control | Digital; back-lit LCD (temp, speed, time) |
| Speed Range | 60 – 1600 rpm |
| Power Consumption | 1,080 W |
| Electrical | 120 V, 10 A, 50/60 Hz |
| Dimensions (L × H × W) | 12.2 in × 4.8 in × 8.8 in (309 × 122 × 223 mm) |
| Net Weight | 5.7 lb (2.6 kg) |
| Working Environment | 41 °F – 104 °F (5 °C – 40 °C), 80% RH, non-condensing |
| Ingress Protection | IP21 |
| Safety Certification | TUV |
| Temperature Stability | Plate: ±1%; below 100 °C ±1 °C • Probe: ±0.5%; below 100 °C ±1 °C |
| Temperature Probe | Pt1000 (8" stainless RTD) — included |
| Calibration | Temperature calibration for 5 Plate / 5 Probe setpoints |
| Timer | Yes |
| Status & Safety | Dual hot-top lights, audible alarm, SmartHeat™ limit, SafetyHeat™ cut-off, probe-in-use icon |
| Connectivity | USB (programming & SmartLink™); long-range user detection with OHAUS Bluetooth dongle (accessory) |
| Construction | SmartHousing™ chemical-resistant body; hardened glass front; control knobs; heater disconnect switch; built-in support-rod holder |
| Display | Custom back-lit LCD with icons: SmartRate™, SmartHeat™, SmartPresence™, SmartLink™, probe-in-use, SPC |
| Applications | Temp-sensitive chemistry/biology, heat fixation, pH optimization, sterilization, endothermic reactions, media/buffer prep, boiling |
| Family | Guardian™ 7000 Hotplates & Stirrers |
| Image Ref | G7000_7X7_HPS__RIGHT_DMX-ID_4294999407_WebShop |
Popular Industries & Use Cases
Business Solutions & Procurement
Programs & Terms
Exclusive options for businesses and academics.
Documentation & Compliance
Keep purchasing streamlined and compliant.
Custom Solutions
Tailored tanks, skids, and integration help.
Talk to Sales
We’ll help spec the right system for your throughput.
FAQ
How do SmartPresence™ and SmartLink™ improve safety?
They can automatically shut off the heater after a set timeout when no user is detected. SmartLink™ (via USB/Bluetooth accessory) extends detection range to enhance unattended shutoff.
What’s included in the box?
Power cord, 8" (20.3 cm) stainless steel RTD Pt1000 temperature probe, 1.5" (3.8 cm) PTFE-coated stir bar, and an in-use cover.
What heating and stirring performance can I expect?
Ambient +5 °C to 500 °C on the ceramic plate with precise stirring from 60–1600 rpm. Software-controlled ramp rate keeps magnetic coupling on viscous samples.
Is the chassis chemical-resistant and cool to the touch?
Yes. SmartHousing™ is chemical-resistant and designed to channel spills away from internal components while remaining cool to the touch.
Can I calibrate temperature?
Yes—temperature calibration supports up to 5 plate and 5 probe setpoints for high accuracy across common ranges.
×
