PRO
Neocision Spectra Pro fixtures feature 18.5% blue spectra and 40.7% red spectra with a peak at 660nm for your flowering plants. This unique spectra mix creates stronger plants for nutrient uptake with maximized red for increased photosynthesis. Get increased yields, quality bud formation and high rates of cannabinoid production levels.
Neocision Spectra Pro Cutsheet
DLC Qualified Product List

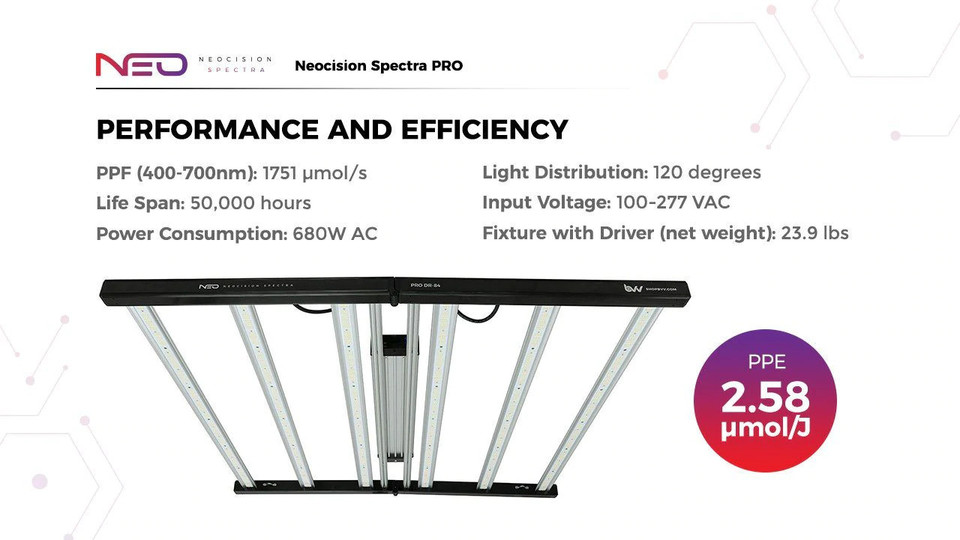

Performance, Specs and Ranking
FEATURES:
Efficacy up to 2.58 Micromoles / J @ 120 VAC
Industry Leading Horticulture LEDs
RJ Port for Plug and Play Control Systems
Folding Design for Fast and Easy Installation
7 Year Limited Warranty on Fixture
8 Year Limited Warranty on Driver
|
SPECTRUM AND EFFICACY |
|
|
PPF Efficacy: |
2.58 at 120 VAC |
|
Photon Flux (µmol/s) (400-700nm): |
1751 |
|
Photon Flux Blue (µmol/s) (400-500nm): |
324 |
|
Photon Flux Green (µmol/s) (500-600nm): |
714 |
|
Photon Flux Red (µmol/s) (600-700nm): |
713 |
|
Total Blue/Red - Energy Bands: |
1037 |
|
% Blue: |
18.51% |
|
% Green: |
40.76% |
|
% Red: |
40.73% |
|
POWER |
|
|
Power Consumption: |
680W AC |
|
Driver: |
Sosen |
|
Power Factor: |
>0.95 |
|
Surge Protection: |
6 KV |
|
120V: |
5.72 A |
|
208V: |
3.44 A |
|
240V: |
2.98 A |
|
277V: |
2.58 A |
|
DIMENSIONS |
|
|
Fixture Size (driver mounted on the fixture): |
(L) 43.9” x (W) 43.9” x (H) 4.1” |
|
Fixture Size (without driver): |
(L) 43.9” x (W) 43.9” x (H) 1.6” |
|
Power Supply Dimension: |
(L)23” X (W) 6.5” X (H) 3” |
|
Driver Net Weight: |
10.1 lb. |
|
Fixture Net Weight: |
13.8 lb. |
|
OTHER |
|
|
Mounting Height |
>6” above canopy |
|
Beam Angle |
110 Degree |
|
Input Voltage |
100 - 277 VAC |
|

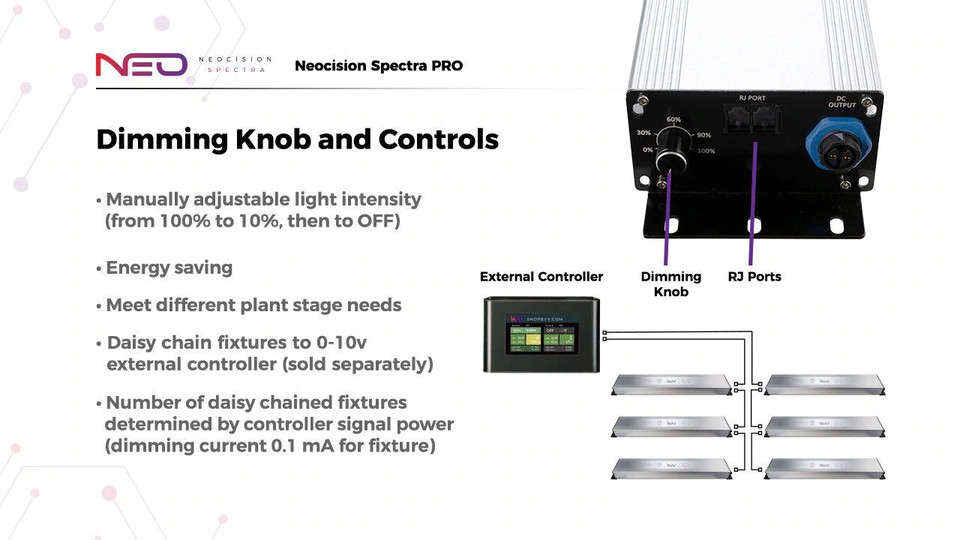

Manual Dimming Knob |
Yes |
|
Built In Control Ports |
Yes |
|
Power Cord Length (Extensions available) |
AWG 16, 6 Foot |
|
Standard Plug |
120 VAC - NEMA 5-15P |
|
Substitute Plugs (Upon request at order for bulk purchases) |
240 VAC, 277 VAC, Pigtails |
|
Adjustable Height Hanging Kit Included |
Yes |
|
Fixture Warranty |
7 Years Limited |
|
Driver Warranty |
8 Years Limited |
|
ETL Safety Certified |
Conforms to UL 1598:2018 Ed. 4Certified to CSA C22.2#250.0:2018 Ed.4*ETL Safety Certified No. 5020070 |
For Technical Support, Questions, or Other Issues Please Email or Call Us!
7 Year Limited Warranty on Fixture, Driver 8 Years.
