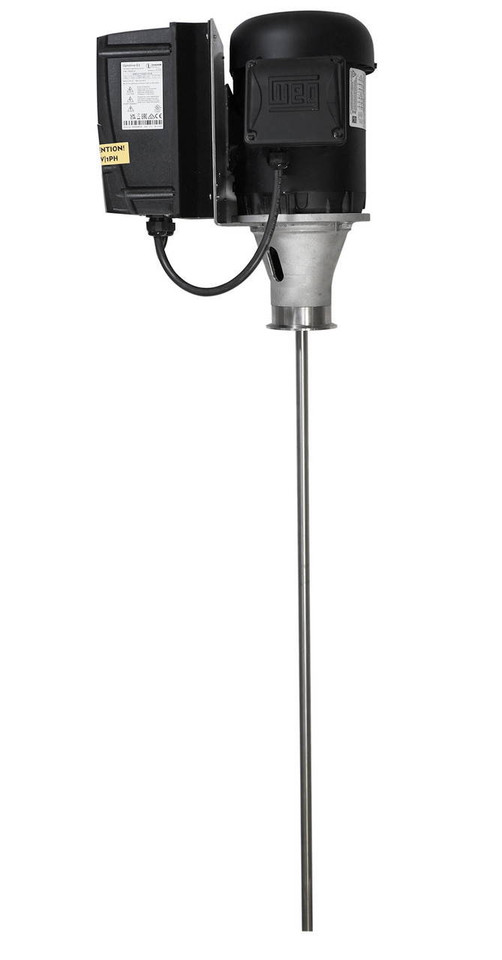

Tri-Clamp TEFC Electric Mixer – 3" TC Mount, Variable Speed (1/3 to 1.5 HP) | USA Lab

Lightweight, durable, portable, and sanitary—our tri-clamp mixers mount directly to a 3" tri-clamp ferrule and deliver smooth, controllable agitation across food, beverage, biotech, and chemical processing. Each unit includes an FDA lip shaft seal to protect both the mixer and your liquid ingredients.

A Totally Enclosed Fan Cooled (TEFC) electric motor with IP55 ingress protection resists water spray and dust. The NEMA 4X washdown variable-speed controller (VFD) provides precise RPM control. Wetted components are 316SS (some builds 304SS) for high corrosion and abrasion resistance.

Lead time: Some mixers may have up to a 15-day build time. Contact us for customization and current lead times.

Verify clamp, gasket, ferrule, and voltage compatibility before operation.
Built-to-order options may carry a short lead time (up to 15 days).

3" Tri-Clamp Mount TEFC IP55 Enclosure NEMA 4X Washdown VFD FDA Lip Shaft Seal 316SS Wetted Parts

Sanitary mount: 3" tri-clamp interface with high-performance seal for hygienic processing.

Washdown ready: TEFC motor (IP55) and NEMA 4X controller suit wet, clean-in-place environments.

Durable build: 316/304 stainless wetted parts and stainless propeller for long service life.

Why buy from USA Lab

Expert Support
Engineers & technicians on staff.

Quality First
Tested and trusted products.

Fast Fulfillment
Nationwide 1-2 day shipping.

Warranty & Parts
US-based service & spares.

Resources & Downloads

Tri-Clamp Sizing Guide Electric Mixer Installation Sanitary Cleaning SOP Warranty & Terms

Why this Tri-Clamp TEFC Electric Mixer?

Sanitary tri-clamp mount — attaches to 3" TC ferrules for quick, tool-light setup.
TEFC IP55 motor — protects against water spray and dust for washdown areas.
NEMA 4X VFD control — precise variable speed for process consistency.
Rugged wetted parts — 316SS (some 304SS) shaft/propeller for corrosion resistance.
Configurable build — choose HP and shaft length; we match the propeller.

Talk to an expert

Get sizing help, electrical guidance, and impeller selection support.

Call 734-855-4890

Technical Specifications

Model	1/3 HP	1/2 HP	3/4 HP	1 HP	1.5 HP
Enclosure Type	IP55	IP55	IP55	IP55	IP55
Origin	USA	USA	USA	USA	USA
External Material	Painted Steel	Painted Steel	Painted Steel	Painted Steel	Painted Steel
Impeller Attachment	Set Screw	Set Screw	Set Screw	Set Screw	Set Screw
Impeller Diameter	4 in	4.5 in	5 in	5.5 in	6 in
Impeller Material	316SS	316SS	316SS	316SS	316SS

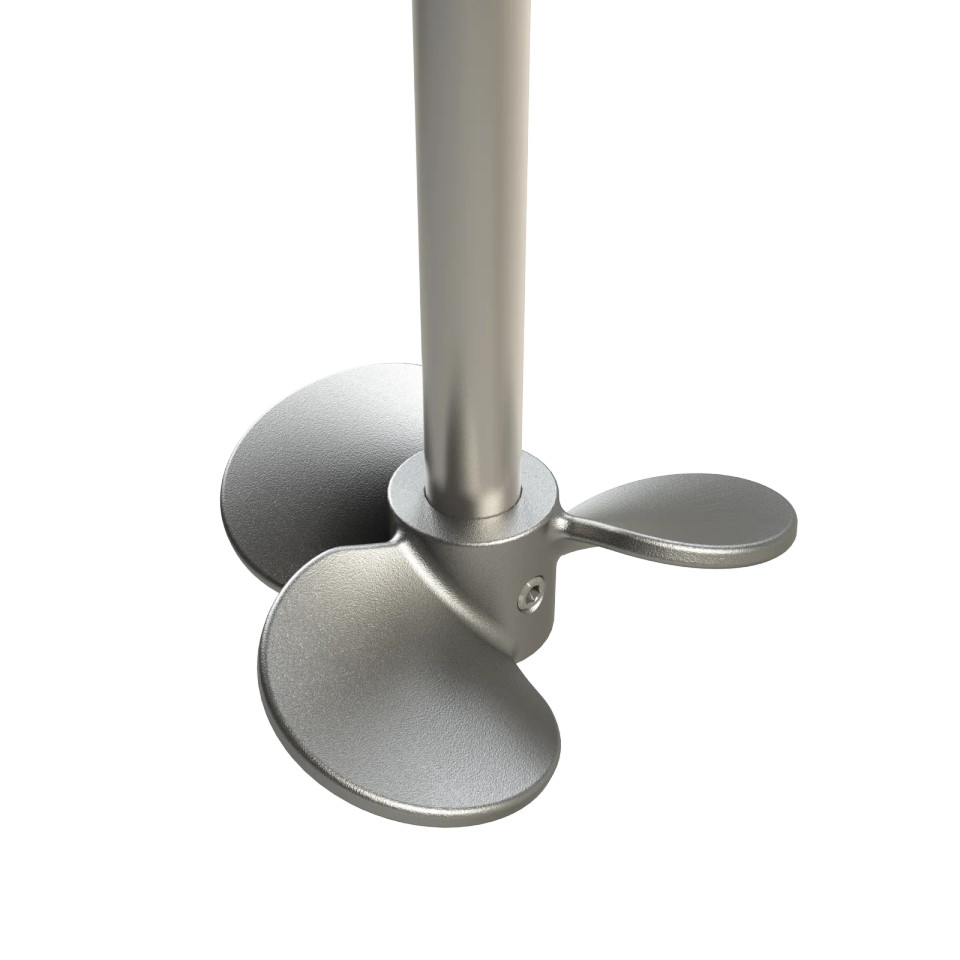

Impeller Type	Propeller	Propeller	Propeller	Propeller	Propeller
Motor Type	TEFC	TEFC	TEFC	TEFC	TEFC
Mount	Tri-Clamp	Tri-Clamp	Tri-Clamp	Tri-Clamp	Tri-Clamp
Mount Dimension	3"	3"	3"	3"	3"
Number of Impellers	1	1	1	1	1
Phase	1 Ph.	1 Ph.	1 Ph.	1 Ph.	1 Ph.
RPM	175-1750	175-1750	175-1750	175-1750	175-1750
Shaft Attachment	Coupler	Coupler	Coupler	Coupler	Coupler
Shaft Diameter	0.625"	0.625"	0.625"	0.625"	0.625"
Shaft Length	32"	32"	32"	32"	32"
Shaft Material	316SS	316SS	316SS	316SS	316SS
Speed Controller	Yes	Yes	Yes	Yes	Yes
Voltage	115v	115v	115v	115v	115v
Wetted Material	316SS	316SS	316SS	316SS	316SS
Certifications	UL Listed	UL Listed	UL Listed	UL Listed	UL Listed

Options

Options	Ultimate Vacuum	MAX PSI
3 PSI	Not Rated For Vacuum	3
100PSI	Not Rated For Vacuum	100
250 PSI	Ultimate Vacuum	250

Popular Industries & Use Cases

Food & Beverage Pharmaceutical Biotech Chemical Sciences

Business Solutions & Procurement

Programs & Terms

Exclusive options for businesses and academics.

Apply for Net Terms Academic Discount

Documentation & Compliance

Keep purchasing streamlined and compliant.

Request a Quote Tax Exemption

Custom Solutions

Tailored tanks, skids, and integration help.

Custom Request Consulting

Talk to Sales

We’ll help spec the right system for your throughput.

Call 734-855-4890 Email Sales/Support

FAQ

What is the Tri-Clamp TEFC Electric Mixer?

The Tri-Clamp TEFC Electric Mixer – 3" TC Mount, Variable Speed (1/3 to 1.5 HP) is a sanitary, washdown-ready mixer that mounts to a 3" tri-clamp ferrule and uses a VFD for precise RPM control.

Is it suitable for washdown environments?

Yes. The Tri-Clamp TEFC Electric Mixer – 3" TC Mount, Variable Speed (1/3 to 1.5 HP) features a TEFC motor with IP55 protection and a NEMA 4X controller.

What wetted materials are used?

The Tri-Clamp TEFC Electric Mixer – 3" TC Mount, Variable Speed (1/3 to 1.5 HP) uses 316SS (some configurations 304SS) for wetted components.

What power options are available?

The Tri-Clamp TEFC Electric Mixer – 3" TC Mount, Variable Speed (1/3 to 1.5 HP) is offered in 1/3, 1/2, 3/4, 1, and 1.5 HP models with 115V (1/3–3/4 HP) and 230V (1–1.5 HP) single-phase configurations.

Can I customize shaft and impeller options?

Yes. The Tri-Clamp TEFC Electric Mixer – 3" TC Mount, Variable Speed (1/3 to 1.5 HP) can be customized for rod length/diameter, impeller style/length, vacuum rating, motor style, and tri-clamp sizing. Lead times may apply.

Need Support?

We’ll get you answers fast.

Call 734-855-4890

Specifications

Mount Type:	3" Triclamp
Shaft Length:	32"
Voltage:	115V 15A
Warranty:	1 Year
