Tri-Clamp Pneumatic Mixer – 3" TC Mount, Variable Speed (3/4 HP, 1.5 HP, 4 HP) | USA Lab

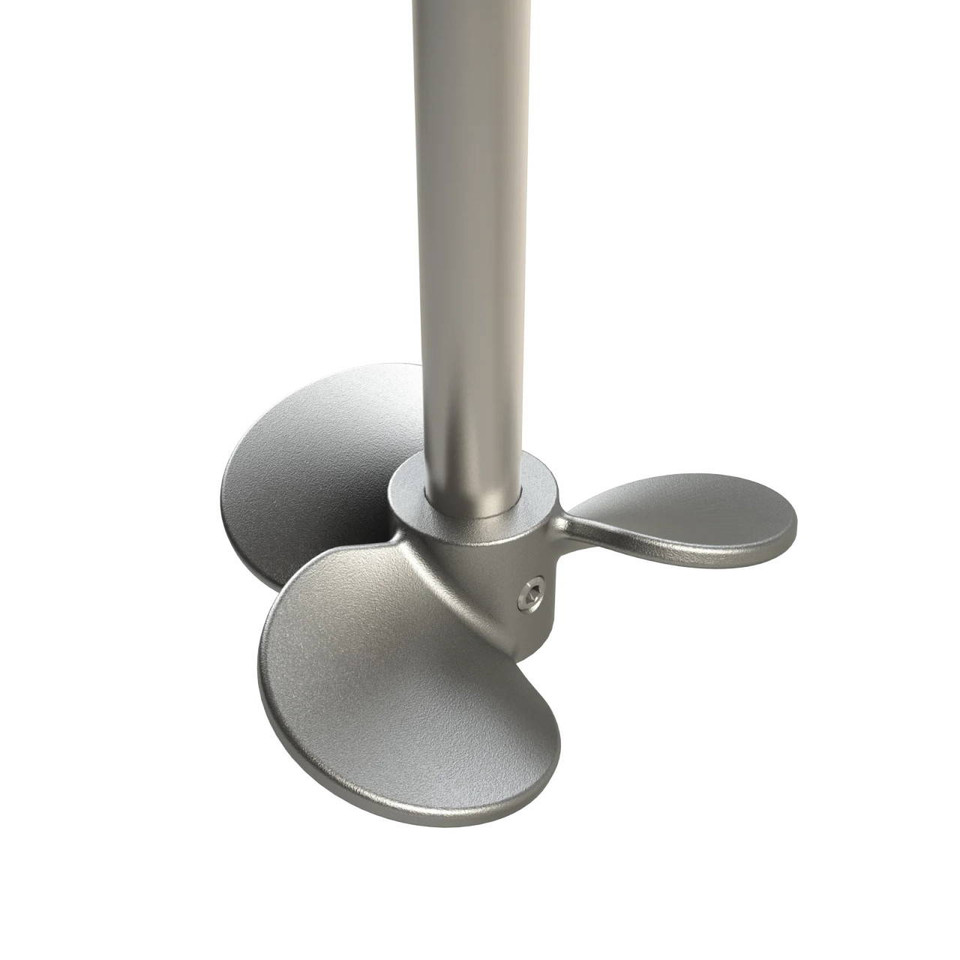

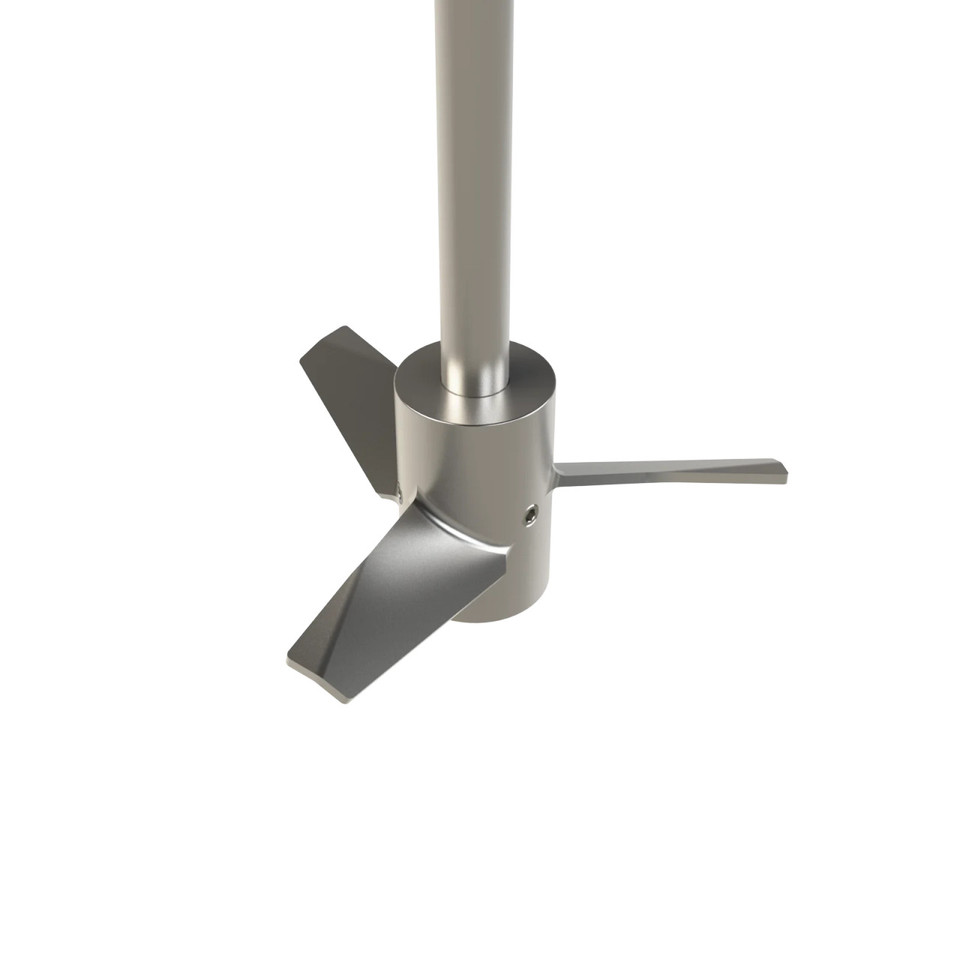

Lightweight, durable, portable, and sanitary—our tri-clamp mounted mixers attach directly to a 3" tri-clamp ferrule and deliver smooth, controllable agitation for a wide range of processing tasks. A factory-matched impeller (propeller or hydrofoil) is sized to your selected horsepower and shaft length for optimal mixing performance.

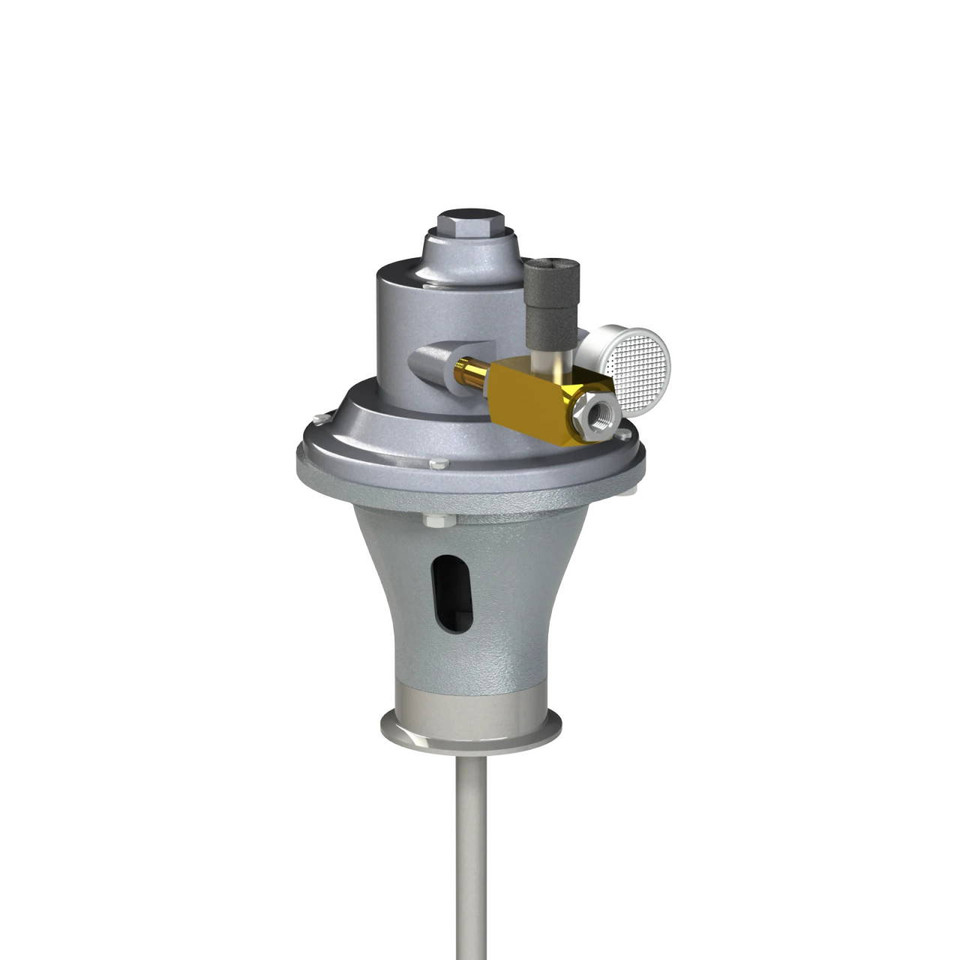

Each unit features an FDA lip shaft seal that protects the mixer and your product by preventing ingress/egress at the seal interface. The heavy-duty pneumatic (air-driven) motor is variable speed and suitable for hazardous locations, with minimal maintenance required. Wetted components are 316SS (or 304SS on certain configurations) for excellent corrosion and abrasion resistance.

Lead time: Some builds may require up to 15 days. Contact us for customization and current lead times.

Built-to-order options may carry a short lead time (up to 15 days).
Control panels mount outside your C1D1/C1D2 room for safe operation.

3" Tri-Clamp Mount Variable Speed Pneumatic FDA Lip Shaft Seal 316SS Wetted Parts

Sanitary mount: 3" tri-clamp interface with shaft seal helps prevent product contamination.

Hazardous-area ready: Pneumatic, variable-speed motor for C1D1/C1D2 compliant applications.

Built for uptime: 316/304 stainless construction and simple air control minimize maintenance.

Why buy from USA Lab

Expert Support
Engineers & technicians on staff.

Quality First
Tested and trusted products.

Fast Fulfillment
Nationwide 1-2 day shipping.

Warranty & Parts
US-based service & spares.

Resources & Downloads

Tri-Clamp Sizing Guide Pneumatic Mixer Best Practices

Why this Tri-Clamp Pneumatic Mixer?

Sanitary tri-clamp mount — attaches directly to 3" TC ferrules for fast, tool-light setup.
FDA lip shaft seal — helps protect both the mixer and your liquid ingredients from contamination.
Air-driven, variable speed — safe for hazardous environments; simple needle-valve control.
Rugged wetted parts — 316SS (or 304SS) resists corrosion and abrasion in CIP/SIP workflows.
Configurable build — choose horsepower and shaft length; we’ll match an appropriate impeller.

Talk to an expert

Get sizing help, air supply guidance, and impeller selection support.

Call 734-855-4890

Technical Specifications

Model	3/4 HP	1.5 HP	4 HP
Origin	USA	USA	USA
External Material	Painted Steel	Painted Steel	Painted Steel
Impeller Attachment	Set Screw	Set Screw	Set Screw
Impeller Diameter	4 in	5.5 in	6 in
Impeller Material	316SS	316SS	316SS
Impeller Type	Hydrofoil	Hydrofoil	Hydrofoil
Motor Type	Pneumatic (Air Driven)	Pneumatic (Air Driven)	Pneumatic (Air Driven)
Mount	Tri-Clamp	Tri-Clamp	Tri-Clamp
Mount Dimension	3"	3"	3"
Number of Impellers	1	1	1
RPM	175-1750	175-1750	175-1750
Shaft Attachment	Coupler	Coupler	Coupler
Shaft Diameter	0.625"	0.625"	0.625"
Shaft Length	32"	32"	32"
Shaft Material	316SS	316SS	316SS
Speed Controller	Brass Precision Needle Valve	Brass Precision Needle Valve	Brass Precision Needle Valve
Cfm Requirement	30cfm @ 100psi	80cfm @ 100psi	130cfm @ 100psi
Wetted Material	316SS	316SS	316SS
Certifications	C1D1 & C1D2 Compliant	C1D1 & C1D2 Compliant	C1D1 & C1D2 Compliant

Options

Options	Ultimate Vacuum	MAX PSI
3 PSI	Not Rated For Vacuum	3
100PSI	Not Rated For Vacuum	100
250 PSI	Ultimate Vacuum	250

Popular Industries & Use Cases

Food & Beverage Pharmaceutical Biotech Chemical Sciences

Business Solutions & Procurement

Programs & Terms

Exclusive options for businesses and academics.

Apply for Net Terms Academic Discount

Documentation & Compliance

Keep purchasing streamlined and compliant.

Request a Quote Tax Exemption

Custom Solutions

Tailored tanks, skids, and integration help.

Custom Request Consulting

Talk to Sales

We’ll help spec the right system for your throughput.

Call 734-855-4890 Email Sales/Support

FAQ

What is the Tri-Clamp Pneumatic Mixer?

The Tri-Clamp Pneumatic Mixer – 3" TC Mount, Variable Speed (3/4 HP, 1.5 HP, 4 HP) is an air-driven, sanitary mixer that mounts to a 3" tri-clamp ferrule and uses a matched hydrofoil/propeller for efficient agitation.

Is it suitable for hazardous environments?

Yes. The air motor is C1D1 & C1D2 compliant when installed and operated in accordance with your facility’s safety practices.

What wetted materials are used?

The Tri-Clamp Pneumatic Mixer – 3" TC Mount, Variable Speed (3/4 HP, 1.5 HP, 4 HP) uses 316SS (some configurations 304SS) for wetted components to maximize corrosion resistance.

What are the air requirements?

At 100 psi, typical air consumption is 30 CFM (3/4 HP), 80 CFM (1.5 HP), and 130 CFM (4 HP). Use clean, dry air and size your supply accordingly.

Can I customize shaft and impeller options?

Yes. Choose rod length/diameter, impeller style/length, optional vacuum rating for 100 psi motors, motor style upgrades/downgrades, and alternate tri-clamp sizing. Lead times may apply.

Need Support?

We’ll get you answers fast.

Call 734-855-4890

Specifications

Mount Type:	3" Triclamp
Shaft Length:	32"
Motor Type:	Air Motor
Warranty:	1 Year

Warranty

Warranty Policy

Our products are guaranteed against defective materials and workmanship. We will repair or replace such items as may prove defective as the situation warrants for the convenience of the customer and economy of MixerDIrect, Inc . Warranty period is one year on items manufactured by MixerDirect, Inc.

On items not manufactured by MixerDirect, Inc, the manufacturer’s warranty applies. All component parts of our products are covered by this warranty, except for normal wear items such as belts, bearings, set screws, etc. We cannot be responsible for damage or abuse to equipment caused by improper installation or operation. Warranties can also be voided by unauthorized disassembly of equipment.

For warranty repairs, equipment is returned to MixerDirect, Inc at the customer’s expense – MixerDirect, Inc will repair/replace and return to customer at the expense of MixerDirect, Inc. This warranty is exclusive and is in lieu of all other warranties, whether expressed or implied. MixerDirect, Inc shall not be liable for any other damages, whether consequential, indirect, or incidental, arising from the sale or use of its products.
