Our High Grade Inland 19 Hydrocarbon Vacuum Pump Oil is molecularly distilled for reduced backstreaming, excellent vapor pressure and longer fluid life. Inland 19 is a cost-effective option for vacuum application, mass spectrometers, electron microscopes, UHV Systems, thin film sputtering, and even freeze dry systems. Don't destroy your pumps and other items with low quality oil. Do yourself a favor and buy a high quality oil that will make your pumps last!
|

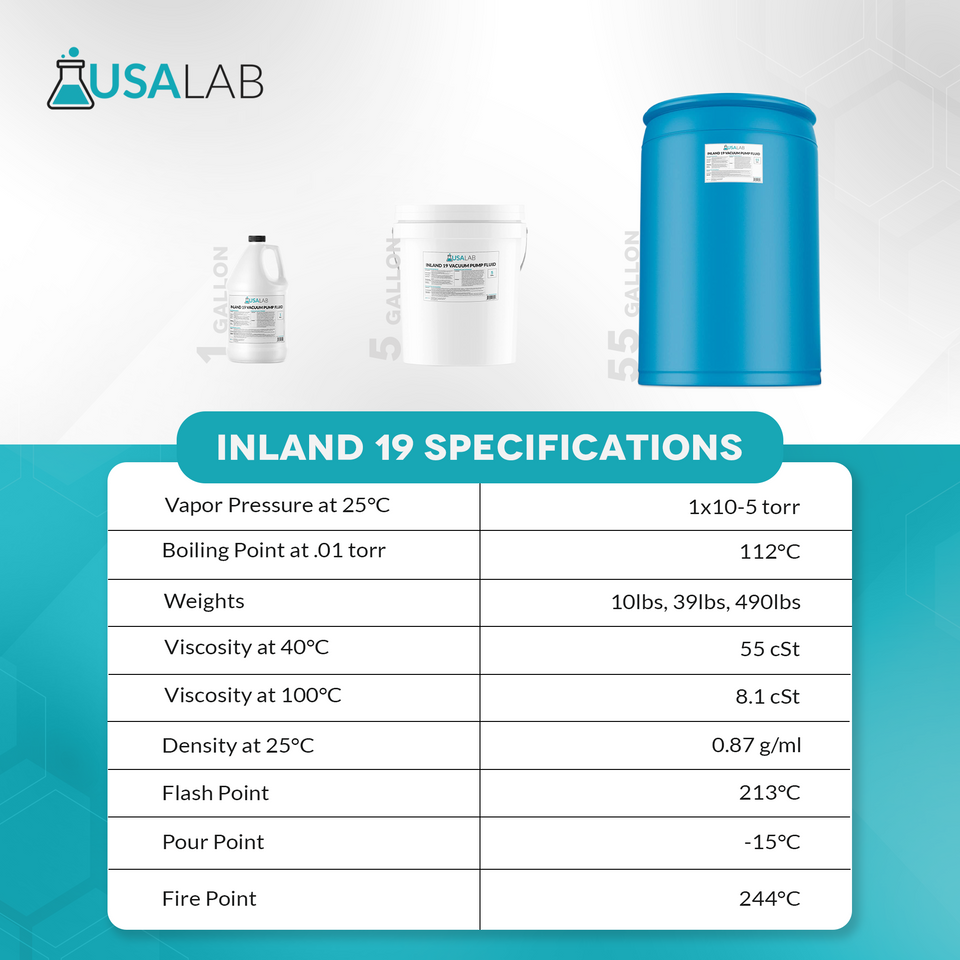

INLAND 19 Specifications |
|
|
Vapor Pressure at 25°C |
1x10-5 torr |
|
Boiling Point at .01 torr |
112°C |
|
Viscosity at 40°C |
55 cSt |
|
Viscosity at 100°C |
8.1 cSt |
|
Pour Point |
-15°C |
|
Flash Point |
213°C |
|
Fire Point |
244°C |
|
Density at 25°C |
0.87 g/ml |
|
Weights |
10lbs, 39lbs, 490lbs |
Inland 19 is Inland Vacuum’s recommended general purpose hydrocarbon fluid for mechanical vacuum pumps used in non-corrosive applications. The manufacturing process of Inland 19 includes molecular distillation, which removes light end fractions present in the fluid and gives it the desired properties: lower vapor pressures, reduced backstreaming, and longer fluid life. As a result, it can be used within the same applications as more expensive diffusion pump oils which would otherwise be contaminated by a vacuum oil of lower grade.
A durable, long-lasting mechanical pump fluid, Inland 19 is cost-effective in vacuum applications such as mass spectrometers, electron microscopes, thin film sputtering, UHV systems, and freeze dry systems. Proper use of this oil effects reduced maintenance costs, improved pumping cycles, and a cleaner vacuum system.
Properties
• Molecularly distilled
• Reduced backstreaming
• Increased fluid life
• Low vapor pressure
Areas of Application
• Mass spectrometry
• Electron microscopy
• Thin film sputtering
• UHV systems
• Freeze dry systems
• Other non-corrosive general applications
INLAND 19 VACUUM PUMP OIL FOR EDWARDS, WELCH, LEYBOLD, AGILENT
Lower cost standard mechanical pump fluid maintaining a higher standard
Inland 19 Pump Oil is an ideal general purpose hydrocarbon fluid for mechanical vacuum pumps used in non-corrosive applications. The manufacturing process of Inland 19 includes molecular distillation, which removes light end fractions present in the fluid.
Benefits of proper fluid selection include longer pump life and less back streaming, which leads to a cleaner vacuum system and increased productivity.
LOW VAPOR PRESSURE
Inland 19 has a low vapor pressure, meaning it exhibits low volatility. This property helps to minimize oil loss due to vaporization, thus reducing the frequency of oil changes and overall maintenance.
CHEMICAL INERTNESS
The Inland 19 Vacuum Pump Oil is chemically inert, making it resistant to oxidation and degradation when exposed to air and other gases. This enhances and contributes to a cleaner vacuum environment.
THERMAL STABILITY
It has excellent thermal stability, allowing it to maintain its properties and performance even at high operating temperatures, which is crucial in vacuum applications that generate heat.
