Description

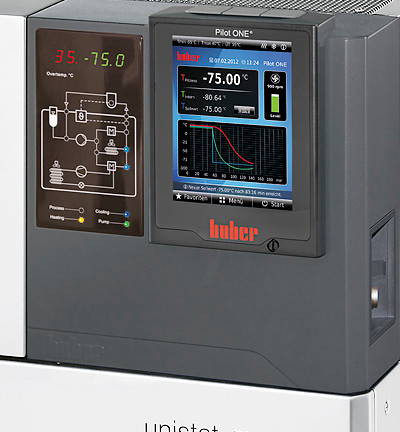

HUBER Unistat T305 with Pilot ONE

(Please Note: There is a 2 - 3 weeks lead time)

The Unistat range inspires with unique thermodynamic properties and a range of functions to meet the highest demands. Unistat technology guarantees precise, reproducible temperature control results, the shortest possible heating and cooling times and large temperature ranges without the need for fluid change. All Unistats are fitted with the innovative

Because Unistats are hydraulically sealed, the service life of the temperature control fluid is dramatically increased by preventing oil loss through vapors and oxidation, further saving resources. Unistats are fitted with extensive safety equipment and are therefore suitable for unsupervised continuous operation. Relevant operating conditions are constantly monitored and the system is switched off if necessary or with the process safety feature the emergency cooling circuit is activated.

*T305 DATA Sheet*

Unistat T305 Specifications
General Information & Temperature Controller
Temperature range	65...300 °C
Temperature stability	±0,02 °C
Temperature control	TAC, self-optimizing (True Adaptive Control)
Controller	Pilot ONE (E-grade "Basic")
Safety class	III / FL
Protection class	IP20
Dimensions (W x D x H)	16.73 x 9.84 x 24.84 inches
Weight	37 kg \| 81.59 pounds
Heating / Cooling Capacity
Heating capacity	4,8 kW
Circulation Pump
Pressure pump max.	45 lpm ; 0.9 bar \| 11.89 gpm ; 13.05 psi
Pump connection	M24x1,5 AG male
Permissible viscosity	50 mm²/s
Connections
Pt100 connection	Pt100
Analogue input	via optional Com.G@te
Analogue output	via optional Com.G@te
Digital interface	RS232, Ethernet, USB Device, USB Host
Operating Data
Permissible ambient temp.	5 to 40 °C
Filling volume min.	1.45 Liters \| 0.38 gal
Volume of expansion	2.8 Liters \| 0.74 gal
Power supply	208V 3~ 60Hz
Current max.	15 A
Fusing	15,5 A

For Technical Support, Questions, or Other Issues Please Email or Call Us!

Specifications

Brand:	HUBER
Temperature Range:	65...300 °C
Temperature Stability:	±0.02 °C
Heating Capacity:	4,8 kW
Pressure pump max:	45 lpm ; 0.9 bar \| 11.89 gpm ; 13.05 psi
Pump Connection:	M24x1,5 AG male
Filling volume min.:	1.45 Liters \| 0.38 gal
Power supply:	208V 3~ 60Hz
Dimensions (W x D x H):	425 x 250 x 631 mm \| 16.73 x 9.84 x 24.84 inches
Weight:	37 kg \| 81.59 pounds

Warranty

WARRANTY:https://www.huber-online.com/en/terms-conditions

"5.0 Warranty

5.1 Defects in the delivered goods, insofar as they can be detected during inspection in the ordinary course of business, shall be notified by us within 10 days of receipt of the goods. Defects which could not be detected during such an inspection shall be notified to us within 10 days of becoming aware of them. To meet the deadline, it is sufficient to send the notice of defects to you.

5.2 We shall be entitled to the statutory warranty claims against you. You shall be liable to us to the extent provided by law, in particular for all damages arising from the breach of a contractual obligation. In the event of subsequent performance, we shall have the exclusive right to choose between rectification of defects and new production/performance.

5.3 The limitation period for our claims and rights due to defects in the deliveries/services - irrespective of the legal grounds - shall be 4 years. This period shall also apply if the claims are not related to a defect. Longer statutory limitation periods shall remain unaffected, as shall the provisions on the commencement of the limitation period, the suspension of the running of the limitation period, the suspension and the recommencement of limitation periods."
